Description

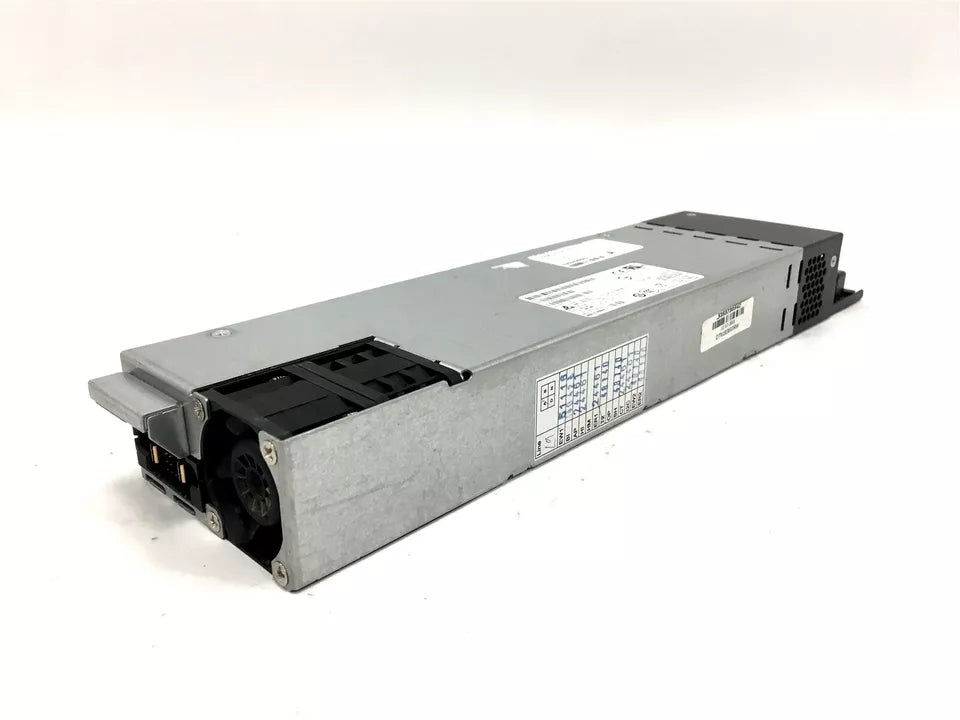

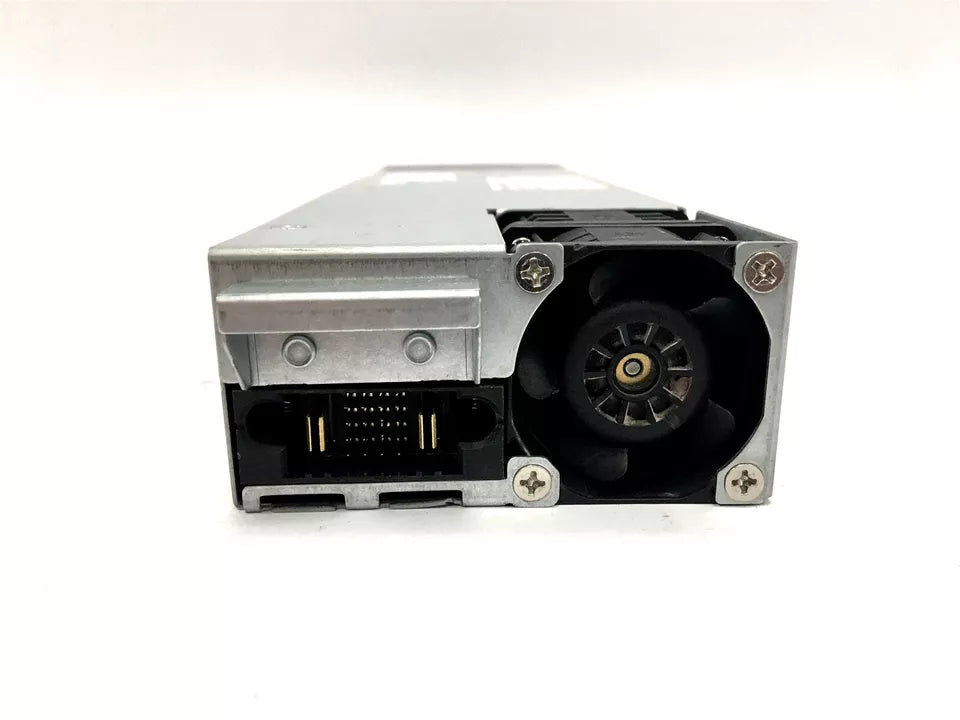

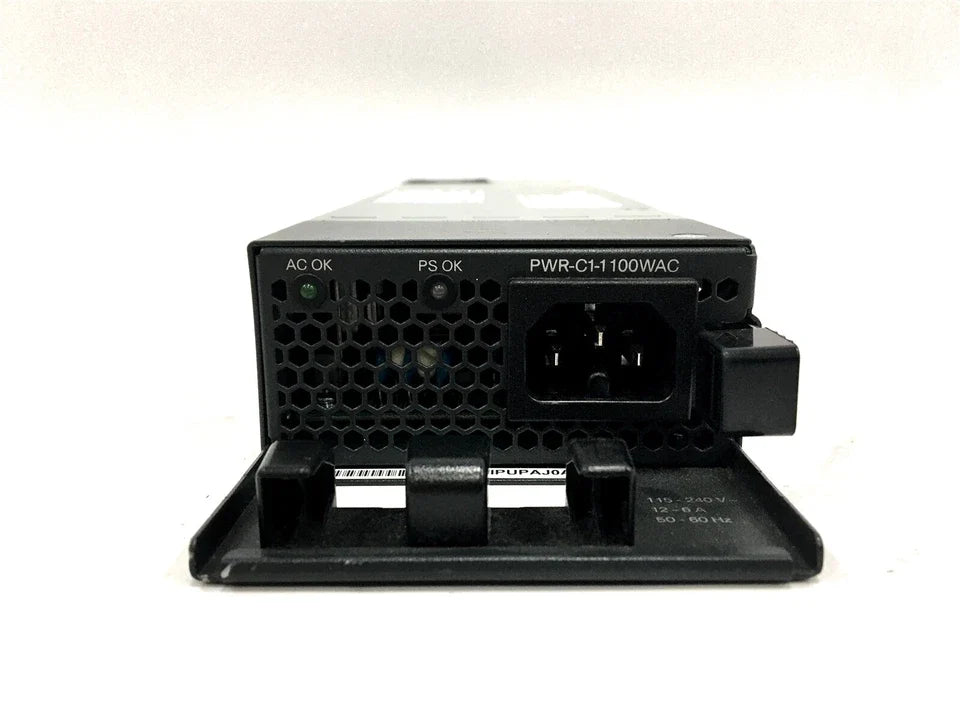

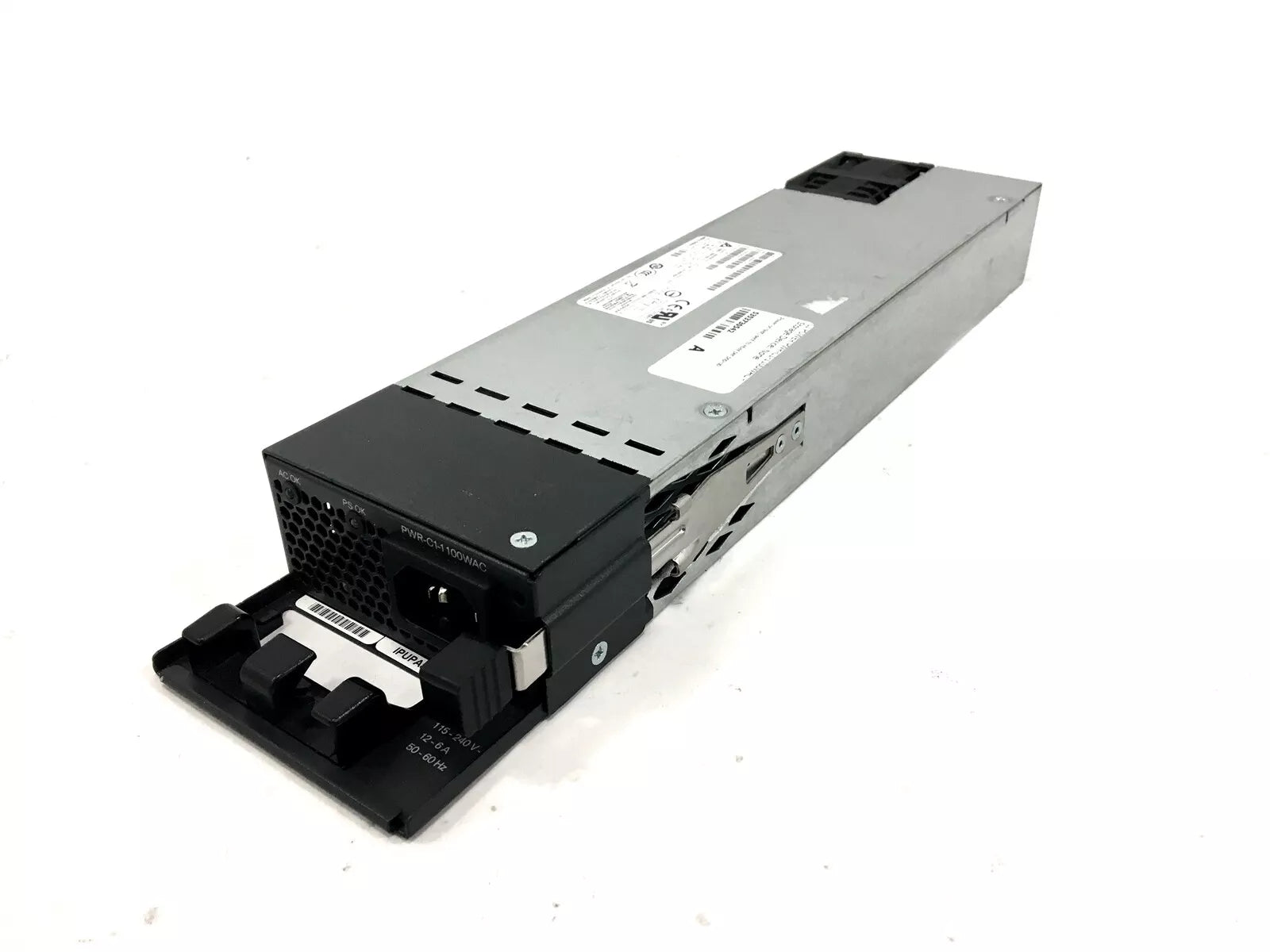

The Cisco PWR-C1-1100WAC-P/2 is a 1100W AC Platinum-rated power supply module designed for Cisco Catalyst 9300 Series switches. It offers high-efficiency power delivery and supports redundant configurations to ensure uninterrupted network operations.





Technical Specifications

Condition	New/Never Used Surplus
Brand	Cisco
Category	Data Communications
Part Number	PWR-C1-1100WAC-P/2
Subcategory	Computer Accessories
Device Type	Power Supply - Hot-plug - Plug-in Module
Input Voltage	AC 115-240 V
Frequency Required	50 - 60 Hz
Output Voltage	-56 V
Power Capacity	1100 Watt
80 Plus Certification	80 Plus Platinum
Weight	1.4 kgs





Information About PWR-C1-1100WAC-P/2

The Cisco PWR-C1-1100WAC-P/2 is a 1100W AC Platinum-rated hot-swappable power supply module designed for Cisco Catalyst 9300 Series switches. It provides high-efficiency power delivery and supports redundant configurations to ensure uninterrupted network operations.

Key Features:

• Maximum Output Power: 1100 W

• Input Voltage Range: 115 to 240 VAC (autoranging), 50–60 Hz

• Output Voltage: –56 V at 19.64 A

• Efficiency: 80 PLUS Platinum certified

• Form Factor: Hot-swappable module with internal cooling fan

• Dimensions (H × W × D): 1.58 × 3.25 × 13.7 in. (40.1 × 82.55 × 348.2 mm)

• Weight: Approximately 3.1 lb (1.4 kg)

• Operating Temperature Range: 23°F to 113°F (–5°C to 45°C)

• Storage Temperature Range: –40°F to 158°F (–40°C to 70°C)

• Relative Humidity: 5% to 90% (non-condensing)

• Altitude: Up to 10,000 ft (3,000 m)

• MTBF: Demonstrated MTBF is 500,000 hours (with 90% confidence level)

• Certifications: UL, CSA, CE

This power supply module is ideal for enterprise environments requiring reliable and efficient power solutions for their network infrastructure.
