Description

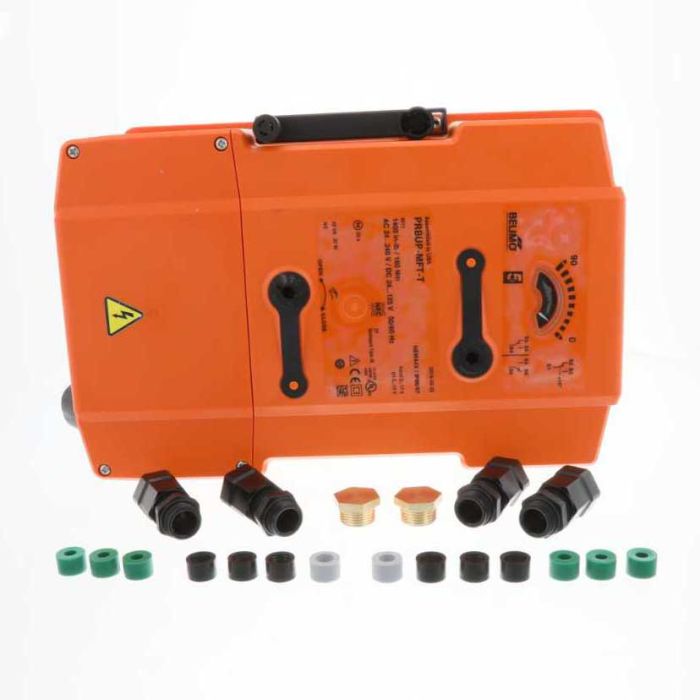

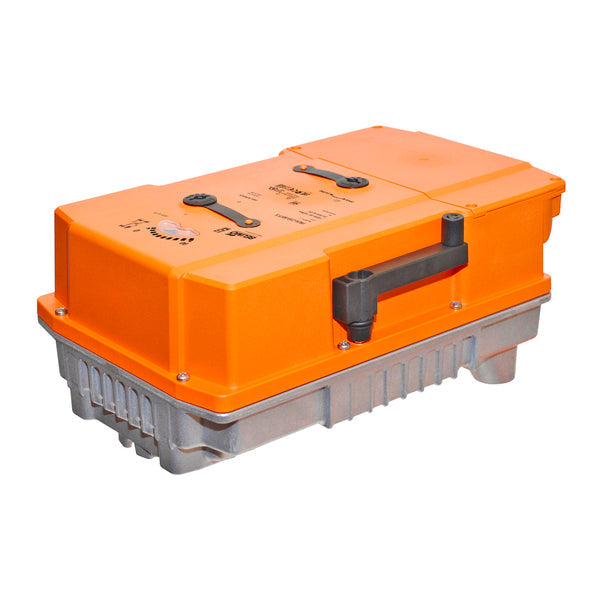

The Belimo PRBUP-MFT-T is a non spring return valve actuator designed for precise and flexible control of large control valves in HVAC and industrial systems. It operates on a wide AC/DC voltage range and features MFT programmable functionality with integrated communication capabilities.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Belimo |
| Category |
Valve Actuators |
| Part Number |
PRBUP-MFT-T |
| Subcategory |
Non-Spring Actuators |
| Actuator Type |
Non fail-safe, MFT programmable |
| Nominal Voltage |
AC 24…240 V / DC 24…125 V |
| Nominal Frequency |
50/60 Hz |
| Voltage Range |
AC 19.2…264 V / DC 19.2…137.5 V |
| Power Consumption (Running) |
24 W |
| Power Consumption (Rest) |
8 W |
| Transformer Sizing |
24 VA @ 24 V / 56 VA @ 240 V |
| Control Signals |
2…10 V, 4…20 mA, On/Off, Floating Point |
| Communication Protocols |
BACnet MS/TP, Modbus RTU, MP-Bus |
| Auxiliary Switches |
2 × SPDT |
| Angle of Rotation |
90° |
| Running Time |
35 s / 90° (adjustable 30…120 s) |
| Manual Override |
7 mm hex crank |
| Electrical Connection |
Terminal blocks with PE ground screw |
| Degree of Protection |
IP66/67, NEMA 4X |
| Ambient Temperature |
-22…122°F (-30…50°C) |
| Weight |
13 lb (6.1 kg) |
Information About PRBUP-MFT-T
The PRBUP-MFT-T is part of Belimo’s high-performance MFT actuator platform engineered for demanding valve control applications requiring flexibility and network integration. It supports analog, digital, and network-based control through BACnet MS/TP, Modbus RTU, and MP-Bus, allowing seamless integration into modern building automation systems. The actuator operates across a broad AC/DC voltage range and includes electronic overload protection to ensure consistent torque throughout the full stroke. Designed with a sealed IP66/67 and NEMA 4X enclosure, it is suitable for harsh mechanical and outdoor environments while remaining maintenance-free.
Key Features
- MFT Programmable Control Platform: Allows configuration for 2…10 V, 4…20 mA, on/off, or floating point control from a single actuator model.
- Wide AC And DC Voltage Operation: Supports AC 24–240 V and DC 24–125 V power supplies, reducing transformer and inventory requirements.
- Integrated Network Communication: Native BACnet MS/TP, Modbus RTU, and MP-Bus enable direct connection to building automation systems.
- Non Spring Return Operation: Maintains the last commanded valve position during power loss for stable and predictable system behavior.
- Dual Auxiliary Switches: Two SPDT switches provide configurable end-position indication and interlocking for system logic.
- Adjustable Actuation Speed: Motor runtime configurable between 30 and 120 seconds per 90° rotation to match application dynamics.
- Rugged Environmental Protection: IP66/67 and NEMA 4X enclosure ratings protect internal components from dust, moisture, and harsh conditions.
The PRBUP-MFT-T delivers the reliability and precision required for flexible, networked valve actuation in commercial and industrial HVAC systems.
