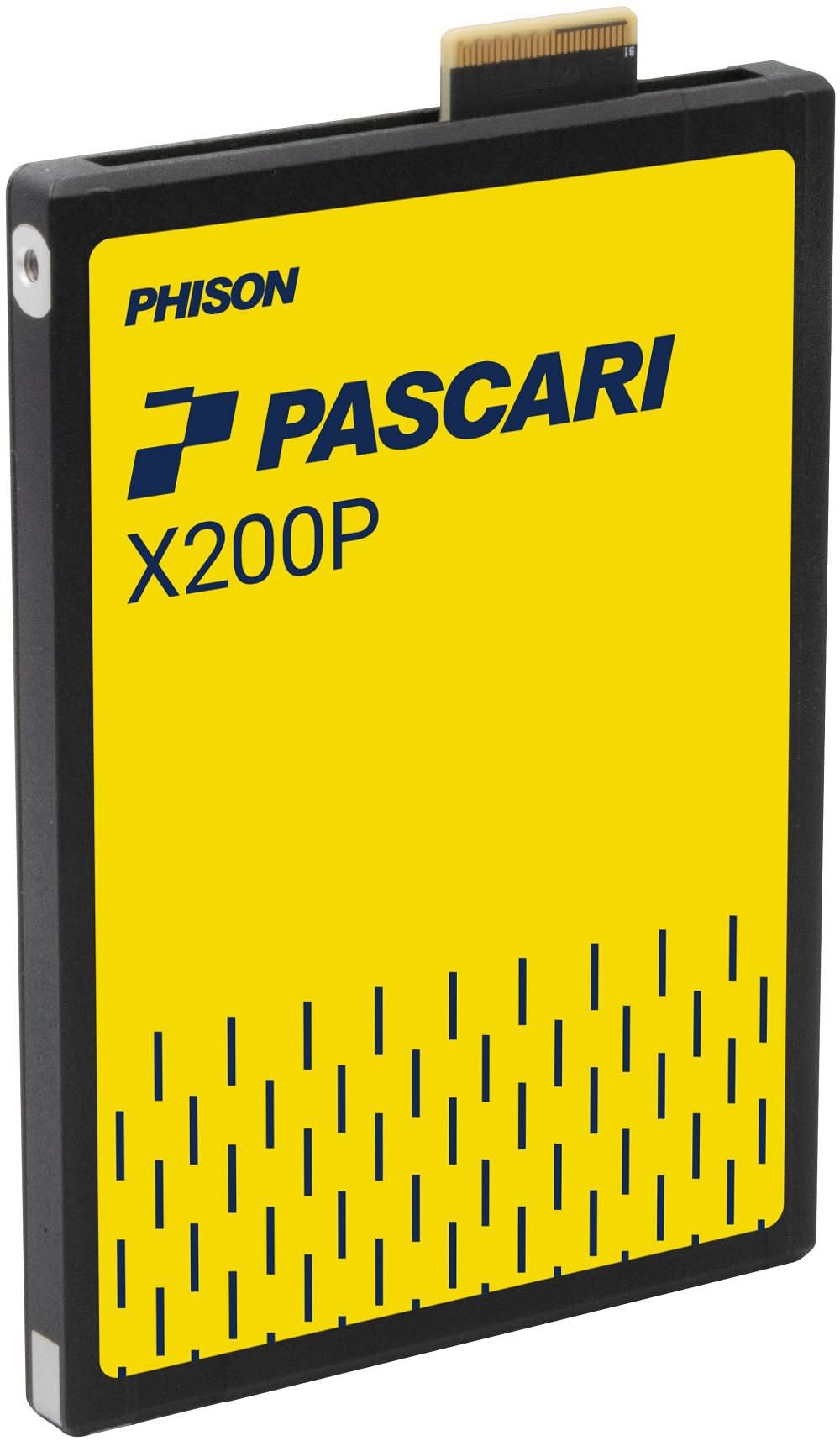

 PHISON XX20DH031T92P312T0410 Pascari X200P 1.92TB E3.S PCIE 5.0 Dual Port ISE SSD

Specifications

Model Number:XX20DH031T92P312T0410

Brand:   PHISON

Alt Part Number(s):XX20DH031T92P312T0410

Product Type: Solid State Drive

Technical Description

Brand:  PHISON

Model:XX20DH031T92P312T0410

Capacities: 1.92 TB

Form Factor: E3.S

Interface: PCIe Gen5x4

Port Configuration: Dual Port 2x2 lanes

Error Reporting: PCIe AER (Advanced Error Reporting)

Compliance: PCIe 5.0, NVMe 2.0, NVMe-MI 1.2, SNIA SFF-TA-1009/1008

Sequential Read: up to 14,800 MB/s

Sequential Write: up to 4,300 MB/s

Random Read: up to 2,400K IOPS

Random Write: up to 140K IOPS

Power Consumption (Active): 17 W (Read), 15 W (Write)

Power Consumption (4KB): 15 W (Read), 16 W (Write), 14 W (70/30 Mix)

Idle Power: 5 W

Endurance (DWPD): 1

Total Bytes Written (TBW): 3.504 TB

MTBF: 2.5 million hours

UBER: < 1 sector per 10^18 bits read

Operating Temperature: 0°C – 70°C (with airflow)

Non-Operating Temperature: -40°C – 85°C

Shock (Operating / Non-operating): 500G / 1000G

Vibration (Operating / Non-operating): 2.17 Grms / 16.3 Grms

Drop: 80 cm, 6 surfaces

Bending: 50 N, 60 s

Certifications: CE, FCC, BSMI, VCCI, UKCA, RCM, ICES, KCC, CB, UL

Environmental Compliance: RoHS compliant

Feature Support: 128 Namespaces, Dual Port, Reservation, Metadata Protection, Thermal Throttling, Power Loss Protection, Hardware AES-XTS 256-bit Encryption, SMBus

*
