Overview

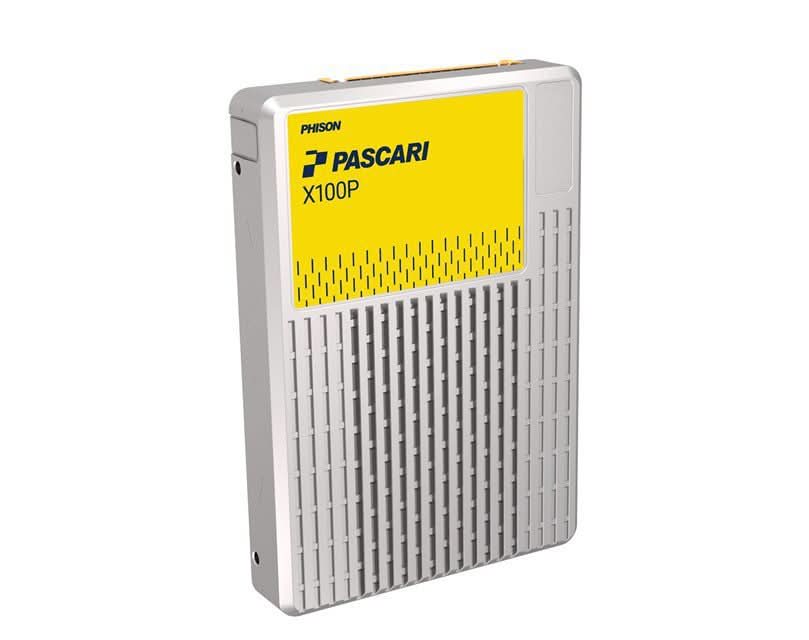

 PHISON XX106H007T68P028T1900 Pascari X100P 7.68TB U.2 Dual Port PCIe Gen4x4 Non-Opal SSD

Specifications

Model Number:XX106H007T68P028T1900

Brand:   PHISON

Alt Part Number(s):XX106H007T68P028T1900

Product Type: Solid State Drive

Technical Description

Brand:  PHISON

Model:XX106H007T68P028T1900

Capacities: 7.68TB

Form Factor: U.2

Security: Non-Opal

PCIe Interface
PCIe Gen4x4
Dual Port x2 lanes
PCIe AER (Advanced Error Reporting)

Performance
Maximum Sequential Read / Write: 7000MB/s / 6800MB/s
Maximum Random Read / Write: 1600KIOPS / 180KIOPS
Sustained Random Read / Write Latency(µs): 100/15(QD=1, Workers=1); 110/300(QD=32, Workers=1); 450/3800(QD=64, Workers=8)
IOPS Consistency: 95%
QoS (Quality of Service, 99%) Read / Write: 100/12(QD=1, Workers=1); 130/200(QD=32 Workers=1); 600/3200(QD=64, Workers=8)

Power Consumption
Random Read/Write (Typ): 15.7/17.4 W
Sequential Read/Write (Typ): 11.6/19.1 W
Inrush Current: 1.5A
Idle Power (Typ): 5.75 W

DWPD: 1DWPD

TBW: 14.02TB

LBAF: 512 / 512+8 / 4K / 4K+8 / 4K+64 Bytes

MTBF: 2,500,000 hours

UBER (Uncorrectable Bit Error Rate): < 1 sector per 10^18 bits read

Advanced Flash Management
ECC
Static and Dynamic Wear Leveling
Bad Block Management
Deallocate (TRIM) Command
SMART
Over-Provision
Firmware Upgrade

Temperature Range
Operation: 0 °C - 70 °C with specified airflow
Storage: -40 °C - 85 °C

RoHS: Compliant

Enterprise Features Support List
Namespace
Dual Port
Reservation
Metadata Protection
Thermal throttling
Power Loss Protection
Hardware AES-XTS 256-bit Encryption

Support SMBus

Support NVMe-MI (Management Interface)

Data Retention: 3 months

Compliance
PCIe Express Base 4.0
NVMe 1.4
NVMe Management Interface Rev 1.1

*
