Overview

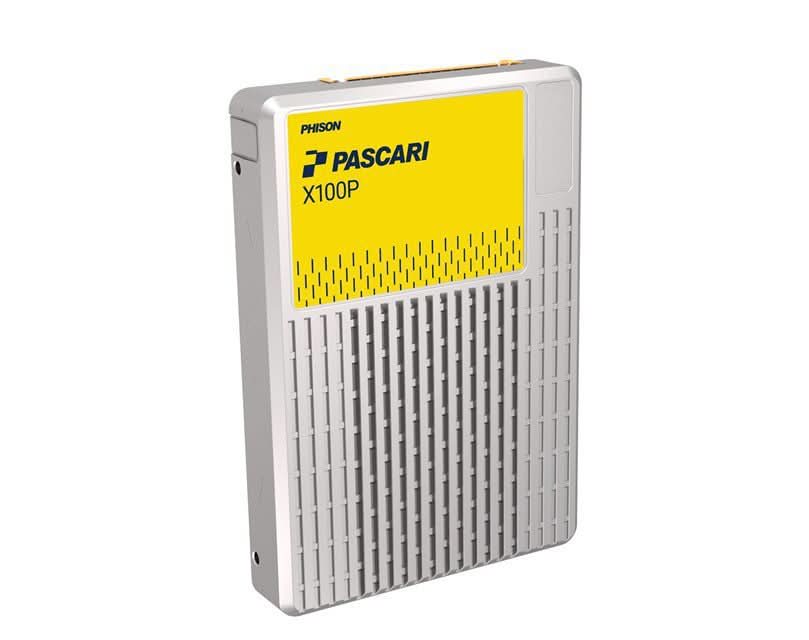

 PHISON XX106H001T92P222T0400 Pascari X100P 1.92TB U.2 Dual Port PCIe Gen4x4 Opal Security SSD

Specifications

Model Number:XX106H001T92P222T0400

Brand:   PHISON

Alt Part Number(s):XX106H001T92P222T0400

Product Type: Solid State Drive

Technical Description

Brand:  PHISON

Model:XX106H001T92P222T0400

Capacity 1.92TB

Form Factor U.2

Security Opal

PCIe Interface PCIe Gen4x4

Port Configuration Dual Port x2 lanes

PCIe AER Advanced Error Reporting

Sequential Read / Write (128KB, QD=32, Workers=1) 7000MB/s / 3500MB/s

Random Read / Write (4K, QD=64, Workers=8) 1600K IOPS / 95K IOPS

Latency (4K Sustained Random Read / Write) 110/15µs (QD=1, Workers=1); 120/400µs (QD=32, Workers=1); 450/5000µs (QD=64, Workers=8)

IOPS Consistency 95%

QoS Read / Write (99%) 100/12µs (QD=1, Workers=1); 160/350µs (QD=32, Workers=1); 1000/5700µs (QD=64, Workers=8)

Power Consumption - Random Read / Write (Typical) 12.4W / 11.9W

Power Consumption - Sequential Read / Write (Typical) 10.1W / 12.8W

Inrush Current 1.5A

Idle Power (Typical) 5.46W

DWPD 1DWPD

TBW 3504TB

LBAF 512 / 512+8 / 4K / 4K+8 / 4K+64 Bytes

MTBF 2,500,000 hours

UBER < 1 sector per 10^18 bits read

Advanced Flash Management ECC, Static and Dynamic Wear Leveling, Bad Block Management, Deallocate (TRIM) Command, SMART, Over-Provision, Firmware Upgrade

Operating Temperature 0°C – 70°C with specified airflow

Storage Temperature -40°C – 85°C

RoHS Compliance Yes

Namespace Support Yes

Dual Port Supported

Reservation Supported

Metadata Protection Supported

Thermal Throttling Supported

Power Loss Protection Supported

Hardware Encryption AES-XTS 256-bit

SMBus Support Yes

NVMe-MI Support Yes

Data Retention 3 months

Compliance PCIe Express Base 4.0, NVMe 1.4, NVMe Management Interface Rev 1.1

*
