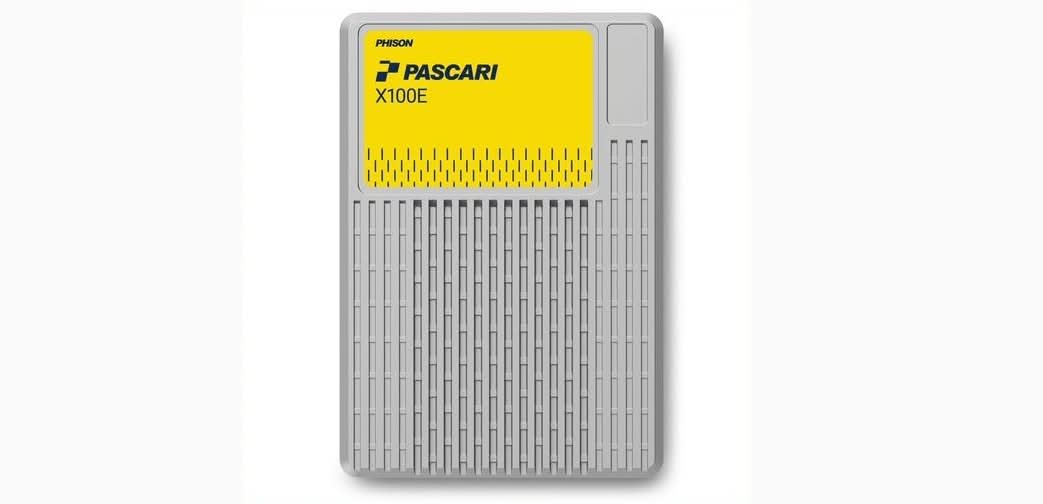

PHISON XP106H013T20E224T0900 Pascari X100E 3.2TB U.2 Single Port PCIe Gen4x4 SED SSD
Specifications
Model Number:XP106H013T20E224T0900
Brand: PHISON
Alt Part Number(s):XP106H013T20E224T0900
Product Type: Solid State Drive
Technical Description
Brand: PHISON
Model:XP106H013T20E224T0900
Capacity: 3.2TB
Security: SED
Form Factor: U.2
Interface: PCIe Gen4x4, Single Port x4
Advanced Features: AER, Power Loss Protection, Thermal Throttling, SMBus
Compliance: PCIe 4.0, NVMe 1.4, NVMe-MI 1.1, SFF-8639, SFF-TA-1001
Performance - Sequential Read/Write: 7,400 / 6,900 MB/s
Performance - Random Read/Write: 1,750K / 460K IOPS
Power - Read/Write (Avg): 11W / 18W
Power - Random R/W (Avg): 14W / 16W
Power - Mixed 70/30 (Avg): 15W
Power - Idle (Avg): 5.8W
Endurance: 3 DWPD, 17.52TBW
Reliability: 2.5M hrs MTBF, <1 sector per 10^18 bits read
Temperature (Operating): 0°C to 70°C
Temperature (Non-operating): -40°C to 85°C
Shock (Operating/Non-operating): 500G / 1000G
Vibration (Operating/Non-operating): 2.17 / 16.3 Grms
Drop Resistance: 80cm
Bending Resistance: 50N
Certifications: CE, FCC, BSMI, VCCI, UKCA, RCM, ICES, KCC, CB, UL
RoHS Compliant
LBA Formats: 512B, 4K, Metadata options
Namespaces Supported: 64
Encryption: AES-XTS 256-bit
Reservation & Metadata Support: Yes
*
