Overview

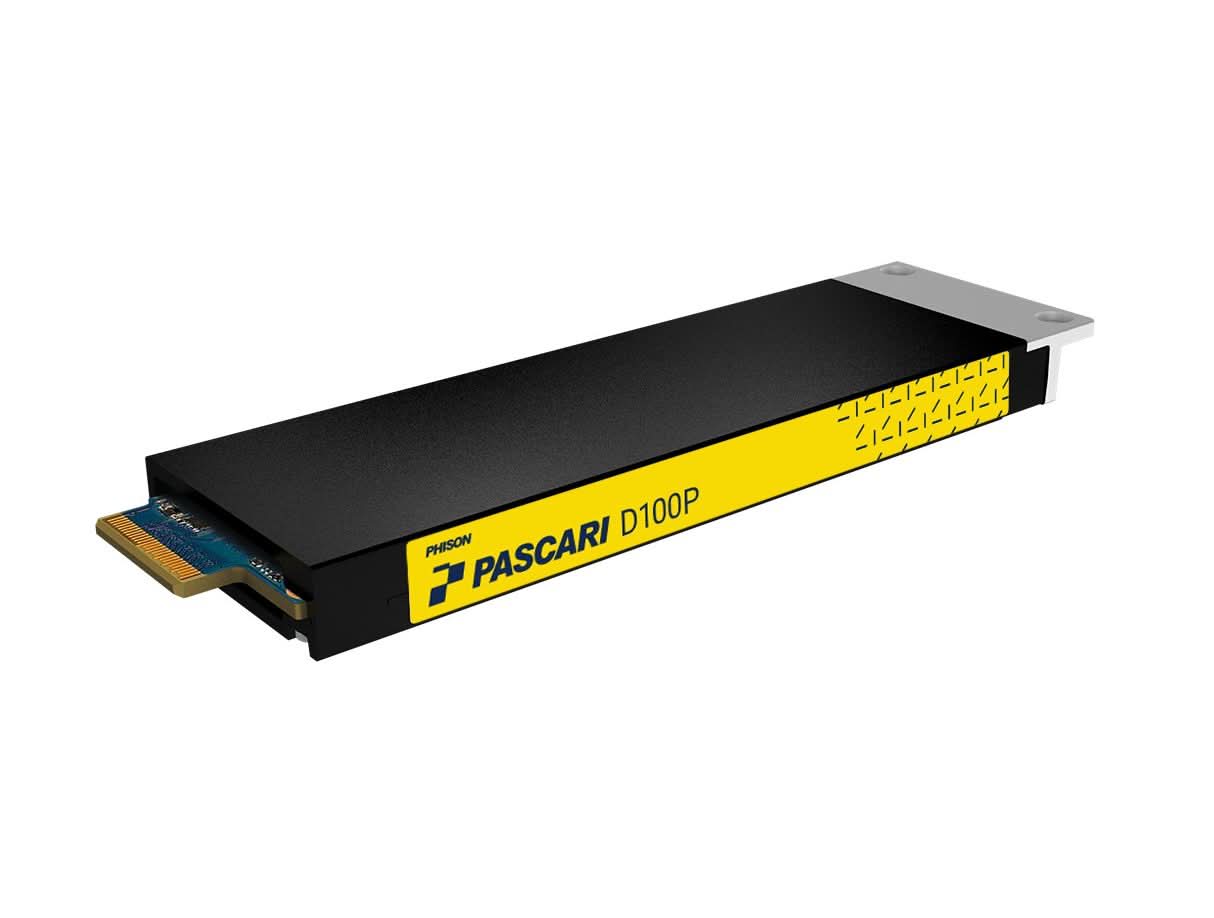

PHISON D180AK021T92P012T0400 Pascari D100P is a 1.92TB E1.S data center solid state drive built for PCIe Gen4 performance. It delivers up to 6800 MB/s read and 2000 MB/s write speeds with NVMe 1.4 support and high 4K random read performance up to 900K IOPS.
Specifications
Model Number:D180AK021T92P012T0400
Brand: PHISON
Alt Part Number(s):D180AK021T92P012T0400
Product Type: Solid State Drive
Technical Description
Brand: PHISON
Model:D180AK021T92P012T0400
Form Factor: E1.S
Capacity: 1.92TB
Interface: PCIe 4.0 x4
NVMe: 1.4
NAND Flash: 3D TLC
Sequential Read (MB/s): 6,800
Sequential Write (MB/s): 2,000
4K Random Read (IOPS): 900K
4K Random Write (IOPS): 60K
Read Latency (Typ., µs): 75
Write Latency (Typ., µs): 25
Active Power Consumption (W): 11.9
Idle Power Consumption (W): 4.2
DWPD: 1
UBER: < 1 sector per 10^17 bits read
MTBF (million hours): 2
Operating Temp. (°C): 0 - 70
Non-Operating Temp. (°C): -40 - 85
*
