Overview

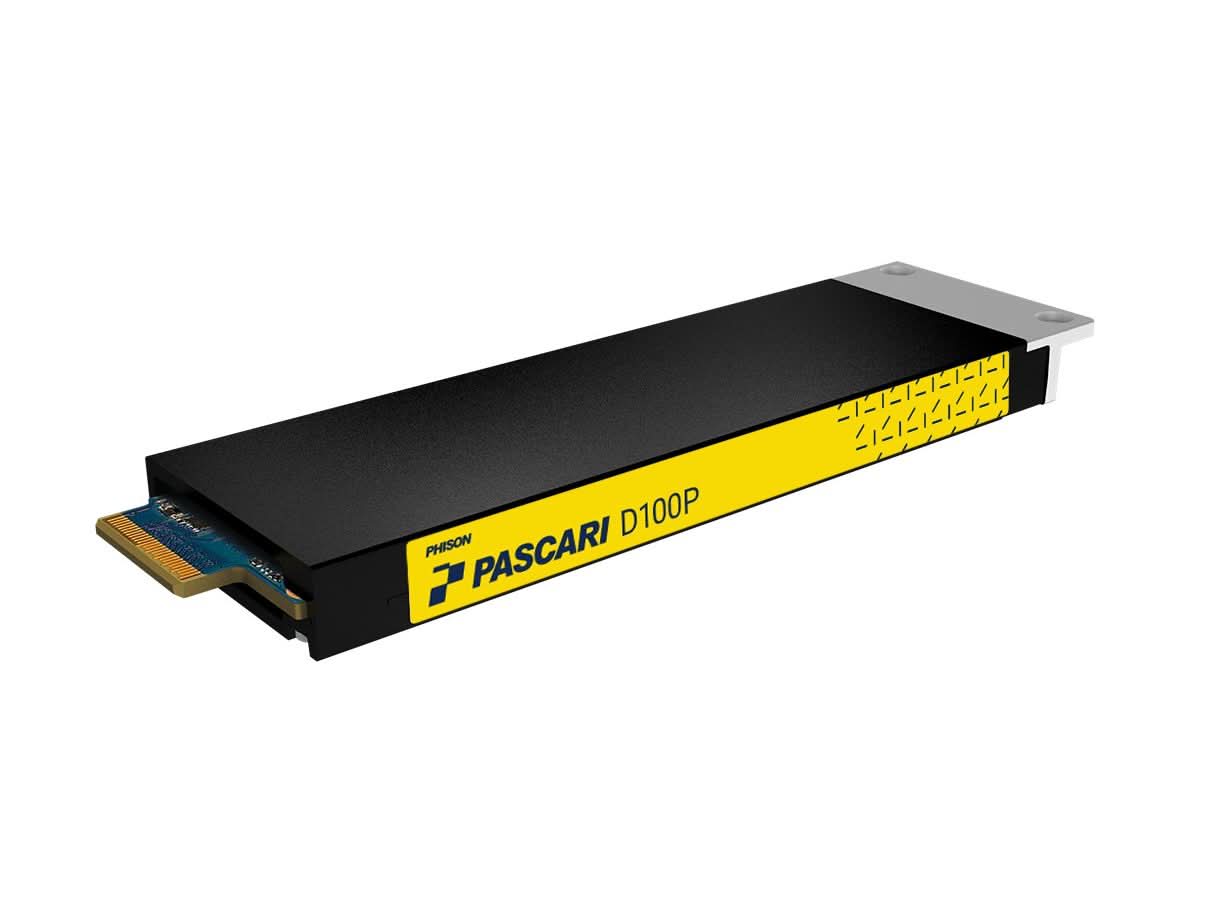

PHISON D180AK01480GP01512G00 Pascari D100P is a 480GB E1.S data center solid state drive optimized for PCIe Gen4 performance. It delivers up to 6500 MB/s read and 700 MB/s write speeds with NVMe 1.4 support and up to 450K IOPS 4K random read performance.
Specifications
Model Number:D180AK01480GP01512G00
Brand: PHISON
Alt Part Number(s):D180AK01480GP01512G00
Product Type: Solid State Drive
Technical Description
Brand: PHISON
Model:D180AK01480GP01512G00
Form Factor: E1.S
Capacity: 480 GB
Interface: PCIe 4.0 x4
NVMe: 1.4
NAND Flash: 3D TLC
Sequential Read (MB/s): 6,500
Sequential Write (MB/s): 700
4K Random Read (IOPS): 450K
4K Random Write (IOPS): 25K
Read Latency (Typ., µs): 75
Write Latency (Typ., µs): 40
Active Power Consumption (W): 8.4
Idle Power Consumption (W): 4
DWPD: 1
UBER: < 1 sector per 10^17 bits read
MTBF (million hours): 2
Operating Temp. (°C): 0 - 70
Non-Operating Temp. (°C): -40 - 85
*
