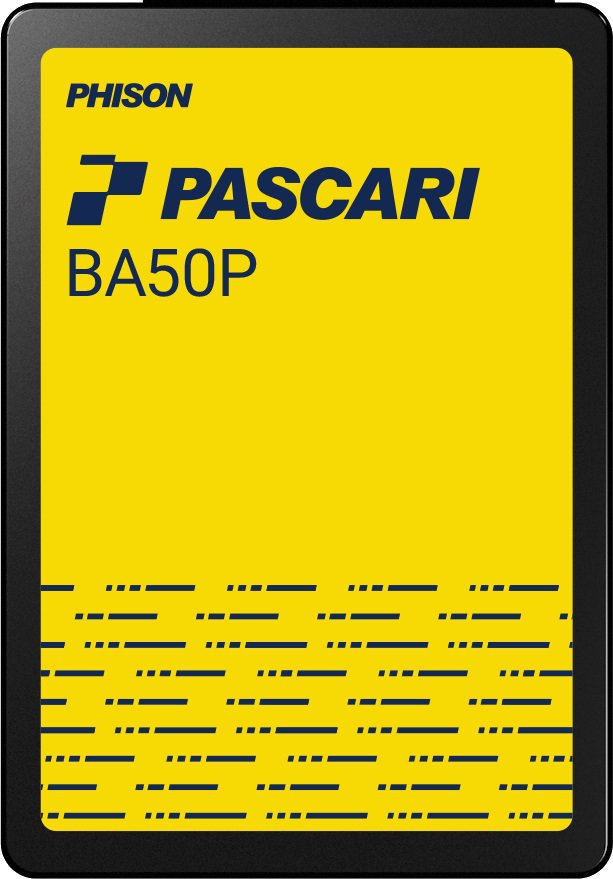

PHISON B1201K01240GP02256G00 is a 240 GB 2.5" SATA SSD from the Pascari BA50P series, designed for reliable enterprise storage with moderate performance. It delivers up to 530 MB/s sequential read, 290 MB/s sequential write, up to 60K IOPS random read, 10K IOPS random write, supports 1 DWPD endurance, and includes features like hardware power-loss protection and TCG Opal 2.0 encryption.



Specifications

Model Number:  B1201K01240GP02256G00

Brand: PHISON

Alt Part Number(s):  B1201K01240GP02256G00

Product Type:  Solid State Drive



Technical Description

Brand:  PHISON

Model:  B1201K01240GP02256G00

Series:   Pascari BA50P

Capacity: 240 GB

Form Factor: 2.5" SSD

SATA Interface: SATA Gen3

Compliance: Serial ATA Revision 3.2

Sequential Read: up to 530 MB/s

Sequential Write: up to 290 MB/s

Random Read: up to 60K IOPS

Random Write: up to 10K IOPS

128K Active Read (Avg. RMS, W): 2.0 W

128K Write (Avg. RMS, W): 2.3 W

4KB Active Read (Avg. RMS, W): 1.8 W

4KB Active Write (Avg. RMS, W): 2.2 W

4KB 70/30 Random Read/Write (Avg. RMS, W): 2.0 W

Idle Power (W): 1.2

MTBF: 2.0 million hours

UBER: < 1 sector per 10^17 bits read

DWPD: 1

TBW: 438 TB

Operating Temperature (°C): 0 - 70

Non-Operating Temperature (°C): -40 - 85

Shock (Operating): 1000G, 0.5ms

Shock (Non-Operating): 1500G, 0.5ms

Vibration (Operating): 3.08 Grms (7 - 800 Hz)

Vibration (Non-Operating): 20G (20 - 2000 Hz)

Drop: 80 cm height

Bending: 50 N force

Certifications and Declarations: CE; FCC; BSMI; VCCI; UKCA; RCM; ICES; KCC; CB; UL

Compliant: RoHS compliant

Feature Support: Hardware Based Power Loss Data Protection; Thermal throttling; End-to-End Data Path Protection; TCG Opal 2.0
