Description

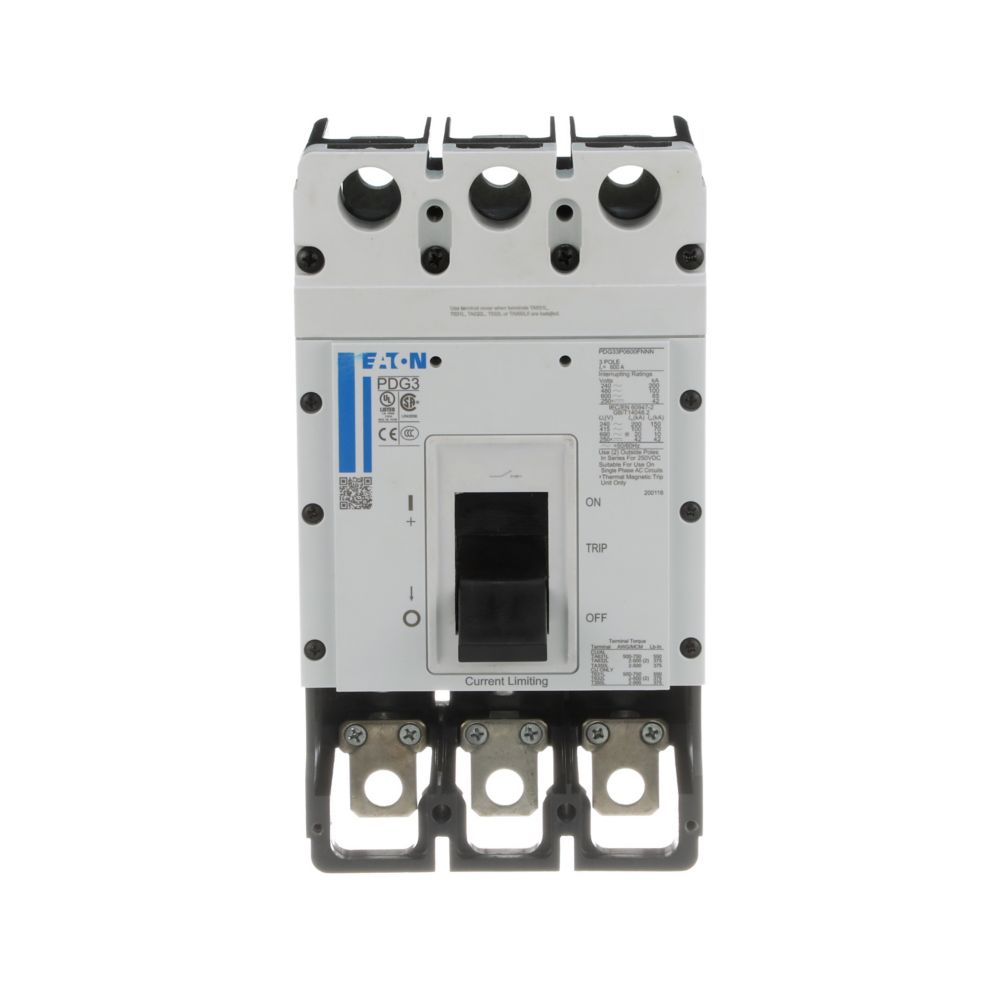

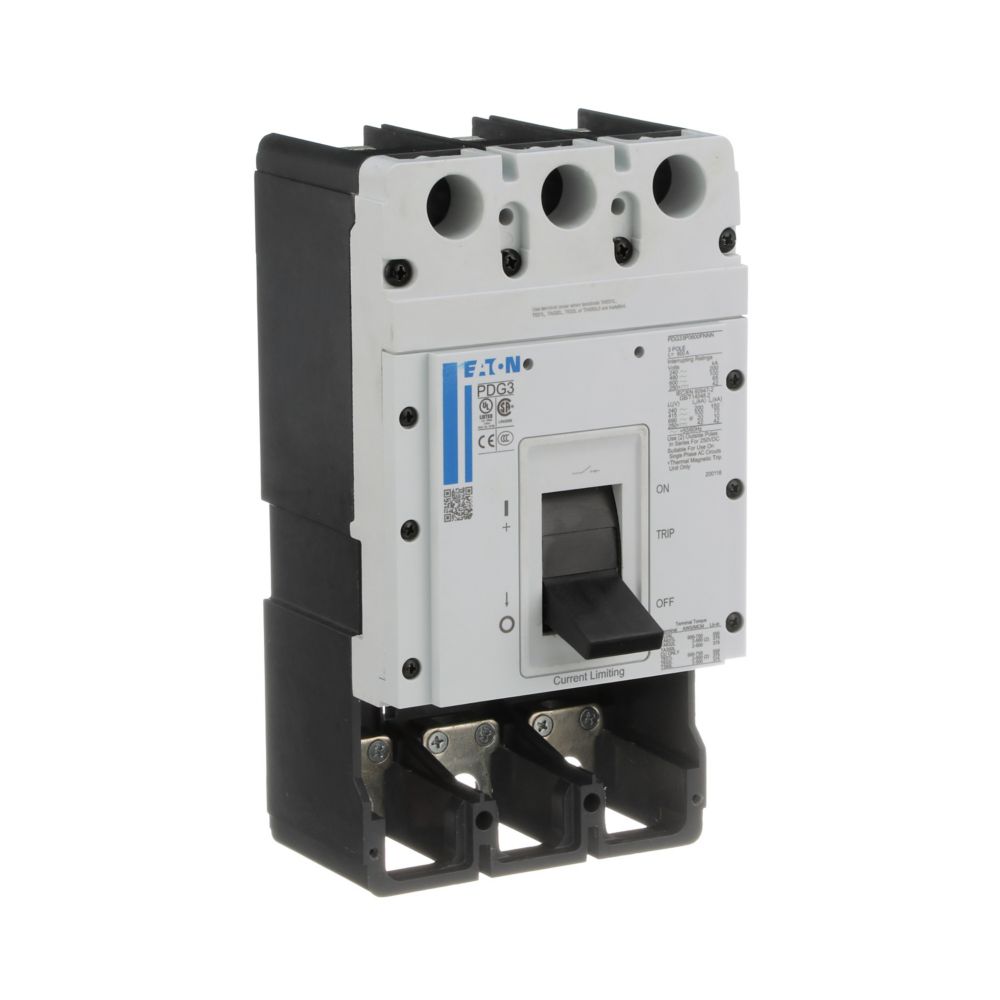

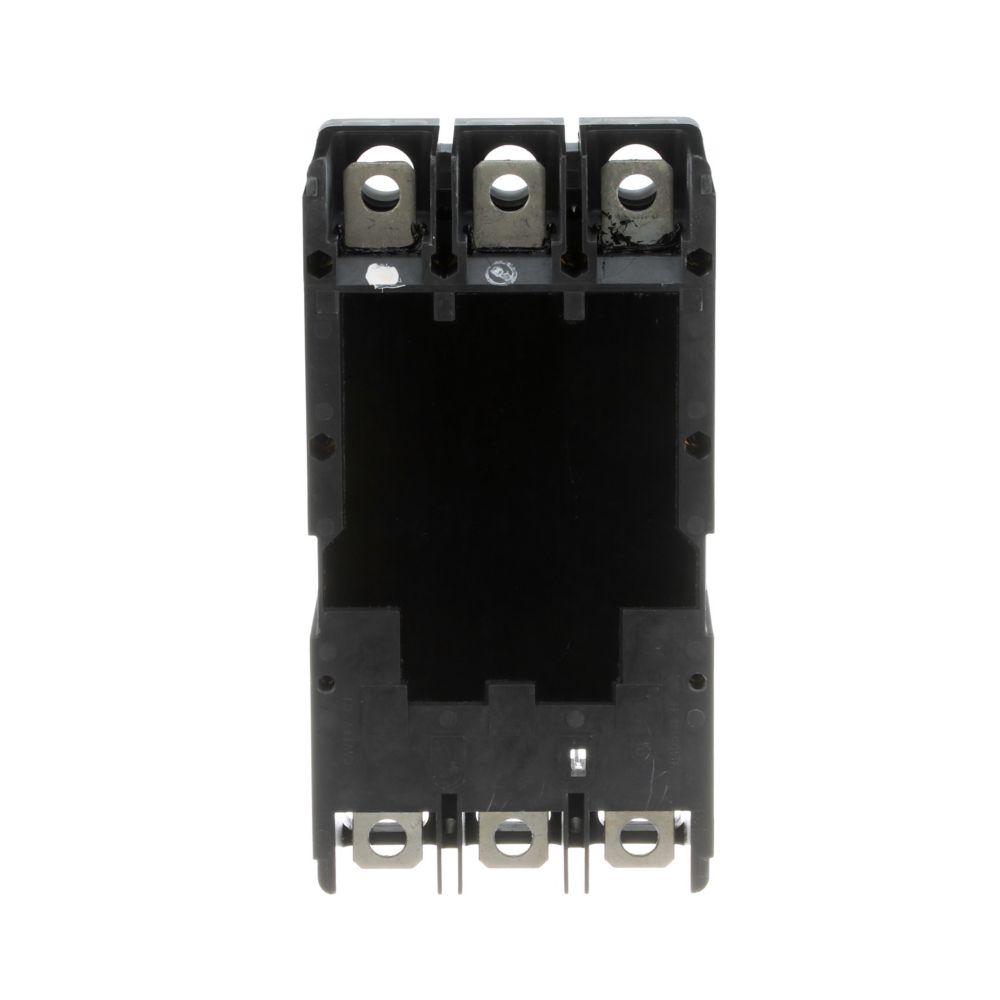

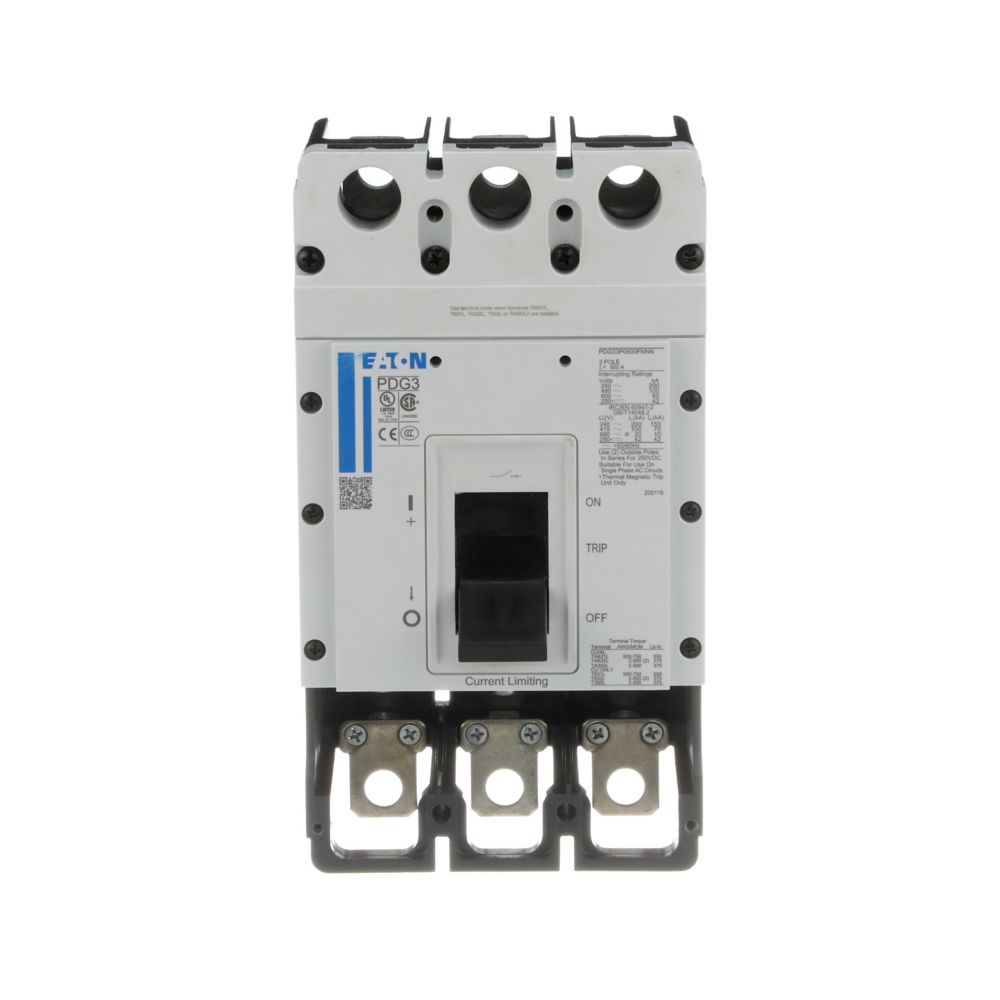

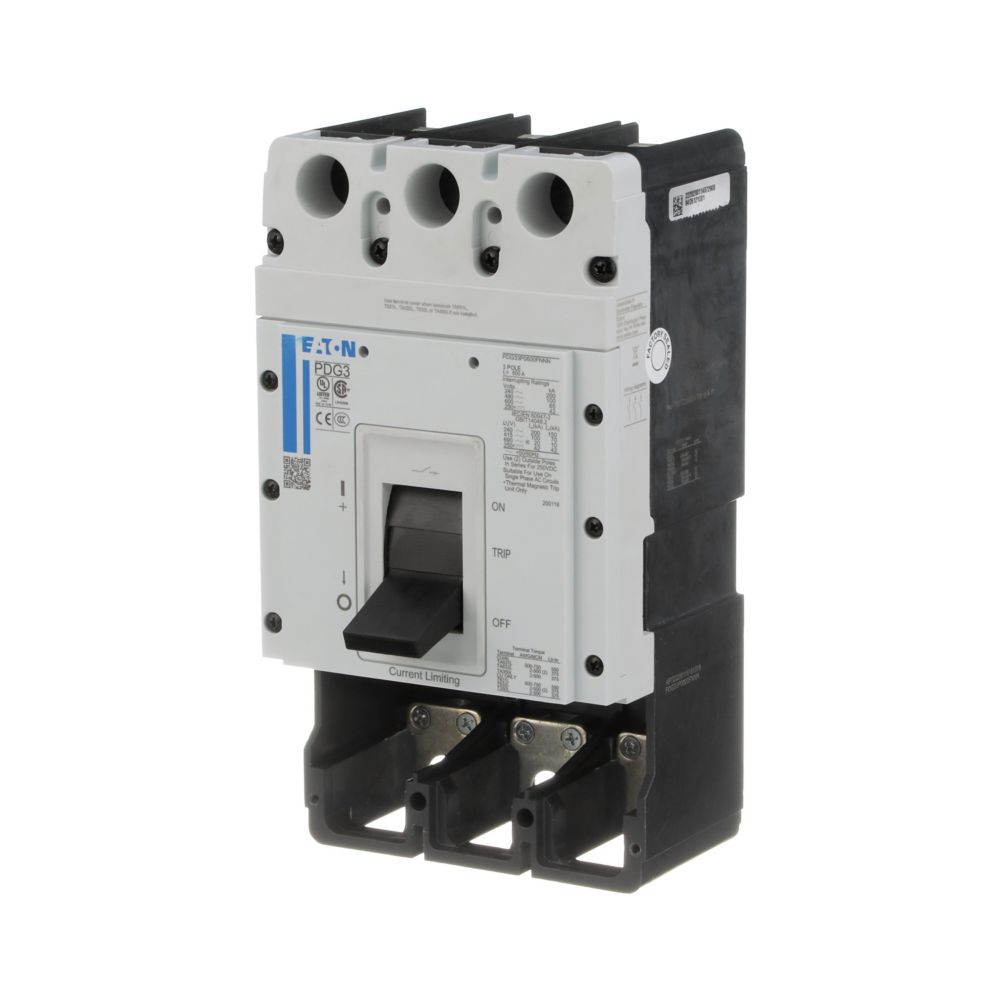

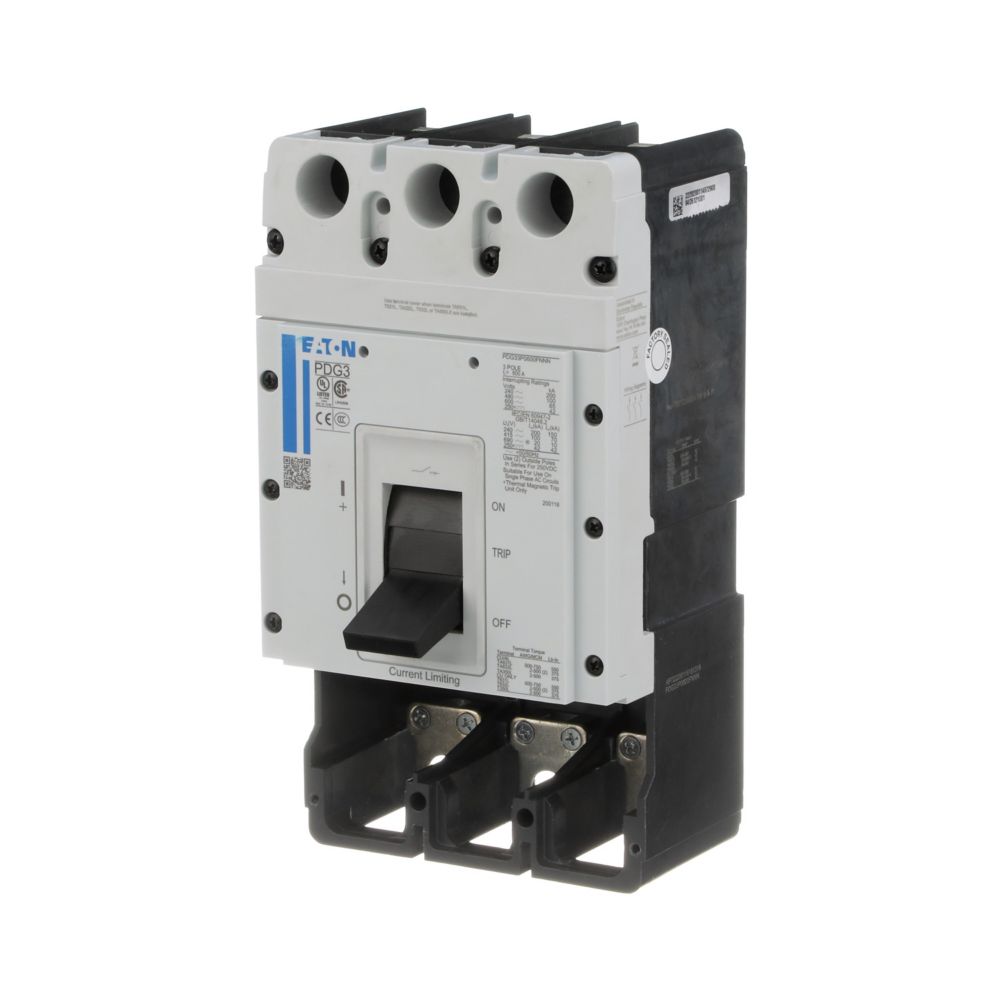

The Eaton PDG33M0600FNNN is a Power Defense molded case circuit breaker frame designed to support high-capacity protection systems in industrial electrical distribution equipment. This Eaton part number PDG33M0600FNNN provides a 600 A frame rating and a three-pole configuration suitable for installations operating up to 600 Vac. Engineered as a frame-only component within the Power Defense platform, it serves as the structural base for compatible trip units and accessories.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Eaton |
| Category |
Circuit Breaker |
| Part Number |
PDG33M0600FNNN |
| Subcategory |
Molded Case Circuit Breaker |
| Product Type |
Molded Case Circuit Breaker Frame |
| Series |
Power Defense |
| Circuit Breaker Type |
PD3 Global |
| Frame Size |
Frame 3 |
| Circuit Breaker Frame Type |
Frame Only |
| Number of Poles |
Three-pole |
| Amperage Rating |
600 A Frame |
| Voltage Rating |
600 Vac |
| Interrupt Rating |
65 kAIC @ 480 Vac |
| Interrupt Rating (240V) |
100 kAIC @ 240 V (UL) |
| DC Interrupt Rating |
22 kAIC @ 250 Vdc |
| Terminals |
No Terminals |
| Compliance |
RoHS Compliant |
| Certifications |
UL 489, CSA, IEC 60947-2, CCC |
| Dimensions (L × W × H) |
109.1 mm × 138.9 mm × 257.1 mm |
| Weight |
5.40 kg |
Information About PDG33M0600FNNN
The PDG33M0600FNNN is a Frame 3 molded case circuit breaker component from Eaton’s Power Defense PD3 Global series. It functions as the mechanical and electrical frame housing used to assemble a complete breaker system with compatible trip units and accessories. Designed for heavy-duty power distribution environments, it supports three-phase electrical systems and integrates into panelboards, switchboards, and industrial switchgear assemblies. Certified to UL, CSA, IEC, and CCC standards and compliant with RoHS requirements, it provides a globally approved platform for building advanced circuit protection systems.
Key Features:
- Power Defense PD3 Global Platform: Built within Eaton’s advanced MCCB platform for modern industrial protection systems.
- 600 Amp Frame Capacity: Supports breaker assemblies rated up to 600 A for high-load electrical distribution.
- Frame-Only Breaker Design: Provides the structural base for installation of compatible electronic or thermal trip units.
- Three-Pole Configuration: Designed for three-phase industrial power distribution applications.
- High Interrupt Capability Support: Compatible with systems rated up to 65 kAIC at 480 Vac and 100 kAIC at 240 V.
- Frame 3 Construction: Durable mechanical design intended for demanding industrial switchgear environments.
- Global Certification Compliance: UL, CSA, IEC 60947-2, and CCC approvals for international installation standards.
- RoHS Compliant Design: Manufactured in accordance with environmental compliance requirements.
The PDG33M0600FNNN delivers the reliability and precision required for building modular molded case circuit breaker systems in industrial electrical distribution networks.
