Description

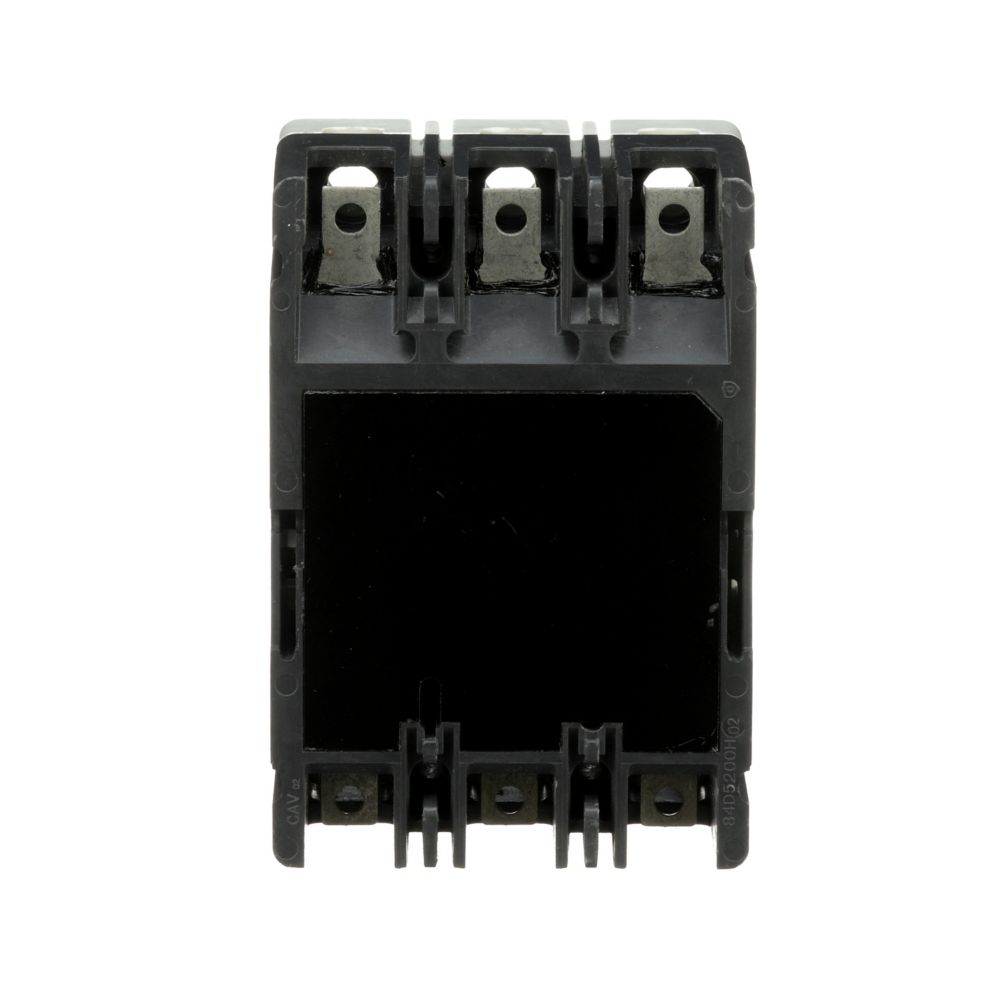

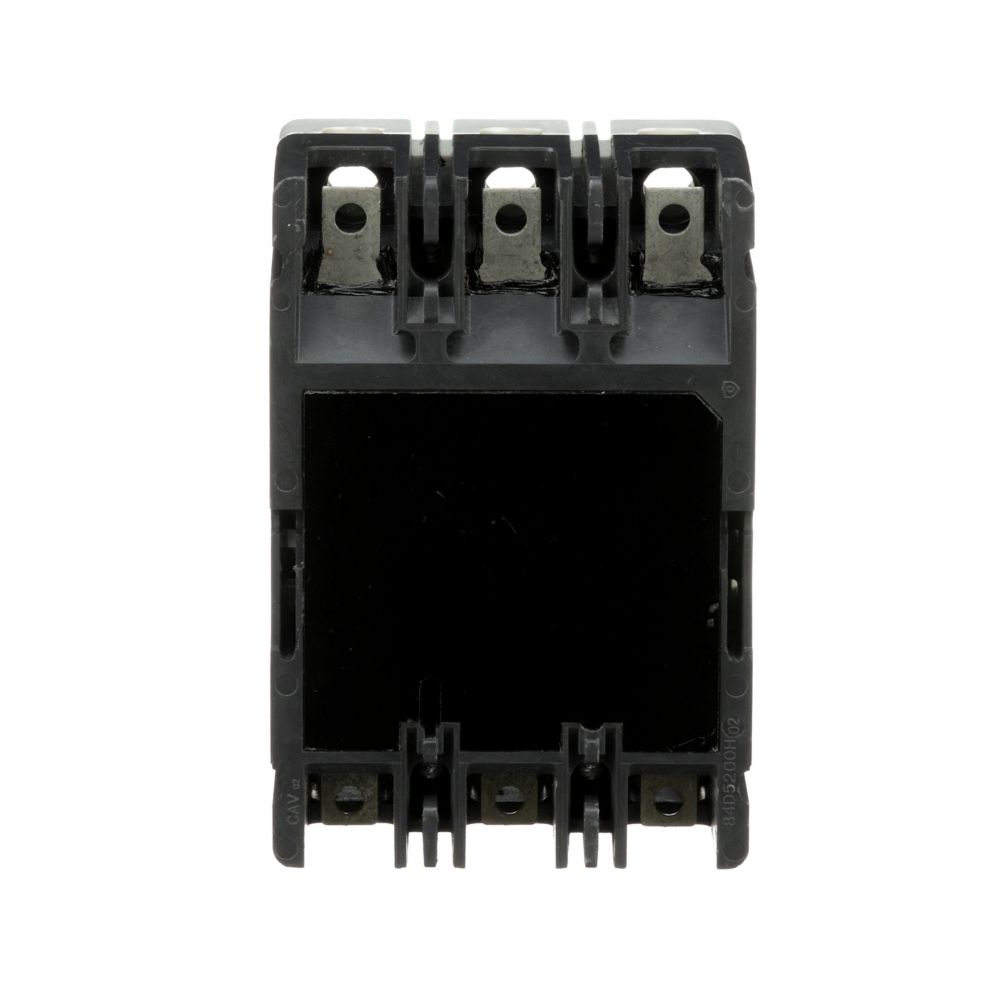

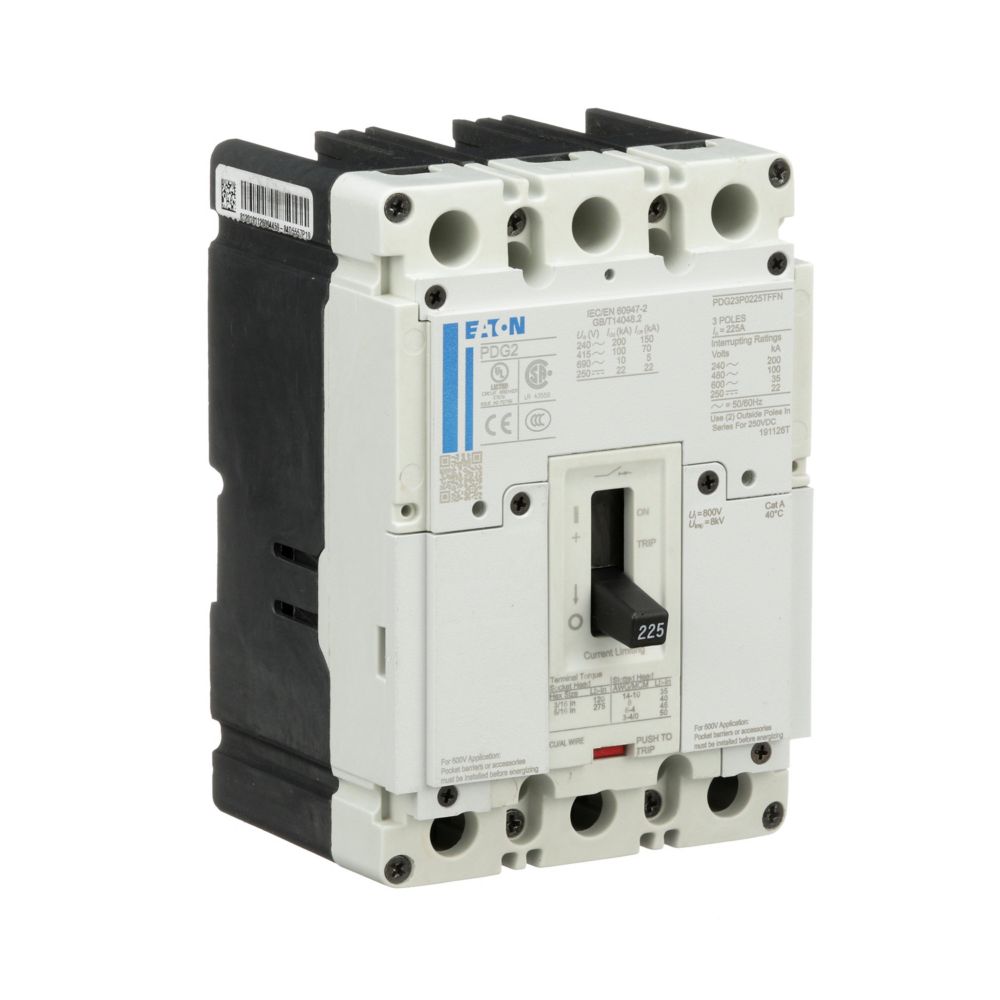

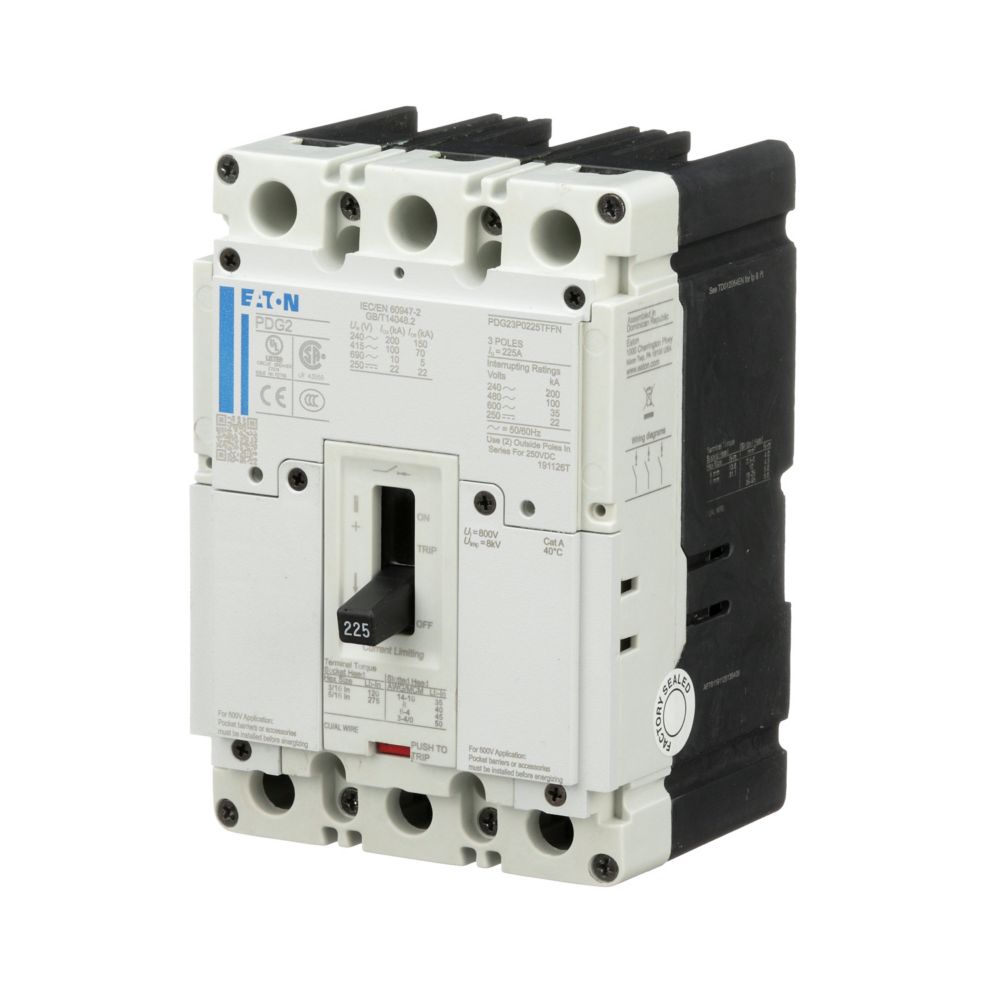

The Eaton PDG23M0150TFFL is a Power Defense molded case circuit breaker engineered to provide reliable overcurrent protection in industrial and commercial electrical distribution systems. This Eaton part number PDG23M0150TFFL features a 150 A rating, three-pole configuration, and operates at up to 600 Vac. Designed with advanced trip technology and high interrupting capacity, it ensures dependable protection for critical electrical circuits.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Eaton |
| Category |
Circuit Protection |
| Part Number |
PDG23M0150TFFL |
| Subcategory |
Molded Case Circuit Breaker |
| Product Type |
Power Defense Molded Case Circuit Breaker |
| Series |
Power Defense |
| Circuit Breaker Type |
PD2 Global |
| Frame Size |
Frame 2 |
| Number of Poles |
Three-pole |
| Amperage Rating |
150 A |
| Voltage Rating |
600 Vac |
| Trip Type |
T298 |
| Interrupt Rating |
65 kAIC @ 480 Vac |
| Interrupt Rating (UL) |
100 kAIC @ 240 Vac; 35 kAIC @ 600 Vac |
| Interrupt Rating (DC) |
22 kAIC @ 125 Vdc; 22 kAIC @ 250 Vdc |
| Terminal Type |
Standard Terminals Load Only |
| Compliance |
RoHS Compliant |
| Certifications |
UL 489, CSA, IEC 60947-2, CCC |
| Dimensions (L × W × H) |
88.9 mm × 104.6 mm × 152.4 mm |
| Weight |
1.82 kg |
Information About PDG23M0150TFFL
The PDG23M0150TFFL is part of Eaton’s Power Defense PD2 Global series, a line of advanced molded case circuit breakers designed for modern power distribution and protection applications. It is built on a Frame 2 platform and incorporates the T298 trip unit, which provides accurate and dependable overcurrent protection. The breaker uses a three-pole configuration and is equipped with load-only standard terminals for simplified installation in panelboards and switchgear. With certifications including UL 489, CSA, IEC 60947-2, and CCC, it meets global standards for industrial electrical safety and reliability.
Key Features:
- 150 Amp Current Rating: Designed to protect electrical circuits handling loads up to 150 A.
- Power Defense PD2 Global Series: Part of Eaton’s advanced MCCB platform engineered for global industrial standards.
- T298 Trip Technology: Provides precise detection and interruption of overload and short-circuit conditions.
- High Interrupting Capacity: Rated up to 65 kAIC at 480 Vac for strong fault current protection.
- Three-Pole Configuration: Supports three-phase electrical systems used in commercial and industrial facilities.
- Compact Frame 2 Design: Optimized size for panelboards, switchgear, and distribution equipment installations.
- Load-Only Standard Terminals: Designed for streamlined wiring connections during installation.
- Global Compliance Certifications: UL, CSA, IEC, and CCC approvals ensure broad application compatibility.
The PDG23M0150TFFL delivers the reliability and precision required for protecting industrial and commercial power distribution circuits.
