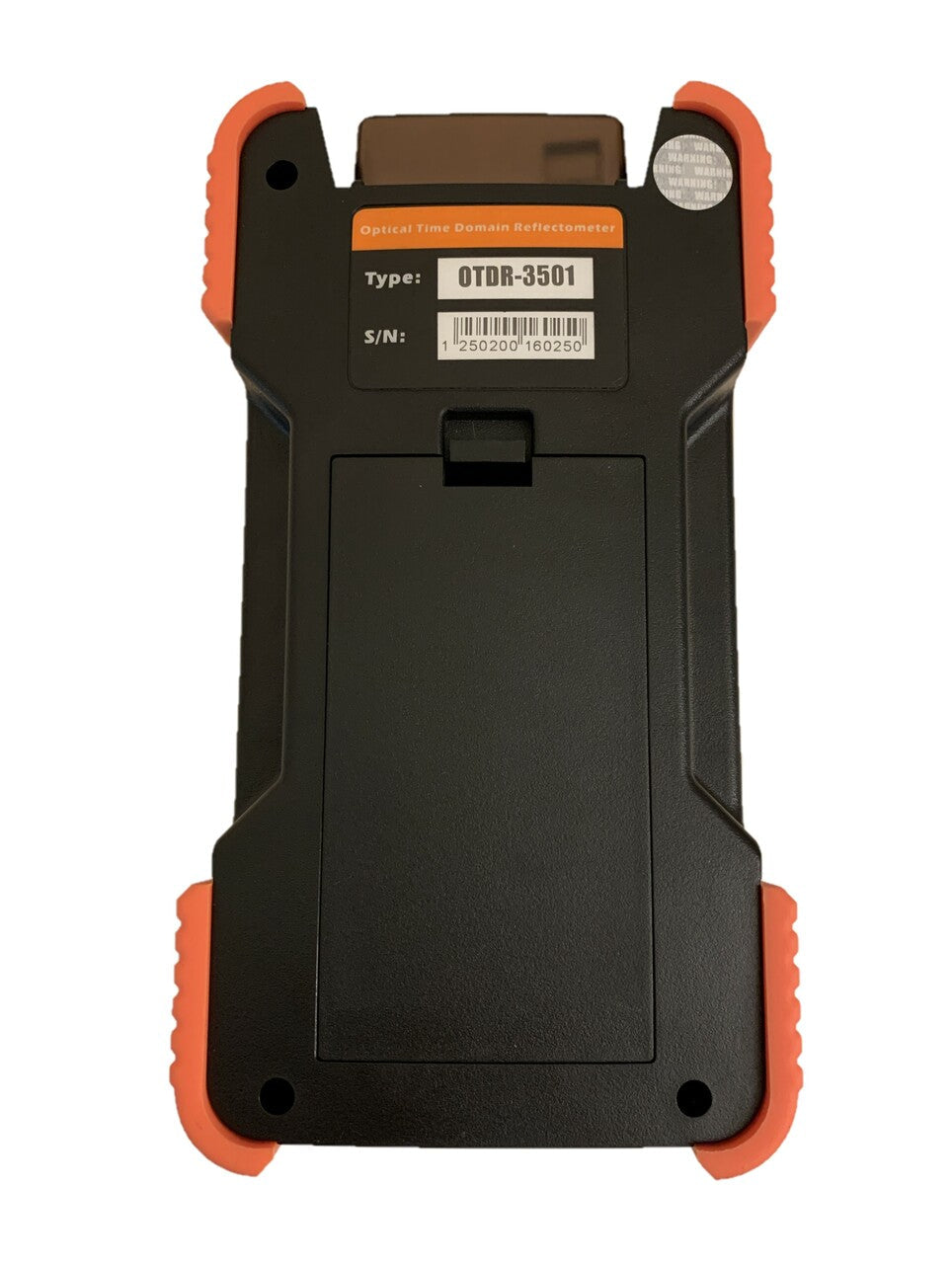

OTDR-3501 - Optical Time Domain Reflectometer - includes VFL 1mW, 3.5" LCD TFT, internal storage memory and USB connectivity
The OTDR-3501 Optical Time Domain Reflectometer is a powerful fiber optic testing tool that includes also a Visual Fault Locator(VFL). The OTDR-3501 has a 3.5" TFT LCD display and features a USB interface that allows 24/7 measuring with a help of a PC. It also has internal memory and a TF card for extra storage on measurements that can extend measurement storage for long periods of time.
OTDR-3501 has an orange rubber protective case and the package includes a USB to PC connectivity cable. The OTDR unit has its own internal (and replaceable) Li-Po rechargeable battery. The OTDR-3501 is a complete tool that allows measuring active fibers efficiently, being an indispensable tool for any fiber professional user.
Features
- Built-in VFL functions extra to the main OTDR functions

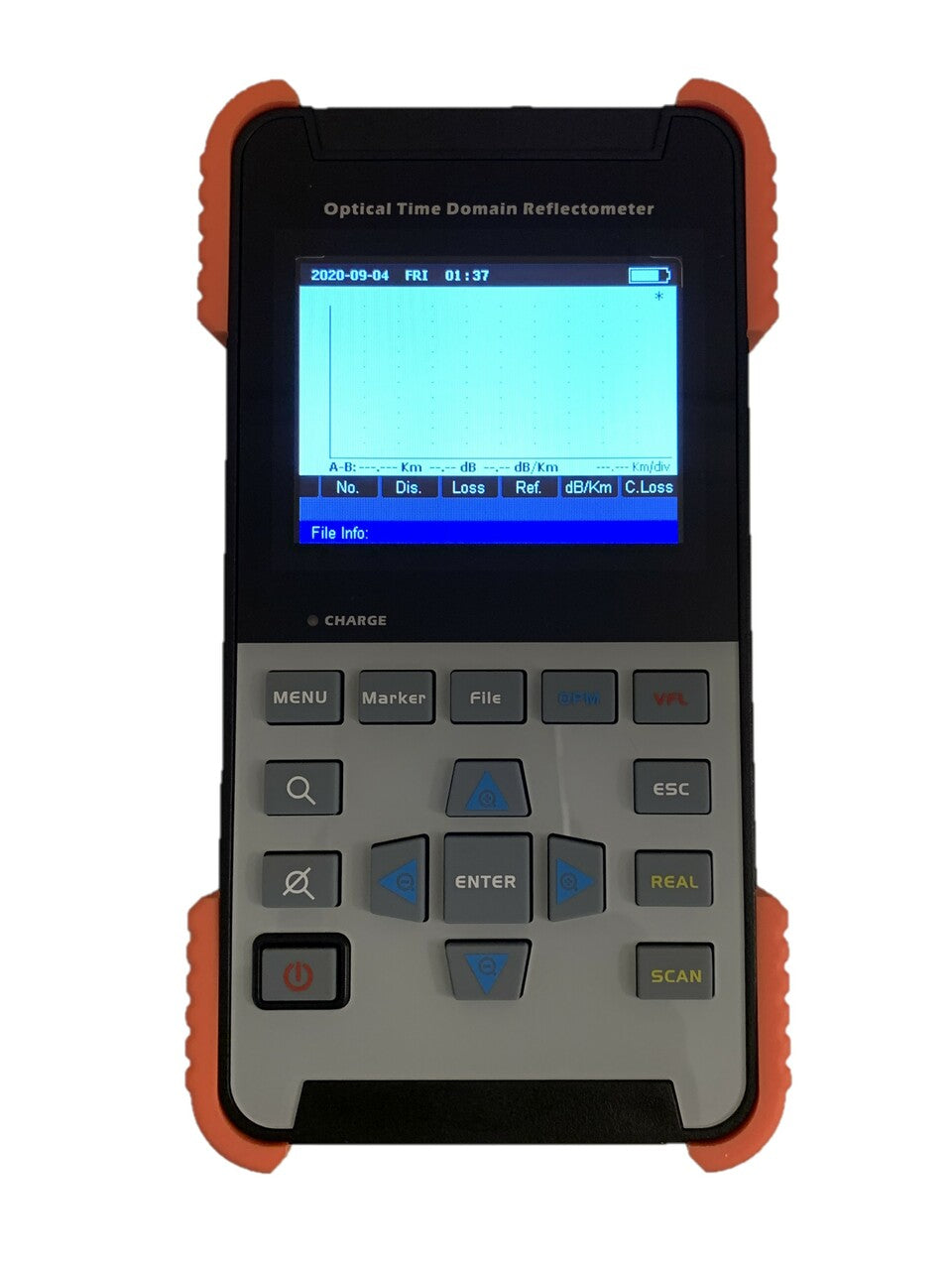

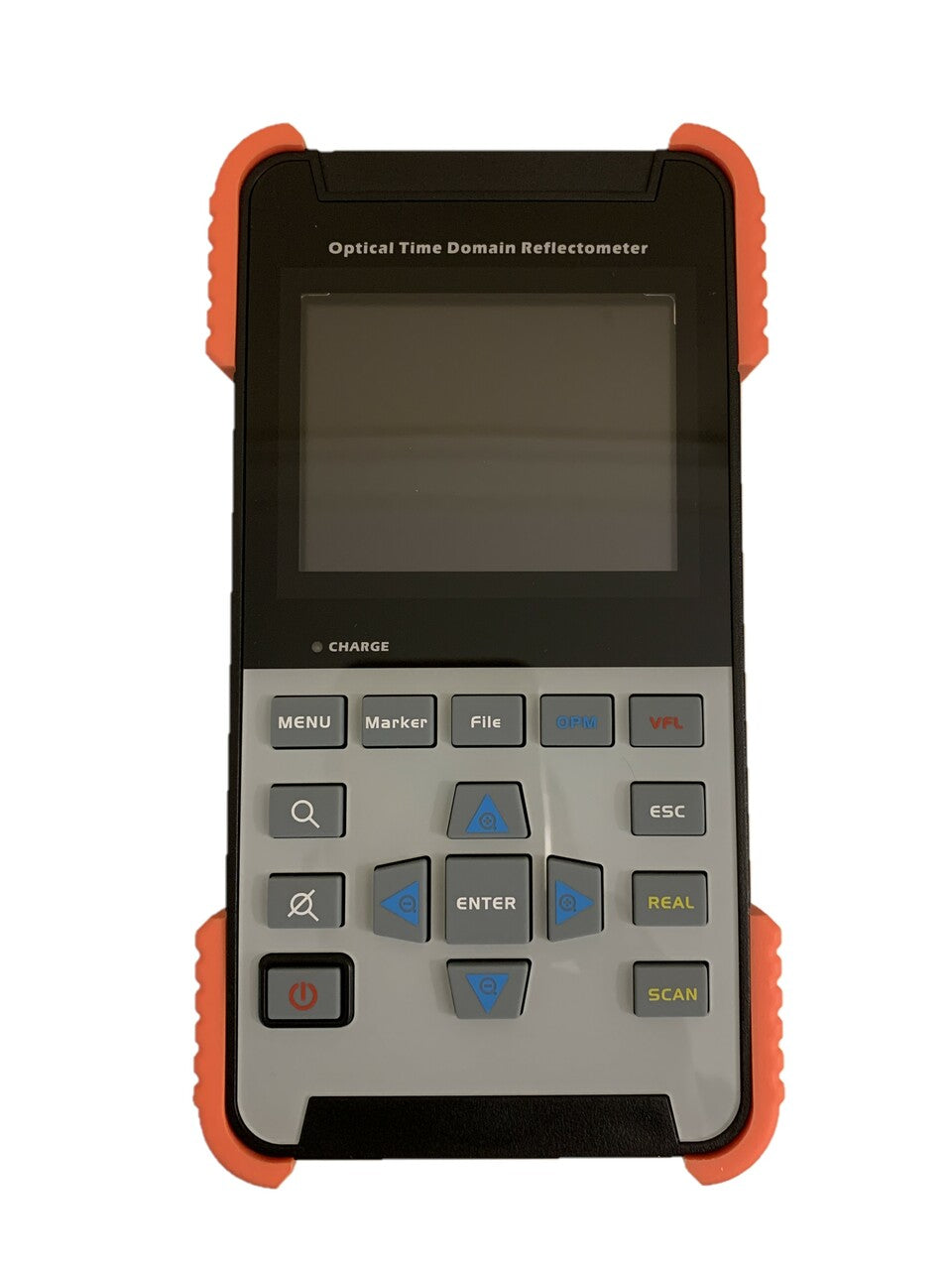

- 3.5" color TFT LCD display
- One button test
- Facile operating interface

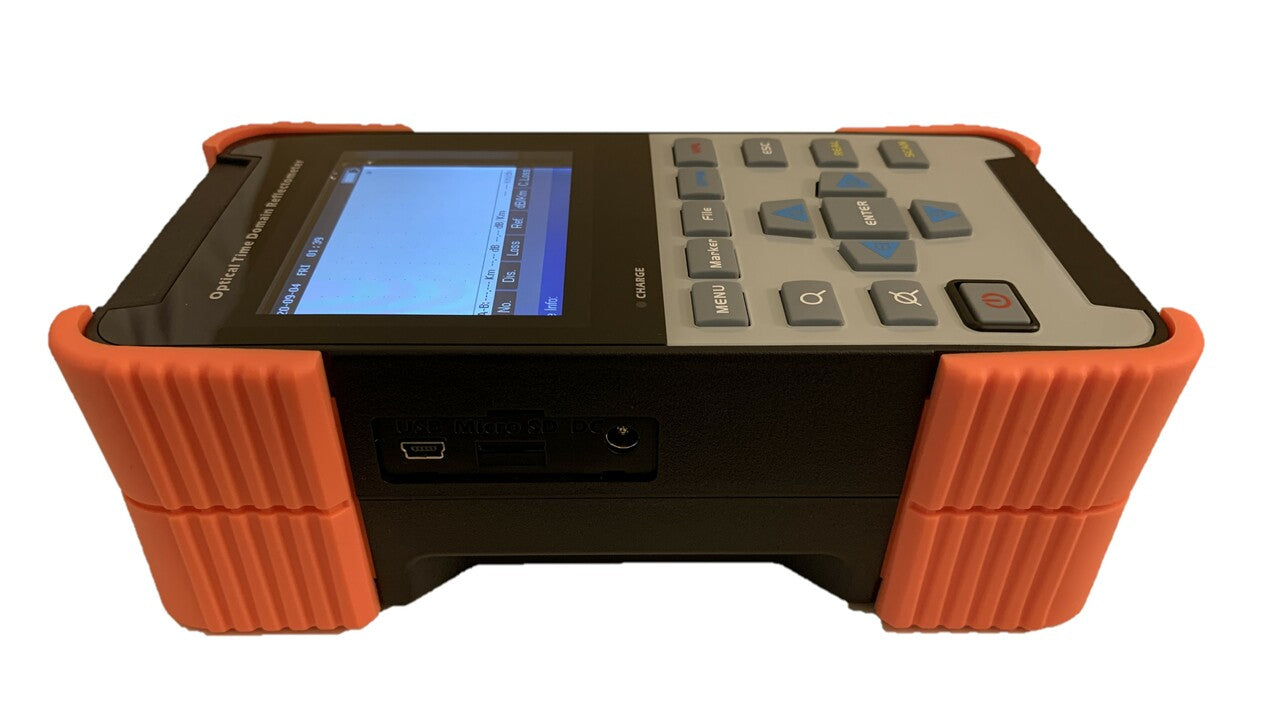

- USB connection for PC data retrieval and battery recharging
- Handheld portable design with rechargeable LiPo battery
Product Specification Sheet
Technical Specifications
| Model |
OTDR-3501 |
| Wavelength |
1310nm/1550nm |
| Dynamic Range |
28/26dB |

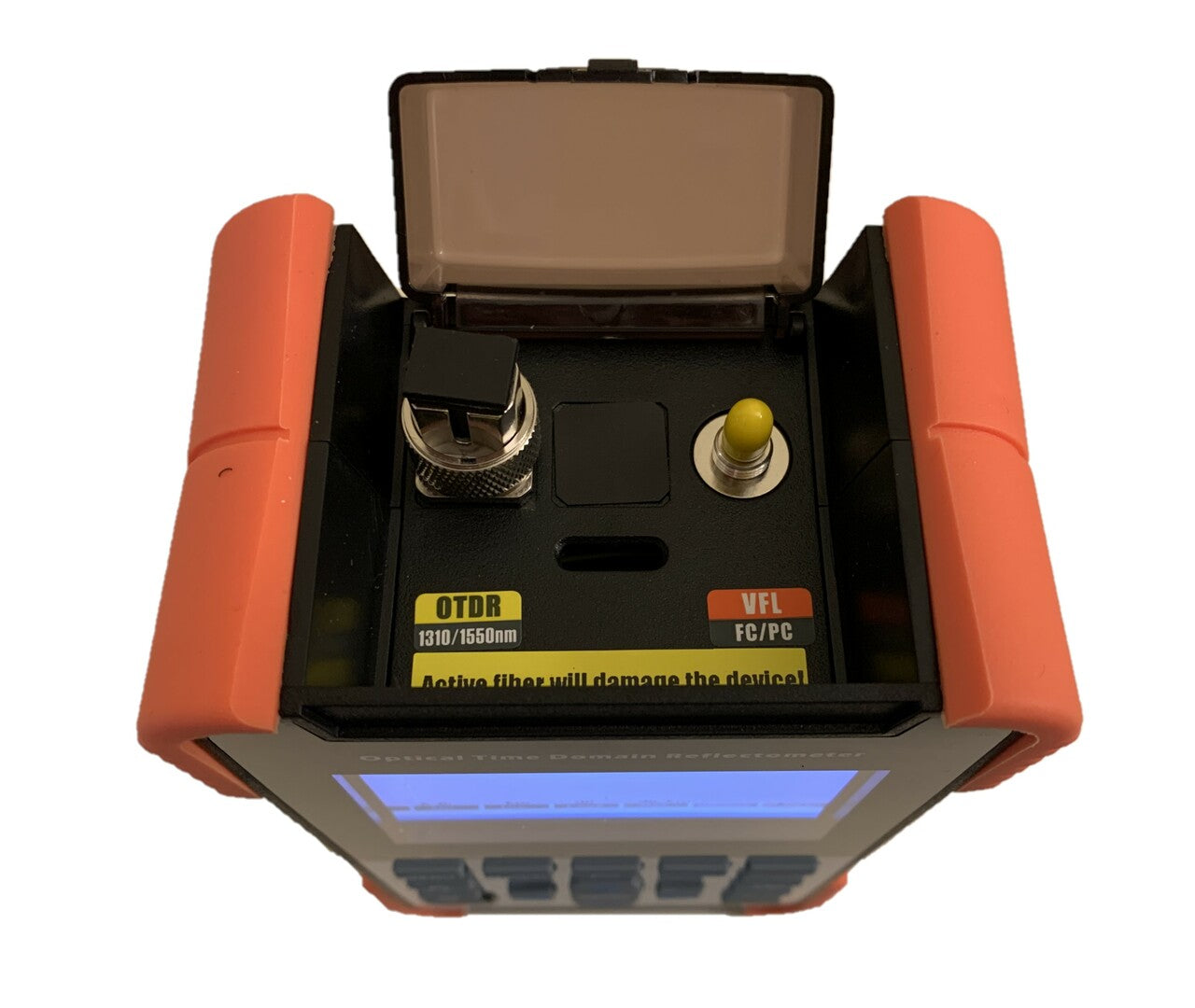

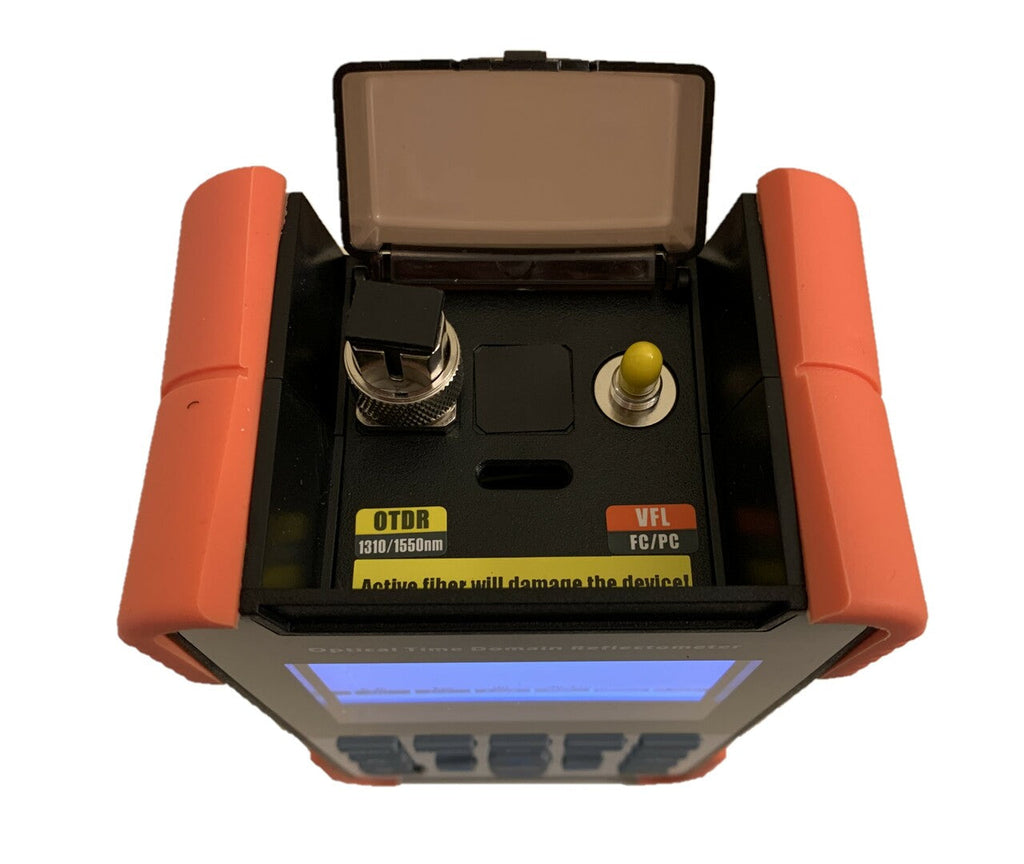

| OTDR Connector |
SC/UPC and FC/UPC or customized |
| Pulse Width |
5ns to 10 microseconds |
| Measuring Time |
5 to 180 seconds |
| Attenuation Dead Zone |
5 meters |
| Event Dead Zone |
1.5 meters |
| LCD |
3.5" TFT LCD display |
| VFL Function |
1mW |
| Storage |
Internal memory and optional TF card |
| Data Interface |
Micro USB 2.0 |
| Battery |
3.7V @ 2400mAh Lithium Polymer battery |
| Size |
197mm * 107mm * 67mm |
| Weight |
750g |
| Storage Temperature |
-20~+60 Celsius, humidity<90% non-condensing |
| Operating Temperature |
-10~+50 Celsius, humidity<90% non-condensing |
| Warranty |
2 years |
