Description

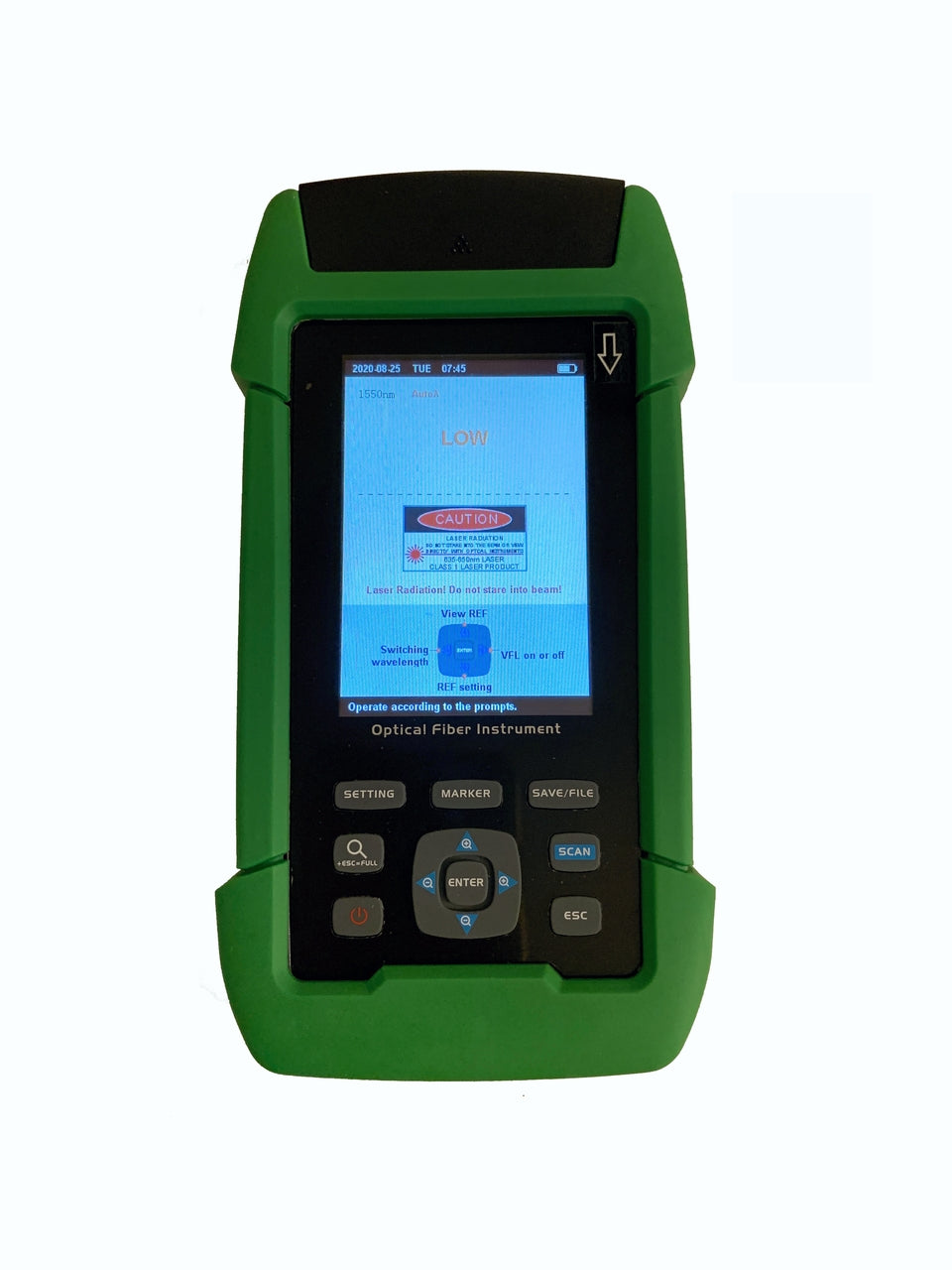

The OTDR-3201 Optical Time Domain Reflectometer is the complete fiber optic testing tool, including all other 3 crucial optical tools in one single device: Optical Power Meter, Optical Laser Source, and Visual Fault Locator. Such a tool allows management and data storage for up to 1000 measurements.
The OPM embedded in OTDR-3201 has a +26 to -50dBm sensitivity, the OLS has a stable -6dBm source for all major singlemode wavelengths (1310/1490/1550nm) and the VFL has a 1mW power for local fiber circuit troubleshooting.

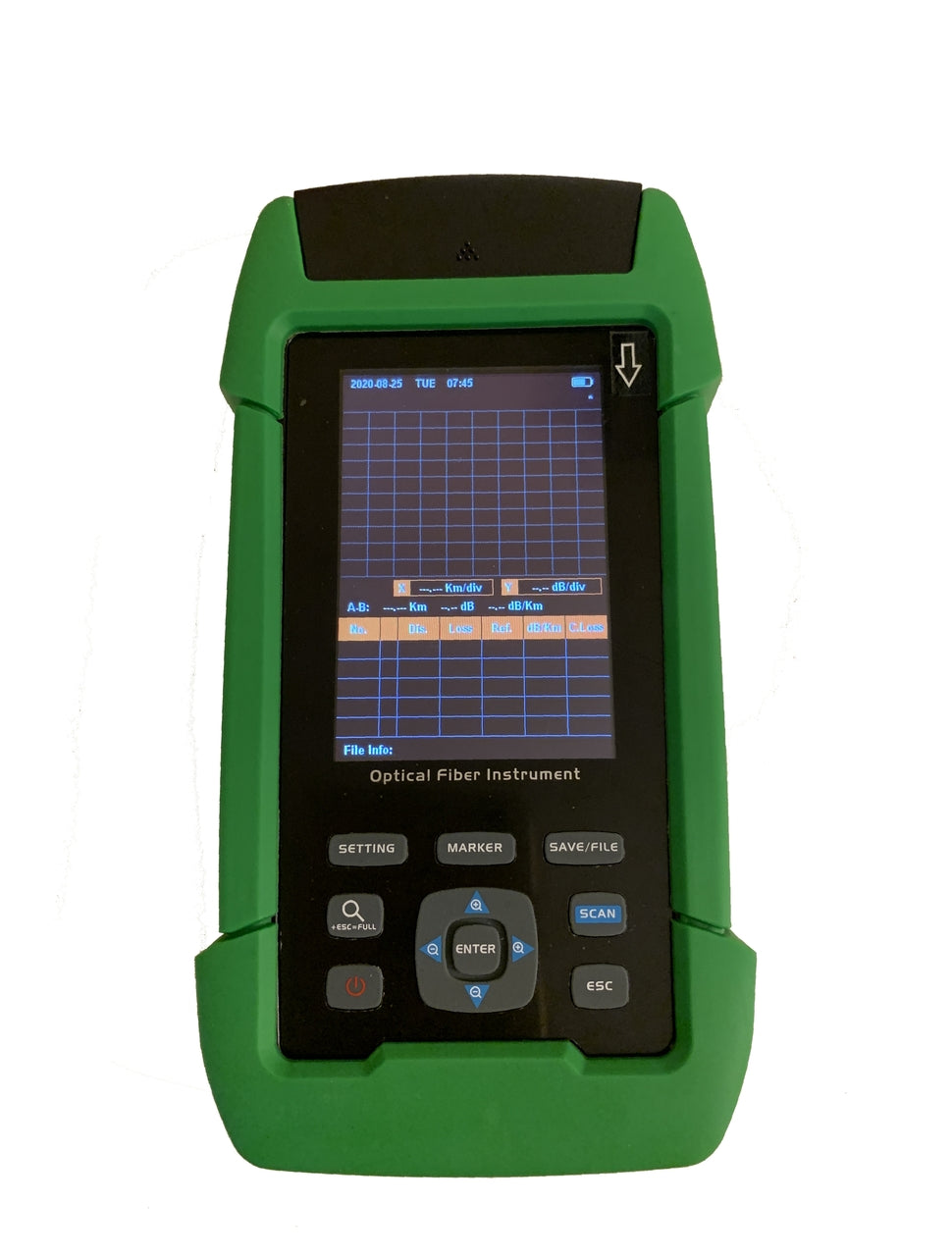

The OTDR-3201 has a 3.2" TFT LCD display and features a USB interface that allows 24/7 measuring with a help of a PC. It also has internal memory and a TF card for extra storage on measurements that can extend measurement storage for long periods of time.

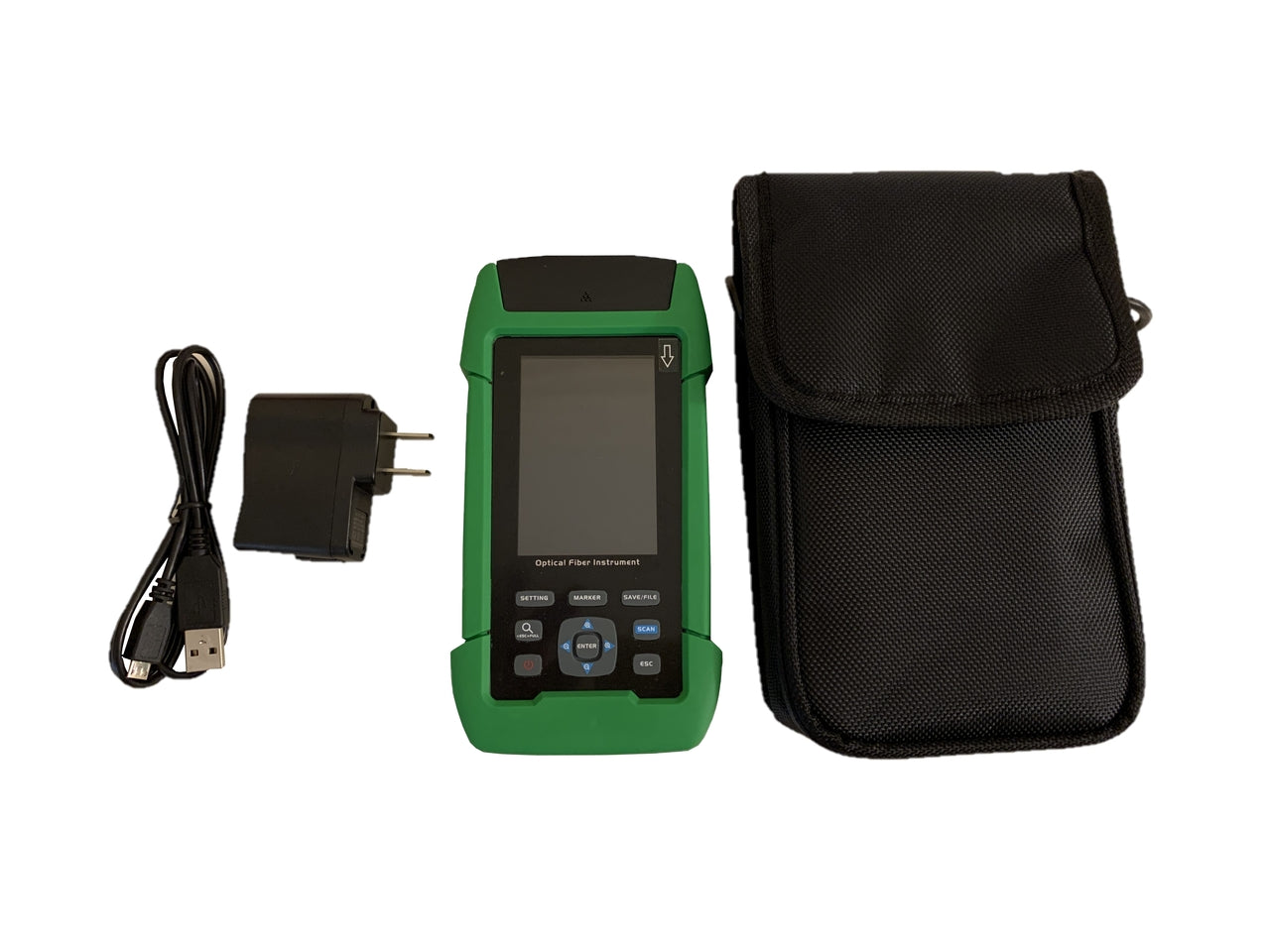

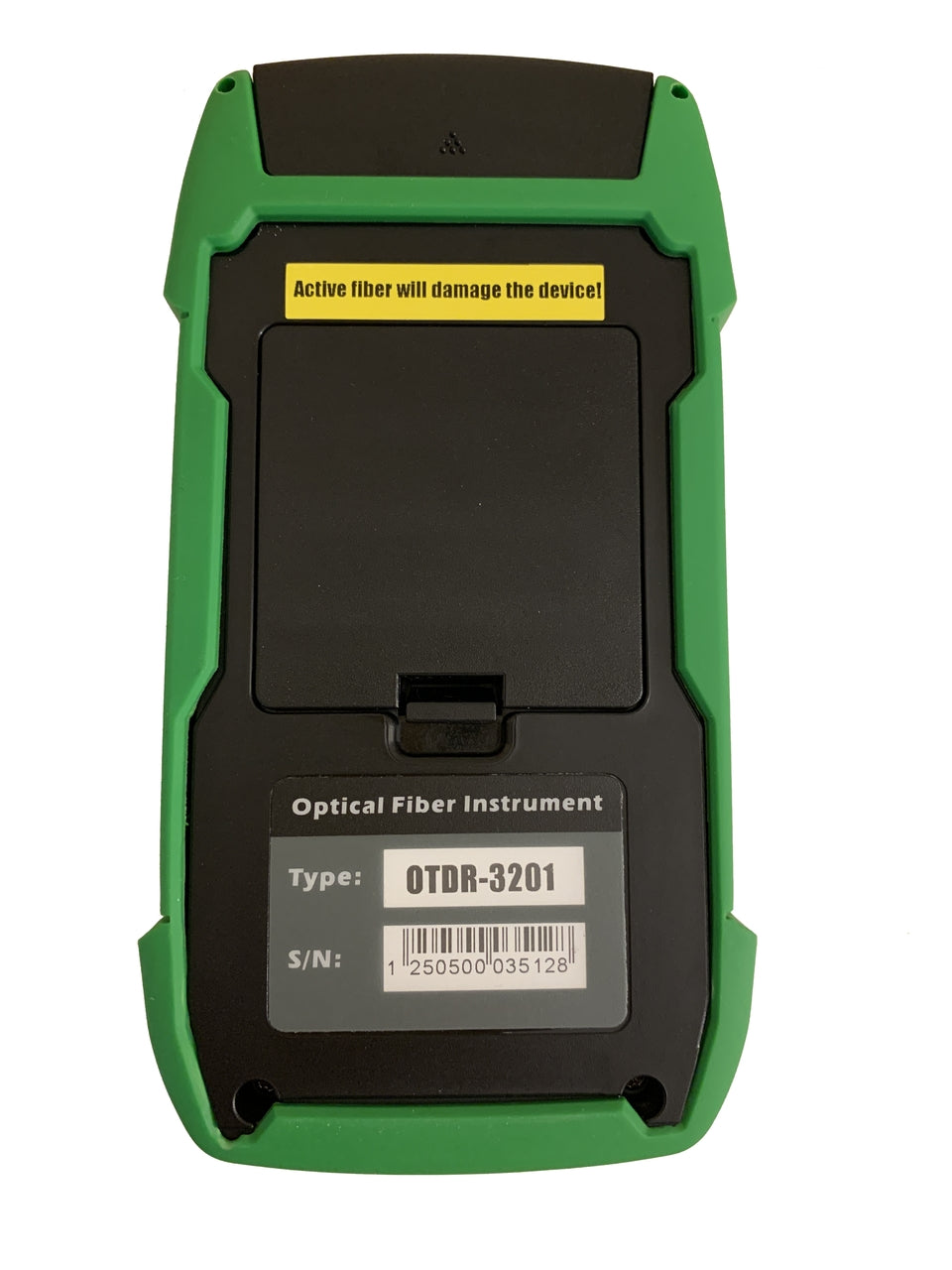

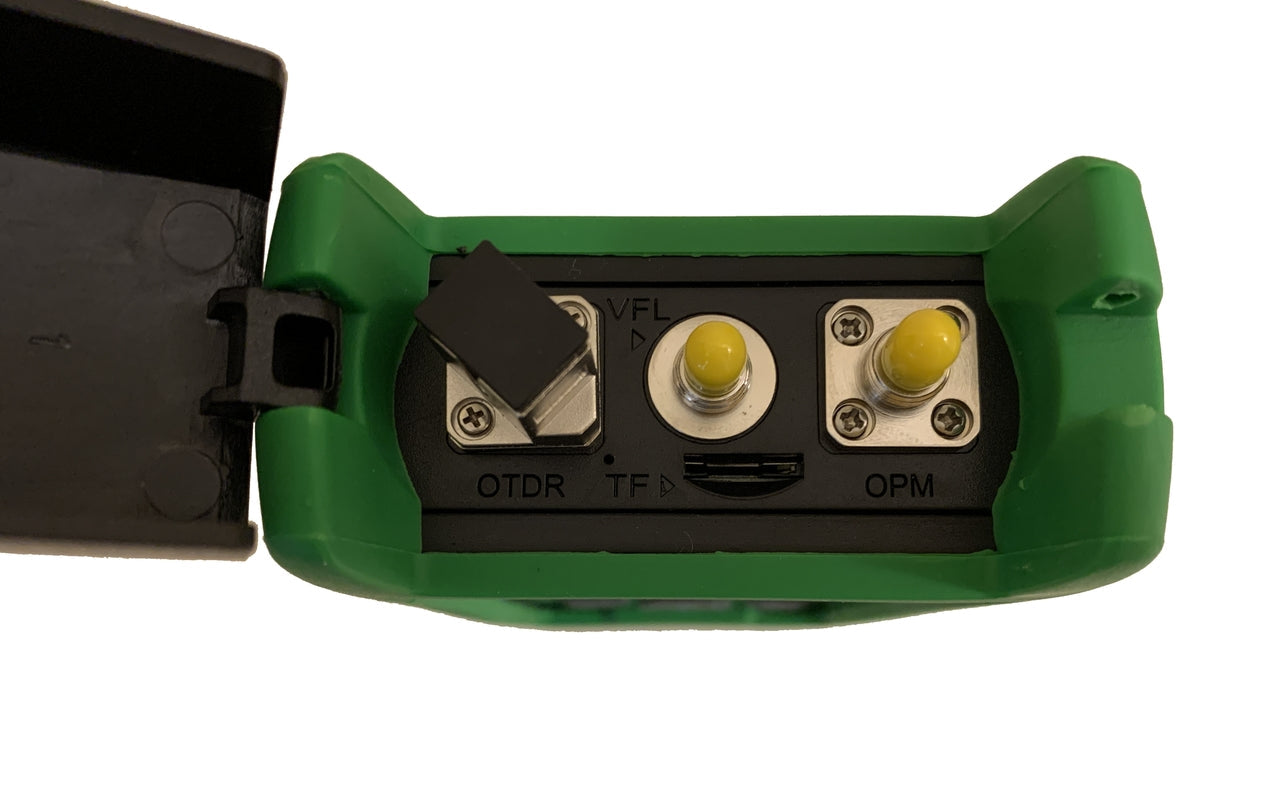

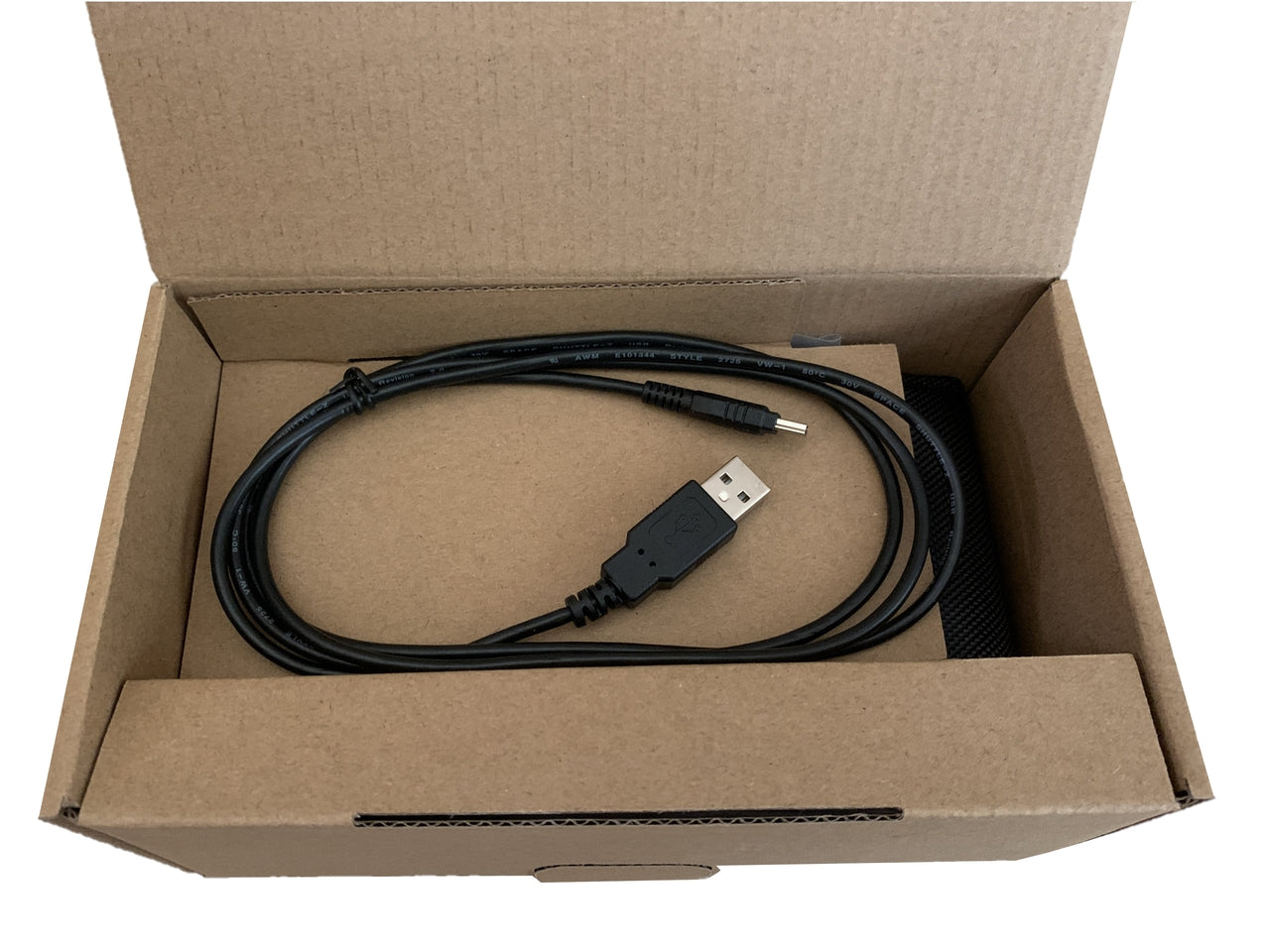

OTDR-3201 has a green rubber protective case and the package includes a USB to PC connectivity cable. The OTDR unit has its own internal (and replaceable) Li-Po rechargeable battery. The OTDR-3201 is a complete tool that allows measuring active fibers efficiently, being an indispensable tool for any fiber professional user.
Features

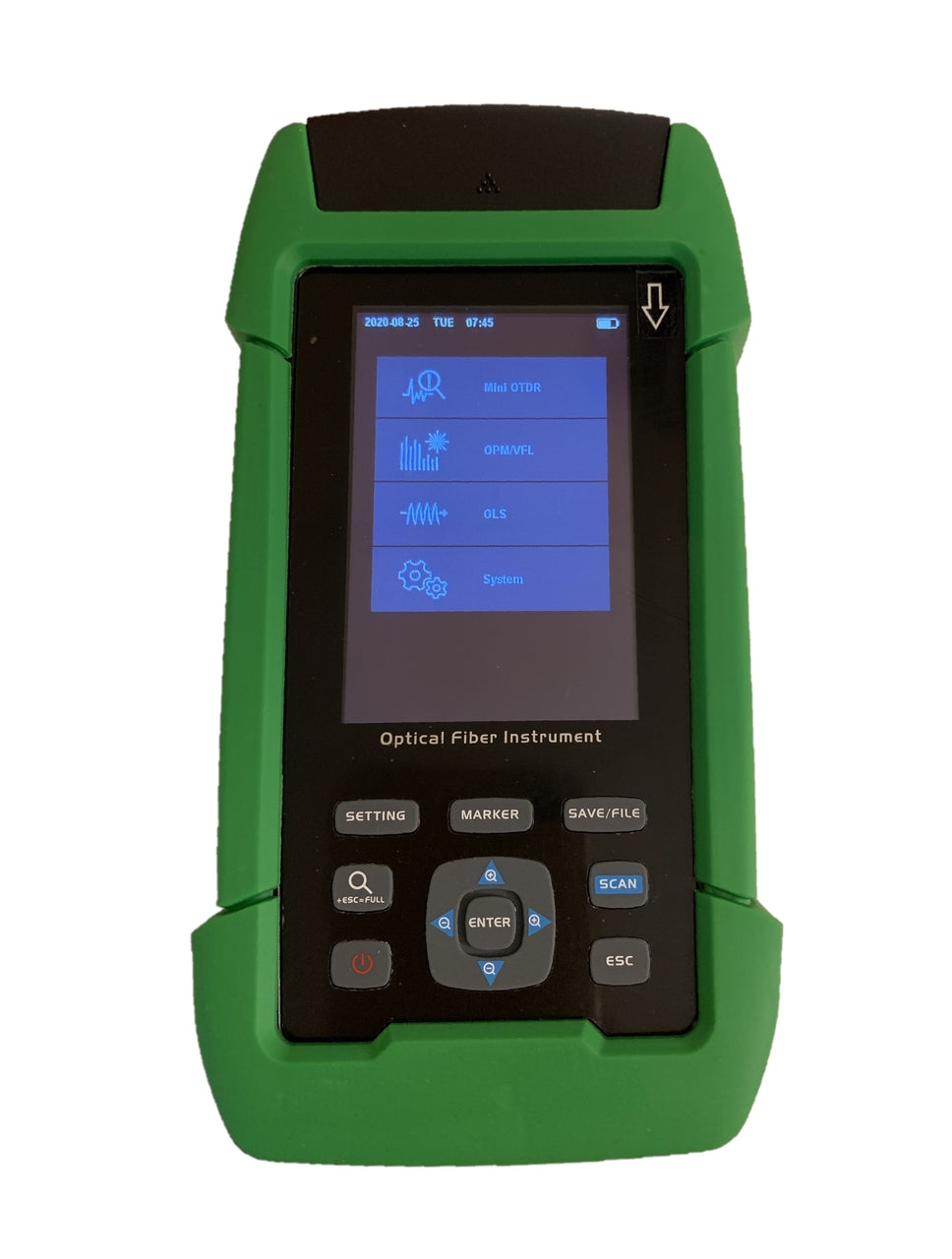

- Built-in VFL, OPM, and OLS functions extra to the main OTDR functions
- 3.2" color TFT LCD display
- One button test
- Factory calibration for 850/1300/1310/1490/1550/1625nm wavelengths

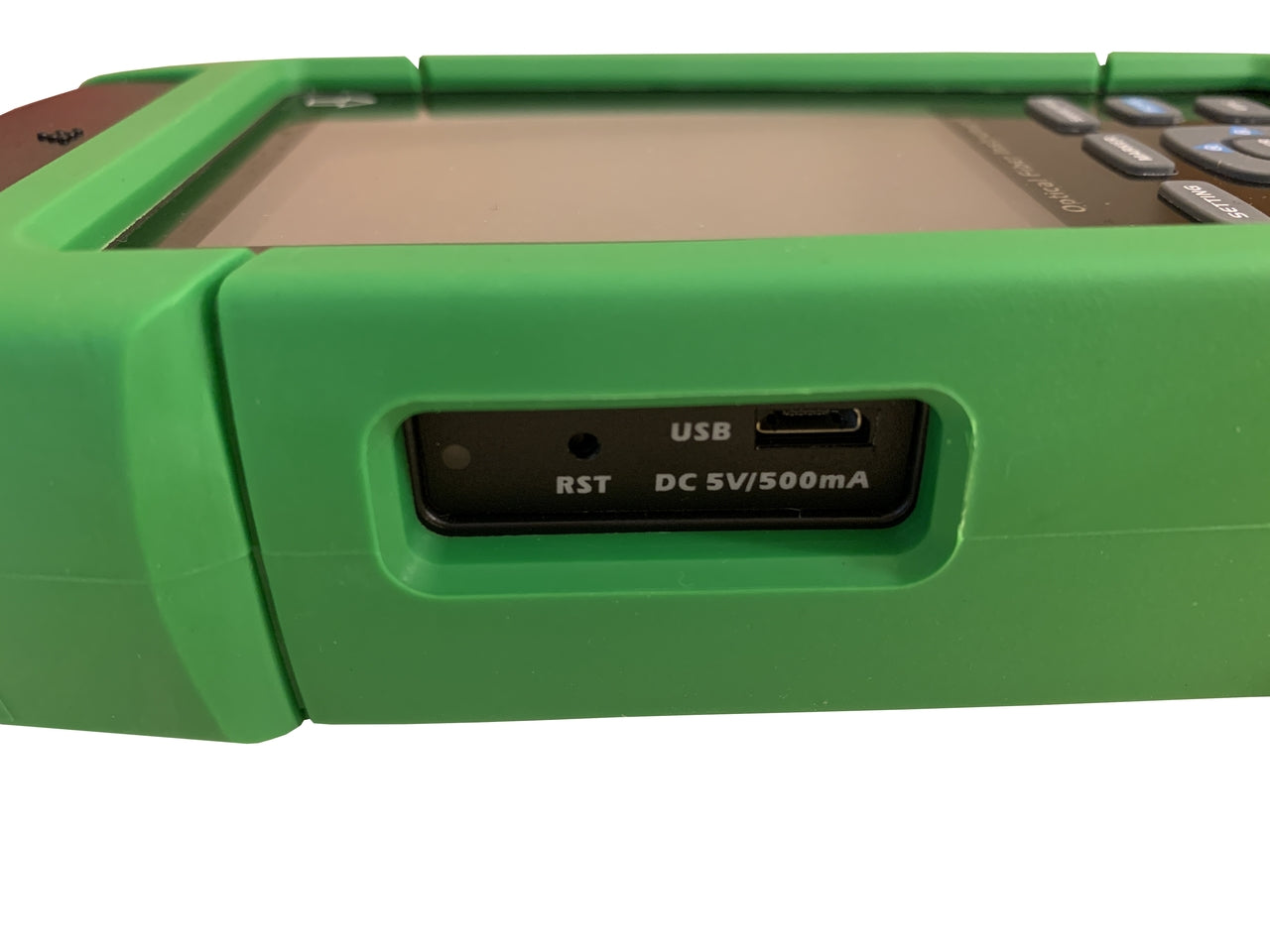

- USB connection for PC data retrieval and battery recharging
- Handheld portable design with rechargeable LiPo battery
Technical Specifications
| Model | OTDR-3201 |
| Wavelength | 1310nm/1550nm |
| Dynamic Range | 22/20dB |
| OTDR Connector | SC/UPC or customized |
| Pulse Width | 5ns to 10 microseconds |
| Measuring Time | 5 to 180 seconds |
| Attenuation Dead Zone | 8 meters |
| Event Dead Zone | 3 meters |
| LCD | 3.2" TFT LCD display |
| OPM Function | +26~-50dBm, 850/1300/1310/1490/1550/1625nm, 2.5mm UPP |
| VFL Function | 1mW |
| Storage | Internal memory and optional TF card |
| Data Interface | Micro USB 2.0 |
| Battery | 3.7V @ 2400mAh Lithium Polymer battery |
| Size | 168mm * 95mm * 38mm |
| Weight | 333g |
| Storage Temperature | -20~+70 Celsius, humidity<90% non-condensing |
| Operating Temperature | 0~+50 Celsius, humidity<90% non-condensing |
| Warranty | 2 years |
Additional information on the OTDR-3201 Optical Time Domain Reflectometer (includes OPM, OLS and VFL in one):
PDF Datasheet
