Overview

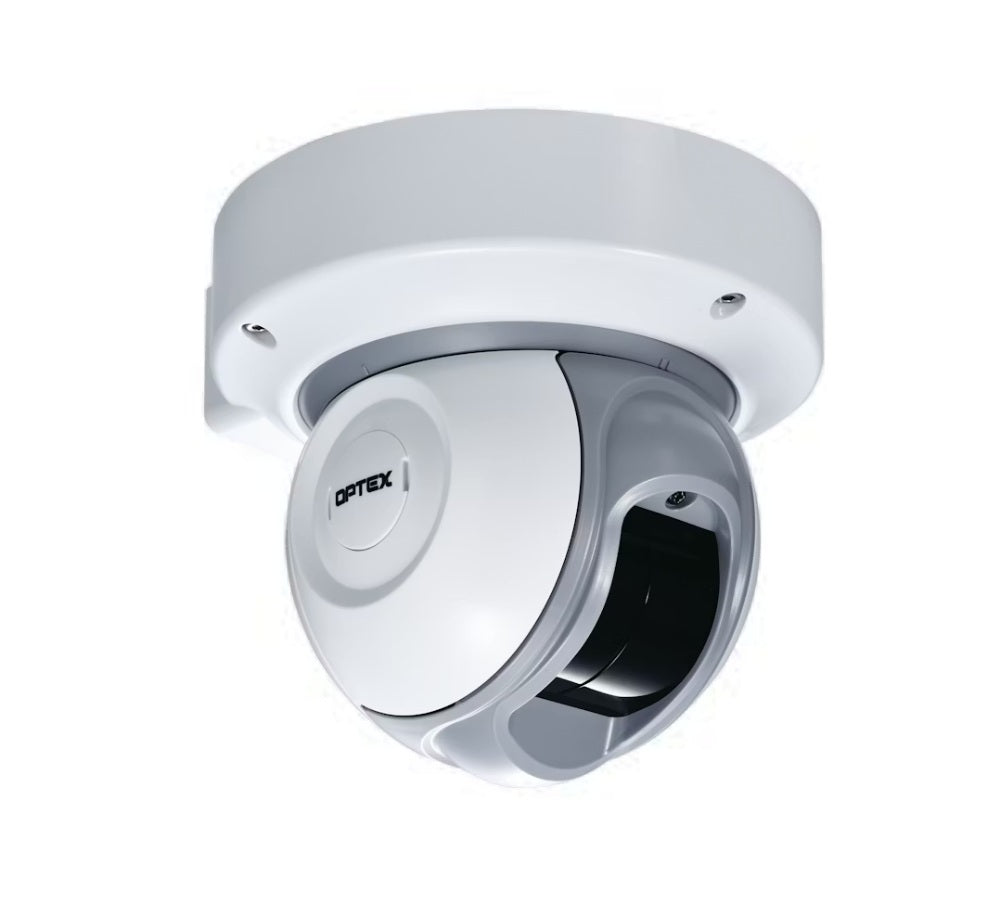

The OPTEX RLS-2020i (Redscan mini) is a compact, indoor-only LiDAR laser scan detector designed to create invisible "virtual walls" or "virtual planes" for high-security asset protection.
Specifications
Model Number: RLS-2020i
Brand: Optex
Alt Part Number(s): RLS-2020i
Product Type: Laser Motion Detector
Technical Description
Brand: Optex
Model Number: RLS-2020i
Detection technology: Infrared laser scan
Detection Angle: 95° field of view
Detection modes: Vertical or Horizontal
Detection resolution: 0.25°
Detection Zones: Up to 4 adjustable detection areas
Environment: Indoor
Network Interface: RJ-45 Ethernet (10/100 Mbps)
Alarm Outputs: 3 outputs (Alarm / Trouble / Tamper, selectable NO/NC)
Response time: ~75 ms to 15 minutes
Protection Rating: IP66
Power Input: 10.5–30 VDC
Power consumption: Max 6W (PoE)
Protocols: TCP/IP, UDP, HTTP/HTTPS, SNMP, FTP, DHCP, DNS
*
