Description

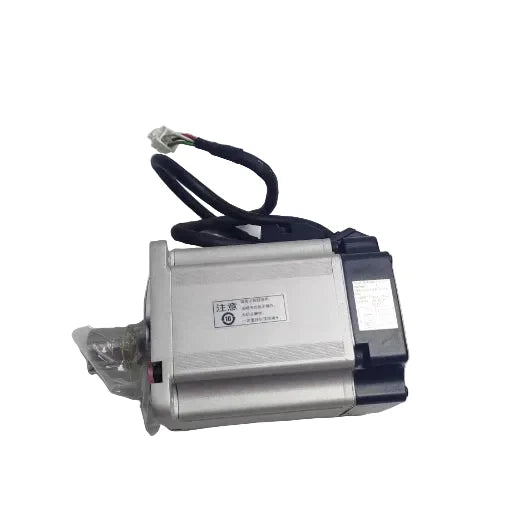

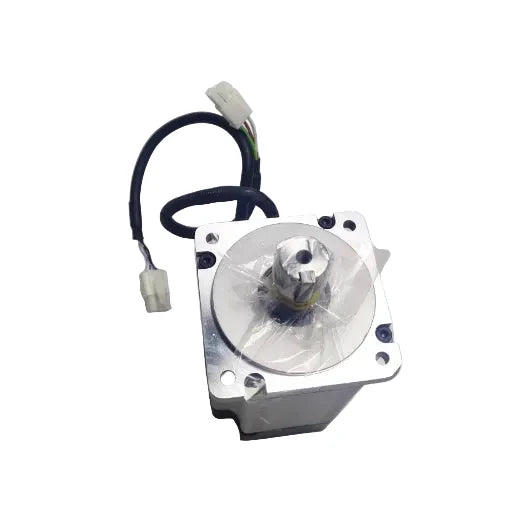

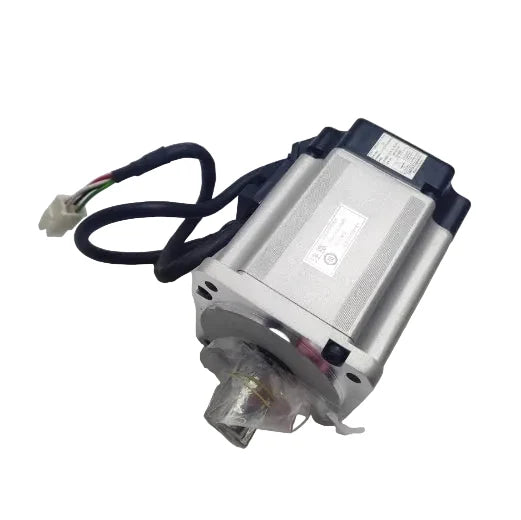

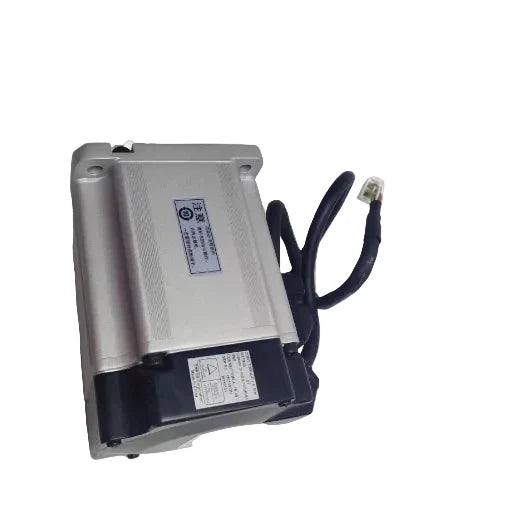

The Omron R88M-G75030H-S2-Z is a high-performance AC servo motor designed for precise motion control in industrial automation systems. Delivering 750 W of output power and a rated speed of 3000 RPM, it provides accurate positioning, smooth operation, and reliable performance for robotics, packaging equipment, CNC machinery, and automated production lines.
Technical Specifications
| Condition |
Obsolete / Surplus Available |
| Brand |
Omron |
| Part Number |
R88M-G75030H-S2-Z |
| Category |
Servo Products |
| Subcategory |
Servo Motor |
| Product Type |
AC Servo Motor |
| Series |
G-Series |
| Rated Output Power |
750 W (0.75 kW) |
| Rated Voltage |
200–230 VAC |
| Input Phase |
Single-Phase / Three-Phase (depends on servo drive) |
| Rated Speed |
3000 RPM |
| Rated Torque |
2.4 Nm |
| Peak Torque |
7.05 Nm |
| Rated Current |
4 A |
| Encoder Type |
Incremental |
| Encoder Resolution |
13 Bit |
| Brake |
No |
| Shaft Type |
Straight Shaft with Key and Tap |
| Mounting Type |
Flange Mount |
| Operating Temperature |
0°C to +40°C |
| Weight |
6.42 lbs |
Information About R88M-G75030H-S2-Z
The R88M-G75030H-S2-Z belongs to Omron's G-Series servo motor family, engineered for demanding industrial motion control applications. It features a 200–230 VAC power rating, an incremental encoder for accurate position feedback, and a straight keyed shaft for secure power transmission. The "-Z" designation indicates a lead-free industrial version, while the "-S2" configuration specifies a keyed shaft with tap. Although discontinued, this servo motor remains a reliable replacement for existing G-Series automation systems.
Key Features:
- G-Series AC Servo Motor
- Rated output power of 750 W
- Rated speed of 3000 RPM
- 200–230 VAC operation
- Incremental encoder for precise position feedback
- Straight shaft with key and tap
- Flange-mounted industrial design
- Brake-free configuration
- Optimized for high-precision motion control
- Ideal for robotics, packaging, and industrial automation
The R88M-G75030H-S2-Z delivers accurate motion control and dependable performance for demanding industrial applications.
