Description

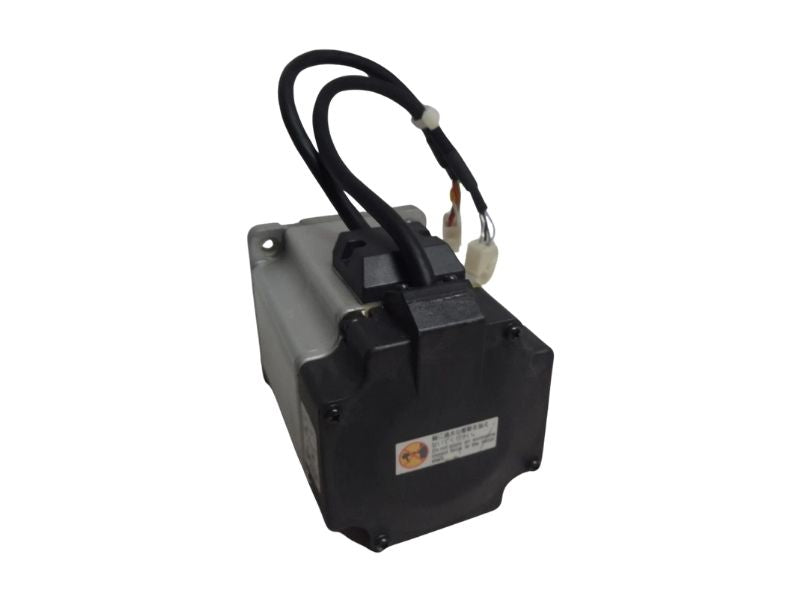

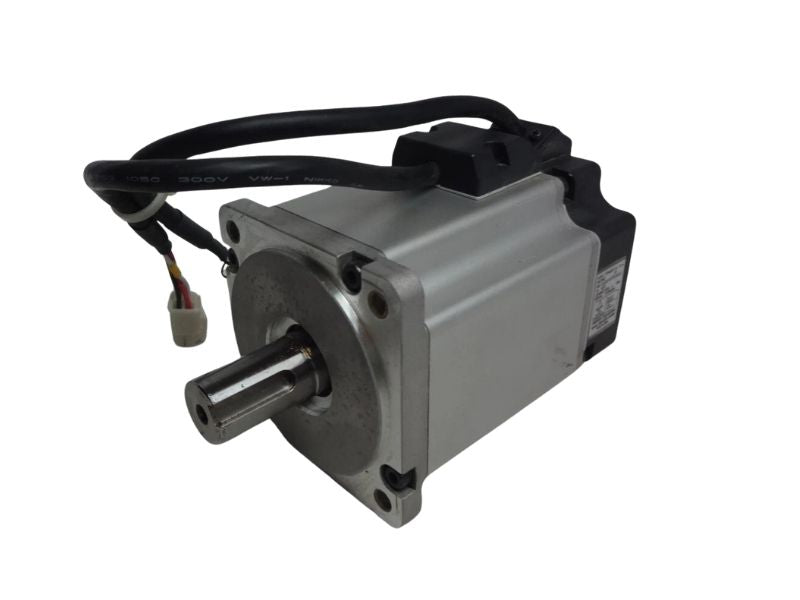

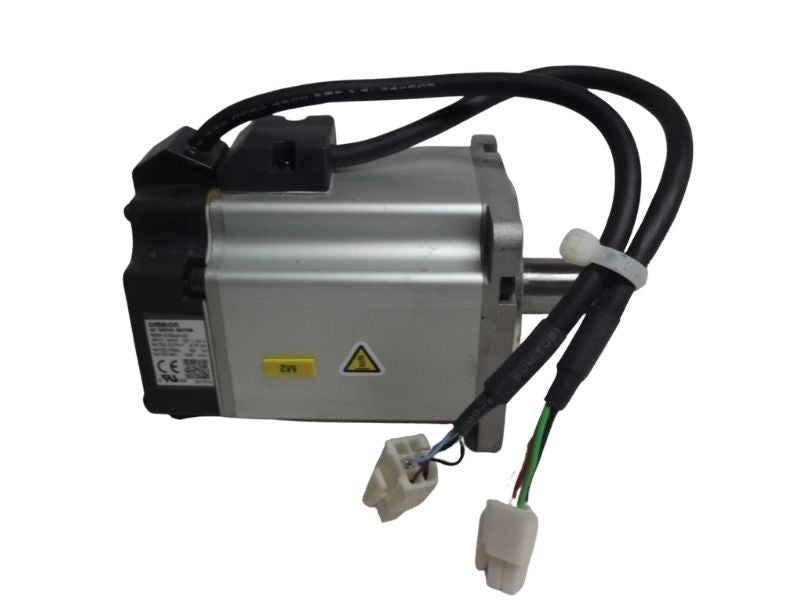

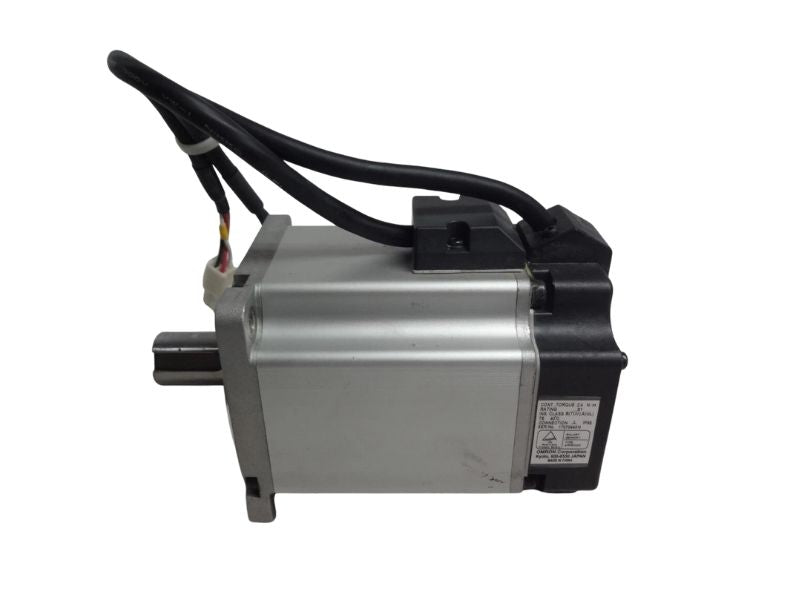

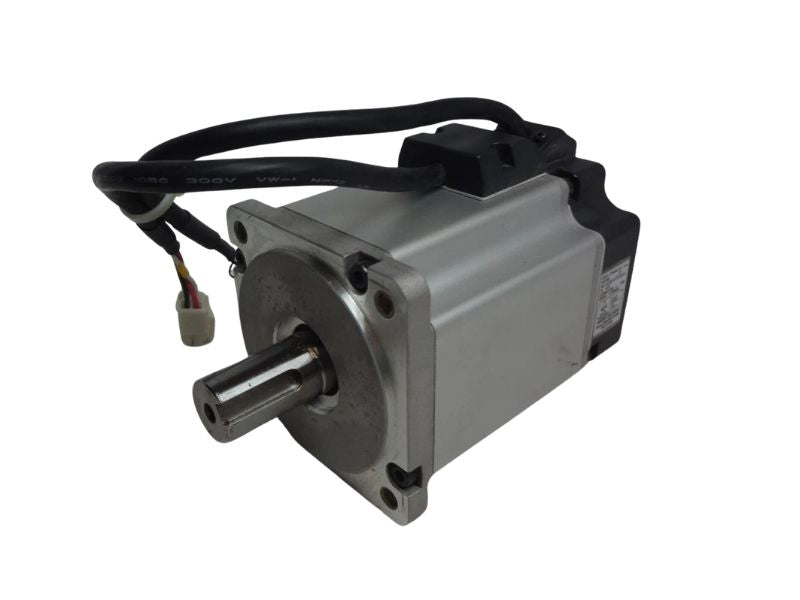

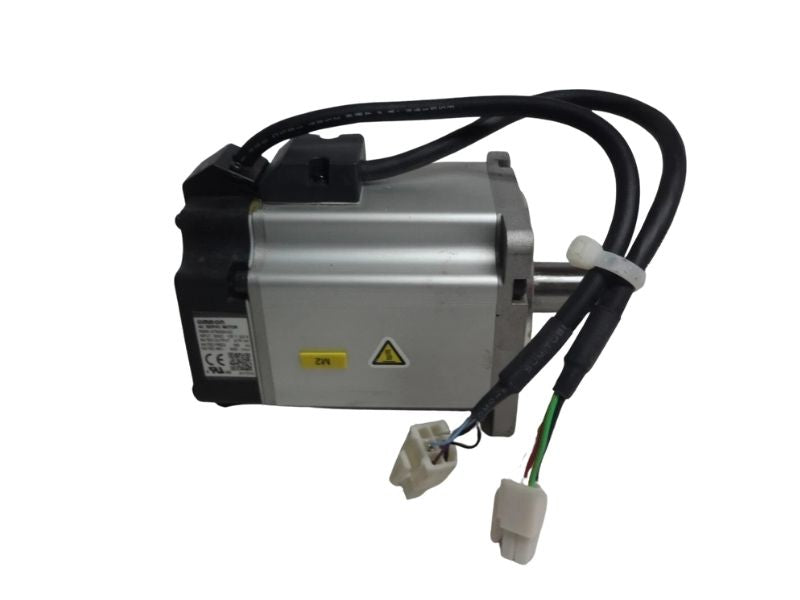

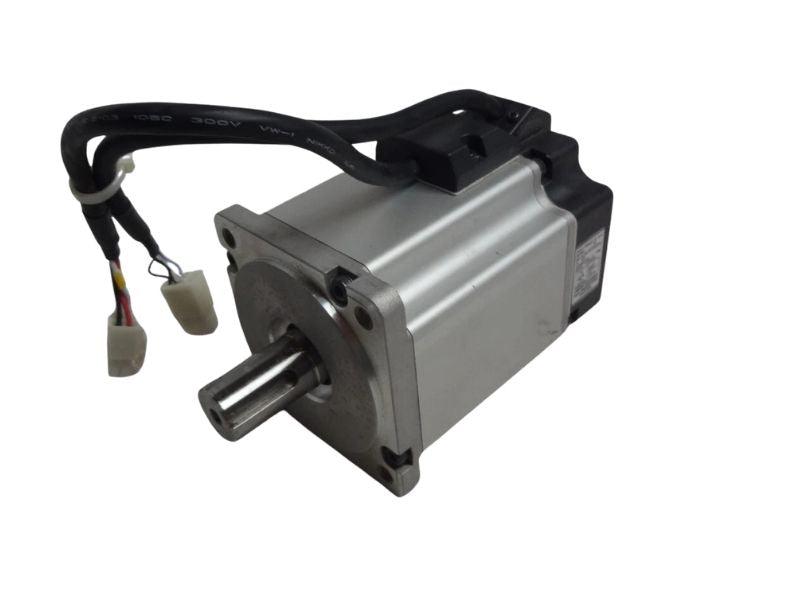

The Omron R88M-G75030H-S2 is a 0.75 kW AC servomotor designed for precise motion control in industrial automation systems. It operates at a rated speed of 3000 RPM and delivers stable torque output for accurate positioning. This motor is commonly used in applications requiring high-performance and reliable servo operation.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Omron |
| Category |
Industrial Automation |
| Part Number |
R88M-G75030H-S2 |
| Subcategory |
Servo Motors |
| Product Type |
AC Servo Motor |
| Series |
G-Series |
| Power Rating |
0.75 kW |
| Rated Speed |
3000 RPM |
| Rated Torque |
2.4 Nm |
| Peak Torque |
7.05 Nm |
| Encoder Type |
Incremental |
| Encoder Resolution |
13-bit |
| Supply Voltage |
200–230 V AC |
| Shaft Type |
Straight Shaft with Key and Tap |
| Brake |
Not Included |
| Protection Rating |
IP65 |
| Flange Size |
80 mm |
| Shaft Diameter |
19 mm |
| Weight |
5.20 lbs |
Information About R88M-G75030H-S2
The R88M-G75030H-S2 is part of Omron’s G-Series servo motor lineup, engineered for high-efficiency motion control applications. It features an incremental encoder for accurate feedback and supports multiple control methods including analog, pulse train, and MECHATROLINK II communication. The motor includes a straight shaft with key and tap for secure mechanical coupling in industrial machinery. Designed without a brake but with IP65 protection, it ensures reliable performance in demanding environments.
Key Features:
- 0.75 kW Power Rating: Suitable for medium-duty servo applications
- 3000 RPM Rated Speed: Provides consistent high-speed operation
- 2.4 Nm Rated Torque: Ensures stable and precise motion control
- Incremental Encoder: Enables accurate position and speed feedback
- Multiple Control Methods: Supports analog, pulse train, and MECHATROLINK II control
- IP65 Protection Rating: Resistant to dust and water ingress
- Straight Shaft with Key and Tap: Allows secure and stable mechanical connection
- High Peak Torque: Delivers up to 7.05 Nm for dynamic load handling
The R88M-G75030H-S2 delivers the reliability and precision required for servo-driven motion control in industrial automation systems.
