Description

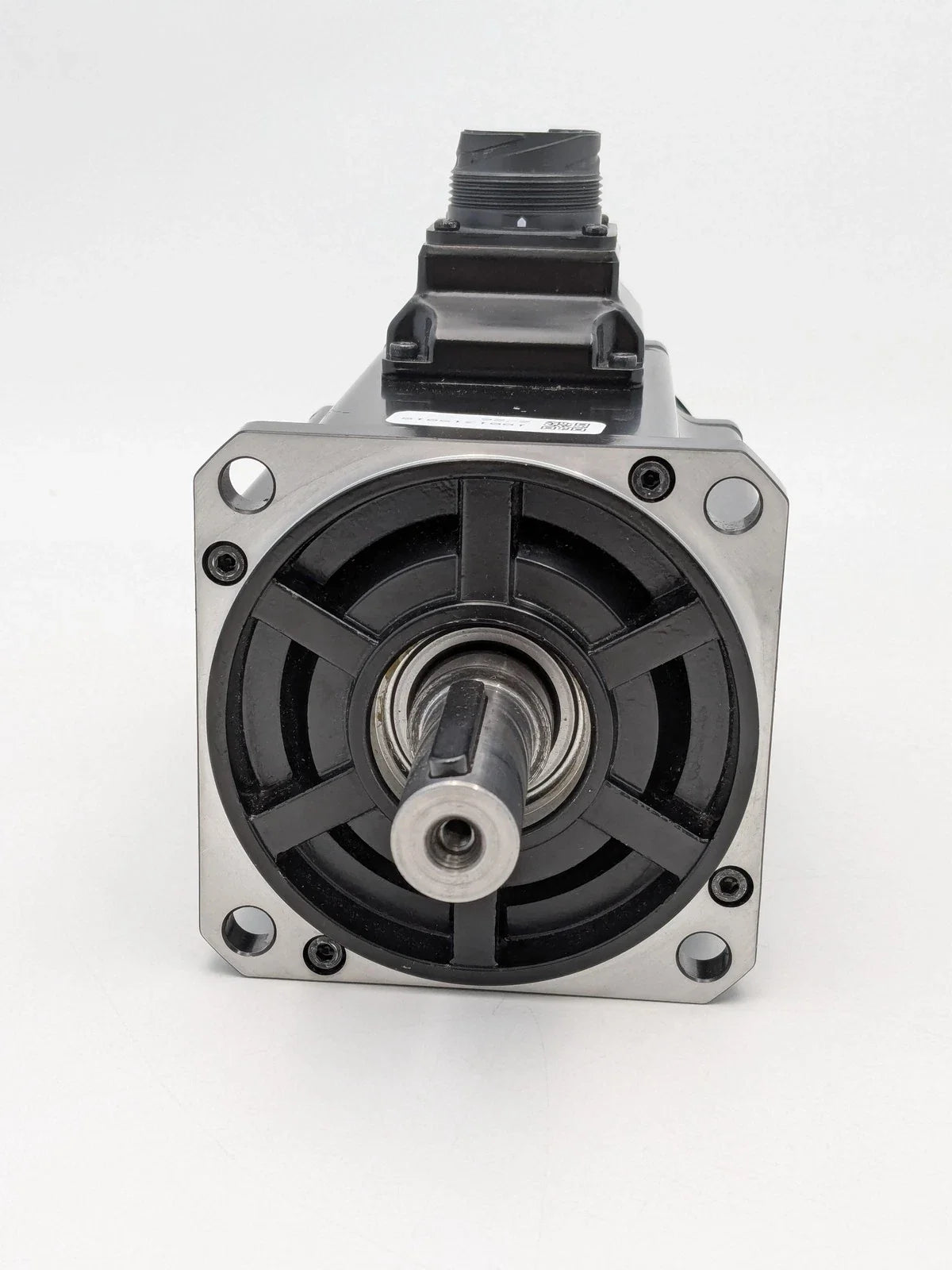

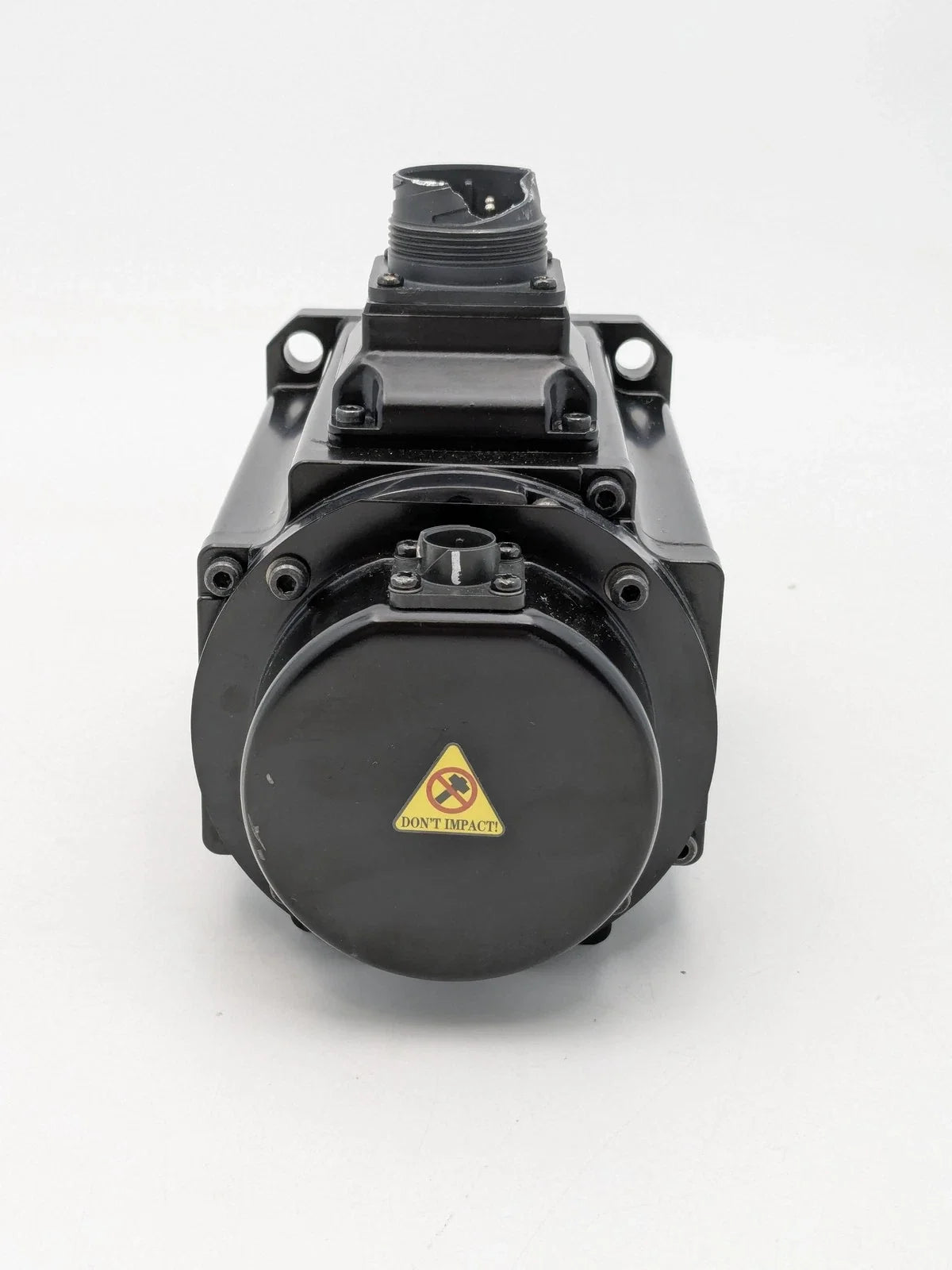

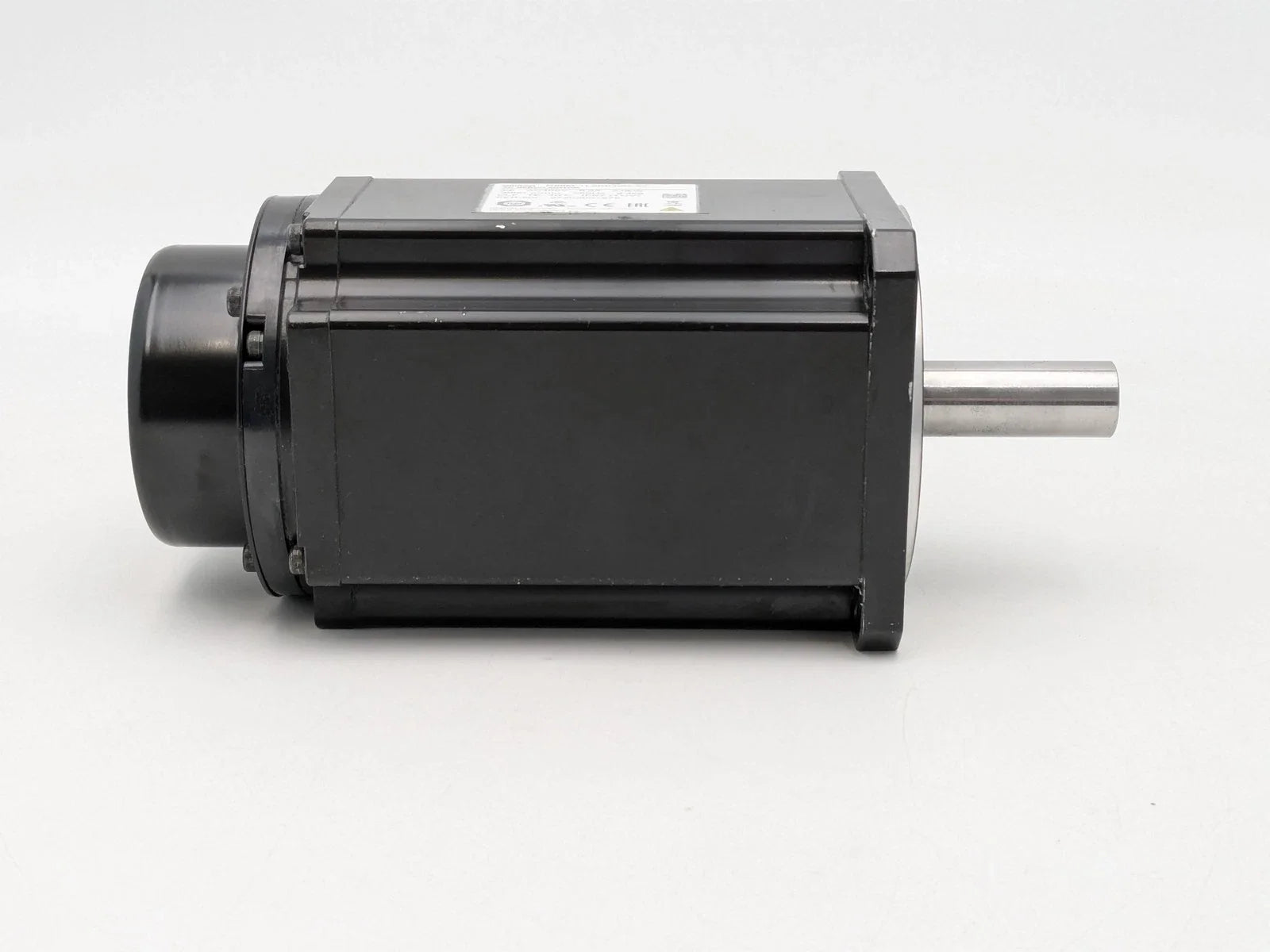

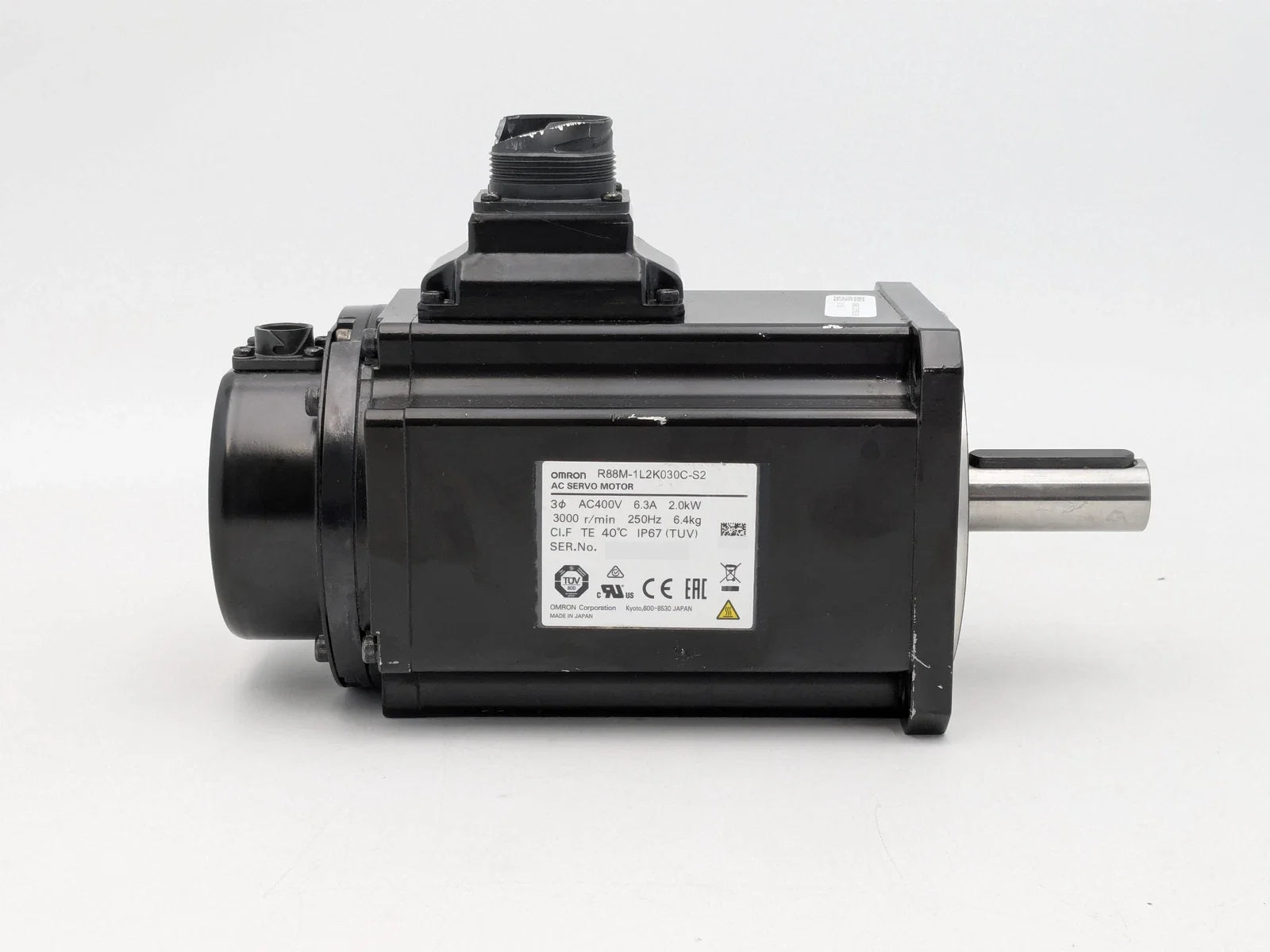

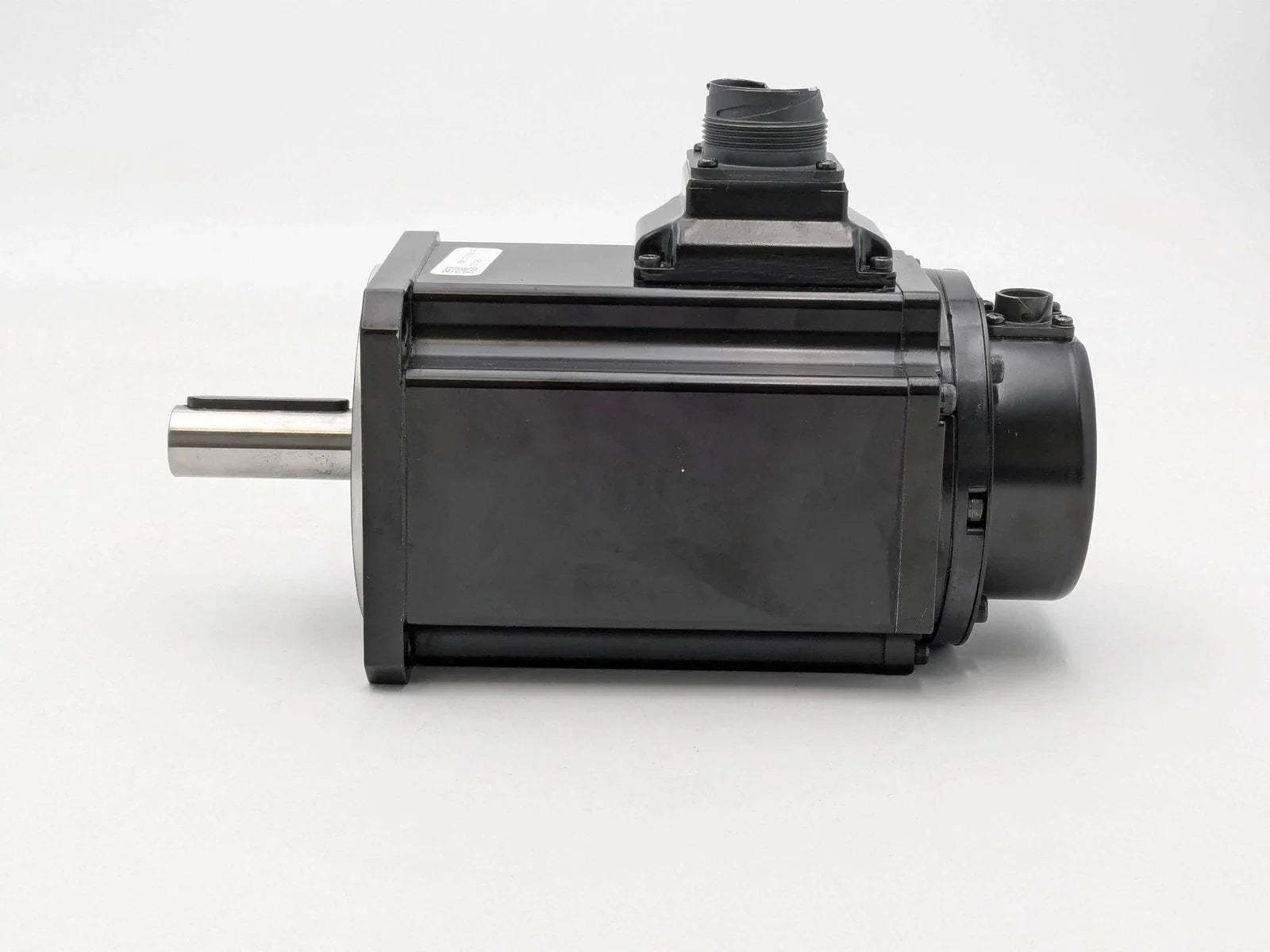

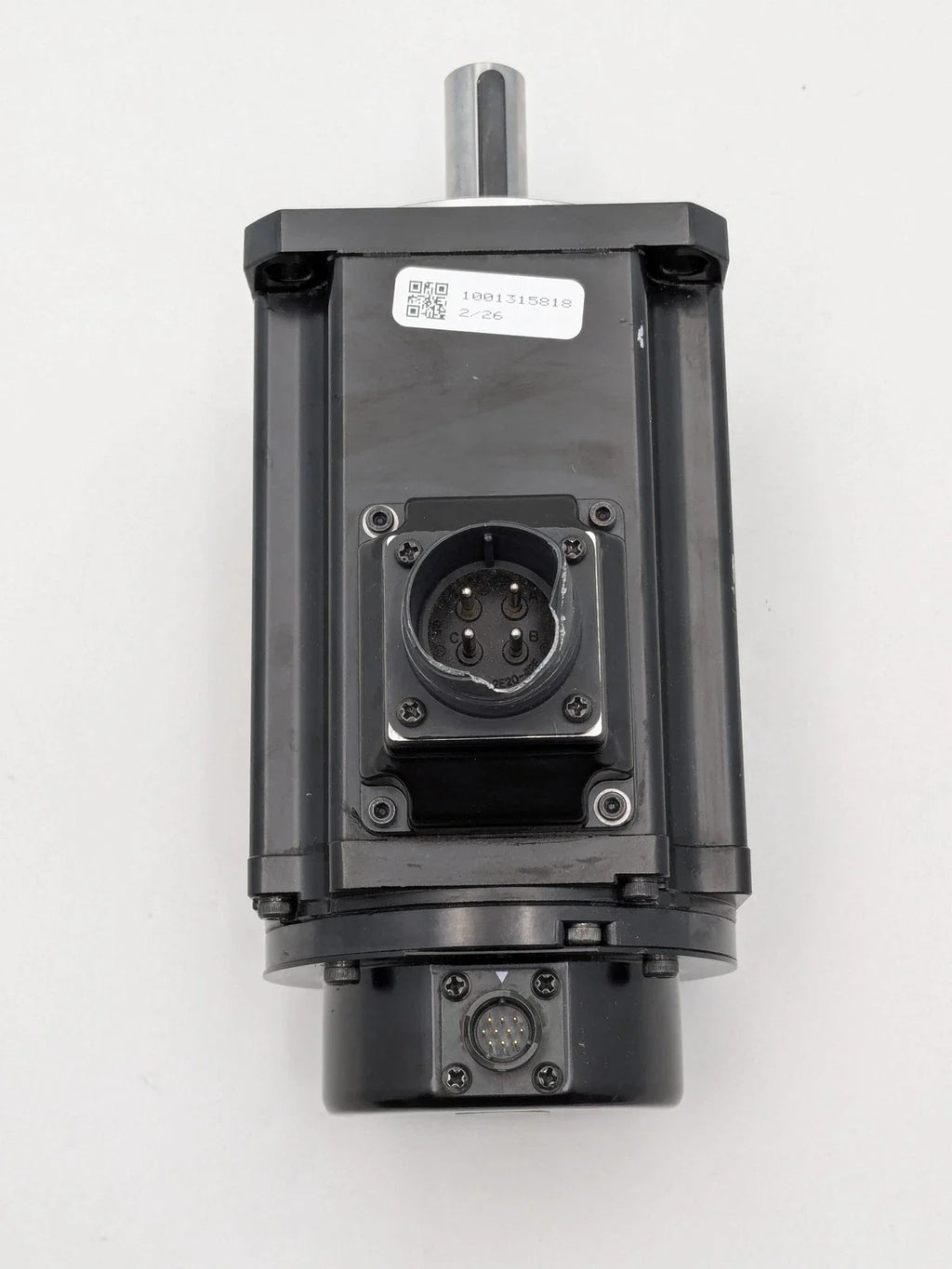

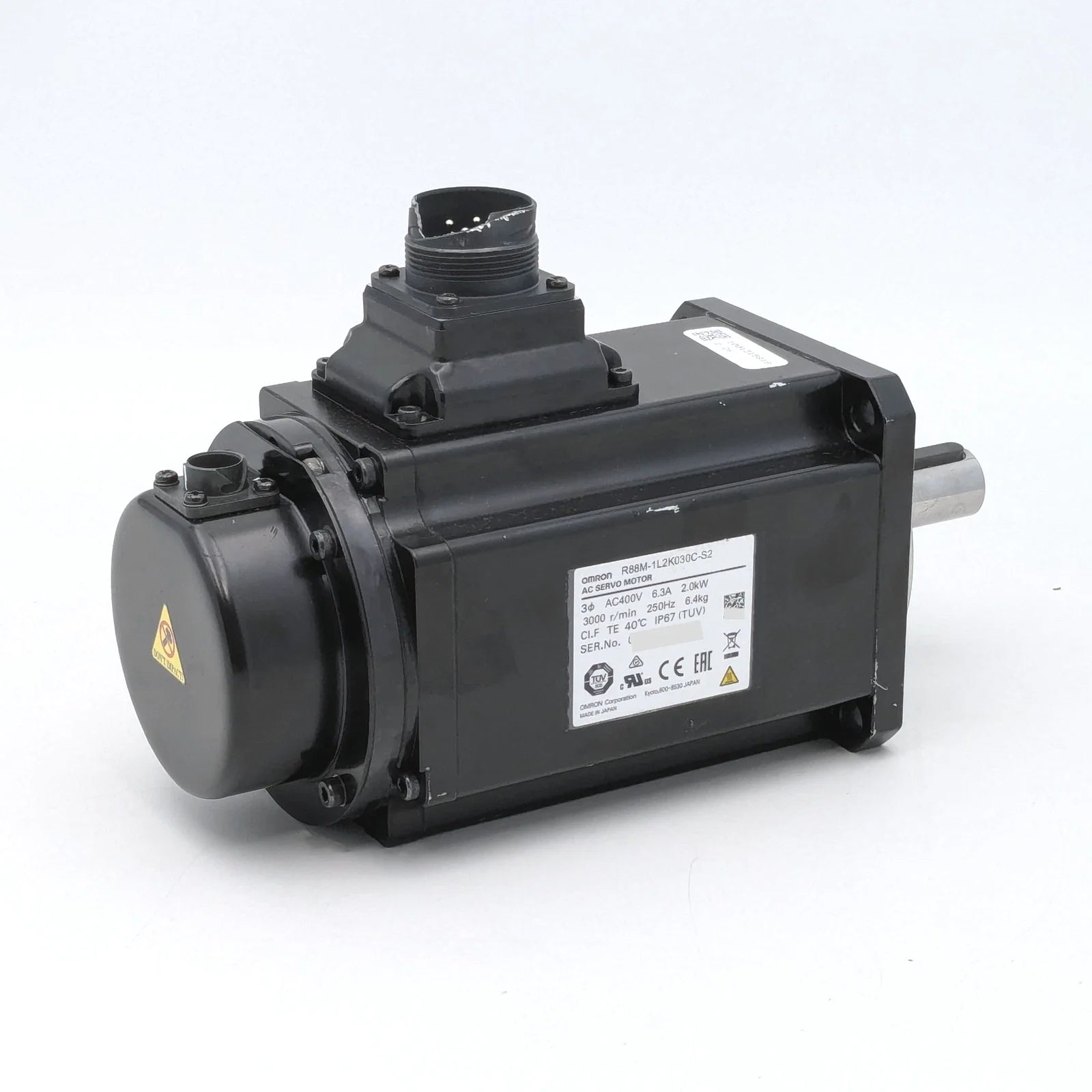

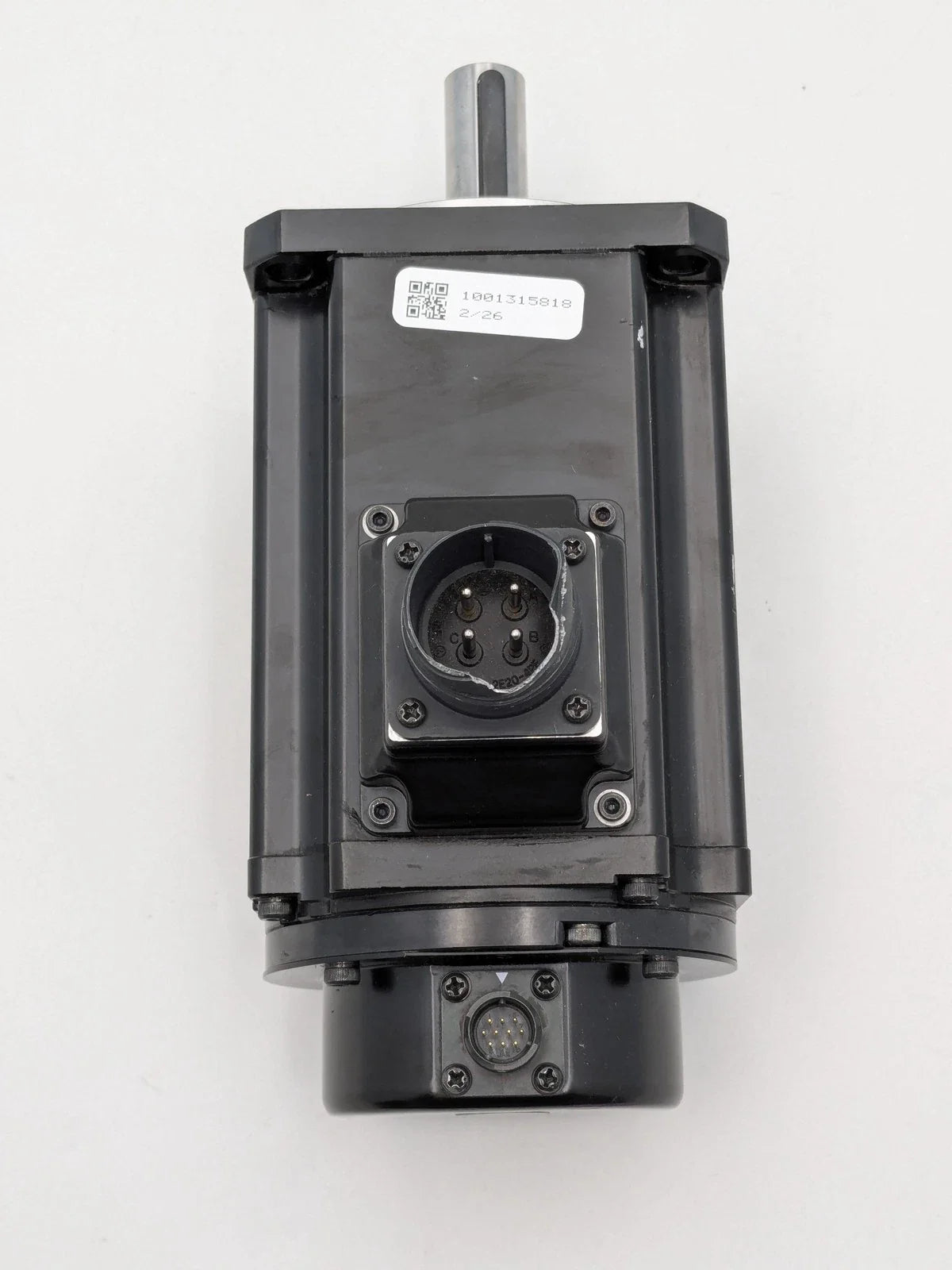

The Omron R88M-1L2K030C-S2 is a 2 kW AC servomotor designed for high-precision motion control in industrial automation systems. It operates at a rated speed of 3000 RPM and delivers stable torque for demanding applications. This motor is commonly used in systems requiring accurate positioning and high dynamic performance.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Omron |
| Category |
Industrial Automation |
| Part Number |
R88M-1L2K030C-S2 |
| Subcategory |
Servo Motors |
| Product Type |
AC Servo Motor |
| Series |
1S Series |
| Power Rating |
2 kW |
| Rated Speed |
3000 RPM |
| Rated Torque |
6.37 Nm |
| Peak Torque |
19.1 Nm |
| Supply Voltage |
400 V AC (3-Phase) |
| Encoder Type |
Absolute (Battery-Free) |
| Encoder Resolution |
23-bit |
| Flange Size |
100 mm |
| Shaft Diameter |
19 mm |
| Shaft Type |
Straight Shaft with Key and Tap |
| Mounting Type |
Flange Mount |
| Product Dimensions |
100 x 147 x 234 mm |
| Weight |
6.52 kg |
Information About R88M-1L2K030C-S2
The R88M-1L2K030C-S2 is part of Omron’s 1S series of servo motors, engineered for advanced motion control with EtherCAT communication support. It features a high-resolution 23-bit absolute encoder that eliminates the need for battery backup while ensuring precise feedback. The motor is designed with a straight shaft including key and tap for secure mechanical coupling in industrial machinery. Built for performance and reliability, it operates on a 400 VAC three-phase supply and is suitable for high-speed, high-accuracy applications.
Key Features:
- 2 kW Power Rating: Suitable for high-performance motion control applications
- 3000 RPM Rated Speed: Provides consistent high-speed operation
- 6.37 Nm Rated Torque: Ensures stable and accurate motion output
- 23-Bit Absolute Encoder: Enables high-resolution positioning without battery backup
- EtherCAT Control Compatibility: Supports advanced communication and synchronization
- High Peak Torque: Delivers up to 19.1 Nm for dynamic load conditions
- Robust Shaft Design: Straight shaft with key and tap for secure installation
- Industrial Build Quality: Designed for reliable operation in demanding environments
The R88M-1L2K030C-S2 delivers the reliability and precision required for servo-driven motion control in industrial automation systems.
