Description

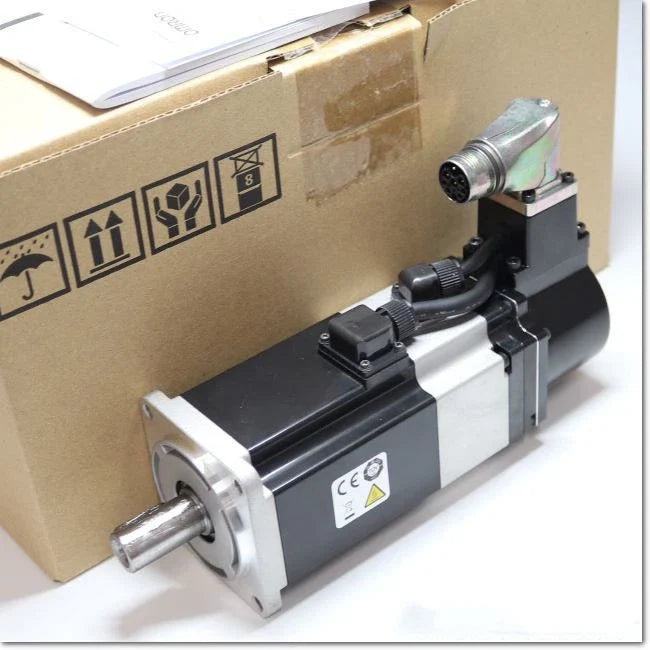

The Omron R88M-1AM40030T-BS2 is a compact AC servo motor designed for precise motion control in automated machinery. It provides 0.4 kW output with a rated speed of 3000 rpm and includes an integrated brake for enhanced positioning stability. This motor is suitable for applications requiring accurate control, high responsiveness, and compact installation.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Omron |
| Category |
Servo Products |
| Part Number |
R88M-1AM40030T-BS2 |
| Subcategory |
Servo Motor |
| Motor Type |
AC Servo Motor |
| Series |
1S Series |
| Rated Output |
0.4 kW |
| Rated Speed |
3000 rpm |
| Rated Torque |
1.27 Nm |
| Peak Torque |
4.5 Nm |
| Supply Voltage |
230 VAC (single phase) |
| Encoder Type |
Absolute (battery-less) |
| Encoder Resolution |
20-bit |
| Brake |
Yes (integrated) |
| Flange Size |
60 mm |
| Shaft Type |
Keyed with tap |
| Country of Origin |
Philippines |
| Weight |
2.9 kg |
Information About R88M-1AM40030T-BS2
The R88M-1AM40030T-BS2 belongs to Omron’s 1S series of advanced servo motors, developed for high-precision and high-speed motion control systems. It features a 20-bit absolute encoder without battery, enabling accurate position tracking without maintenance requirements. The motor is designed for EtherCAT-based systems, allowing seamless integration into synchronized multi-axis control networks. With a compact 60 mm flange size and built-in brake, it is commonly used in robotics, packaging equipment, and precision assembly systems.
Key Features:
- Compact servo design: 60 mm flange size for space-saving installation
- Rated output power: 0.4 kW for precise and efficient motion control
- High-speed performance: 3000 rpm rated speed for dynamic applications
- Absolute encoder: 20-bit resolution for accurate positioning without battery
- Integrated brake: Provides secure holding and improved safety
- EtherCAT compatibility: Supports high-speed synchronized motion systems
- High torque capability: 1.27 Nm rated torque with 4.5 Nm peak torque
- Single-phase operation: 230 VAC supply for standard industrial environments
The R88M-1AM40030T-BS2 delivers the reliability and precision required for advanced motion control and compact automation systems.
