Description

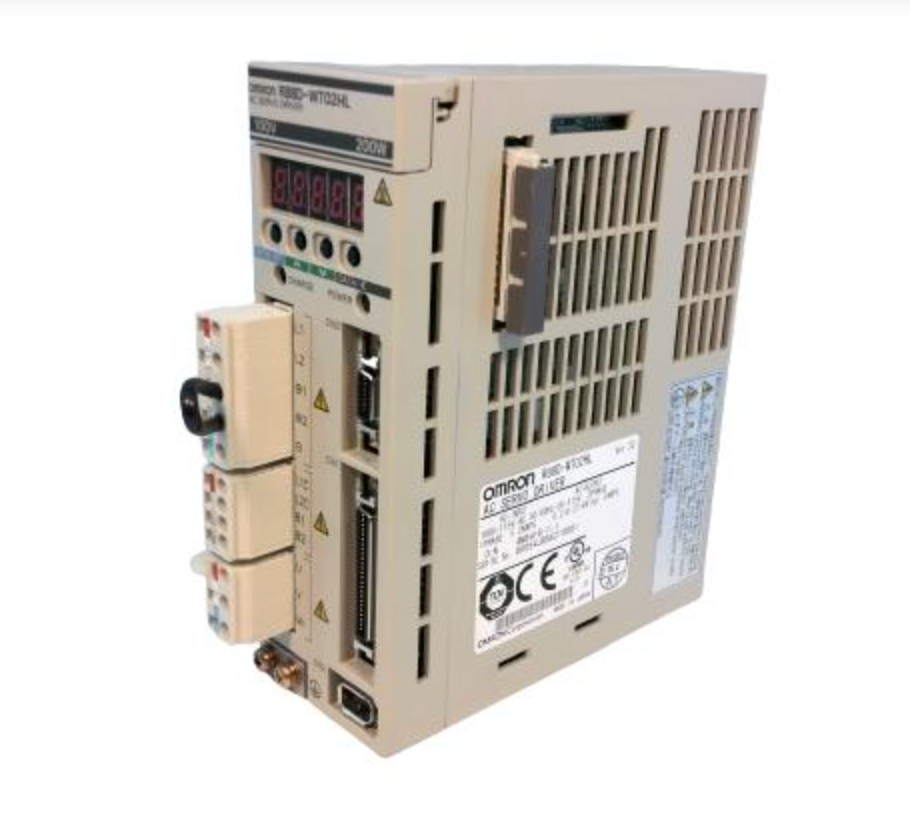

The Omron R88D-WT02HL is a compact AC servo drive designed for precise motion control in industrial automation systems. It provides accurate position, speed, and torque control for servo motors with a rated output of 200 W. This drive is commonly used in applications requiring high-resolution feedback and reliable performance.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Omron |
| Category |
Industrial Automation |
| Part Number |
R88D-WT02HL |
| Subcategory |
Servo Drives |
| Product Type |
AC Servo Drive |
| Series |
OMNUC W |
| Rated Output Power |
200 W |
| Input Voltage |
100–230 VAC |
| Phase |
Single Phase |
| Output Current |
3 A |
| Control Modes |
Position, Speed, Torque |
| Feedback Type |
Incremental Encoder |
| Encoder Resolution |
131,072 pulses/rev |
| Communication Interface |
RS-485 (Modbus/RTU) |
| Overload Capacity |
200% (3 seconds) |
| Operating Temperature |
0°C to +55°C |
| Mounting Type |
Chassis Mount |
| Weight |
2.20 lbs |
Information About R88D-WT02HL
The R88D-WT02HL is part of Omron’s OMNUC W series of servo drives, developed for efficient motor control in automation environments. It operates on a single-phase AC input and supports incremental encoder feedback for high-precision positioning. The drive integrates multiple control modes, including position, speed, and torque control, allowing flexible operation across various applications. Designed with built-in protection features and communication capabilities, it ensures stable and secure operation within industrial systems.
Key Features:
- 200 W Output Power: Suitable for precision servo motor applications
- Multi-Control Modes: Supports position, speed, and torque control
- High Encoder Resolution: 131,072 pulses per revolution for accurate feedback
- Single-Phase Input: Operates on 100–230 VAC supply for flexible installation
- Overload Capacity: Handles up to 200% rated current for short durations
- Integrated Communication: RS-485 interface with Modbus/RTU support
- Comprehensive Protection: Includes overcurrent, overvoltage, and overtemperature safeguards
- Compact Design: Optimized for space-efficient panel mounting
The R88D-WT02HL delivers the reliability and precision required for servo drive control in industrial motion systems.
