Description

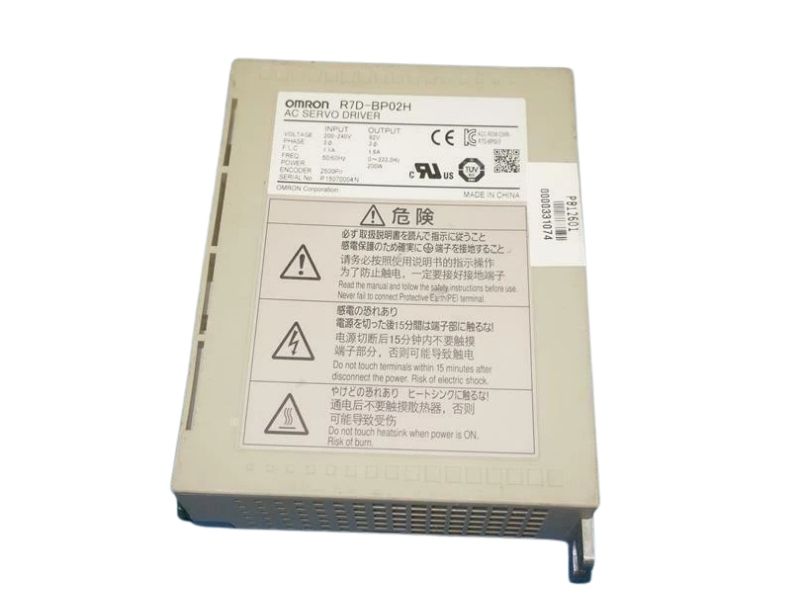

The Omron R7D-BP02H is a SmartStep 2 AC servo drive designed to control servo motors in precision motion control applications. It provides a rated output of 200 W and operates on a 200 VAC supply with pulse-train control input. This servo drive is commonly used in automated machinery where accurate positioning and speed control are required.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Omron |
| Category |
Servo Products |
| Part Number |
R7D-BP02H |
| Subcategory |
Servo Drive/Servo Control |
| Series |
SmartStep 2 |
| Drive Type |
AC Servo Drive |
| Rated Output Power |
200 W |
| Voltage Supply |
200 VAC |
| Number of Phases |
Single-phase / Three-phase |
| Current Output |
1.6 A |
| Control Method |
Pulse train input |
| Communication Ports |
RS-232C, RS-485 |
| Mounting Type |
Chassis Mount |
| Operating Temperature |
0°C to 55°C |
| Compatible Motor Series |
Omron R88M-G Series |
| Country of Origin |
China |
| Weight |
1.00 lbs |
Information About R7D-BP02H
The R7D-BP02H is part of the Omron SmartStep 2 series of compact servo drives developed for small to medium motion control systems. It controls a single servo motor and supports pulse-train command input for precise position and speed control. The drive is compatible with Omron servo motors such as the R88M-G series and includes serial communication interfaces for configuration and diagnostics. Designed for chassis mounting, it is commonly installed in industrial control panels within automation systems.
Key Features:
-
SmartStep 2 Servo Platform: Designed for compact motion control systems requiring accurate positioning.
-
200 W Output Power: Provides reliable power for small servo motor applications.
-
Pulse-Train Control Method: Supports precise position and speed control from external controllers.
-
200 VAC Operation: Compatible with standard industrial AC power supplies.
-
Single Motor Control: Designed to drive one servo motor within automation equipment.
-
Serial Communication Interfaces: Supports RS-232C and RS-485 for configuration and monitoring.
-
Compact Chassis Mount Design: Suitable for installation inside industrial control cabinets.
-
Omron Servo Motor Compatibility: Designed for use with Omron servo motors such as the R88M-G series.
The R7D-BP02H delivers the reliability and precision required for servo motor control in industrial automation and positioning systems.
