Description

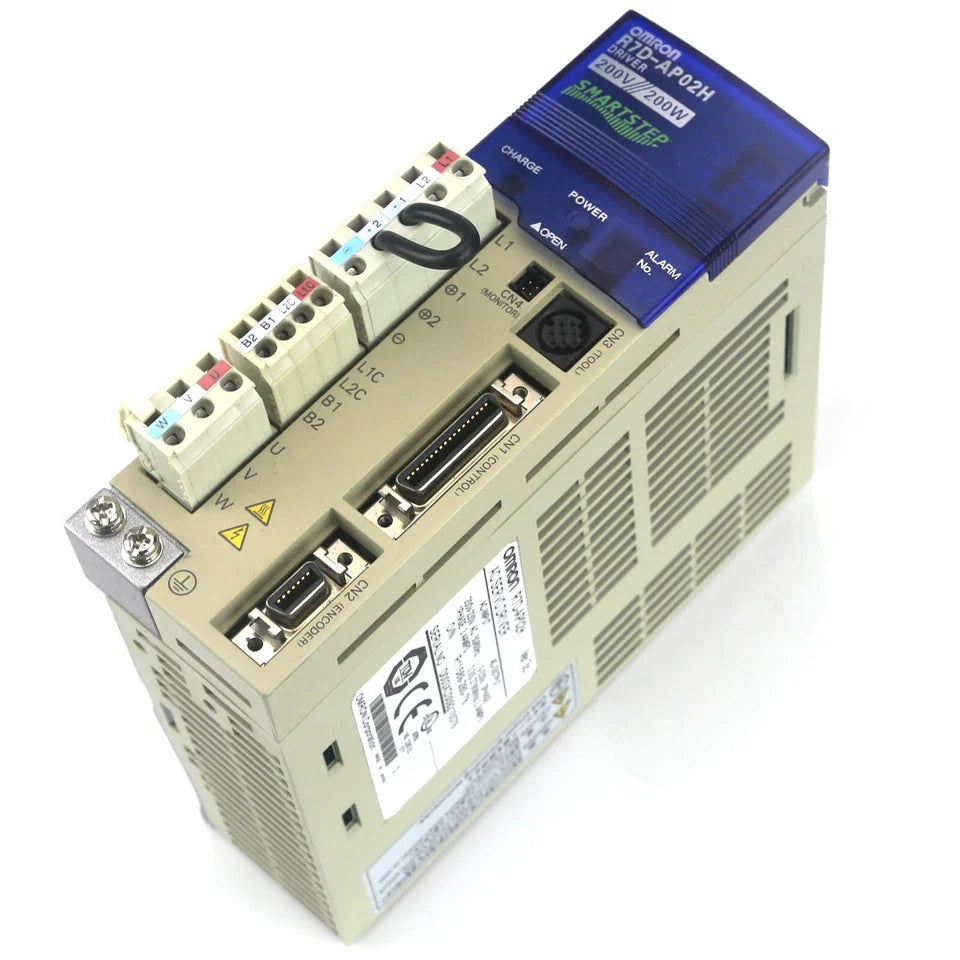

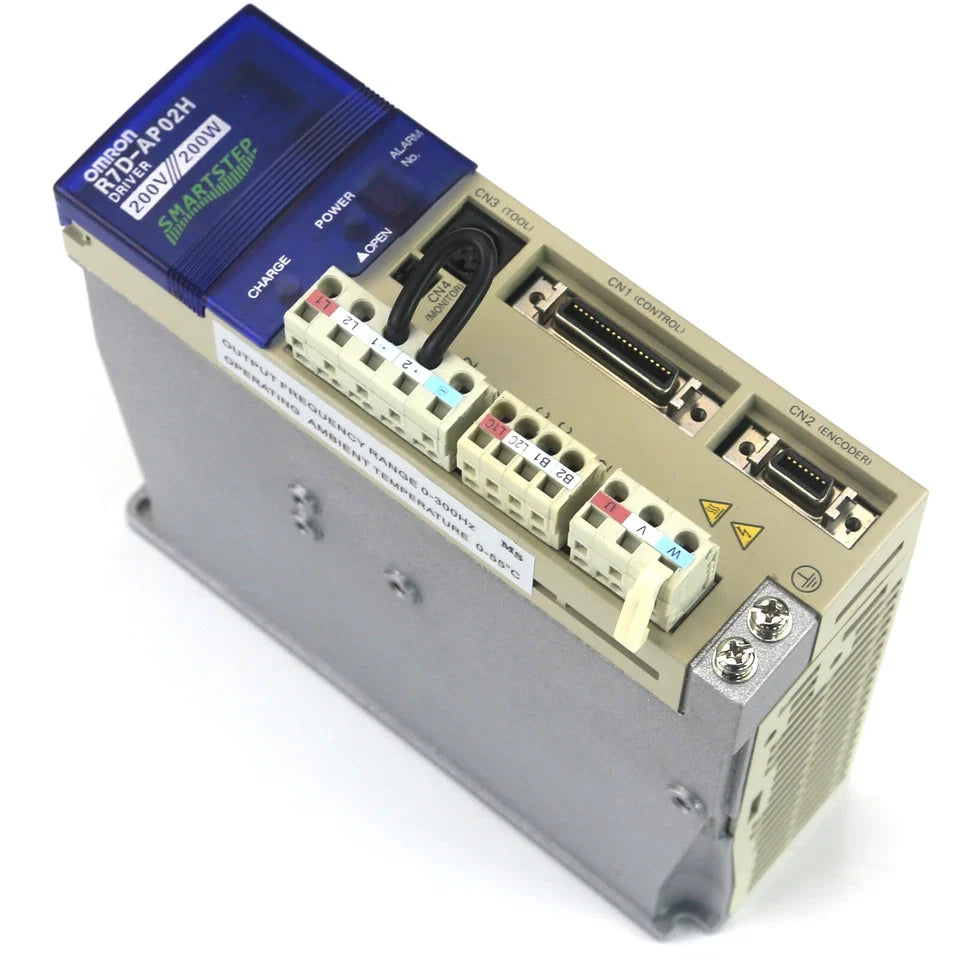

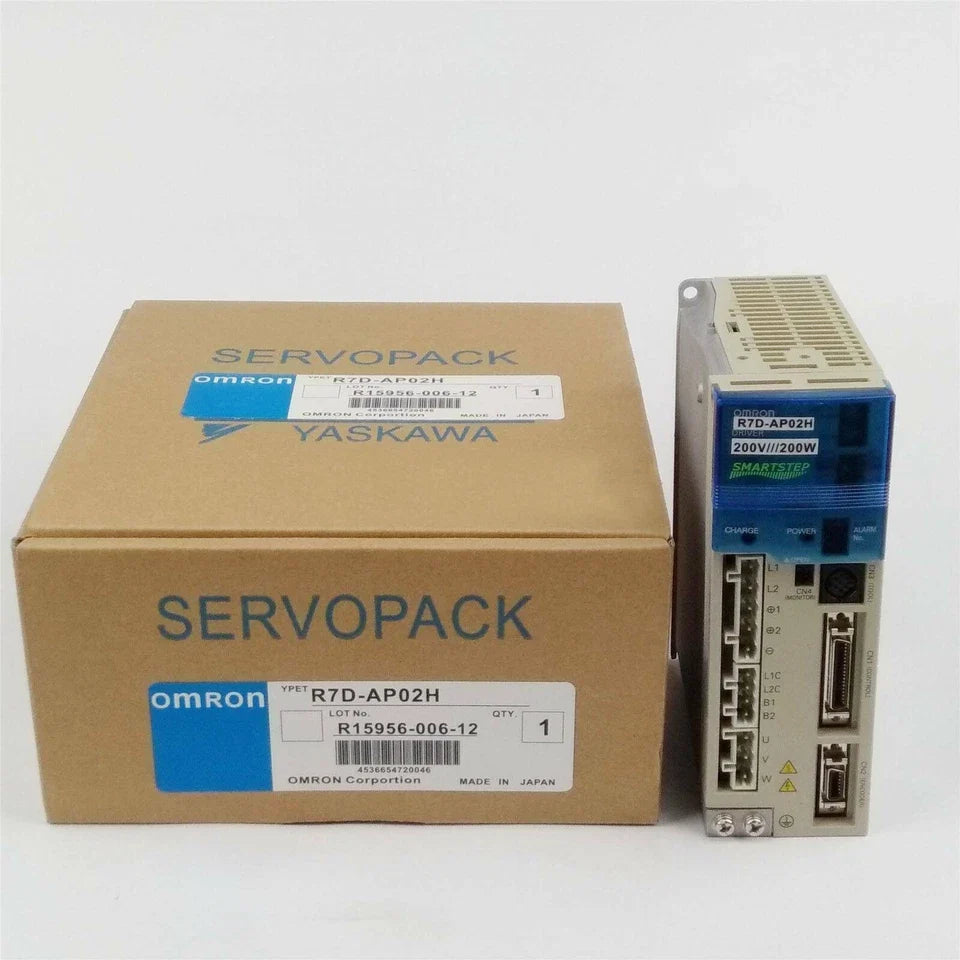

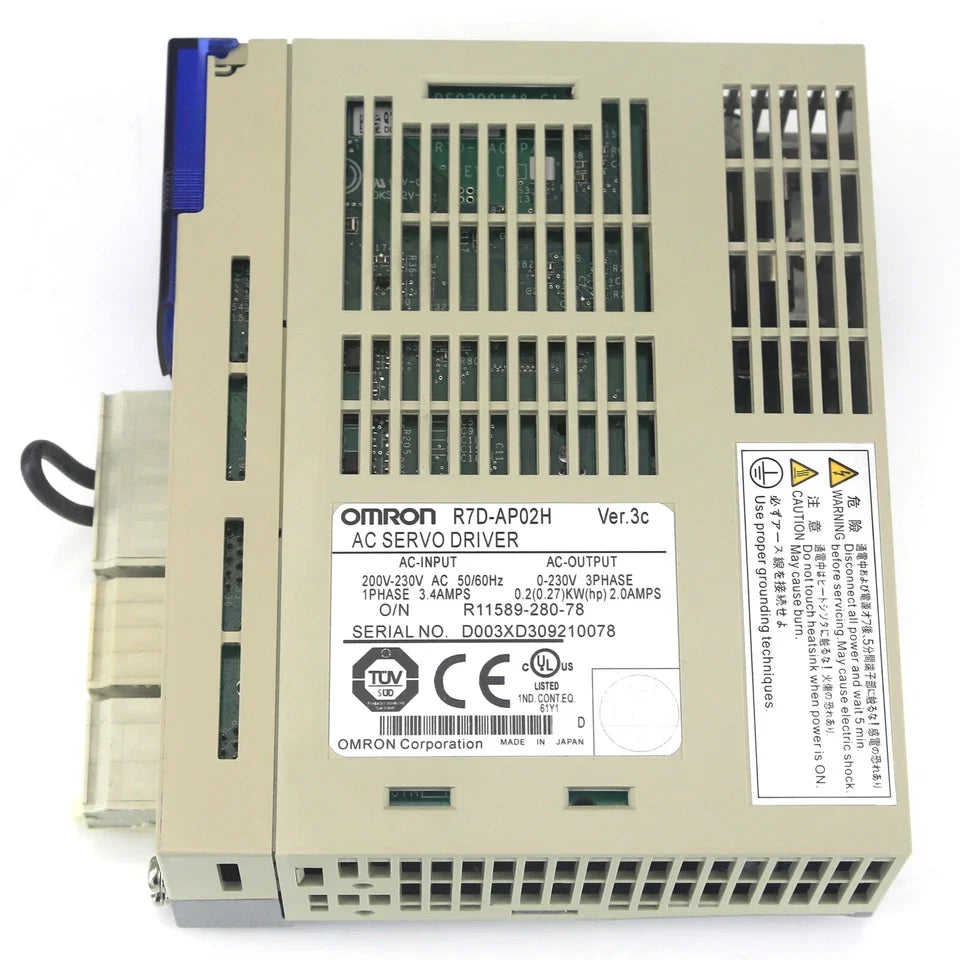

The Omron R7D-AP02H is a compact AC servo drive designed to provide precise motion control for industrial automation applications. Built for use with Omron SMARTSTEP A Series servo motors, it delivers accurate positioning, smooth speed control, and reliable performance for packaging equipment, material handling systems, and automated machinery.
Technical Specifications
| Condition |
Obsolete / Surplus Available |
| Brand |
Omron |
| Part Number |
R7D-AP02H |
| Category |
Servo Products |
| Subcategory |
Servo Drive / Servo Control |
| Product Type |
AC Servo Drive |
| Series |
SMARTSTEP A |
| Rated Output Power |
200 W |
| Supply Voltage |
200–230 VAC |
| Voltage - Load |
200 VAC |
| Maximum Input Current |
3.4 A |
| Output Current |
2 A |
| Communication Interface |
Serial |
| Compatible Motors |
Omron SMARTSTEP A Series |
| Motor Capacity |
1 Motor |
| Mounting Type |
Chassis Mount |
| Operating Temperature |
0°C to +55°C |
| Part Status |
Obsolete |
| Weight |
1.81 lbs |
Information About R7D-AP02H
The R7D-AP02H is part of Omron's SMARTSTEP A Series servo drive family, developed for compact and cost-effective motion control solutions. Rated at 200 W, the drive operates from a 200–230 VAC power supply and supports precise servo motor control through a serial interface. Its compact chassis-mounted design allows easy integration into industrial control panels while delivering stable performance in demanding automation environments. Although discontinued, it remains widely used as a replacement drive for existing SMARTSTEP A systems.
Key Features:
- SMARTSTEP A Series AC Servo Drive
- Rated output power of 200 W
- 200–230 VAC operating voltage
- Maximum input current of 3.4 A
- 2 A rated output current
- Compatible with Omron SMARTSTEP A servo motors
- Serial communication interface
- Compact chassis-mounted design
- Smooth, accurate servo motor control
- Ideal for industrial motion control and machine automation
The R7D-AP02H provides reliable servo performance and accurate motion control for a wide range of industrial automation applications.
