Description

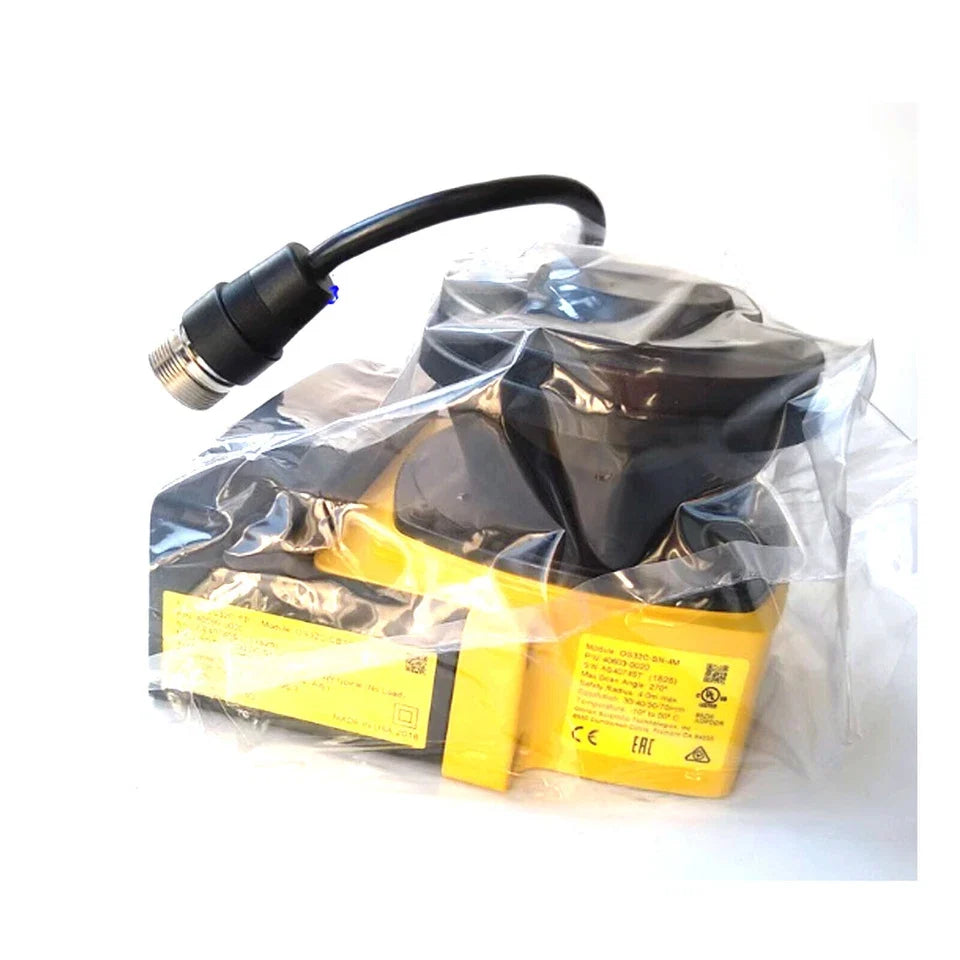

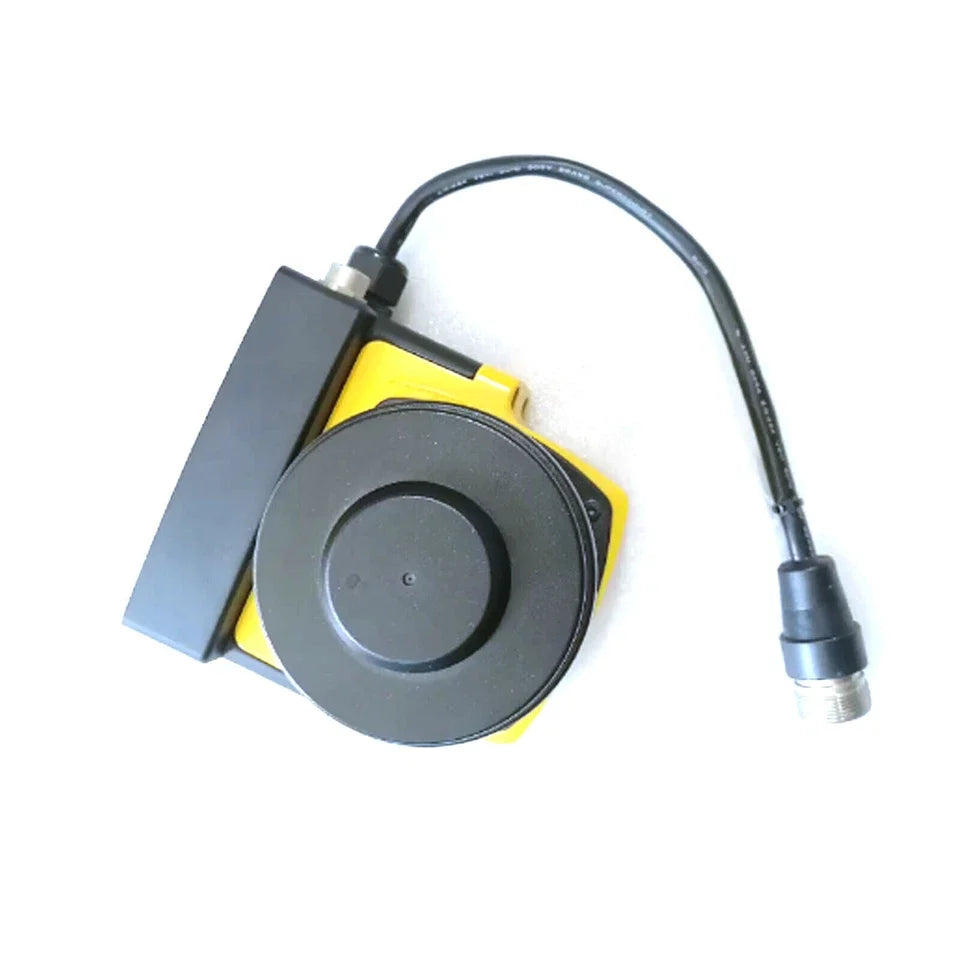

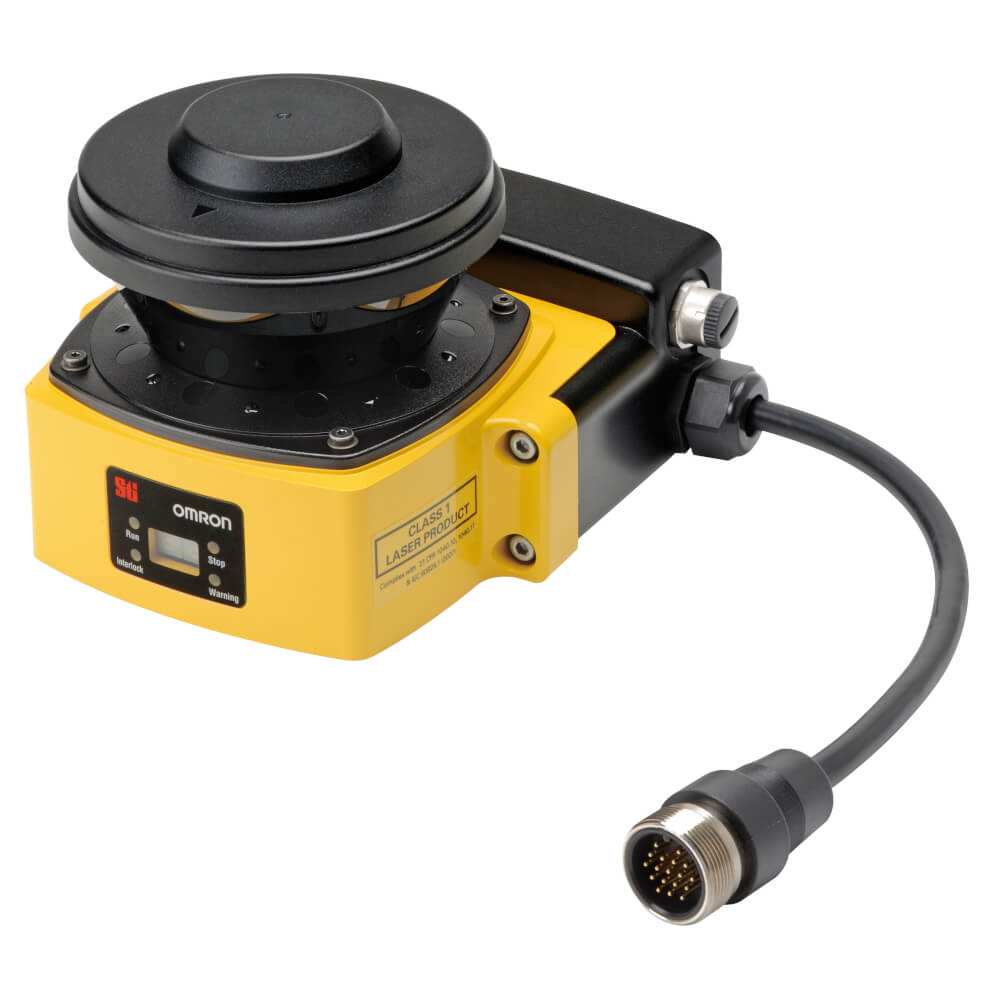

The Omron OS32C-SP1-DM-4M is a safety laser scanner designed for area protection and hazard detection in industrial environments. It provides a maximum safety range of 4 meters and a warning range of up to 15 meters with a 270° scanning angle. This device is used for safeguarding personnel and equipment in automated machinery and robotic systems.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Omron |
| Category |
Business & Industrial |
| Part Number |
OS32C-SP1-DM-4M |
| Subcategory |
Safety Laser Scanners |
| Series |
OS32C |
| Safety Category |
Category 3, PLd, SIL2 |
| Safety Range |
4 m |
| Warning Range |
15 m |
| Scanning Angle |
270° |
| Detection Capability |
30 / 40 / 50 / 70 mm |
| Response Time |
80 ms |
| Number of Outputs |
4 (2 Safety, 1 Warning, 1 Auxiliary) |
| Communication Protocol |
EtherNet/IP |
| Supply Voltage |
16.8–30 VDC |
| Max Output Current |
250 mA |
| Laser Class |
Class 1 |
| Protection Rating |
IP65 |
| Operating Temperature |
-10°C to 50°C |
| Dimensions |
143 × 105 × 105 mm |
| Weight |
1.3 kg |
Information About OS32C-SP1-DM-4M
The OS32C-SP1-DM-4M is part of Omron’s OS32C series of safety laser scanners, developed for machine safety and access protection applications. It operates using a Class 1 laser with configurable detection zones and object resolution settings to suit different safety requirements. The scanner supports EtherNet/IP communication, allowing integration into industrial control systems and safety networks. Its IP65-rated enclosure and compact design enable reliable operation in demanding industrial environments.
Key Features:
-
4 m safety protection range: Provides reliable monitoring of hazardous zones around machinery.
-
15 m warning zone: Enables early detection of approaching objects or personnel.
-
270° scanning angle: Covers a wide detection area for comprehensive safety coverage.
-
Configurable object resolution: Adjustable detection capability (30, 40, 50, 70 mm) for different applications.
-
EtherNet/IP communication: Supports integration with industrial automation and safety systems.
-
Dual safety outputs (OSSD): Ensures reliable signal output for safety control systems.
-
IP65 protection rating: Suitable for use in harsh industrial environments.
-
Class 1 laser safety: Provides safe operation without additional protective measures.
The OS32C-SP1-DM-4M delivers the reliability and precision required for machine safety and area protection in industrial automation systems.
