Description

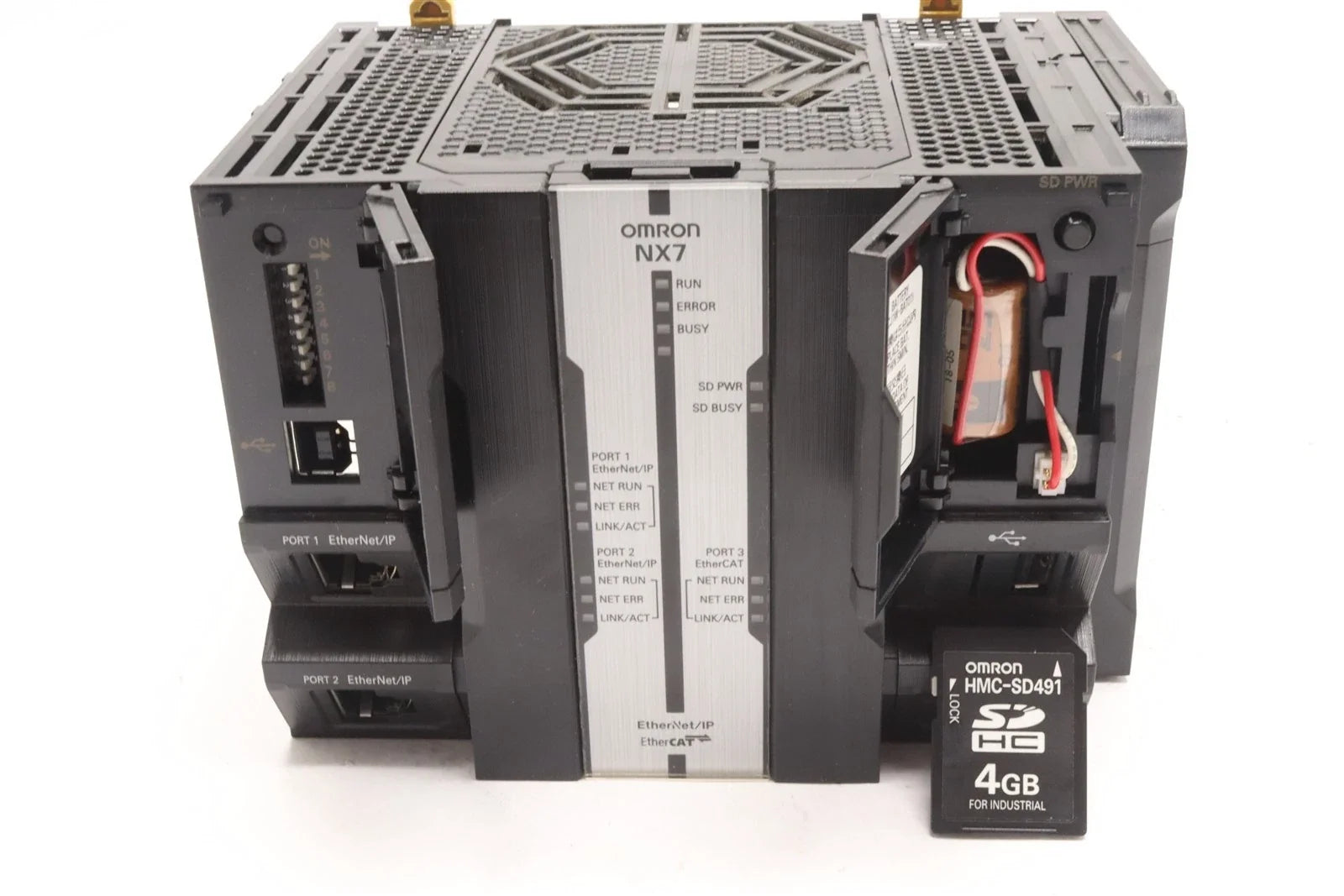

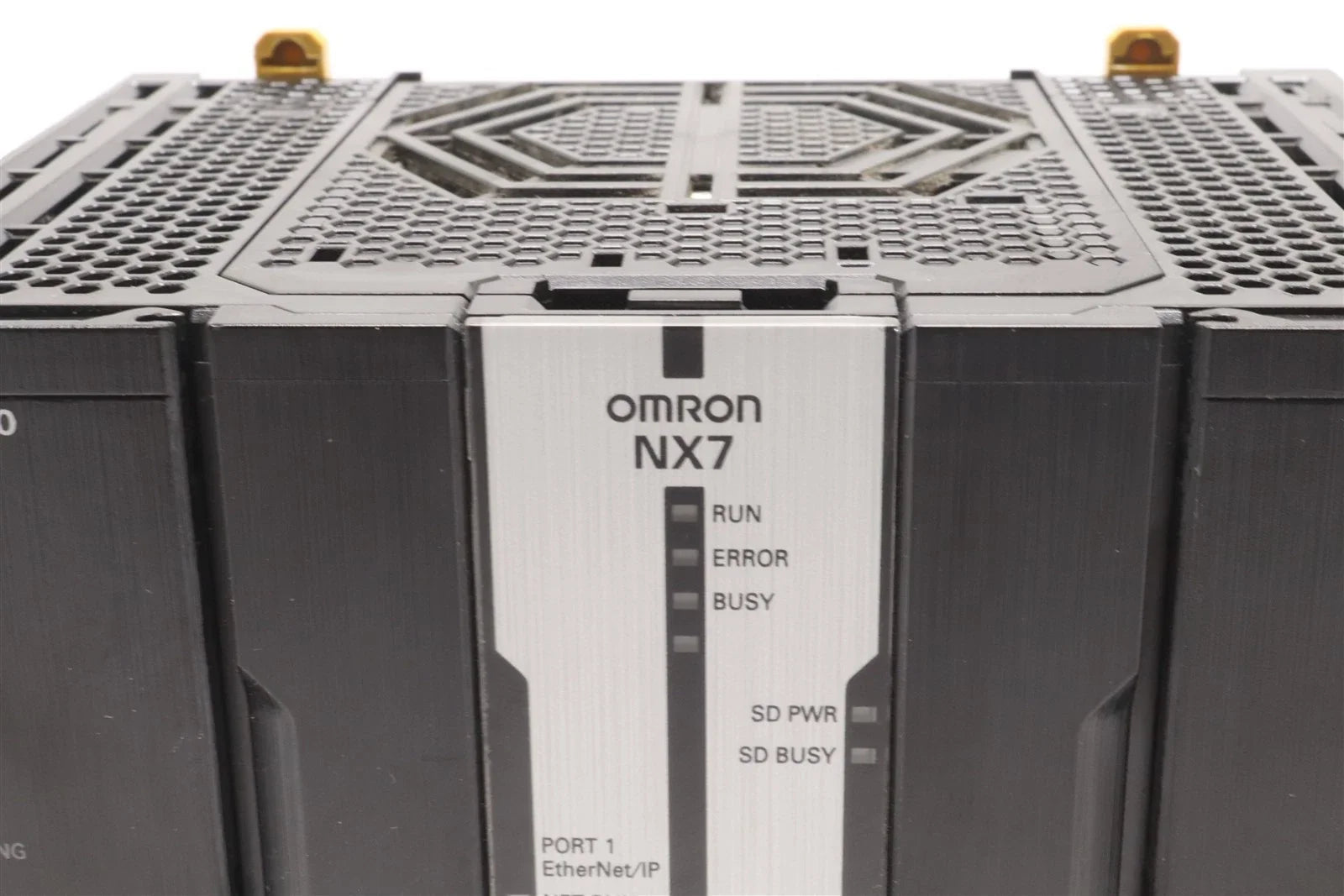

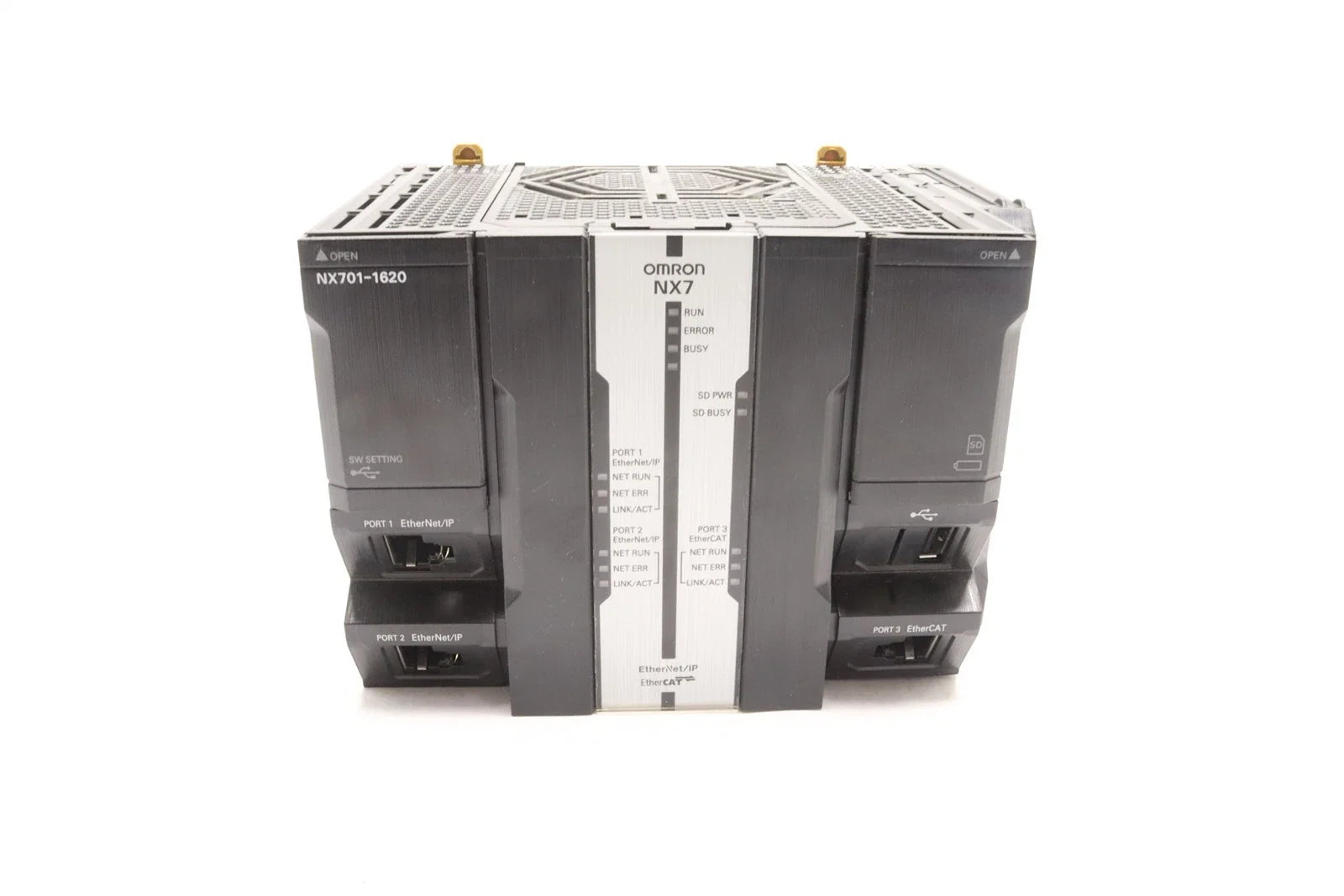

The Omron NX701-1620 is a high-performance machine automation controller (PAC) designed for advanced motion control, sequence control, database connectivity, and OPC UA communication. With support for up to 128 synchronized motion axes and an ultra-fast 0.125 ms task cycle, it provides exceptional performance for robotics, packaging, manufacturing, and complex industrial automation systems.
Technical Specifications
| Condition |
New / Surplus Available |
| Brand |
Omron |
| Part Number |
NX701-1620 |
| Category |
Controls & Indicators |
| Subcategory |
CPU / Control Board |
| Product Type |
Machine Automation Controller (PAC) |
| Series |
NX701 |
| Controller Functions |
Motion Control, Sequence Control, DB Connection, OPC UA |
| Program Memory |
80 MB |
| Variable Memory |
260 MB |
| Primary Task Cycle Time |
0.125 ms |
| Maximum Synchronous Axes |
128 |
| Maximum Total Axes |
128 |
| Motion Control Network |
EtherCAT |
| Communication Ports |
EtherCAT Master, Dual Gigabit EtherNet/IP, Ethernet TCP/IP |
| Programming Languages |
Ladder, Structured Text, Function Block |
| Programming Connection |
USB, Ethernet |
| Flash Memory Port |
SD Card, USB Host |
| I/O System |
NX I/O Bus |
| Maximum Remote I/O Nodes |
512 |
| Expansion Units |
0 |
| Mounting Type |
DIN Rail |
| Dimensions (H × W × D) |
100 × 132 × 100 mm |
| Weight |
2.00 lbs |
Information About NX701-1620
The NX701-1620 is part of Omron's Sysmac NX Series machine automation platform, engineered for high-speed, integrated machine control. It combines PLC functionality, motion control, SQL database connectivity, OPC UA communication, and industrial networking into a single controller. Featuring 80 MB of program memory, 260 MB of variable memory, and integrated EtherCAT Master with dual Gigabit EtherNet/IP ports, the controller supports up to 128 synchronized axes and 512 remote I/O nodes. Its compact DIN rail-mounted design makes it ideal for high-performance automation systems requiring deterministic control and real-time communication.
Key Features:
- NX Series Machine Automation Controller (PAC)
- Supports motion, sequence, database, and OPC UA control
- Up to 128 synchronized motion axes
- Ultra-fast 0.125 ms primary task cycle
- Built-in EtherCAT Master and dual Gigabit EtherNet/IP ports
- 80 MB program memory and 260 MB variable memory
- Supports up to 512 remote NX I/O nodes
- USB Host, USB programming, and Ethernet connectivity
- DIN rail-mounted industrial design
- Designed for advanced machine automation and Industry 4.0 applications
The NX701-1620 delivers powerful real-time machine control, high-speed networking, and scalable automation performance for demanding industrial environments.
