Description

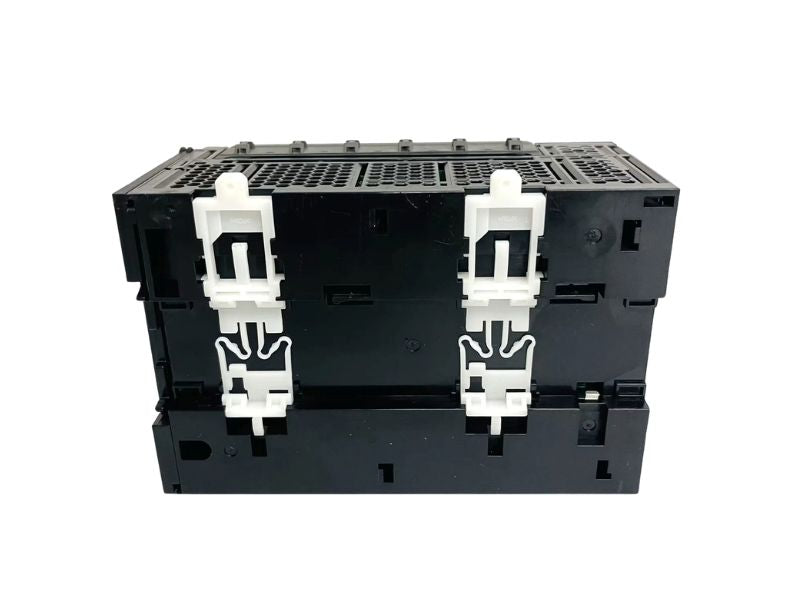

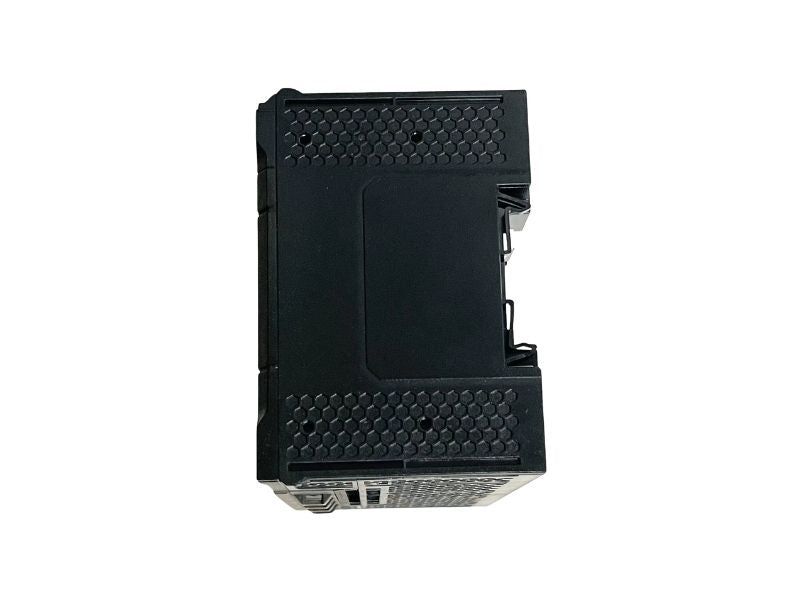

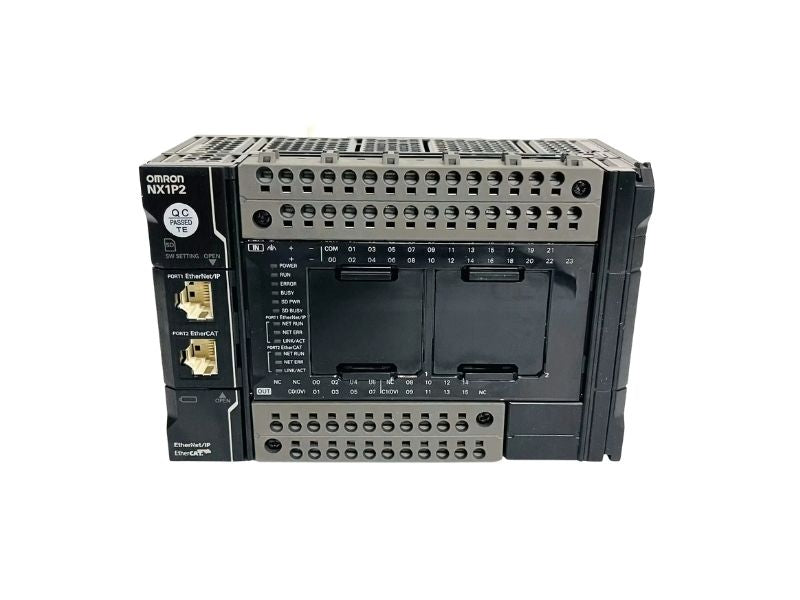

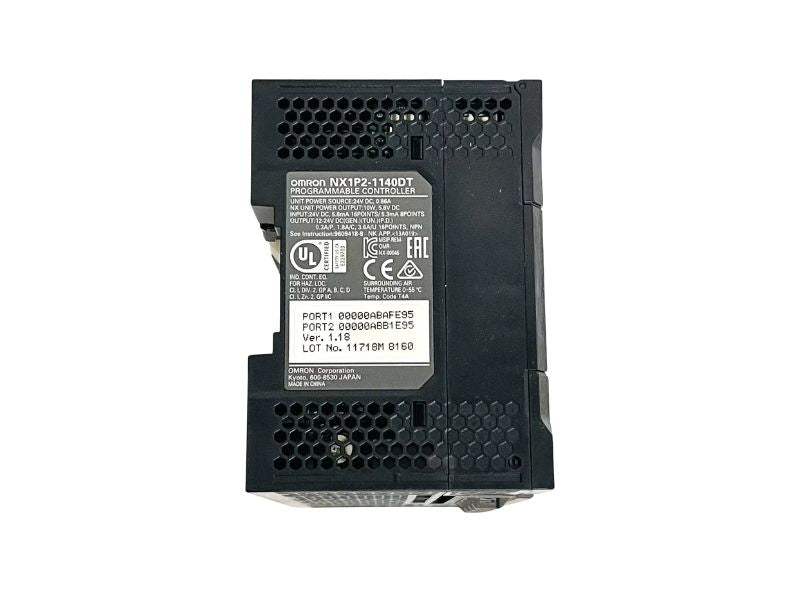

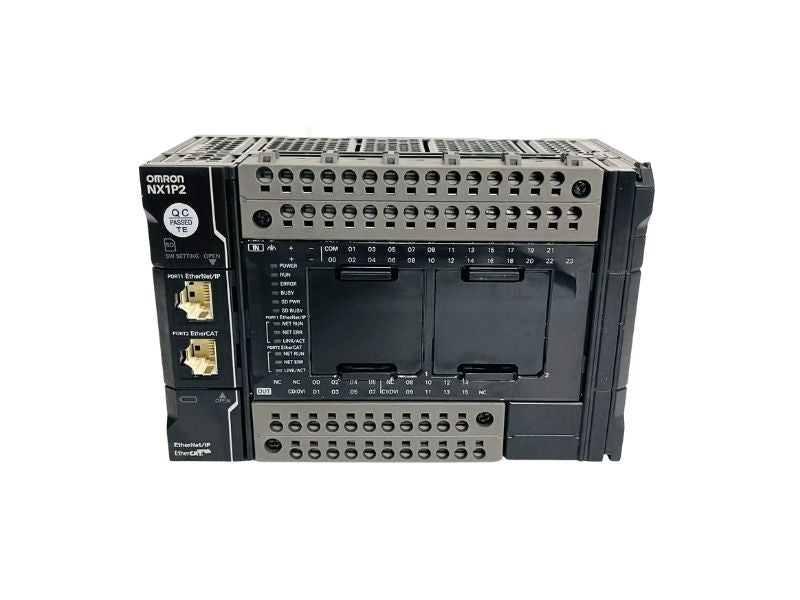

The Omron NX1P2-1140DT is a compact machine automation CPU controller designed for integrated motion, logic, and network control in industrial systems. It features 24 digital inputs and 16 NPN digital outputs along with built-in EtherCAT and EtherNet/IP communication. The controller is engineered for high-speed control tasks and supports advanced automation functions within the Omron NX1P series platform.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Omron |
| Category |
Industrial Automation and Controls |
| Part Number |
NX1P2-1140DT |
| Subcategory |
PLC Controllers |
| Series |
NX1P |
| Module Type |
CPU Unit |
| Digital Inputs |
24 |
| Digital Outputs |
16 NPN |
| Communication Protocols |
EtherCAT Master, EtherNet/IP, EtherNet TCP/IP |
| Motion Control Network |
EtherCAT |
| Total Motion Axes |
8 (4 Point-to-Point, 4 Coordinated) |
| Program Memory |
1.5 MB |
| Maximum Local I/O Units |
8 |
| Maximum Total Units per CPU |
24 |
| Flash Memory Port |
SD |
| Programming Languages |
Ladder, Structured Text, Function Block |
| Minimum Cycle Time |
2 ms |
| Mounting Type |
DIN Rail |
| Weight |
740 g |
Information About NX1P2-1140DT
The NX1P2-1140DT is a CPU unit from Omron’s NX1P series designed for machine automation and motion control applications. It integrates multiple industrial communication protocols including EtherCAT master, EtherNet/IP, and EtherNet TCP/IP to support networked automation architectures. The controller supports up to eight local I/O expansion units and can manage distributed I/O systems through NX couplers. With support for ladder, structured text, and function block programming languages, it is suitable for complex control, motion synchronization, and high-speed automation processes.
Key Features:
-
Integrated digital I/O configuration: Includes 24 digital inputs and 16 NPN transistor outputs for direct field device control.
-
Built-in EtherCAT master capability: Supports high-speed motion control and synchronization across EtherCAT networks.
-
EtherNet/IP communication: Enables integration with industrial Ethernet automation systems and PLC networks.
-
Motion control support: Manages up to 8 axes with coordinated and point-to-point control capabilities.
-
1.5 MB program memory: Provides sufficient capacity for complex machine automation programs.
-
Flexible programming languages: Supports ladder logic, structured text, and function block programming methods.
-
NX Local Bus architecture: Allows expansion with additional NX series I/O modules.
-
DIN rail mounting design: Suitable for installation in standard industrial control cabinets.
The NX1P2-1140DT delivers the reliability and precision required for advanced machine control, motion automation, and integrated PLC operations.
