Description

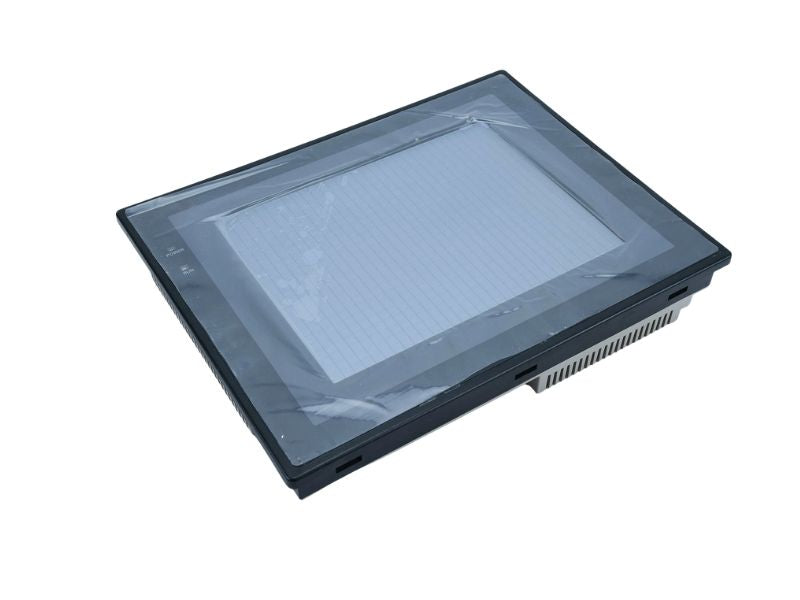

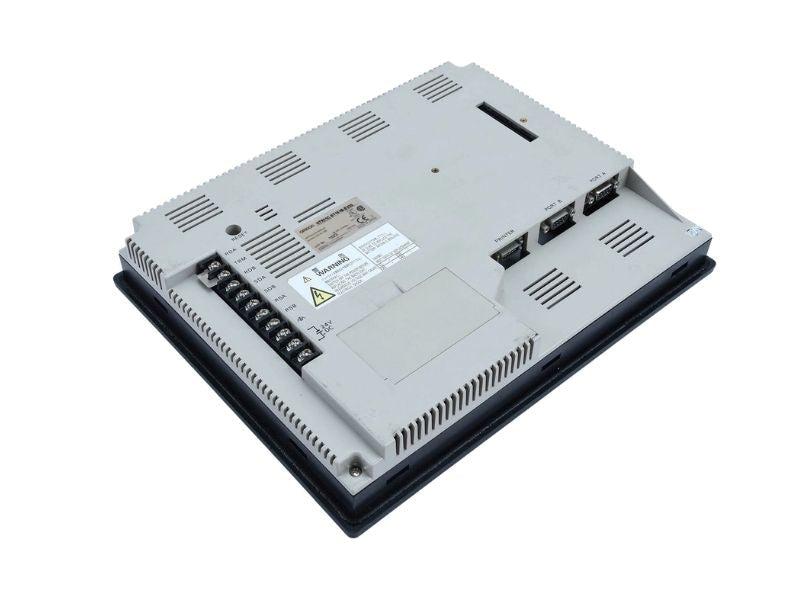

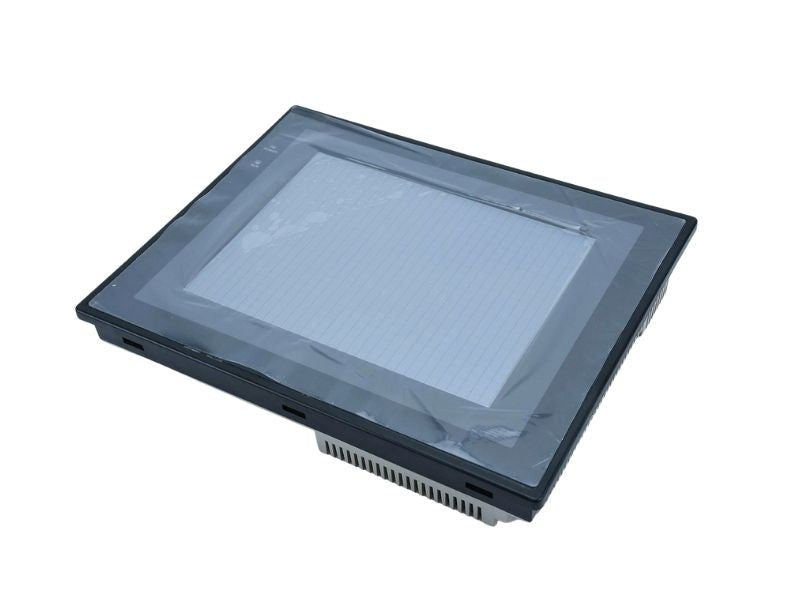

The Omron NT631C-ST151B-EV2 is a programmable operator interface designed for monitoring and controlling industrial automation systems. It features an 11.3-inch TFT color touchscreen display that allows operators to interact with PLC-controlled equipment and production processes. Powered by a 24 VDC supply, this HMI panel provides a centralized interface for machine status visualization and control input.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Omron |
| Category |
HMI / MMI / OIT |
| Part Number |
NT631C-ST151B-EV2 |
| Subcategory |
Operator Interface |
| Series |
NT Series |
| Display Type |
TFT Color LCD |
| Display Size |
11.3 inches |
| Resolution |
640 × 480 pixels |
| Color Support |
8 colors |
| Input Method |
Touchscreen |
| Communication Ports |
RS-232C, RS-422A/485, Printer port |
| Supply Voltage |
24 VDC |
| Power Consumption |
18 W |
| Backlight |
White |
| Mounting Type |
Panel mount |
| Weight |
5.00 lbs |
Information About NT631C-ST151B-EV2
The NT631C-ST151B-EV2 is part of the Omron NT series of programmable terminals developed for industrial automation environments. It integrates a high-resolution TFT LCD display with touch input functionality, enabling operators to monitor system data and issue commands directly from the control panel. The unit supports multiple communication interfaces, including RS-232C and RS-422A/485, allowing connection to compatible PLCs and automation devices. With its panel-mounted design and integrated backlight display, the terminal is intended for use in industrial control cabinets and operator stations.
Key Features:
-
11.3-Inch TFT Color Display: Provides clear visualization of machine data and control screens.
-
Touchscreen Operator Interface: Allows intuitive interaction with automation systems.
-
640 × 480 Resolution: Enables detailed graphical monitoring and process visualization.
-
Multiple Communication Interfaces: Supports RS-232C and RS-422A/485 connections to PLC systems.
-
Integrated Backlight Display: White backlight improves readability in industrial environments.
-
Industrial Panel Mount Design: Designed for installation in machine control panels.
-
NT Series Compatibility: Works with Omron NT-series programming tools and PLC platforms.
-
Centralized Machine Monitoring: Provides real-time display and operator control of automation processes.
The NT631C-ST151B-EV2 delivers the reliability and precision required for operator interface control and visualization in industrial automation systems.
