Description

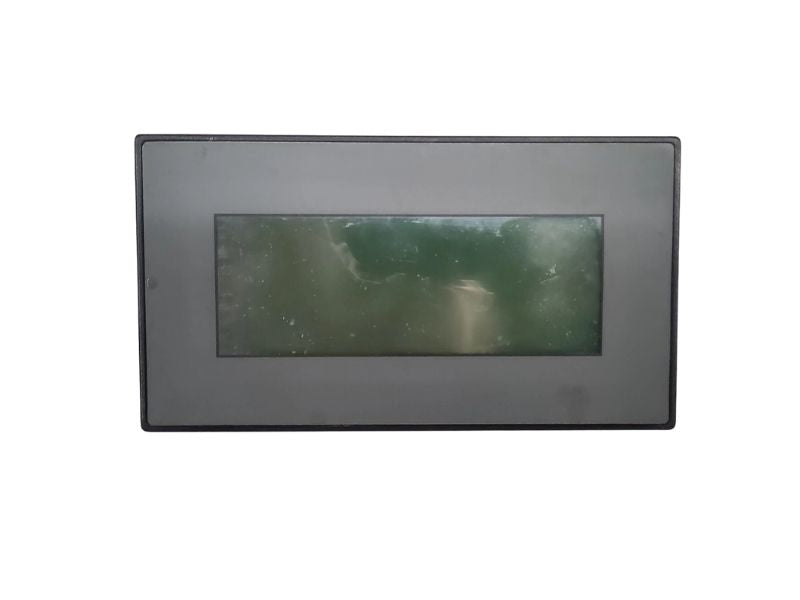

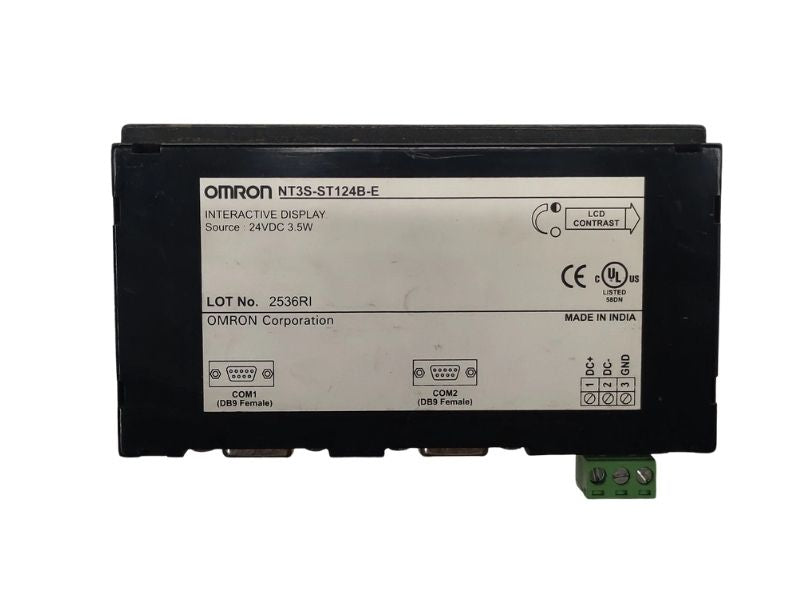

The Omron NT3S-ST124B-E is a compact touch screen operator interface designed for machine control and monitoring in industrial automation systems. It features a 4.1-inch monochrome display with intuitive touch input for efficient user interaction. This HMI is commonly used in applications requiring simple visualization and control in limited panel space.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Omron |
| Category |
Industrial Automation |
| Part Number |
NT3S-ST124B-E |
| Subcategory |
Operator Interfaces |
| Product Type |
Touch Screen HMI |
| Series |
NT3S |
| Display Size |
4.1 Inch |
| Display Type |
Monochrome Graphical LCD |
| Resolution |
192 × 64 Pixels |
| Input Method |
Touch Panel |
| Supply Voltage |
24 V DC |
| Power Consumption |
3.5 W |
| Ingress Protection |
IP65 (Front) |
| Operating Temperature |
0°C to +50°C |
| Mounting Type |
Panel Mount |
| Weight |
0.99 lbs |
Information About NT3S-ST124B-E
The NT3S-ST124B-E is part of Omron’s NT3S series of operator interfaces, developed as an upgrade from traditional function key terminals. It offers a programmable touch screen interface, allowing users to create custom control layouts and multilingual displays. The unit operates on a 24 VDC power supply and is designed for integration with a wide range of industrial controllers. Its IP65-rated front panel ensures protection against dust and water, making it suitable for use in demanding environments.
Key Features:
- Touch Screen Interface: Provides intuitive control and navigation without physical buttons
- Compact 4.1-Inch Display: Suitable for installations with limited panel space
- Monochrome LCD: 192 × 64 resolution for clear graphical and text display
- Customizable Layout: Allows user-defined function keys and interface screens
- Multilingual Support: Supports multiple languages for flexible operation
- 24 VDC Operation: Compatible with standard industrial power supplies
- IP65 Front Protection: Resistant to dust and water ingress
- Low Power Consumption: Operates efficiently at approximately 3.5 W
The NT3S-ST124B-E delivers the reliability and precision required for operator interface and control in compact industrial automation systems.
