Description

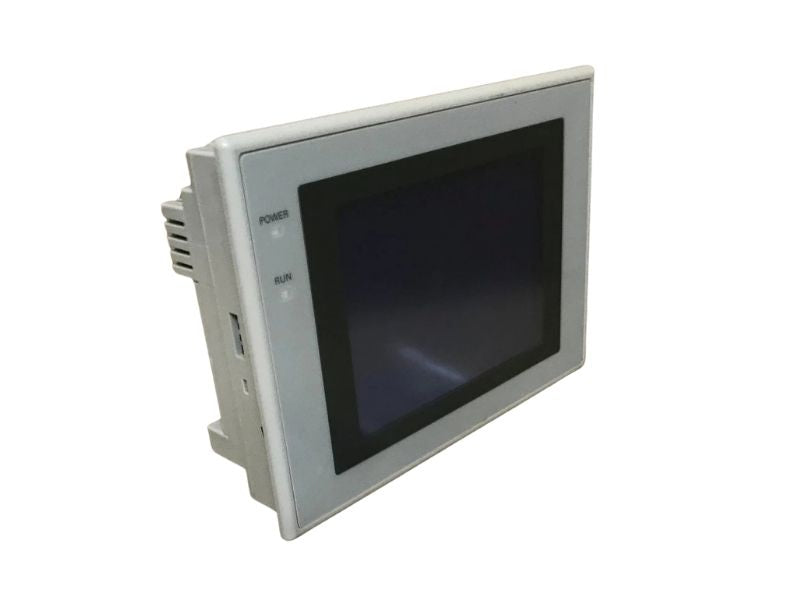

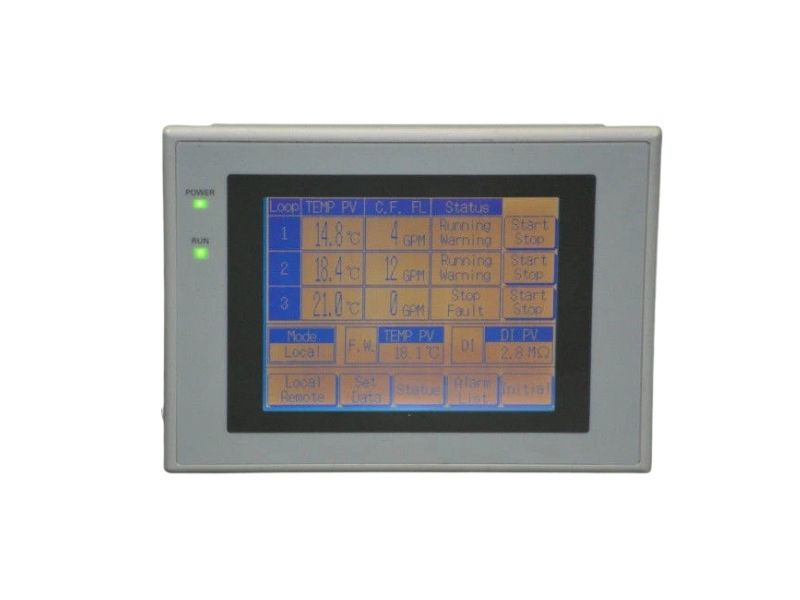

The Omron NT30-ST131-V1 is an industrial operator interface touch panel designed for monitoring and controlling automated equipment. It features a 5.5-inch monochrome LCD display with a resolution of 320 × 240 dots and supports Host Link and NT Link communication protocols. This HMI unit enables operators to interact with PLC systems through a clear graphical interface and responsive touchscreen control.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Omron |
| Category |
HMI / MMI / OIT |
| Part Number |
NT30-ST131-V1 |
| Subcategory |
Operator Interface |
| Series |
NT Series |
| Display Size |
5.5 inches |
| Display Type |
Monochrome LCD |
| Display Resolution |
320 × 240 pixels |
| Touch Interface |
Touchscreen |
| Communication Protocols |
Host Link, NT Link |

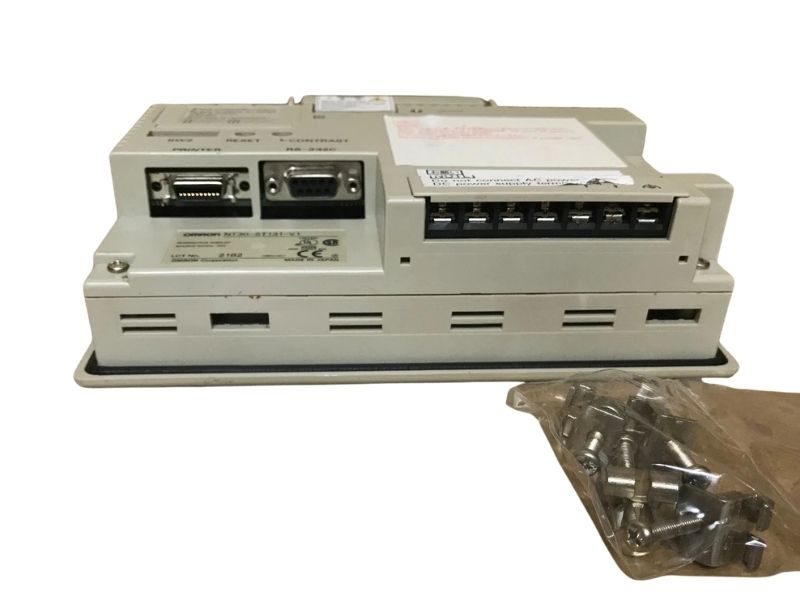

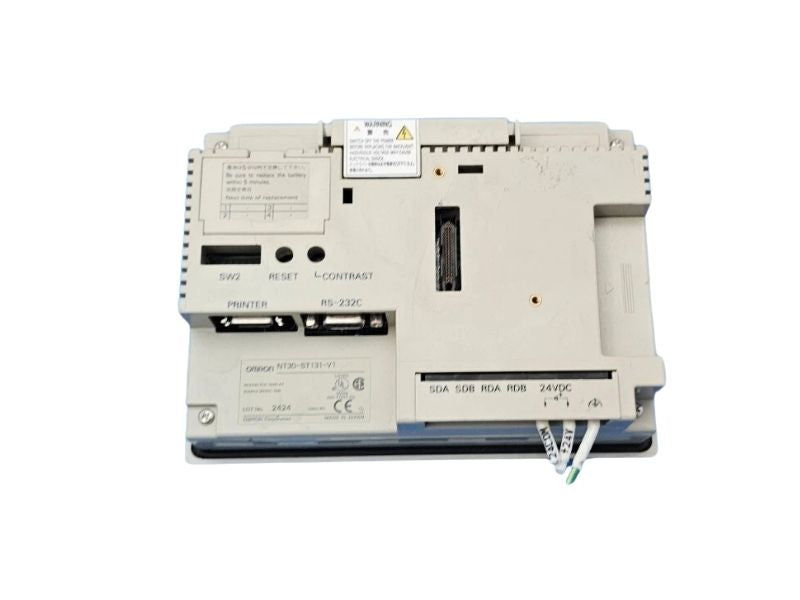

| Communication Interfaces |
RS-232C, RS-422A |
| Operating Voltage |
24 VDC |
| Power Consumption |
15 W |
| Operating Temperature |
0°C to +50°C |
| Mounting Type |
Panel Mount |
| Weight |
1.93 lbs |
Information About NT30-ST131-V1
The NT30-ST131-V1 is part of the Omron NT Series of programmable terminals used for human-machine interface applications in industrial automation systems. It provides a compact display solution for machine control, allowing operators to view process data, alarms, and system status in real time. The unit communicates with PLCs and other controllers through RS-232C and RS-422A interfaces using Host Link or NT Link protocols. Designed for panel mounting and powered by a 24 VDC supply, it offers reliable performance in industrial environments requiring durable operator interface hardware.
Key Features:
-
Industrial Operator Interface: Designed for monitoring and control of automated equipment through a touchscreen HMI.
-
5.5-Inch LCD Display: Monochrome LCD screen provides clear visualization of machine data and control elements.
-
320 × 240 Resolution: Offers detailed graphical display for process monitoring and control screens.
-
Touchscreen Operation: Enables intuitive user interaction with industrial control systems.
-
Multiple Communication Protocols: Supports Host Link and NT Link communication for PLC connectivity.
-
Serial Communication Interfaces: Includes RS-232C and RS-422A ports for flexible system integration.
-
Compact Panel-Mount Design: Suitable for installation in industrial control panels and operator stations.
-
Efficient Power Consumption: Operates on 24 VDC with approximately 15 W power usage.
The NT30-ST131-V1 delivers the reliability and precision required for industrial operator interface and machine monitoring applications.
