Description

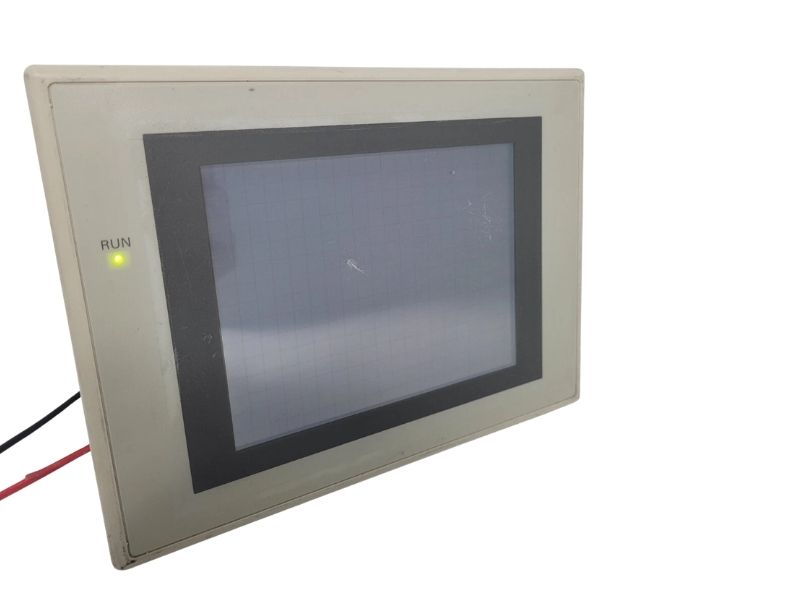

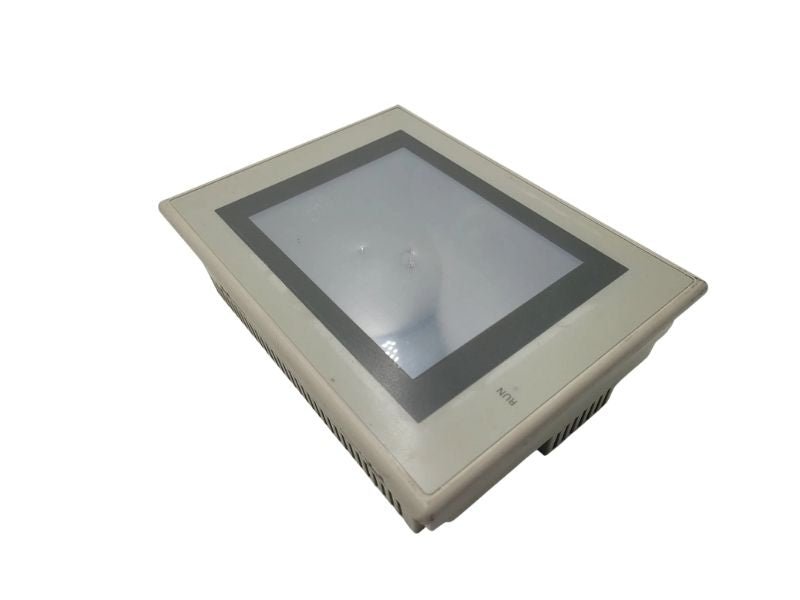

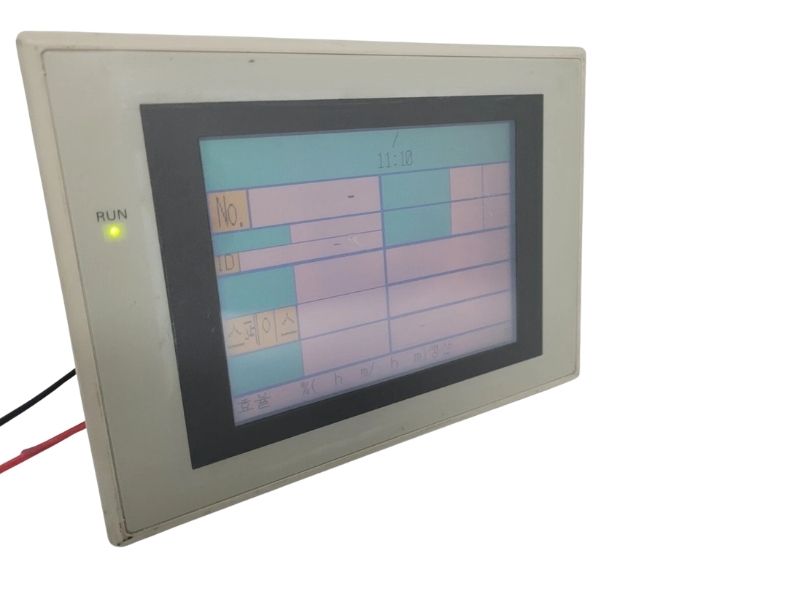

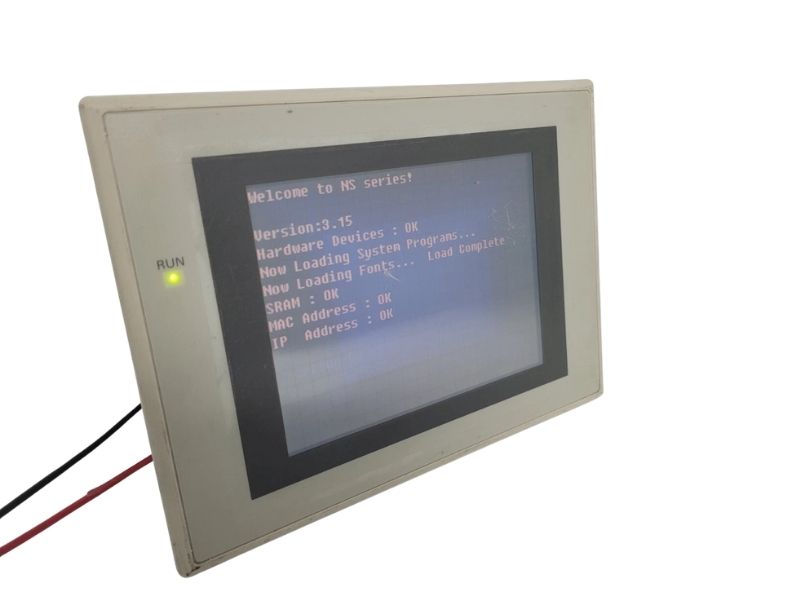

The Omron NS5-SQ11-V2 is a 5.7-inch HMI panel designed for industrial operator interface and control applications. It features a TFT color display with 320 × 240 resolution and supports 32,768 colors for clear visualization of machine processes. The unit integrates multiple communication interfaces including Ethernet, RS-232, and USB for flexible system connectivity.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Omron |
| Category |
Business & Industrial |
| Part Number |
NS5-SQ11-V2 |
| Subcategory |
Operator Interface |
| Series |
NS |
| Display Type |
TFT Color |
| Display Size |
5.7 inch |
| Resolution |
320 × 240 |
| Number of Colors |
32,768 |
| Memory Capacity |
60 MB |
| Communication Ports |

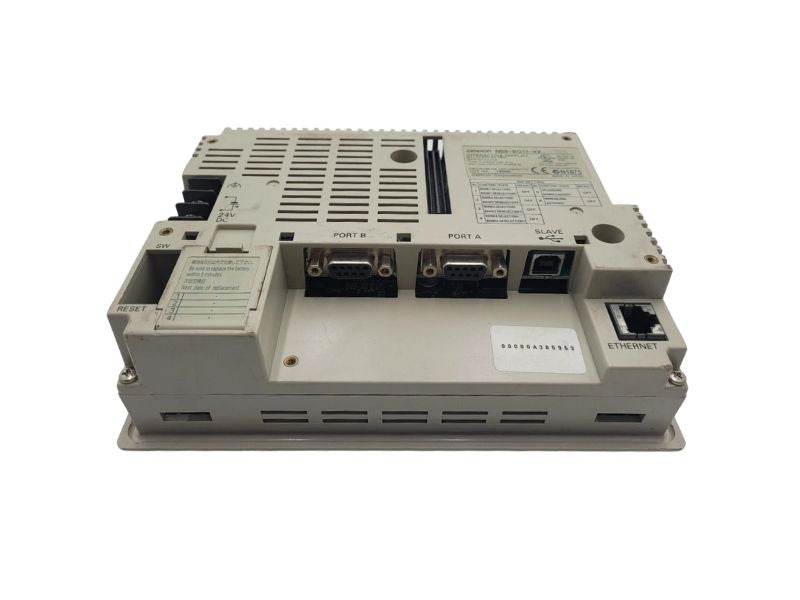

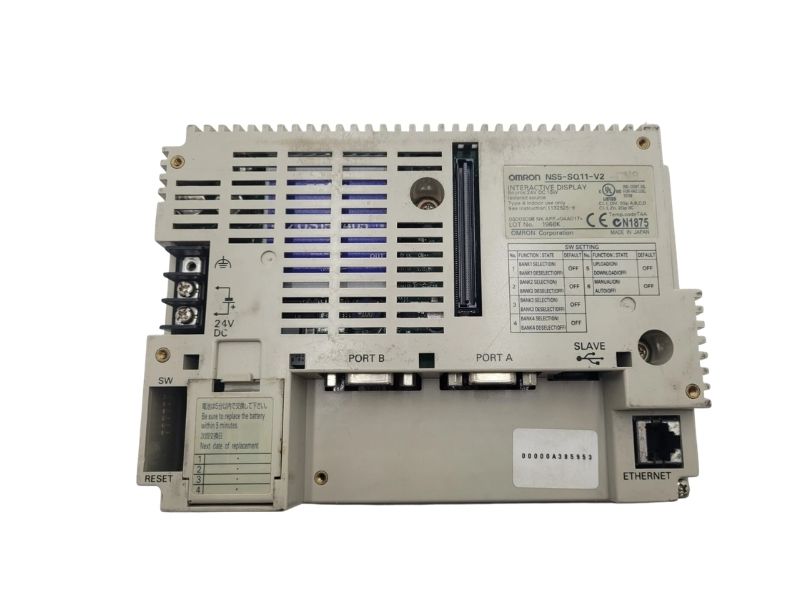

Ethernet (RJ45), RS-232 ×2, USB |
| Supply Voltage |
24 VDC |
| Power Consumption |
15 W max |
| Protection Rating |
IP65 (Front Panel) |
| Mounting Type |
Panel Mount |
| Dimensions |
195 × 142 × 49 mm |
| Cutout Dimensions |
184 × 131 mm |
| Operating Temperature |
0°C to 50°C |
| Product Status |
Discontinued by Manufacturer |
| Weight |
1.02 kg |
Information About NS5-SQ11-V2
The NS5-SQ11-V2 is part of Omron’s NS series of programmable terminals, developed for use in industrial automation environments requiring reliable operator interaction. It includes a high-quality color display and supports Ethernet communication via RJ45 along with dual RS-232 ports for integration with PLCs and control systems. The unit offers 60 MB of memory for application storage and supports USB connectivity for data handling and configuration. Its IP65-rated front panel and panel-mount design make it suitable for installation in control cabinets exposed to dust and moisture.
Key Features:
-
5.7-inch TFT color display: Provides clear and detailed visualization of machine status and control data.
-
320 × 240 resolution: Ensures accurate display of graphical interfaces and process information.
-
32,768 color support: Enables enhanced visualization for industrial applications.
-
Ethernet connectivity (RJ45): Allows integration into networked automation systems.
-
Dual RS-232 ports: Supports communication with multiple industrial devices.
-
USB interface: Enables data transfer and configuration tasks.
-
60 MB memory capacity: Provides storage for application programs and graphics.
-
IP65 front protection: Suitable for use in industrial environments with dust and moisture exposure.
The NS5-SQ11-V2 delivers the reliability and precision required for operator interface control and monitoring in industrial automation systems.
