Description

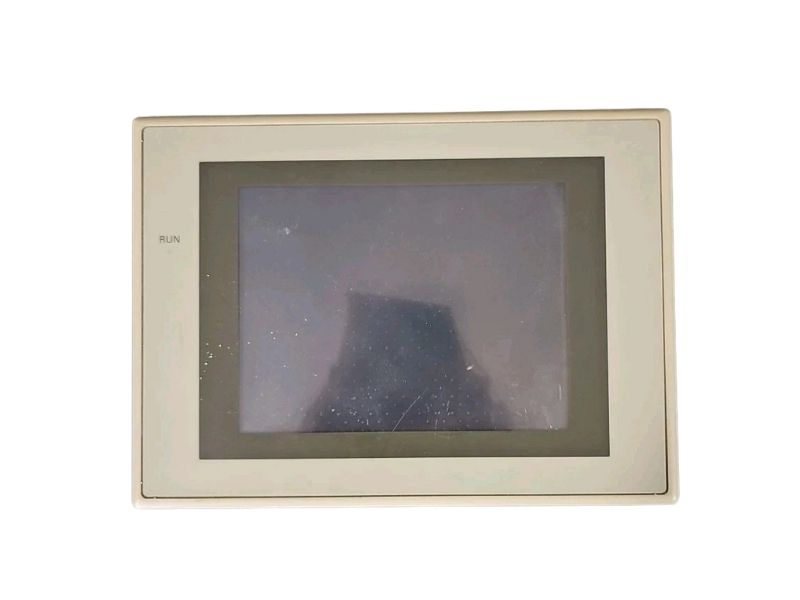

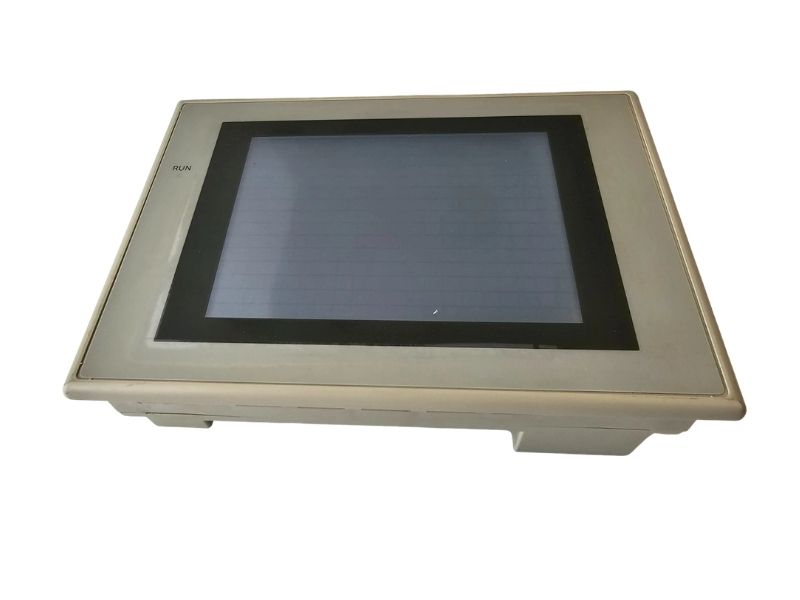

The Omron NS5-MQ10-V2 is a programmable operator interface designed for monitoring and controlling industrial automation systems. It features a 5.7-inch monochrome display with 320 × 240 resolution for clear visualization of process data. This HMI is commonly used in applications requiring reliable human-machine interaction and system control.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Omron |
| Category |
Industrial Automation |
| Part Number |
NS5-MQ10-V2 |
| Subcategory |
Operator Interface |
| Product Type |
HMI Panel |
| Series |
NS Series |
| Display Size |
5.7 Inch |
| Display Type |
STN Monochrome (16 Shades Grey) |
| Resolution |
320 × 240 Pixels |
| Communication Ports |
2 × RS-232 |
| Memory Capacity |
60 MB |
| Supply Voltage |
24 V DC |
| Power Consumption |
15 W |
| Mounting Type |
Panel Mount |
| Application |
HMI Control and Monitoring |
| Weight |
1.70 lbs |
Information About NS5-MQ10-V2

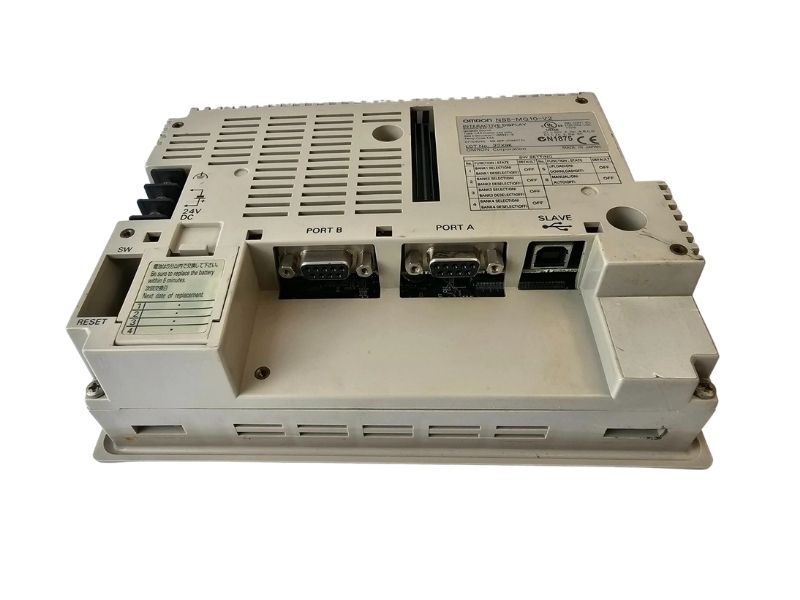

The NS5-MQ10-V2 is part of Omron’s NS series of HMIs, developed for efficient visualization and control of industrial processes. It operates on a 24 VDC supply and includes dual RS-232 communication ports for connection with PLCs and other control devices. The unit features a monochrome STN display with multiple grayscale levels, enabling clear display of operational data. Designed for panel mounting, it integrates easily into control systems and provides a user-friendly interface for operators.
Key Features:
- 5.7-Inch Display: Provides clear visualization with 320 × 240 resolution
- Monochrome STN Screen: Supports 16 shades of grey for data clarity
- Dual RS-232 Ports: Enables communication with PLCs and external devices
- 60 MB Memory: Stores application data and system configurations
- 24 VDC Operation: Compatible with standard industrial power systems
- Panel Mount Design: Allows easy installation in control cabinets
- Operator Interface Function: Enables monitoring and control of processes
- Compact HMI Unit: Suitable for space-limited industrial environments
The NS5-MQ10-V2 delivers the reliability and precision required for human-machine interface operation in industrial automation systems.
