Description

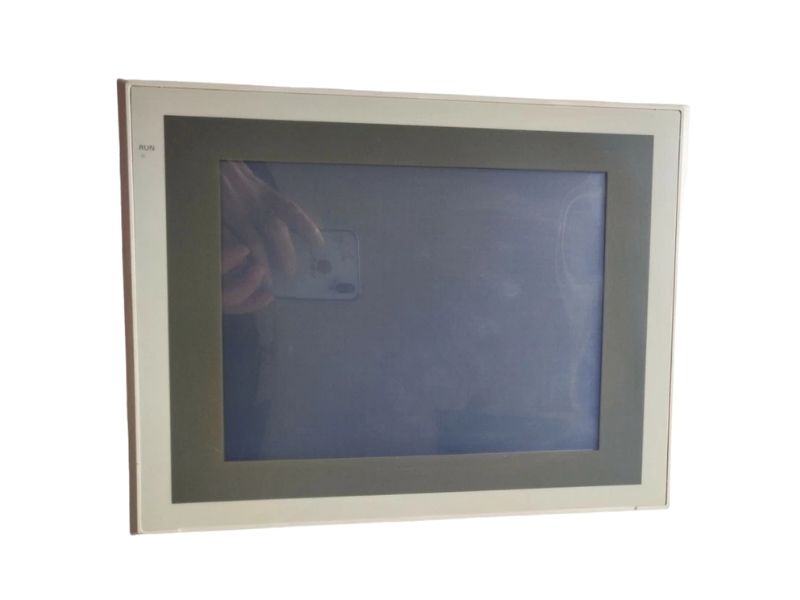

The Omron NS10-TV01-V2 is an industrial human-machine interface (HMI) designed to provide operators with clear visualization and control of automated processes. It features a 10.4-inch TFT color display with 640 × 480 resolution for detailed graphical interfaces. The unit supports Ethernet and serial communication, enabling reliable integration with PLC-based automation systems.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Omron |
| Category |
HMI / MMI / OIT |
| Part Number |
NS10-TV01-V2 |
| Subcategory |
Operator Interface |
| Series |
NS Series |
| Display Size |
10.4 inches |
| Display Type |
TFT Color LCD |
| Display Resolution |
640 × 480 pixels |
| Number of Colors |
256 colors |
| Communication Interfaces |

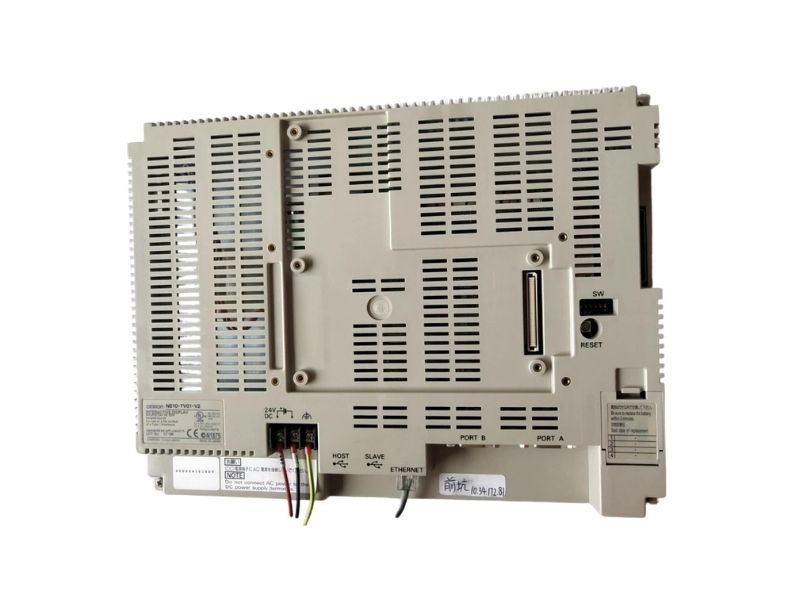

Ethernet (10/100 Base-T), RS-232C (2 ports) |

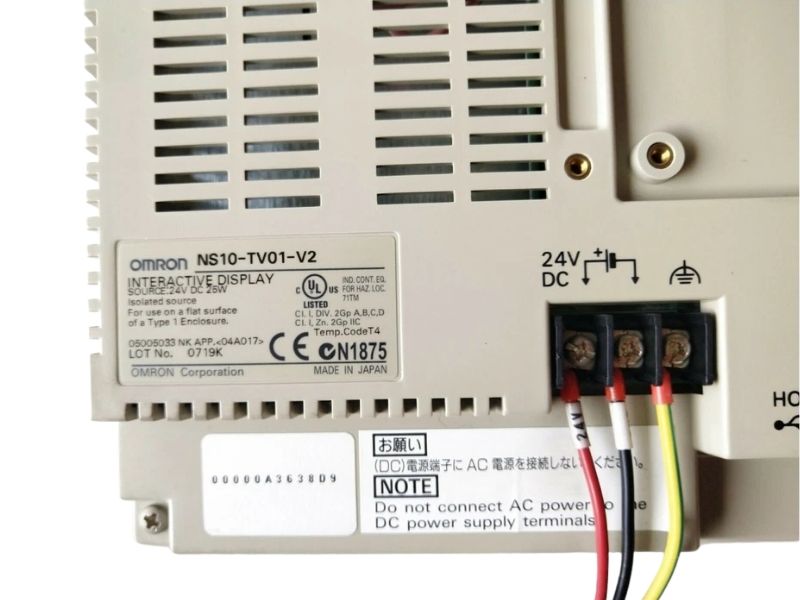

| Supply Voltage |
24 VDC |
| Power Consumption |
25 W |
| Memory Capacity |
60 MB |
| Ingress Protection |
IP65 (front panel) |
| Operating Temperature |
0°C to 50°C |
| Case Color |
Ivory |
| Product Status |
Discontinued by manufacturer |
| Weight |
2.82 lbs |
Information About NS10-TV01-V2
The NS10-TV01-V2 is part of the Omron NS series of programmable terminals used in industrial automation environments. It allows operators to monitor machine status, input commands, and interact with PLC-controlled equipment through a touchscreen interface. The device includes Ethernet connectivity and dual RS-232C ports to support communication with multiple controllers and industrial devices. With a 60 MB memory capacity and panel-mount design, the terminal is suitable for demanding factory control applications.
Key Features:
-
10.4-Inch TFT Color Display: Provides clear visualization of machine data and process information.
-
VGA Resolution Display: 640 × 480 pixel resolution enables detailed graphical interfaces.
-
Ethernet Connectivity: Supports 10/100 Base-T Ethernet for communication with industrial networks.
-
Dual Serial Ports: Two RS-232C interfaces allow connection to PLCs and peripheral devices.
-
Touchscreen Operator Interface: Enables intuitive control and monitoring of industrial equipment.
-
Large Memory Capacity: 60 MB internal memory supports application data and screen storage.
-
Panel-Mount Industrial Design: Suitable for installation in control cabinets and operator stations.
-
IP65 Front Protection: Provides resistance to dust and water for industrial environments.
The NS10-TV01-V2 delivers the reliability and precision required for operator interface and industrial automation control applications.
