Description

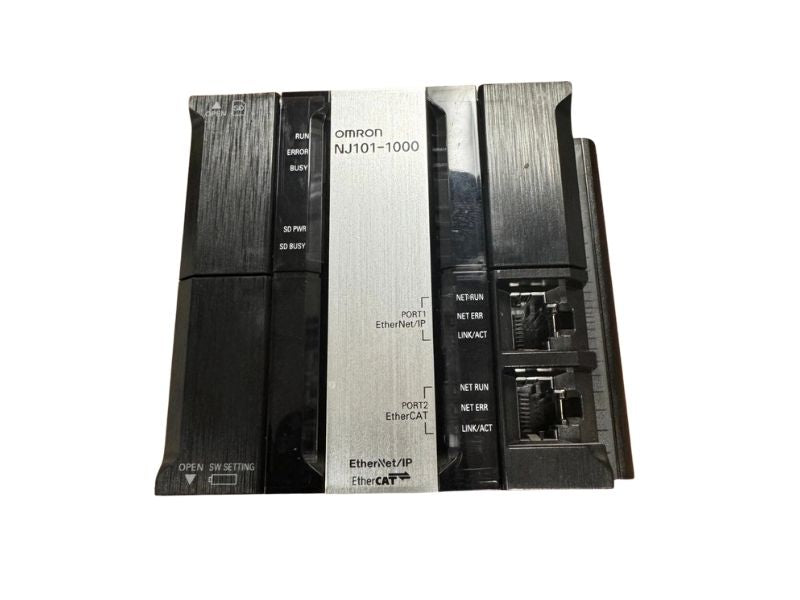

The Omron NJ101-1000 is a machine automation controller designed for integrated motion and sequence control in industrial systems. It supports up to 2 synchronized axes and operates with a high-speed 1 ms task cycle time for precise control. This controller provides advanced connectivity and processing capabilities for modern automation applications.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Omron |
| Category |
Business & Industrial |
| Part Number |
NJ101-1000 |
| Subcategory |
PLC Controllers |
| Series |
NJ1 |
| Module Type |
CPU / Machine Automation Controller |
| Controller Functions |
Motion Control, Sequence Control |
| Max Synchronous Axes |
2 |
| Max Total Axes |
6 (Including Virtual) |
| Program Memory |
3 MB |
| Variable Memory |
0.5 MB |
| Task Cycle Time |
1 ms |
| Communication Ports |
EtherCAT Master, EtherNet/IP, USB |
| Max Remote I/O Nodes |
64 |
| Max Expansion Units |
40 |
| I/O System |
CJ I/O Bus |
| Mounting Type |
Panel Mount |
| Current Consumption |
1.9 A |
| Weight |
627 g |
Information About NJ101-1000
The NJ101-1000 is part of Omron’s NJ series of machine automation controllers, developed for combining logic, motion, and network control in a single platform. It features built-in EtherCAT master and EtherNet/IP communication, enabling seamless integration with servo systems and industrial networks. The controller supports expansion through the CJ I/O bus and can handle up to 40 expansion units and 64 remote I/O nodes. Its architecture allows for scalable automation solutions, including support for multiple communication protocols and advanced control functions.
Key Features:
-
Integrated motion and sequence control: Combines logic processing and motion control in one controller.
-
EtherCAT master communication: Enables high-speed synchronization of motion axes and devices.
-
EtherNet/IP connectivity: Supports integration with industrial Ethernet networks.
-
Fast task cycle time: Operates at 1 ms for precise and responsive control.
-
Multi-axis support: Handles up to 2 synchronized axes and 6 total axes including virtual axes.
-
Expandable I/O system: Supports up to 40 expansion units and 64 remote I/O nodes.
-
Multiple communication options: Compatible with protocols such as MODBUS, PROFIBUS, PROFINET, and DeviceNet.
-
Compact panel-mount design: Suitable for installation in industrial control panels.
The NJ101-1000 delivers the reliability and precision required for machine automation control and motion synchronization in industrial systems.
