Description

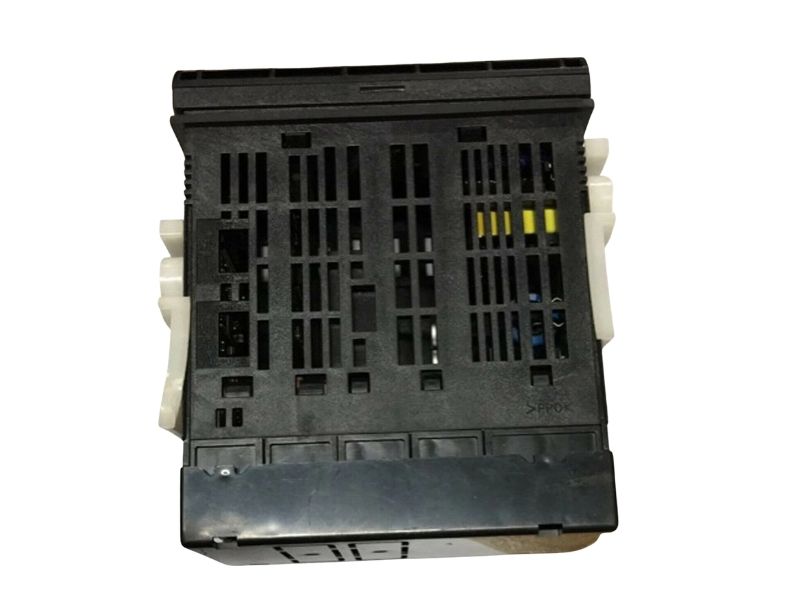

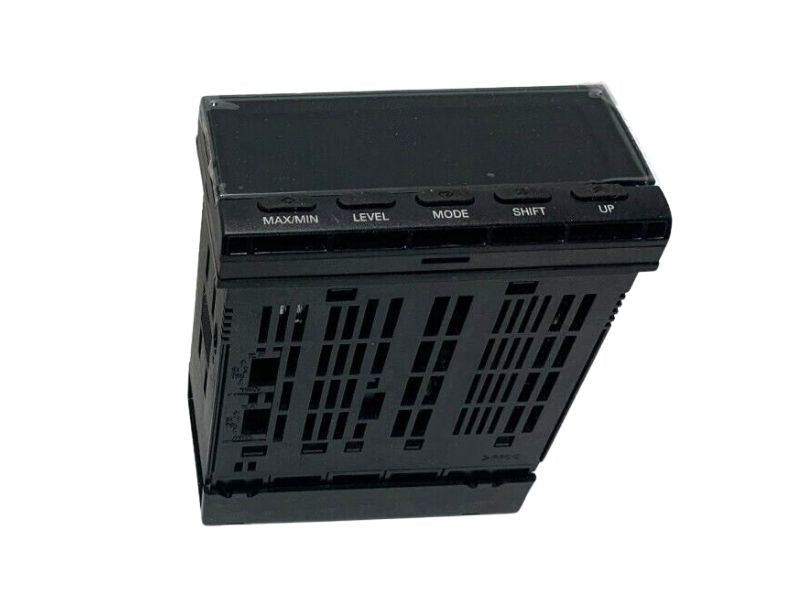

The Omron K3HB-XVD-CPAC11 is a digital panel meter designed for precise DC voltage measurement and monitoring in industrial systems. It features a 5-digit LCD display with high accuracy and supports multiple voltage input ranges up to ±199.99 V. This unit is used for process indication and control where reliable measurement and clear visualization are required.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Omron |
| Category |
Business & Industrial |
| Part Number |
K3HB-XVD-CPAC11 |
| Subcategory |
Panel Meters |
| Series |
K3HB-X |
| Measurement Type |
DC Voltage |
| Measurement Range |
Up to ±199.99 V |
| Accuracy |
±0.1% rdg ±1 digit |
| Display Type |
LCD, Backlit |
| Display Digits |
5 Digits |
| Sampling Rate |
50 samples/sec (20 ms) |
| Output Type |
Relay (H, PASS, L) |
| Number of Outputs |
3 |
| Input Type |
DC Voltage |
| Power Supply |
100–240 VAC |
| Mounting Type |
Panel Mount |
| Panel Cutout |
92 × 45 mm |
| Protection Rating |
IP66 (Front), IP20 (Rear) |
| Operating Temperature |
-10°C to 55°C |
| Weight |
300 g |
Information About K3HB-XVD-CPAC11
The K3HB-XVD-CPAC11 is part of Omron’s K3HB-X series of advanced digital panel indicators designed for industrial measurement applications. It supports DC voltage input with multiple selectable ranges and uses a Delta-Sigma A/D conversion method for accurate signal processing. The device includes relay-based judgment outputs for process control, along with event inputs for functions such as reset, hold, and timing control. Its panel-mount design with IP66 front protection ensures suitability for use in industrial environments requiring durability and reliable performance.
Key Features:
-
Wide DC voltage measurement range: Supports multiple ranges up to ±199.99 V for flexible applications.
-
High measurement accuracy: Provides ±0.1% reading accuracy for precise monitoring.
-
5-digit LCD display: Offers clear visibility with dual-color backlit indication.
-
Relay output functionality: Includes H, PASS, and L judgment outputs for process control.
-
Event input capability: Supports multiple control inputs including reset, hold, and timing signals.
-
Fast sampling rate: Operates at 50 samples per second for real-time measurement updates.
-
Panel mount design: Enables installation in control panels with standard cutout dimensions.
-
IP66 front protection: Suitable for use in environments exposed to dust and moisture.
The K3HB-XVD-CPAC11 delivers the reliability and precision required for voltage monitoring and process indication in industrial automation systems.
