Description

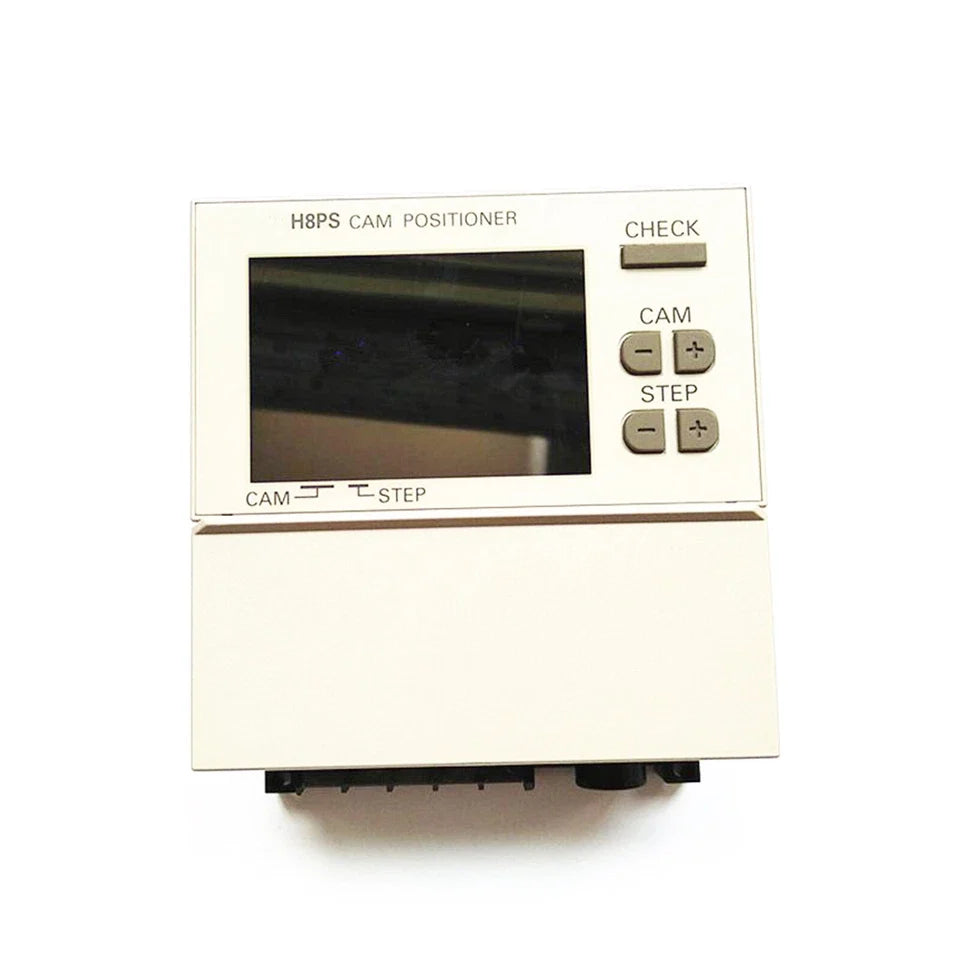

The Omron H8PS-8B cam positioner is a precision positioning controller designed for accurate synchronization of machine operations. It provides eight NPN outputs and supports encoder-based input for high-speed industrial automation tasks. This unit is commonly used in packaging, assembly, and motion control systems requiring reliable timing control.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Omron |
| Category |
Industrial Automation |
| Part Number |
H8PS-8B |
| Subcategory |
Cam Positioners |
| Type |
Cam Positioner Controller |
| Manufacturer Series |
H8PS |
| Number of Outputs |
8 |
| Output Type |
NPN |
| Input Type |
Encoder |
| Supply Voltage |
24 V DC |
| Power Consumption |
4.8 W Max |
| Display Type |
LCD (Backlit) |
| Programming Method |
Keypad |
| Mounting |
DIN Rail / Panel Mount |
| IP Rating |
IP20 / IP40 |
| Operating Temperature |
-10°C to +55°C |
| Dimensions |
96 x 121.2 x 58 mm |
| Weight |
419 g |
Information About H8PS-8B
The H8PS-8B is a cam positioner from Omron’s H8PS series, engineered for high-speed and high-accuracy positioning applications. It features a compact housing suitable for both DIN rail and panel mounting, with a durable construction designed for industrial environments. The module operates on a 24 VDC supply and utilizes encoder input signals to deliver precise output control. Its integrated LCD display with backlight and keypad programming enables straightforward configuration and monitoring in real-time applications.
Key Features:
- High-Speed Operation: Supports rotational speeds up to 1600 rpm for fast automation processes
- Precision Positioning: Offers resolution accuracy down to 0.5° for controlled motion timing
- Eight NPN Outputs: Provides multiple output channels for coordinated control sequences
- Encoder Input Compatibility: Accepts encoder signals for accurate position tracking
- LCD Display Interface: Backlit LCD ensures clear visibility of parameters and status
- Flexible Mounting Options: Designed for both DIN rail and panel installation
- Angle Compensation Function: Adjusts output timing to compensate for mechanical delays
- Industrial Temperature Range: Operates reliably between -10°C and +55°C
The H8PS-8B delivers the reliability and precision required for advanced positioning and timing control in industrial automation systems.
