Description

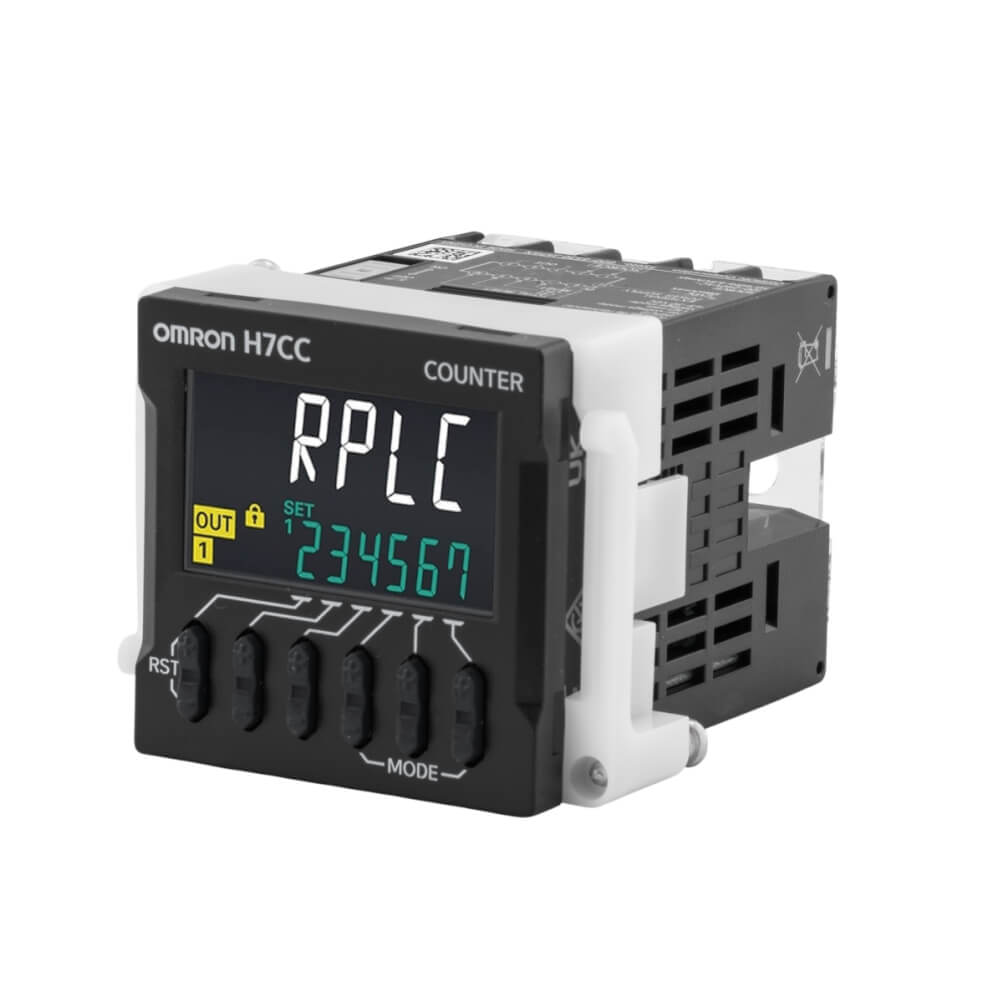

The Omron H7CC-ASD is a preset digital counter designed for accurate pulse counting and process monitoring in industrial applications. It features a 6-digit LCD display with backlight and supports both counting and totalizing functions.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Omron |
| Category |
Industrial Automation and Controls |
| Part Number |
H7CC-ASD |
| Subcategory |
Digital Counters |
| Series |
H7CC |
| Type |
Preset Counter / Totalizer |
| Display Type |
LCD (Backlit) |
| Number of Digits |
6 |
| Counting Range |
-99999 to 999999 |
| Counting Speed |
Up to 10 kHz |
| Input Type |
Voltage / No-voltage (NPN, PNP, Contact) |
| Output Type |
Transistor (NPN) |
| Supply Voltage |
12–48 VDC / 24 VAC |
| Mounting Type |
Panel Mount |
| Connection Type |
Screw Terminal |
| Protection Rating |
IP66 (front) |
| Operating Temperature |
-10°C to 55°C |
| Dimensions |
48 × 48 × 59 mm |
| Weight |
Approx. 120 g |
Information About H7CC-ASD
The H7CC-ASD is part of Omron’s H7CC series of panel-mounted counters, developed for reliable counting, batching, and control tasks. It supports multiple counting modes including up, down, and quadrature counting, making it suitable for a wide range of automation systems. The unit accepts both voltage and no-voltage inputs and provides transistor output for control signaling. Its compact 1/16 DIN size and IP66 front protection make it suitable for installation in industrial control panels.
Key Features:
- Preset counter function: Supports counting with setpoint control.
- Wide counting range: From -99999 to 999999.
- High-speed input: Up to 10 kHz counting frequency.
- 6-digit LCD display: Backlit for clear visibility.
- Multiple counting modes: Up, down, and quadrature operation.
- Flexible inputs: Supports voltage and no-voltage signals (NPN/PNP/contact).
- Transistor output: Provides control signal output.
- Compact design: 48 × 48 mm panel mount (1/16 DIN).
- IP66 front protection: Suitable for industrial environments.
The H7CC-ASD delivers reliable and precise counting performance for industrial automation and monitoring systems.
