Description

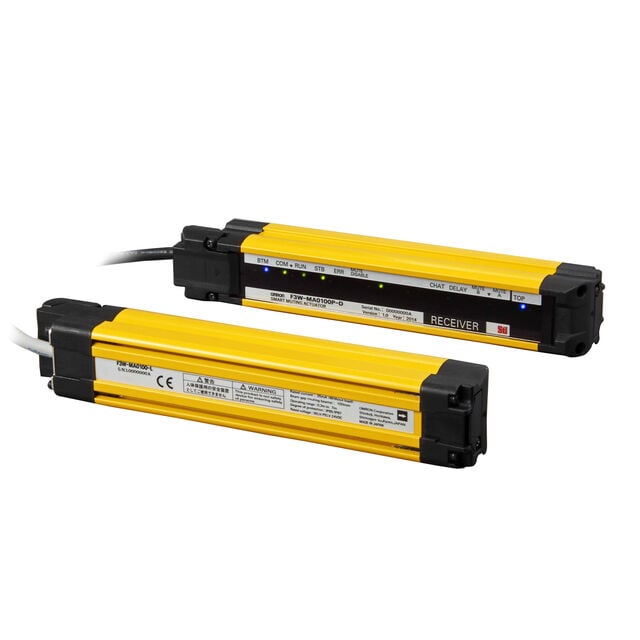

The Omron F3W-MA0100P is a safety light curtain muting actuator designed to enhance machine safety in industrial automation systems. It operates within a transmitter-receiver configuration to manage safe object passage while maintaining protection zones. This device is commonly used in applications requiring controlled muting and reliable safety monitoring.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Omron |
| Category |
Industrial Automation |
| Part Number |
F3W-MA0100P |
| Subcategory |
Safety Light Curtains |
| Product Type |
Muting Actuator |
| Series |
F3W-MA |
| Supply Voltage |
24 V DC |
| Output Type |
PNP |
| Operating Range |
0.3 to 20 m |
| Protection Rating |
IP65 / IP67 |
| Connection Type |
M12 |
| Housing Material |
Aluminum, PBT |
| Operating Temperature |
-10°C to +55°C |
| Operation Mode |
Transmitter-Receiver |
| Application |
Machine Safety and Muting Control |
| Weight |
2.00 lbs |
Information About F3W-MA0100P
The F3W-MA0100P is part of Omron’s F3W-MA series, developed for integration with safety light curtain systems in industrial environments. It functions as a muting actuator, allowing authorized materials to pass through protected zones without triggering a shutdown. The unit operates on a 24 VDC supply and features PNP output for compatibility with modern safety control systems. Its durable construction using aluminum and PBT materials ensures reliable performance under demanding operating conditions.
Key Features:
- Muting Actuator Function: Allows controlled passage of objects through safety zones
- Transmitter-Receiver Operation: Ensures accurate detection and safety control
- PNP Output Configuration: Compatible with standard industrial safety systems
- Wide Detection Range: Operates effectively between 0.3 and 20 meters
- Industrial Protection: IP65/IP67 rating for dust and water resistance
- Durable Housing: Constructed from aluminum and PBT for long-term reliability
- M12 Connection Interface: Enables secure and standardized wiring
- Temperature Range: Operates reliably from -10°C to +55°C
The F3W-MA0100P delivers the reliability and precision required for controlled muting and safety management in industrial automation systems.
