Description

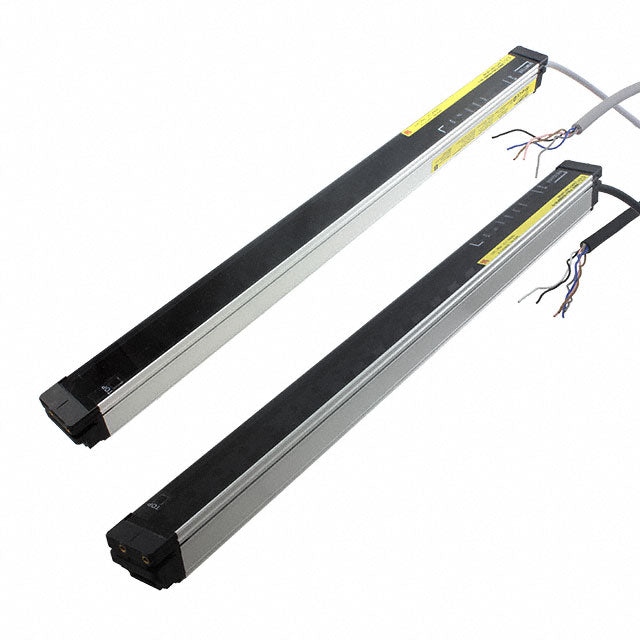

The Omron F3SJ-E0465P25 is a Type 4 safety light curtain from the F3SJ-E Series, designed to provide reliable hand protection for industrial machinery. Featuring a 465 mm protective height, 25 mm detection capability, and 22 infrared beams, it safeguards hazardous machine access while ensuring compliance with international machine safety standards.
Technical Specifications
| Condition |
New |
| Brand |
Omron |
| Part Number |
F3SJ-E0465P25 |
| Category |
Safety Systems |
| Subcategory |
Light Curtain |
| Product Type |
Safety Light Curtain |
| Series |
F3SJ-E |
| Protection Type |
Hand Protection |
| Safety Rating |
Type 4, SIL3, PLe, Category 4 |
| Protective Height |
465 mm |
| Detection Capability |
25 mm |
| Number of Beams |
22 |
| Beam Pitch |
20 mm |
| Operating Range |
0.2 to 7.0 m |
| Output Type |
2 × PNP OSSD Safety Outputs |
| Supply Voltage |
24 VDC (19.2–28.8 VDC) |
| Ingress Protection |
IP65 |
| Operating Temperature |
-10°C to +55°C |
| Connection Type |
3 m Pre-Wired Cable |
| Part Status |
Active |
| Weight |
10.00 lbs |
Information About F3SJ-E0465P25
The F3SJ-E0465P25 belongs to Omron's F3SJ-E ("Easy") Series of safety light curtains, offering essential machine safeguarding with simplified installation and operation. It provides a protective height of 465 mm with a 25 mm detection resolution for hand protection and operates over distances from 0.2 to 7.0 meters. The unit incorporates dual PNP OSSD safety outputs, meets Type 4, SIL3, PLe, and Category 4 safety requirements, and features an IP65-rated enclosure for reliable operation in demanding industrial environments.
Key Features:
- F3SJ-E Series safety light curtain
- Type 4 safety classification
- 465 mm protective height
- 25 mm hand detection capability
- 22 infrared beams with 20 mm beam pitch
- Operating range of 0.2 to 7.0 m
- Dual PNP OSSD safety outputs
- 24 VDC operation
- IP65-rated enclosure
- Certified to SIL3, PLe, and Category 4 safety standards
The F3SJ-E0465P25 provides dependable machine guarding for industrial automation, manufacturing, and packaging applications.
