Description

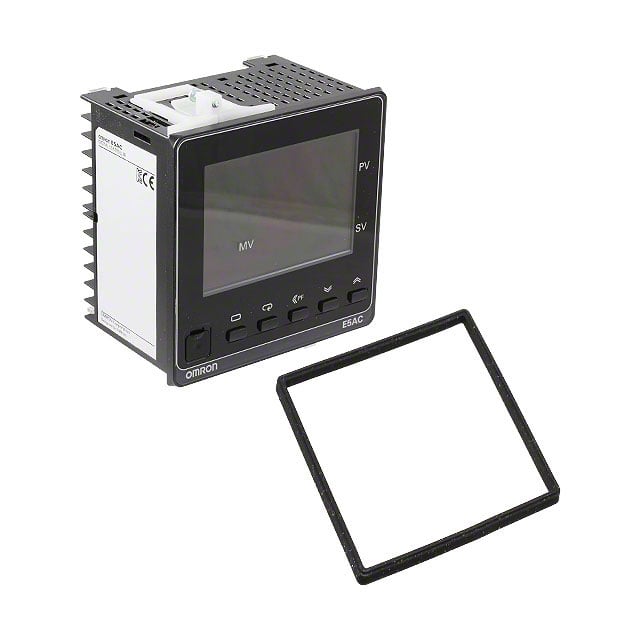

The Omron E5AN-C3QMT-500-N is a digital temperature controller designed for accurate monitoring and regulation of industrial heating and process systems. It supports PID and ON/OFF control methods and accepts multiple sensor input types including thermocouples and RTD sensors. Powered by a 100–240 VAC supply, this controller is intended for panel-mounted applications in industrial automation and temperature control environments.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Omron |
| Category |
Sensors & Switches |
| Part Number |
E5AN-C3QMT-500-N |
| Subcategory |
Sensor Controller |
| Series |
E5AN |
| Controller Type |
Digital Temperature Controller |
| Control Methods |
PID, ON/OFF |
| Input Types |
Thermocouple, RTD, mV |
| Input Range |
−200°C to 2300°C |
| Outputs |
Analog, Relay (3), External SSR drive |
| Display Type |
LCD, tri-color backlight |
| Supply Voltage |
100–240 VAC |
| Mounting Type |
Panel mount |
| Ingress Protection |
IP66 (front panel) |
| Operating Temperature |
−10°C to 55°C |
| Weight |
11 oz |
Information About E5AN-C3QMT-500-N
The E5AN-C3QMT-500-N is part of the Omron E5AN series of process temperature controllers designed for industrial process management. It features a multi-input configuration supporting thermocouples, RTD sensors, and millivolt signals, allowing integration into a wide range of thermal control applications. The controller includes analog and relay outputs for controlling heating or cooling equipment, and supports optional communication modules for network integration. Its front-panel LCD display with tri-color backlighting provides clear status indication and process value monitoring in control panel installations.
Key Features:
-
Multi-Sensor Input Compatibility: Supports thermocouple, RTD, and millivolt input signals for versatile temperature measurement.
-
PID and ON/OFF Control Modes: Provides precise temperature regulation for industrial processes.
-
Multiple Output Types: Includes relay, analog, and external SSR drive outputs for flexible control configurations.
-
Wide Temperature Measurement Range: Handles process temperatures from −200°C to 2300°C depending on sensor type.
-
Tri-Color LCD Display: Provides clear process status indication and easy monitoring of parameters.
-
Panel Mount Installation: Designed for 92 × 92 mm panel cutouts in industrial control cabinets.
-
Expandable Communication Options: Supports optional communication cards for integration into automation networks.
-
Industrial Protection Rating: IP66 front protection suitable for demanding industrial environments.
The E5AN-C3QMT-500-N delivers the reliability and precision required for industrial temperature regulation and process control applications.
