Description

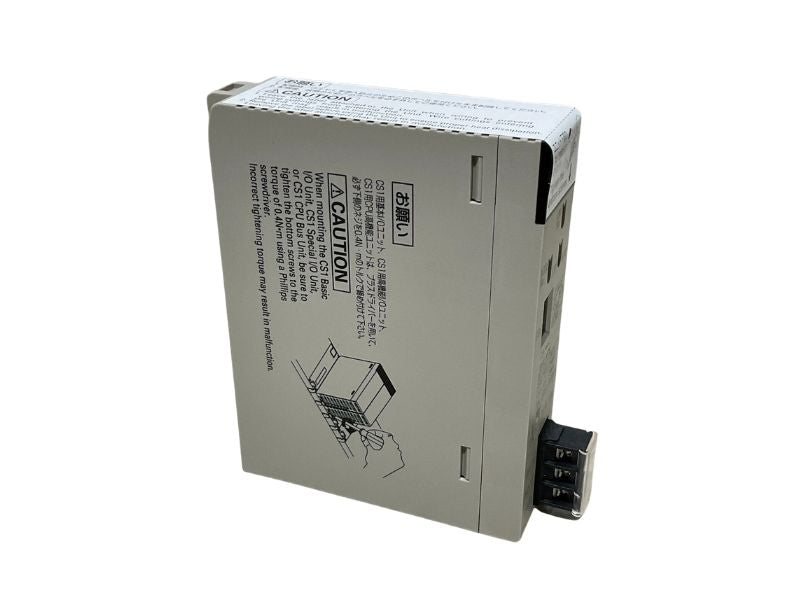

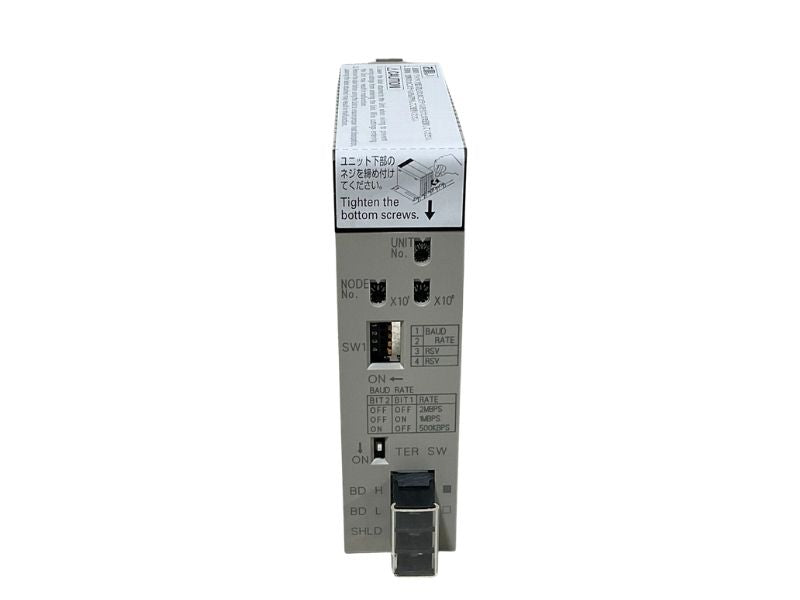

The Omron CS1W-DRM21 is a DeviceNet communication module designed for integration with CS-series PLC systems. It enables reliable data exchange between the PLC and DeviceNet-compatible field devices such as sensors, actuators, and remote I/O units. This module supports efficient network communication for distributed industrial automation systems.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Omron |
| Category |
Industrial Automation |
| Part Number |
CS1W-DRM21 |
| Subcategory |
PLC Communication Modules |
| Module Type |
DeviceNet Communication Unit |
| Operation Modes |
Master / Slave |
| Supply Voltage |
24 V DC |
| Power Consumption |
0.5 W |
| Supported Baud Rates |
125 / 250 / 500 kbps |
| Max Network Nodes |
64 |
| Max I/O Capacity |
32,000 points |
| Mounting Type |
Rack / Backplane |
| Connection Type |
Screw Terminals |
| Compatibility |
Omron CS Series PLC |
| Weight |
0.35 lbs |
Information About CS1W-DRM21
The CS1W-DRM21 is part of Omron’s CS1W series and functions as a DeviceNet interface unit for PLC-based control systems. It supports both master and slave operation modes, allowing flexible network configurations within a single module. The unit operates on a 24 VDC supply and is designed to mount directly onto the PLC backplane for seamless integration. With support for multiple baud rates and a large number of connected nodes, it enables scalable communication across complex industrial networks.
Key Features:
- DeviceNet Communication: Enables integration with DeviceNet-compatible field devices
- Dual Mode Operation: Supports both master and slave functionality
- High Network Capacity: Connects up to 64 nodes within a DeviceNet network
- Flexible Baud Rates: Supports 125 kbps, 250 kbps, and 500 kbps communication speeds
- PLC Integration: Designed for direct mounting on Omron CS-series PLC racks
- Efficient Data Handling: Manages up to 32,000 I/O points per master configuration
- Low Power Consumption: Operates efficiently with minimal energy requirements
- Industrial Reliability: Built for continuous operation in automation environments
The CS1W-DRM21 delivers the reliability and precision required for DeviceNet communication and distributed control in industrial automation systems.
