Description

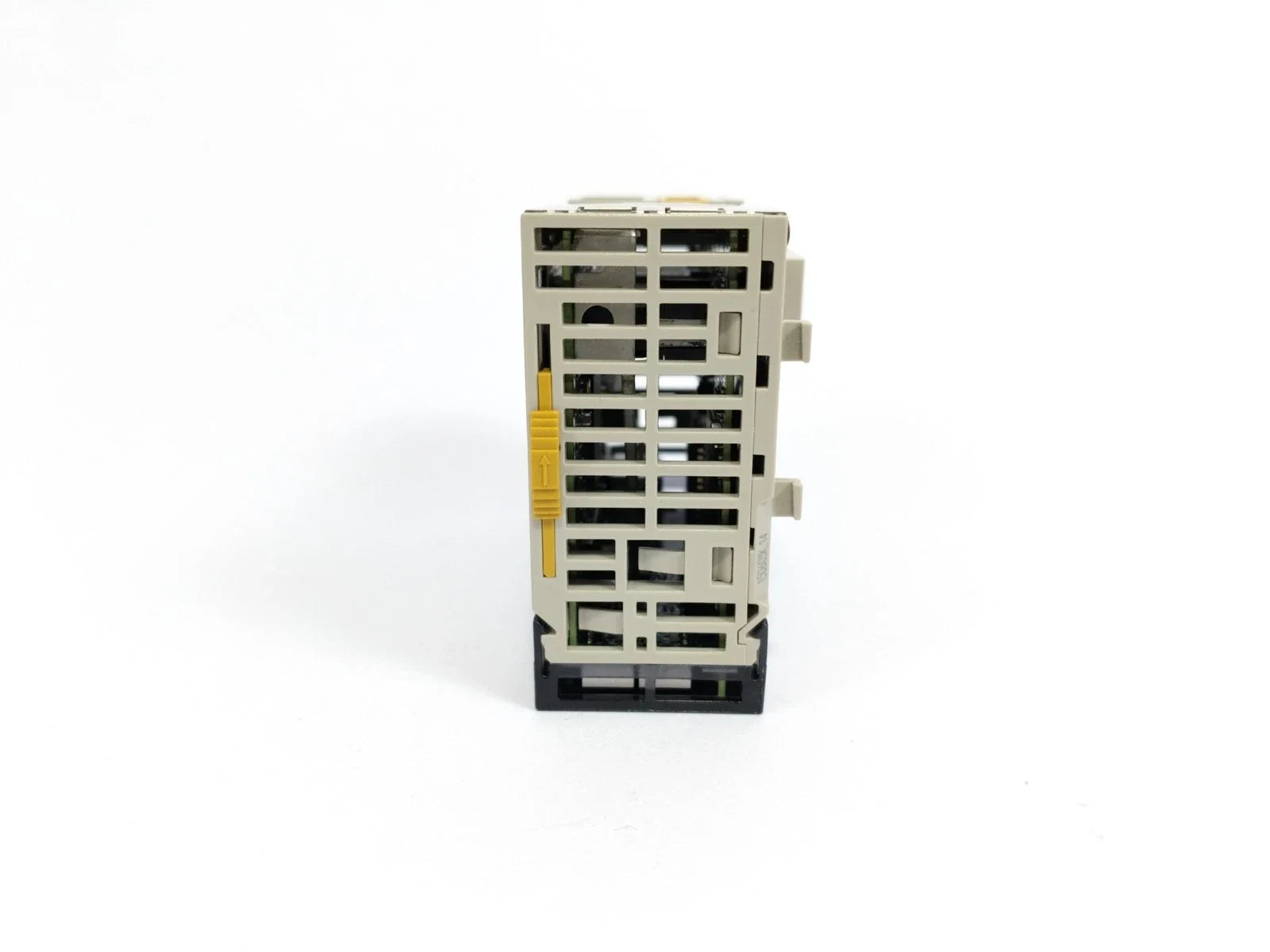

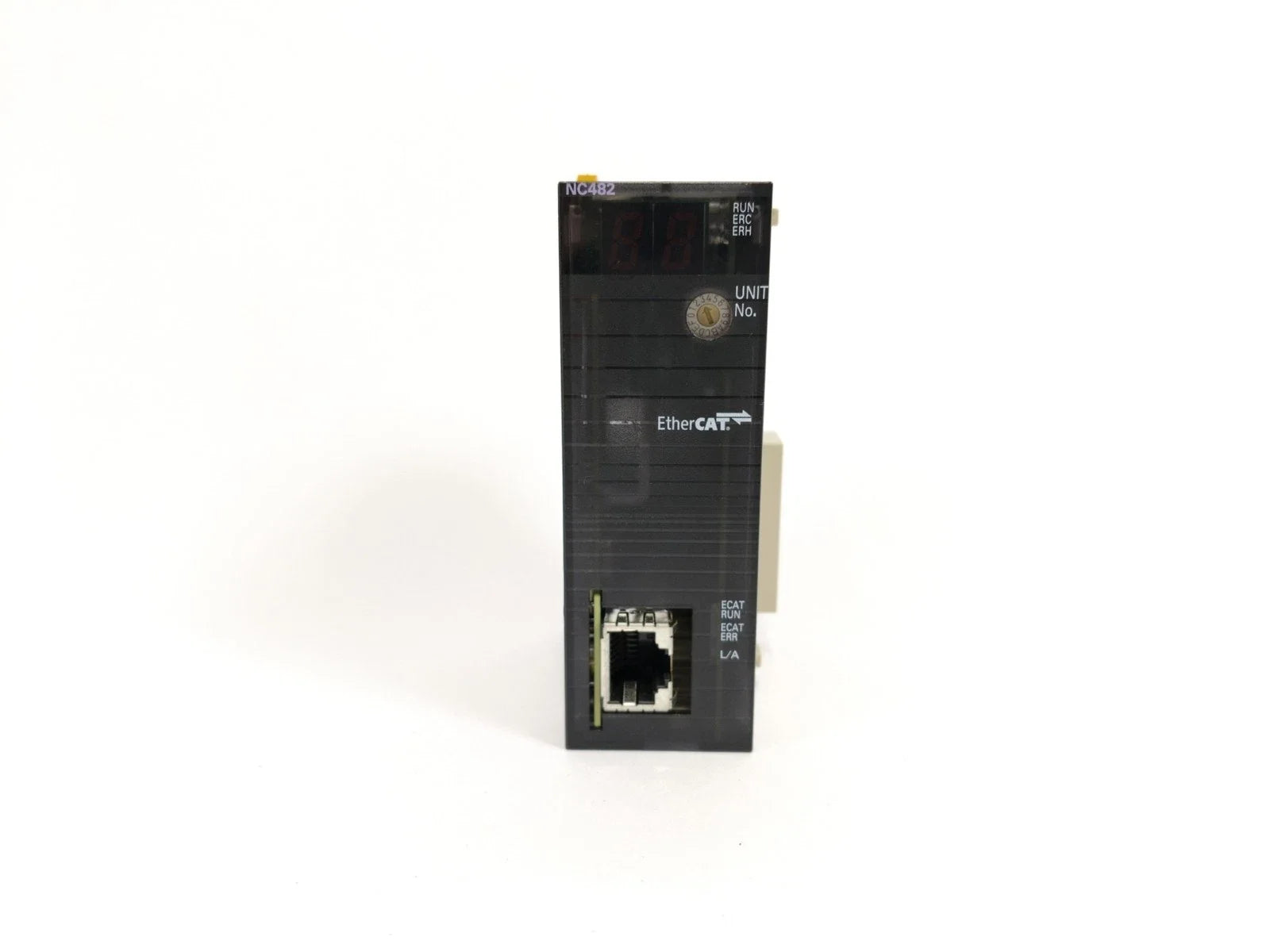

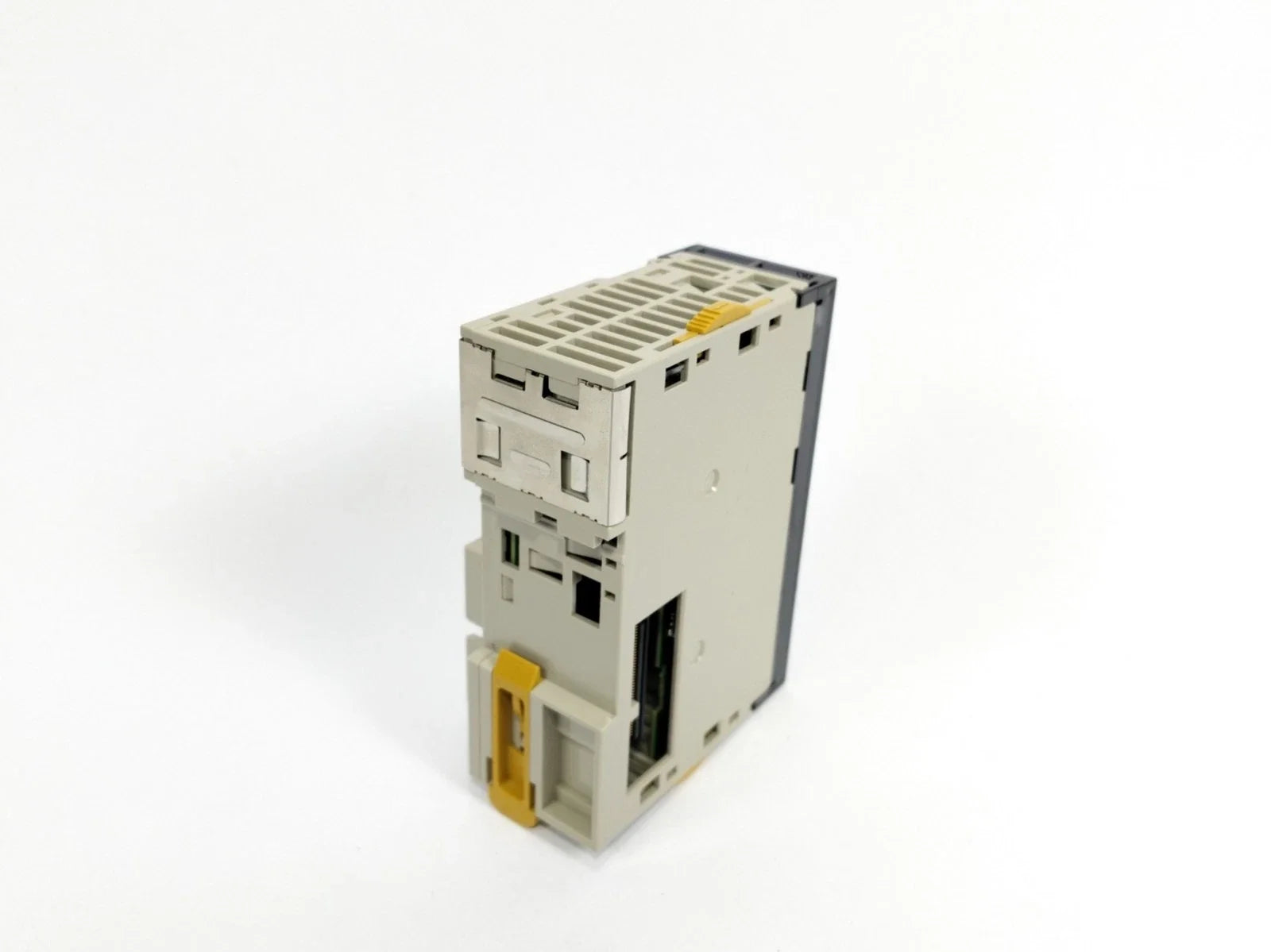

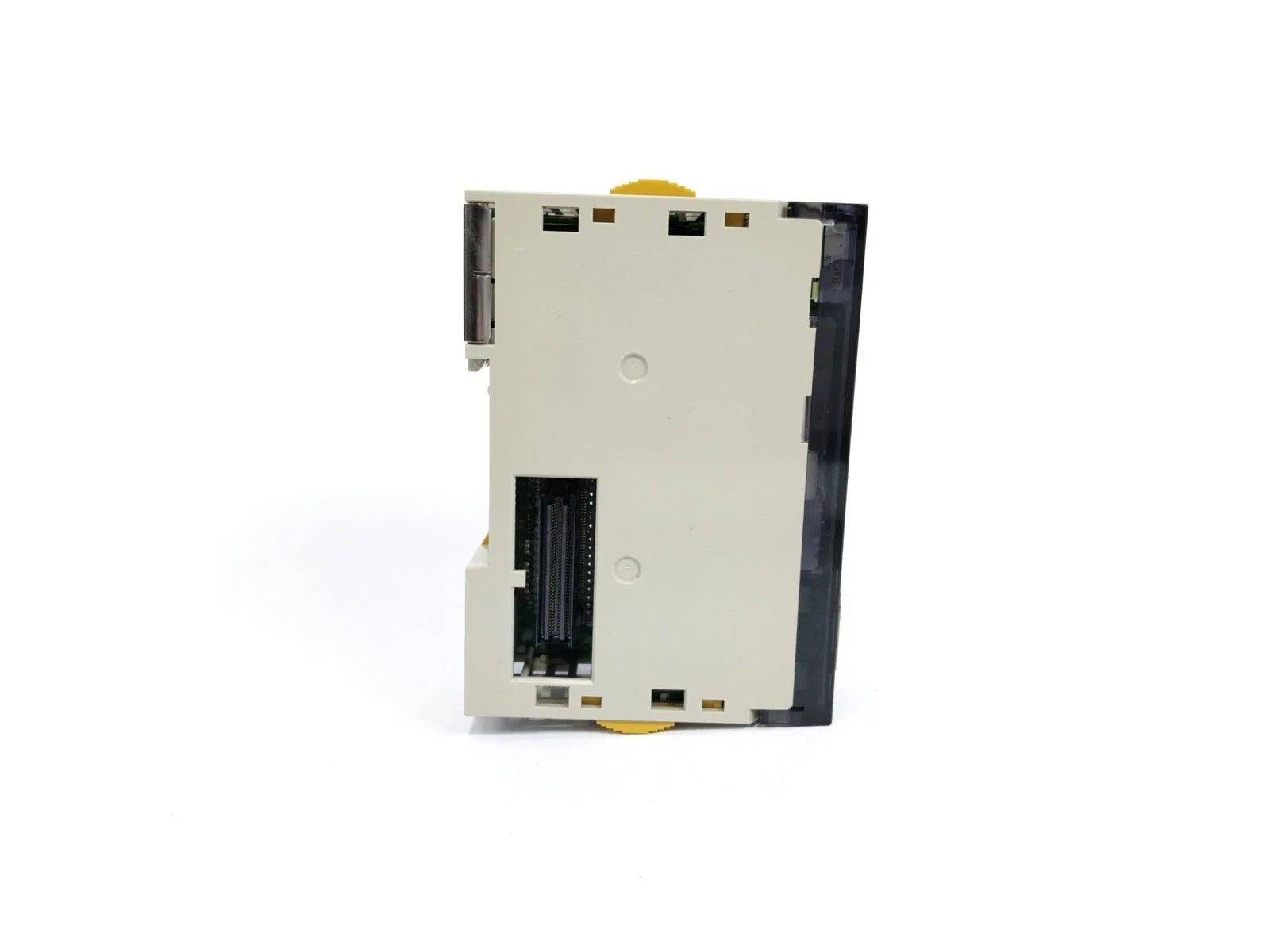

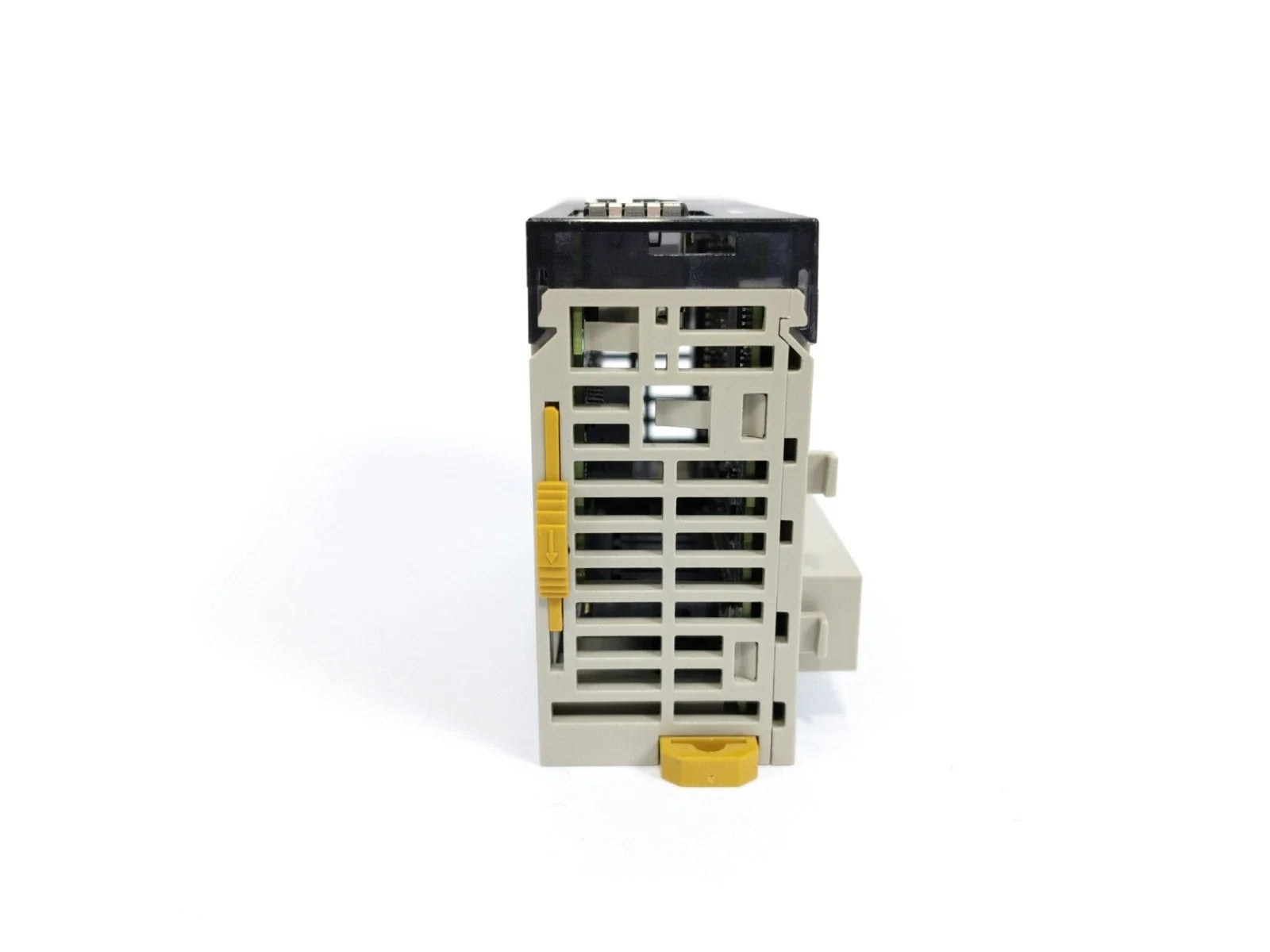

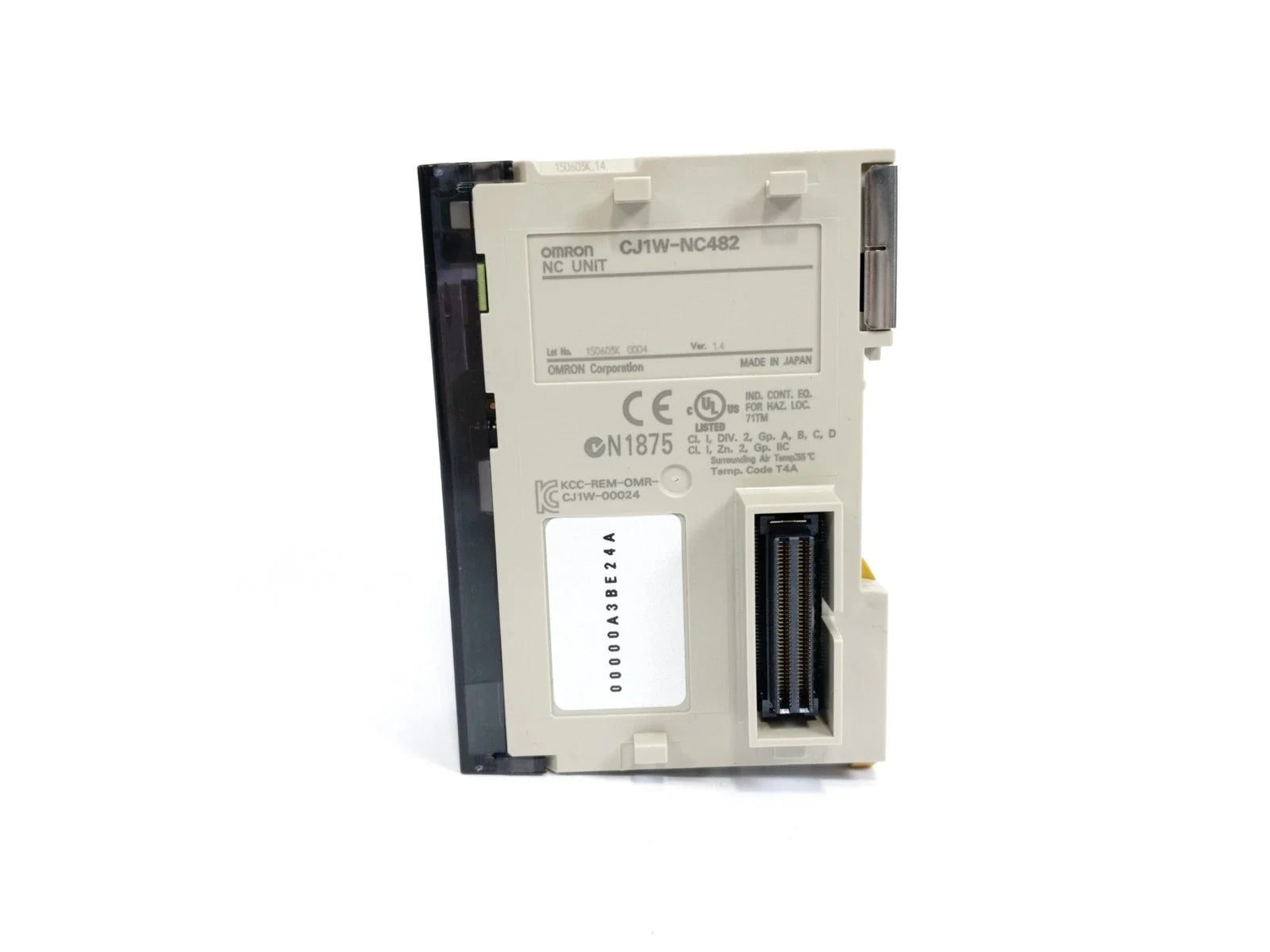

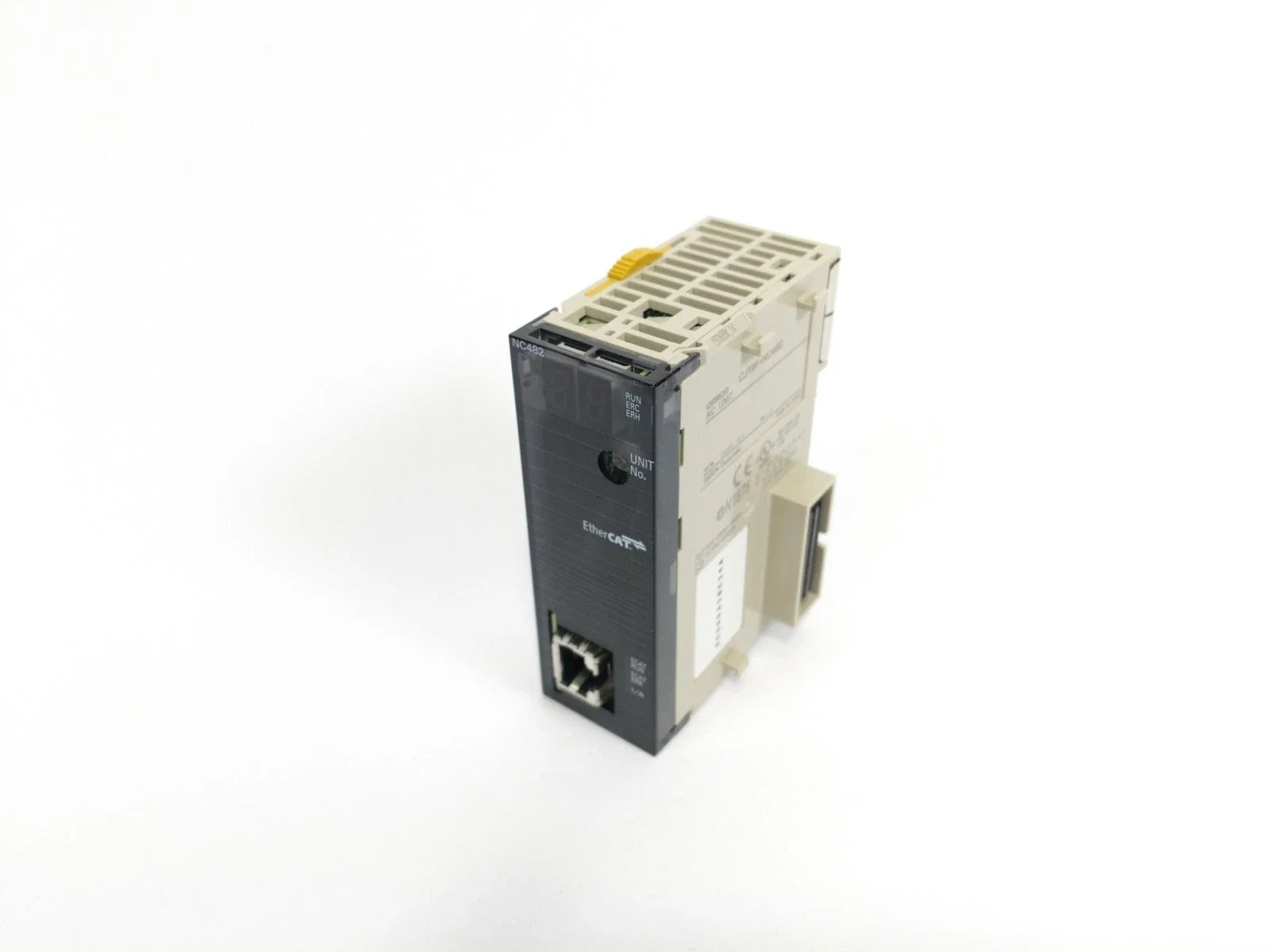

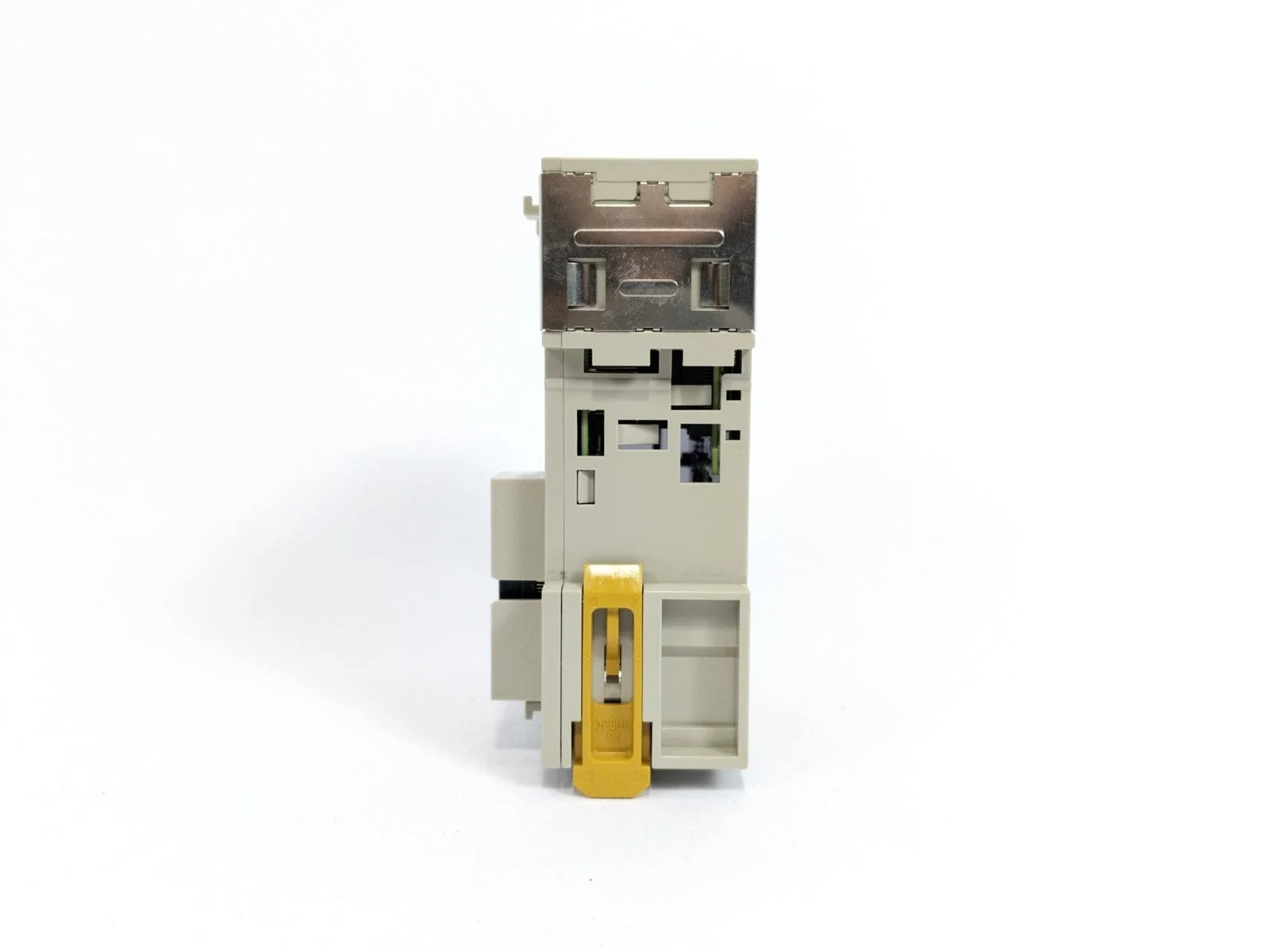

The Omron CJ1W-NC482 is a 4-axis position control unit designed for precise motion control in industrial automation systems. It operates as an EtherCAT-compatible module, enabling high-speed synchronization and communication with servo drives. This unit is used in applications requiring accurate positioning, coordinated motion, and reliable machine control.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Omron |
| Category |
Industrial Automation and Controls |
| Part Number |
CJ1W-NC482 |
| Subcategory |
PLC Module/Rack |
| Module Type |
Position Control Unit |
| Number of Axes |
4 |
| Communication Protocol |
EtherCAT Master |
| Mounting Type |
DIN Rail |
| Interface Type |
Connector |
| Control Type |
Multi-axis positioning |
| Compatible Series |
CJ Series PLC |
| Certifications |
CE, UL, CSA, cUL |
| Functionality |
Motion control and communication |
| Operating Temperature |
0°C to 55°C |
| Gross Weight |
163 g |
| Weight |
Approx. 0.45 kg |
Information About CJ1W-NC482
The CJ1W-NC482 is a positioning module from Omron’s CJ1W series, developed for integration with CJ-series PLC systems. It functions as an EtherCAT master unit, providing real-time communication with connected motion devices such as servo drives and actuators. The module is designed for DIN rail mounting and features connector-based interfaces for simplified installation. It is typically used in automation environments where synchronized multi-axis control and high-speed data exchange are critical.
Key Features:
- 4-axis motion control: Supports simultaneous control of up to four axes
- EtherCAT master communication: Enables real-time high-speed network control
- High precision positioning: Suitable for synchronized motion applications
- CJ-series compatibility: Designed for integration with Omron CJ PLC systems
- DIN rail mounting: Allows easy installation in control panels
- Connector interface: Simplifies wiring and system integration
- Industrial certifications: Meets CE, UL, CSA, and cUL standards
- Integrated communication and control: Combines motion control with network functionality
The CJ1W-NC482 delivers the reliability and precision required for multi-axis motion control in industrial automation systems.
