Description

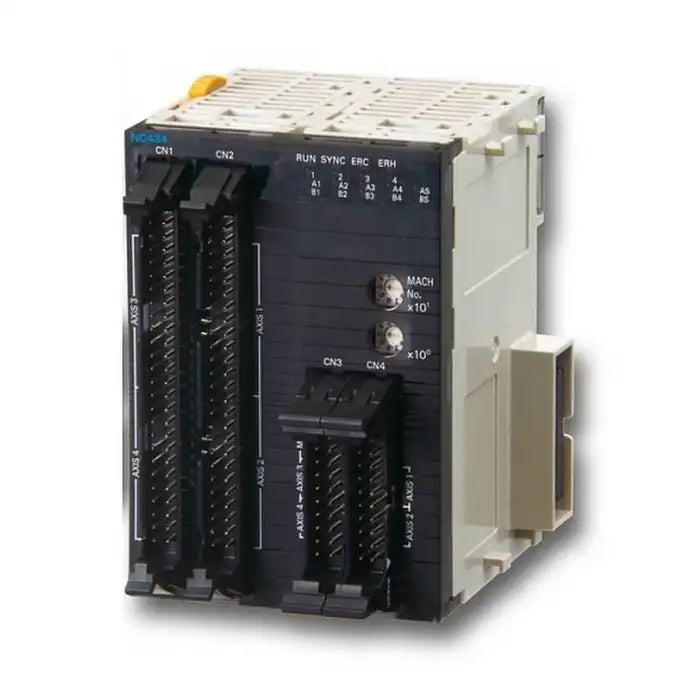

The Omron CJ1W-NC434 is a high-speed position control module designed for precise multi-axis motion control in industrial automation systems. It supports up to four axes with high-frequency pulse outputs for accurate positioning and synchronization. This module is used with CJ-series PLCs to control servo and stepper motor systems.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Omron |
| Category |
Business & Industrial |
| Part Number |
CJ1W-NC434 |
| Subcategory |
PLC Motion Control Modules |
| Series |
CJ1W |
| Module Type |
Position Control Module |
| Number of Axes |
4 |
| Output Type |
Pulse Train (Line Driver RS-422) |
| Max Pulse Frequency |
4 MHz |
| Functionality |
Positioning, Pulse Control |
| I/O System |
CJ I/O Bus |
| Connection Type |
Detachable Connector |
| Mounting Type |
DIN Rail |
| Operating Temperature |
0°C to 55°C |
| Current Consumption |
0.31 A |
| Certifications |
cULus |
| Weight |
220 g |
Information About CJ1W-NC434
The CJ1W-NC434 is part of Omron’s CJ1W series of PLC modules, developed for advanced motion and positioning control applications. It provides pulse-train output with line driver (RS-422) signaling, ensuring reliable communication with servo drives and motion devices. The module supports synchronized multi-axis control and high-speed operation for demanding automation processes. Its DIN rail mounting and detachable connectors allow straightforward installation and flexible wiring in industrial control panels.
Key Features:
-
4-axis position control: Enables simultaneous control of multiple motion axes.
-
High-speed pulse output: Supports pulse frequencies up to 4 MHz for precise positioning.
-
Line driver (RS-422) output: Provides reliable signal transmission to motion devices.
-
Synchronized motion capability: Allows coordinated control of multiple axes.
-
CJ-series PLC compatibility: Designed for integration with Omron CJ automation systems.
-
Pulse counter functionality: Supports feedback and monitoring of motion control processes.
-
Detachable I/O connectors: Simplifies wiring and maintenance.
-
DIN rail mounting: Suitable for installation in industrial control panels.
The CJ1W-NC434 delivers the reliability and precision required for multi-axis positioning and motion control in industrial automation systems.
