Description
The Omron CJ1W-CORT21 is a CAN communication module designed for integration with CJ series programmable logic controllers. It provides a CAN interface that enables PLC systems to communicate with devices on CAN-based industrial networks. This module supports reliable data exchange between automation components in distributed control systems.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Omron |
| Category |
PLCs/Machine Control |
| Part Number |
CJ1W-CORT21 |
| Subcategory |
PLC Module/Rack |
| Series |
CJ1 Series |
| Module Type |
Communication Module |
| I/O System |
CJ I/O Bus |
| Expansion Unit Type |
CPU Bus Unit |
| Communication Protocol |
CAN |
| Number of Communication Ports |
1 |
| Network Supply Current |
18 mA |
| Internal Power Consumption |
290 mA |
| Supply Voltage |
11–25 VDC |
| Mounting Capacity |
Up to 16 units per PLC system |
| Dimensions |
90 × 31 × 78.7 mm |
| Product Weight |
160 g |
| Weight |
0.35 lbs |

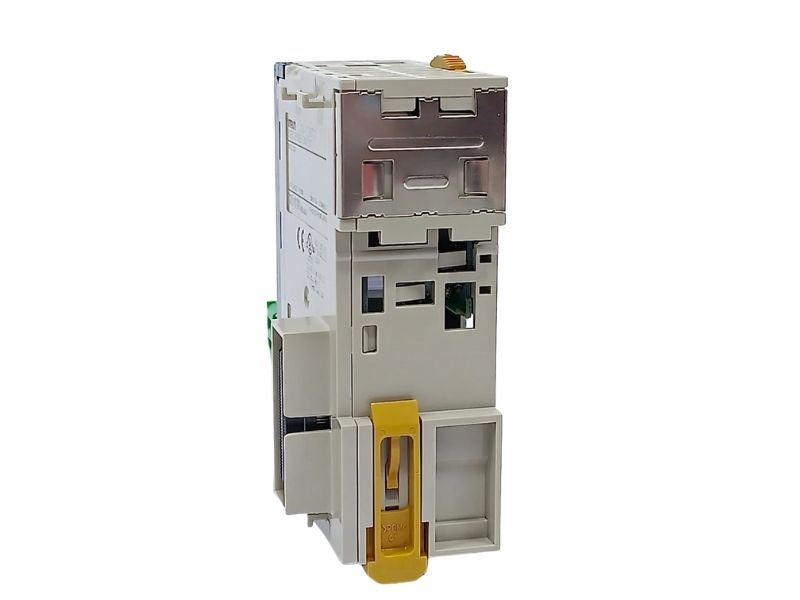

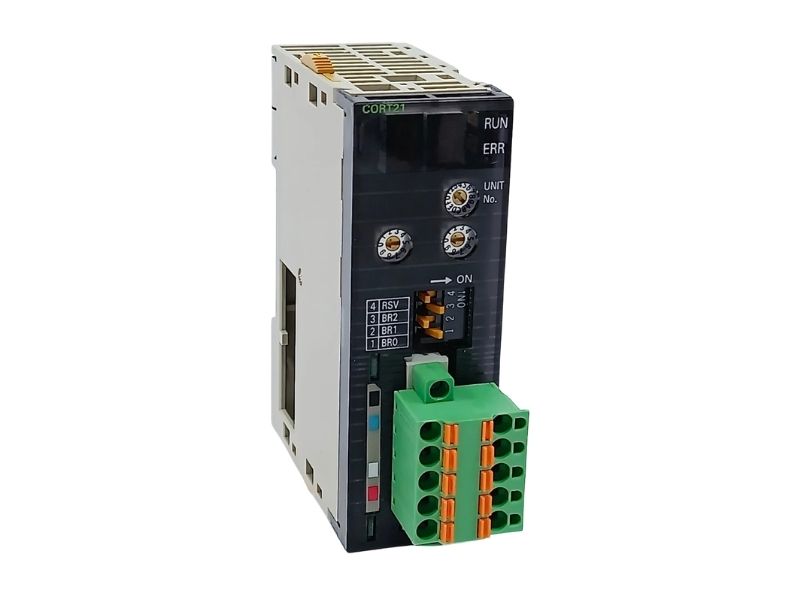

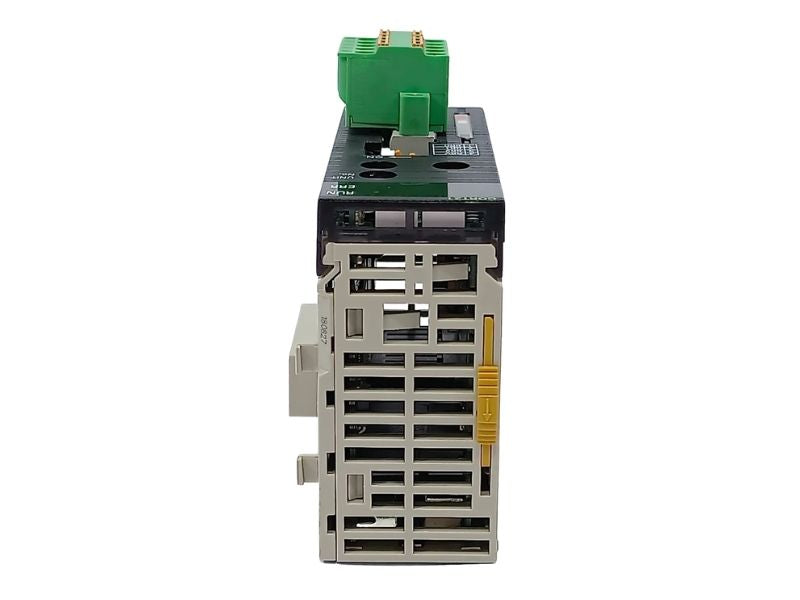

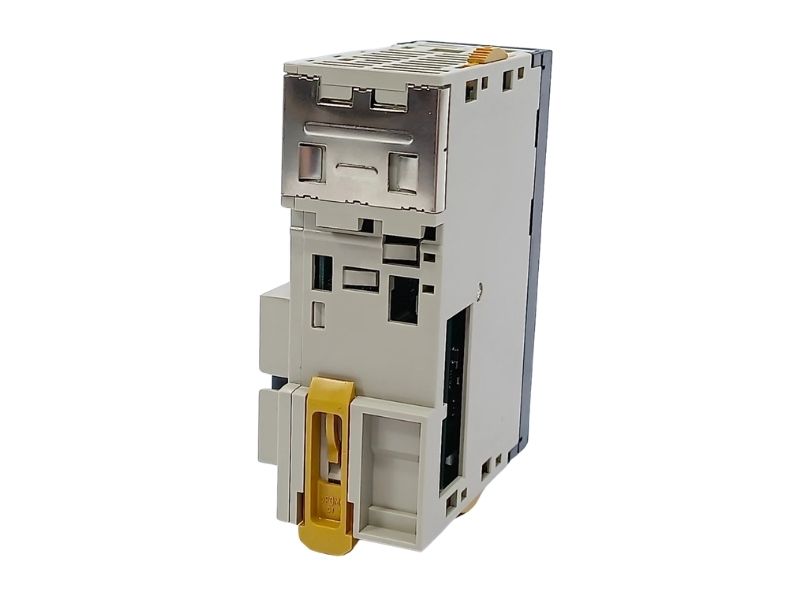

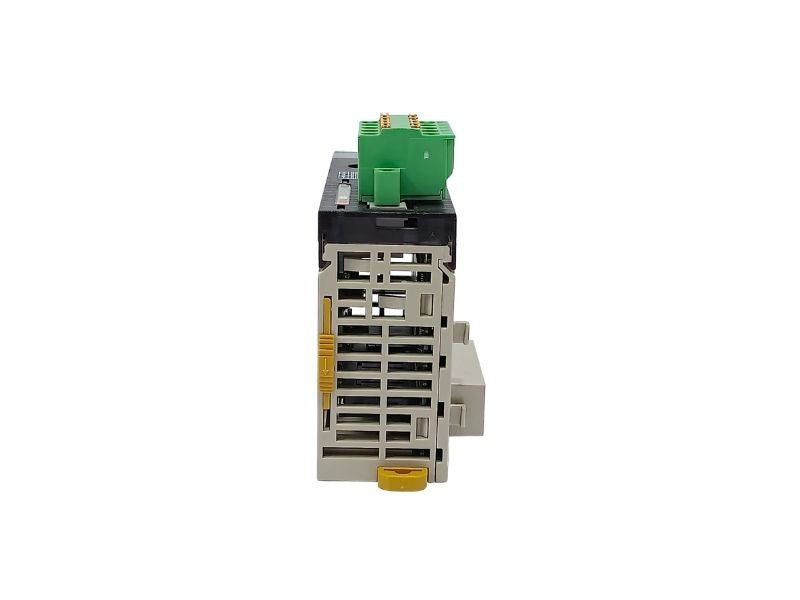

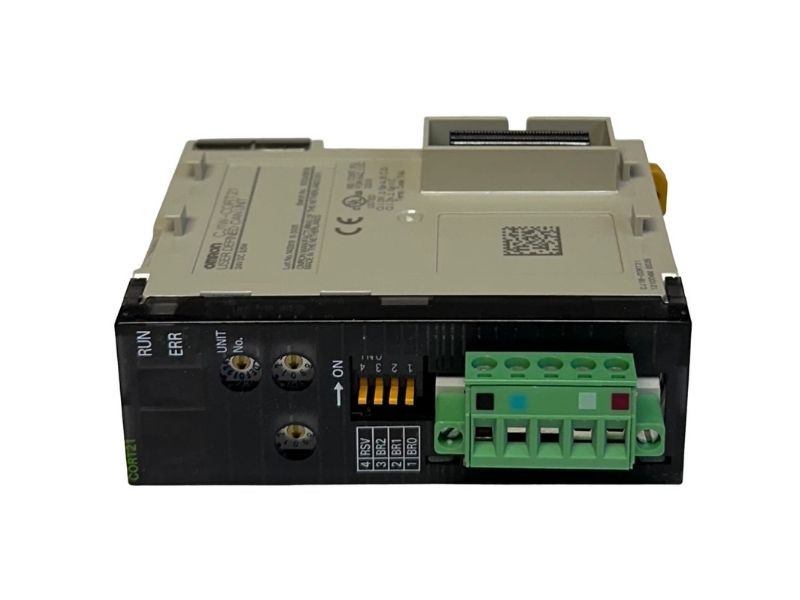

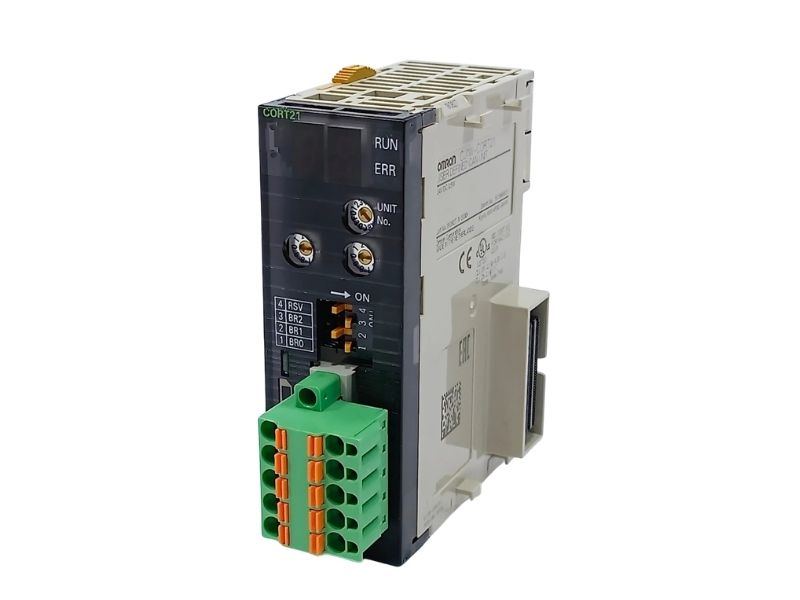

Information About CJ1W-CORT21
The CJ1W-CORT21 is part of the Omron CJ1 series PLC expansion modules and functions as a CPU bus communication unit. It enables CJ-series controllers to connect to CAN networks for device-level communication and system integration. The module installs directly on the CJ I/O bus and provides a dedicated CAN communication port for connecting external devices. Its compact design and industrial communication capability make it suitable for machine automation, industrial control systems, and distributed I/O networks.
Key Features:
-
CAN Communication Interface: Provides a dedicated CAN network connection for CJ-series PLC systems.
-
CJ1 Series Compatibility: Designed specifically for Omron CJ1 PLC platforms and expansion architecture.
-
CPU Bus Unit Installation: Connects directly to the PLC CPU bus for high-speed internal communication.
-
Single CAN Port: Enables connection to CAN-based industrial networks and field devices.
-
Compact Module Design: Narrow housing allows efficient use of PLC rack space.
-
Reliable Network Integration: Supports communication with distributed automation devices.
-
Industrial Automation Application: Suitable for machine control and industrial network communication systems.
-
DIN Rail / Rack Integration: Designed for installation within PLC racks and control panels.
The CJ1W-CORT21 delivers the reliability and precision required for industrial communication and network integration in PLC-based automation systems.
