Description

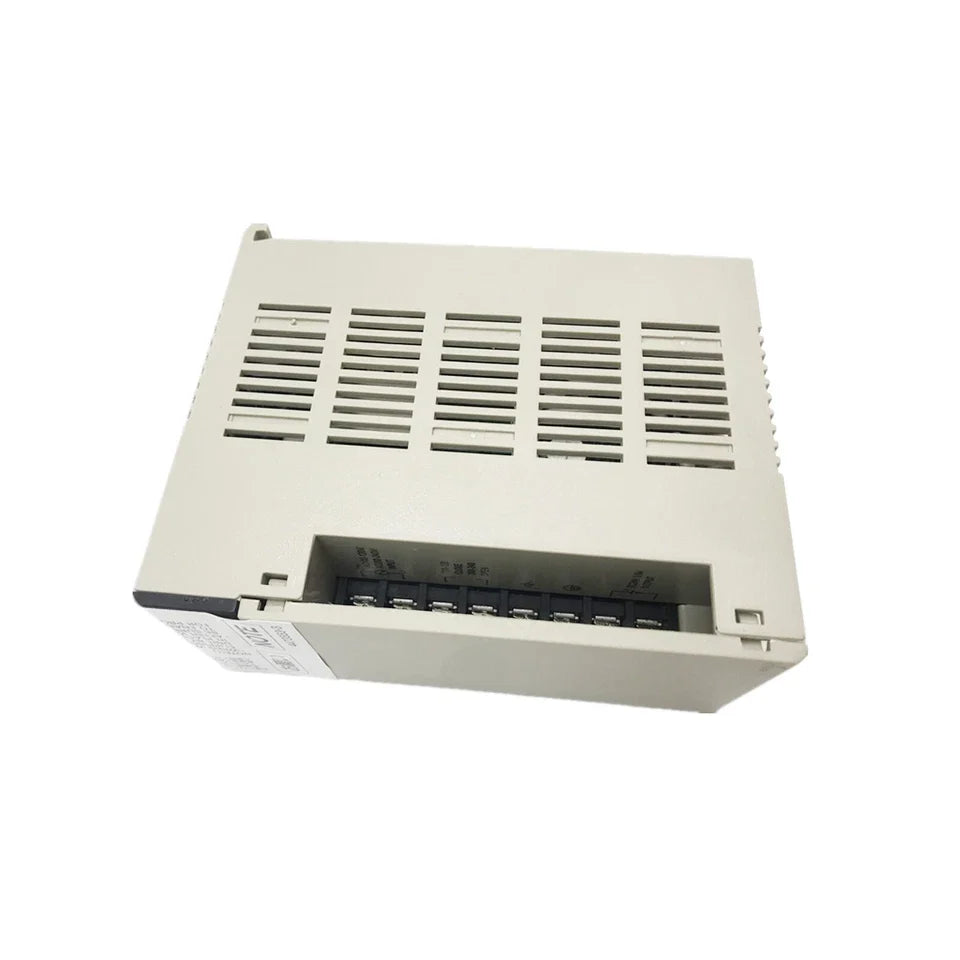

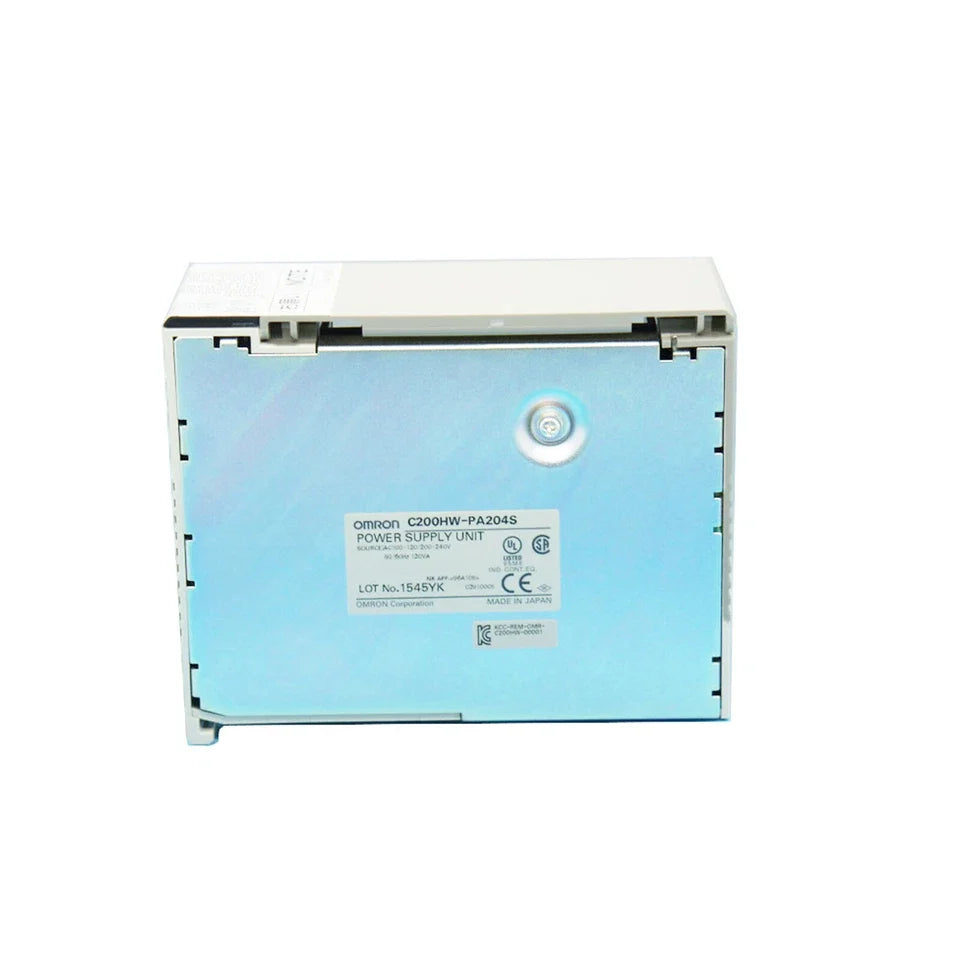

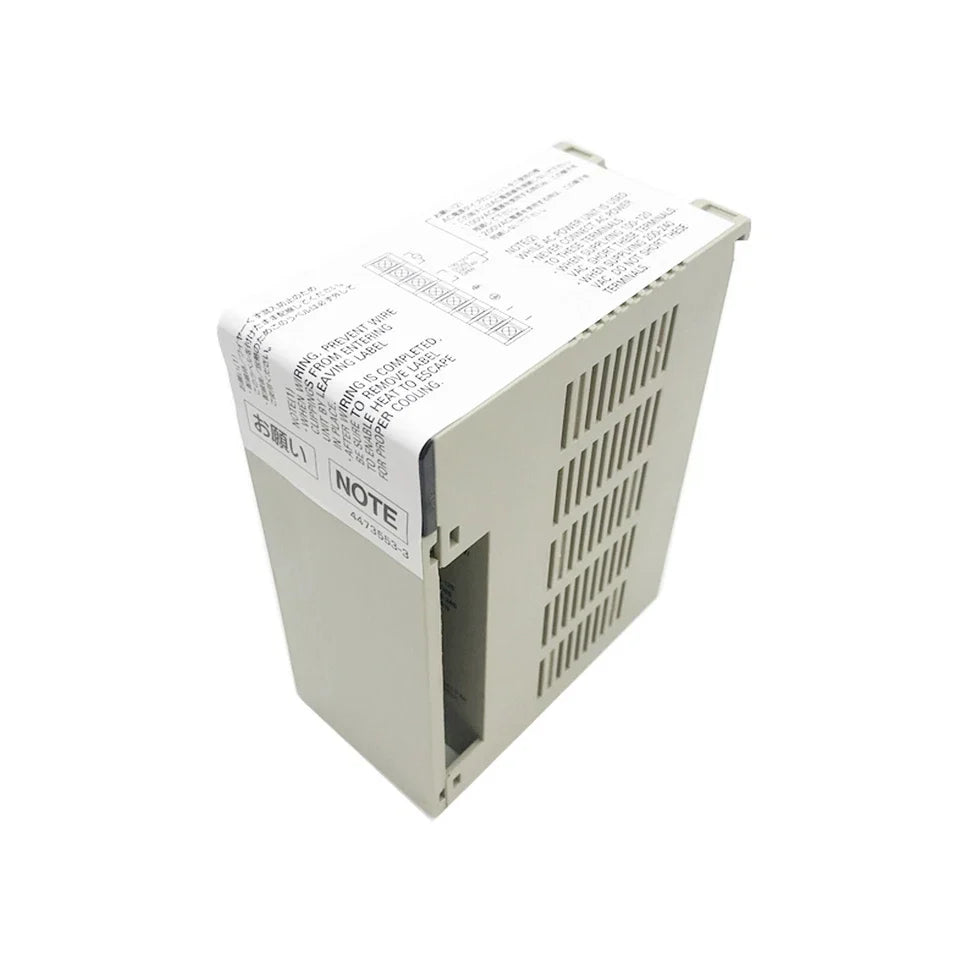

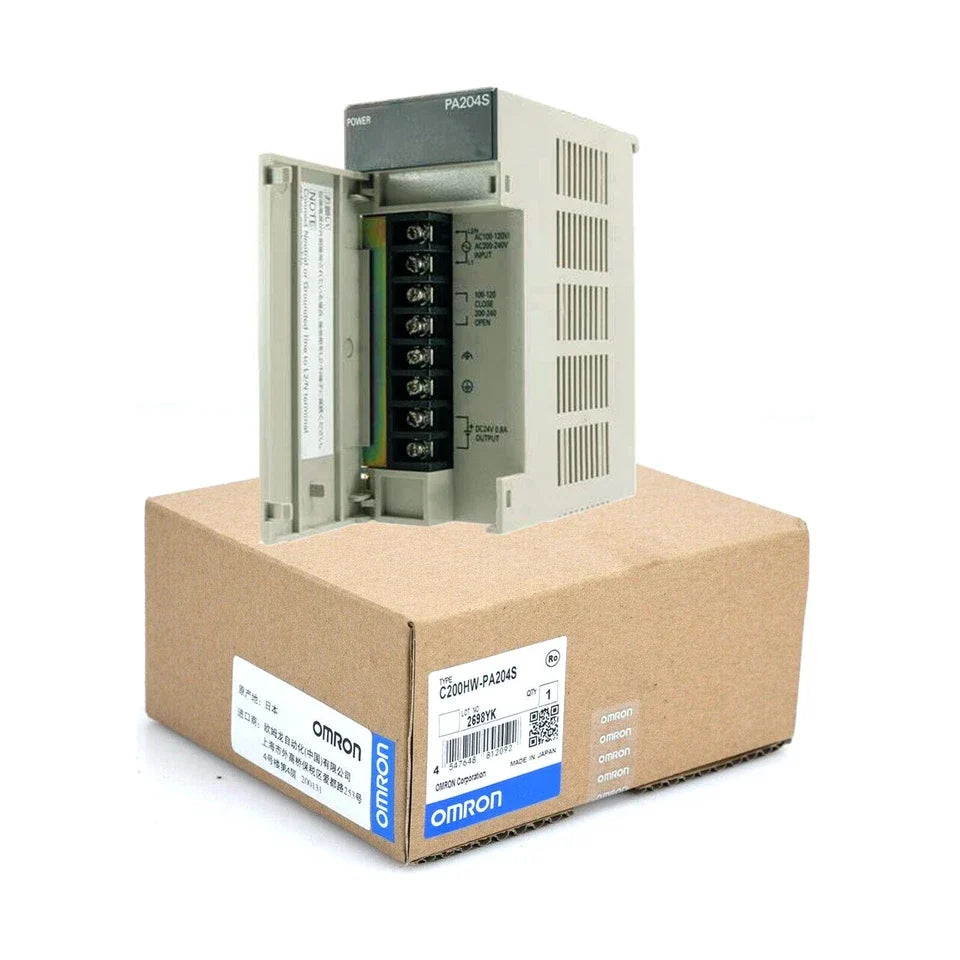

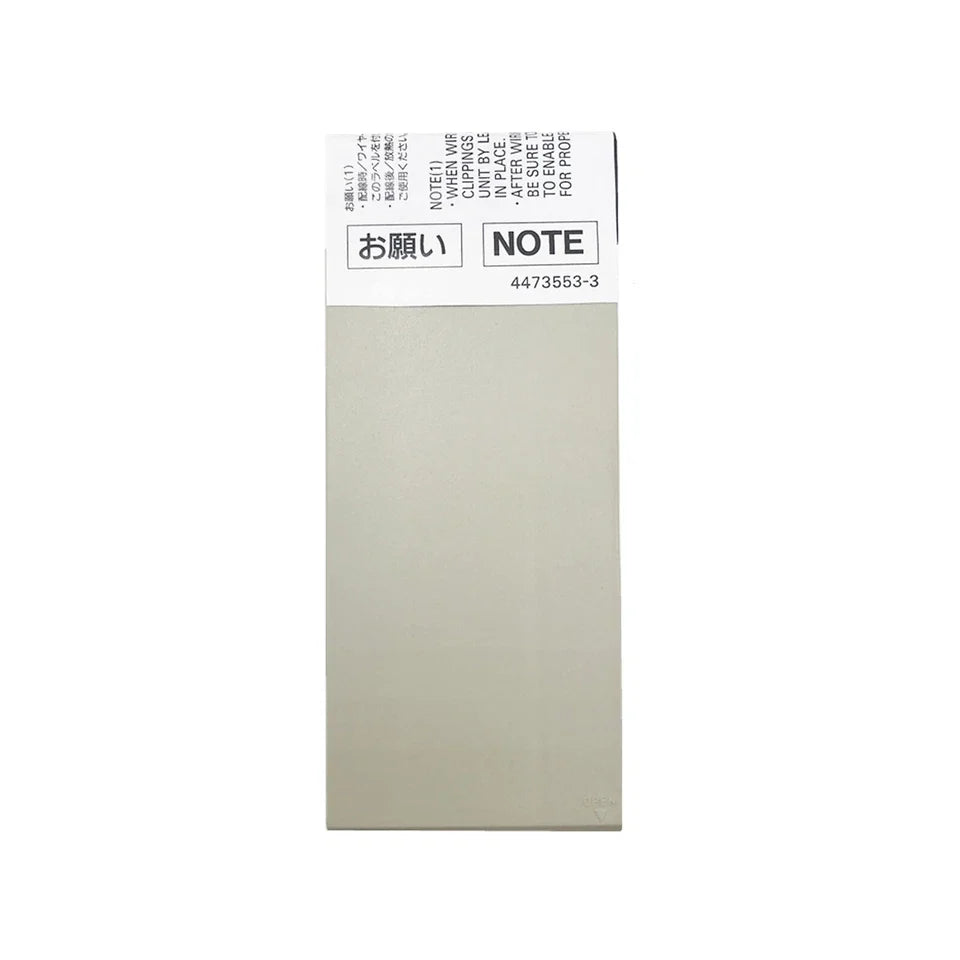

The Omron C200HW-PA204 is an AC input power supply module designed to provide stable DC power for PLC-based automation systems. It delivers regulated 5 VDC and 26 VDC outputs to support reliable controller operation. This unit is commonly used with Omron C200 and CS1 series PLCs in industrial control environments.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Omron |
| Category |
Industrial Automation |
| Part Number |
C200HW-PA204 |
| Subcategory |
PLC Power Supplies |
| Product Type |
Power Supply Module |
| Input Voltage |
100–240 VAC, 50/60 Hz |
| Output Voltage (Main) |
5 V DC |
| Output Current (5VDC) |
4.6 A |
| Output Voltage (Auxiliary) |
26 V DC |
| Output Current (26VDC) |
0.625 A |
| Total Output Power |
30 W |
| Mounting Type |
Backplane / Rack Mount |
| Connection Type |
Screw Terminals |
| Operating Temperature |
0°C to +55°C |
| Protection Features |
Overload, Short Circuit |
| Certifications |
UL, CSA, CE, NK, Lloyd |
| Dimensions |
35 x 150 x 120 mm |
| Weight |
0.75 kg |
Information About C200HW-PA204
The C200HW-PA204 is a power supply module from Omron’s C200HW series, developed for integration into PLC racks and backplane systems. It accepts a wide input voltage range of 100–240 VAC and converts it into stable DC outputs required for system operation. The module provides both a primary 5 VDC output and an auxiliary 26 VDC output, supporting various internal and external control components. Designed for industrial reliability, it includes protection features such as overload and short-circuit protection to ensure continuous operation.
Key Features:
- Dual Output Supply: Provides 5 VDC and 26 VDC outputs for system and auxiliary power
- Wide Input Voltage Range: Supports 100–240 VAC for flexible installation
- High Output Capacity: Delivers up to 4.6 A on 5 VDC output for stable PLC operation
- Industrial Protection Features: Includes overload and short-circuit protection
- Rack Mount Design: Designed for backplane integration in PLC systems
- Reliable Power Conversion: Ensures consistent voltage output for automation equipment
- Screw Terminal Connections: Enables secure and straightforward wiring
- Certified Compliance: Meets UL, CSA, CE, and other industrial standards
The C200HW-PA204 delivers the reliability and precision required for stable power distribution in PLC-based industrial automation systems.
