Description

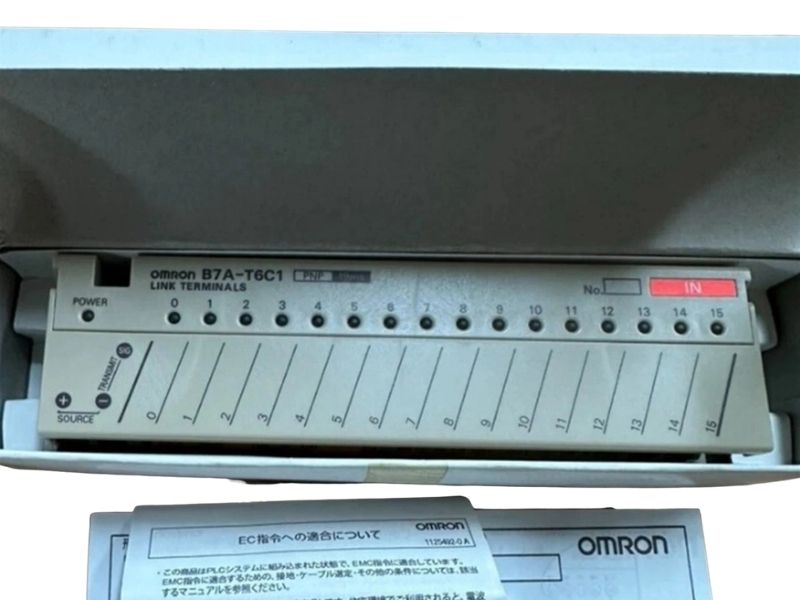

The Omron B7A-T6C1 is a transistor I/O link module designed for connecting input signals in distributed control systems. It supports 16 input points and operates using a 2-wire communication system for simplified wiring in industrial automation.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Omron |
| Category |
Industrial Automation and Controls |
| Part Number |
B7A-T6C1 |
| Subcategory |
I/O Link Modules |
| Series |
B7A |
| Module Type |
Transistor I/O Input Module |
| Number of Inputs |
16 |
| Input Type |
PNP |
| Communication Type |
2-wire I/O link |
| Supply Voltage |
12–24 VDC |
| Connection Type |
Screw terminal |
| Mounting Type |
DIN Rail |
| Operating Temperature |
-10°C to 55°C |
| Product Status |
Discontinued |
| Weight |
0.35 lbs |
Information About B7A-T6C1
The B7A-T6C1 is part of Omron’s B7A series of I/O link modules, developed to reduce wiring complexity and improve system efficiency. It functions as an input module with PNP-compatible logic and communicates over a 2-wire transmission line. This allows multiple signals to be transmitted through minimal wiring, making it suitable for distributed I/O applications. The module is designed for DIN rail mounting and integrates easily into control panels and automation systems.
Key Features:
- 16 input points: Supports multiple signal inputs in one module.
- 2-wire communication: Reduces wiring requirements and installation time.
- PNP input compatibility: Suitable for standard industrial sensors.
- Transistor I/O link module: Enables distributed signal transmission.
- Wide supply voltage range: Operates on 12–24 VDC.
- Compact DIN rail design: Easy integration into control cabinets.
- Screw terminal connection: Provides secure and reliable wiring.
- Industrial reliability: Designed for continuous operation in automation systems.
The B7A-T6C1 provides efficient signal transmission and simplified wiring for industrial control systems.
