Description

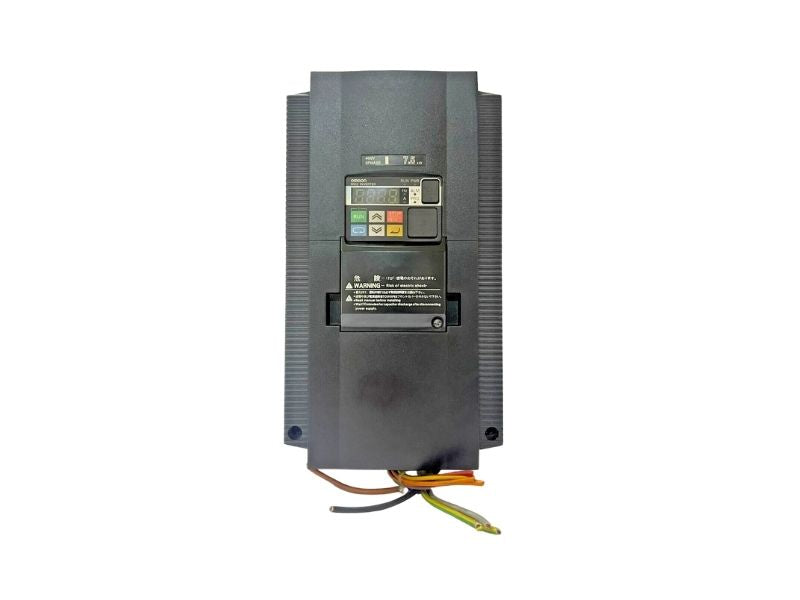

The Omron 3G3MX2-A4075-E is a compact vector inverter designed for precise motor speed and torque control in industrial automation systems. It operates on a 400 V three-phase supply and supports both V/f and vector control methods for flexible motor operation. This drive is commonly used to control induction and permanent magnet motors in manufacturing and process applications.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Omron |
| Category |
Industrial Automation and Controls |
| Part Number |
3G3MX2-A4075-E |
| Subcategory |
Variable Frequency Drives |
| Series |
MX2 |
| Drive Type |
Vector Inverter |
| Supply Voltage |
3-phase 380–480 VAC |
| Motor Power (CT/VT) |
7.5 kW / 11 kW |
| Control Methods |
V/f, Open-loop vector |
| Output Frequency |
0.1–400 Hz |
| Communication |
RS-485 (Modbus), USB |
| Optional Networks |
EtherCAT, EtherNet/IP, DeviceNet, PROFIBUS |
| Number of Inputs |
10 |
| Analog Inputs |
4 |
| Analog Outputs |
1 |
| Protection Features |
OPP, OVP, OTP, SCP, BOP |
| Mounting Type |
Wall / Panel Mount |
| Ingress Protection |
IP20 |
| Operating Temperature |
-10°C to 50°C |
| Dimensions |
140 × 155 × 260 mm |
| Weight |
Approx. 3.5 kg |
Information About 3G3MX2-A4075-E
The 3G3MX2-A4075-E is part of Omron’s MX2 series of multi-function compact inverters. It is engineered for integration into industrial control panels, providing advanced motor control with support for both open-loop vector and V/f control modes. The unit is compatible with various motor types, including asynchronous and permanent magnet motors, making it suitable for a wide range of applications. It also features built-in communication capabilities and supports multiple industrial network protocols for system integration.
Key Features:
- Dual control methods: Supports open-loop V/f and vector control for flexible motor operation
- High motor capacity: Handles up to 7.5 kW constant torque and 11 kW variable torque loads
- Wide communication support: Includes RS-485 Modbus and optional industrial network protocols
- Broad motor compatibility: Works with induction and permanent magnet motors
- Integrated protection functions: Includes overload, overvoltage, overheating, and short-circuit protection
- Flexible programming options: Configurable via keypad, operator panel, or PC software
- Compact design: Suitable for wall or panel mounting in control cabinets
- Wide frequency range: Output frequency adjustable from 0.1 to 400 Hz
The 3G3MX2-A4075-E delivers the reliability and precision required for motor speed control and industrial drive applications.
