Description

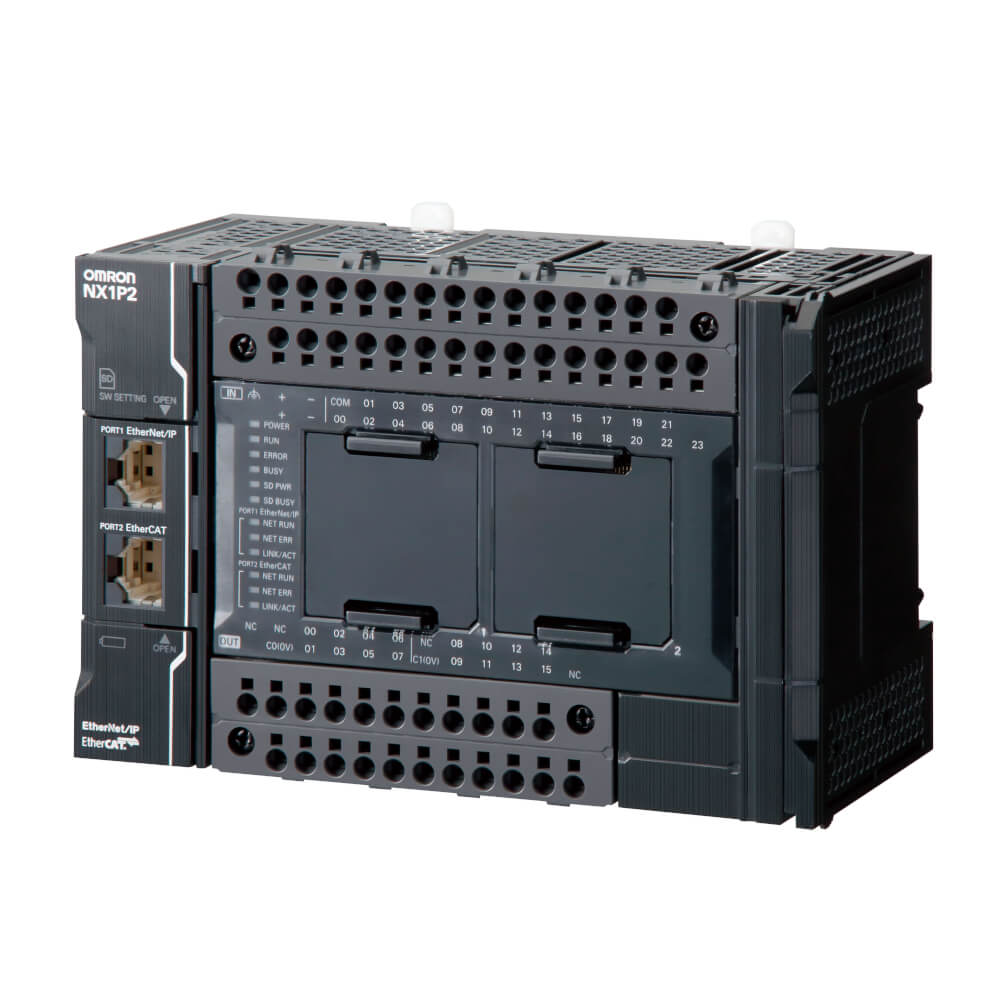

The Omron NX1P2-1040DT1 is a compact machine automation controller designed to combine PLC logic control, motion, and EtherCAT networking in a single unit. It provides high-speed processing with integrated digital I/O and advanced motion capabilities for coordinated machine control. This controller is commonly used in packaging, assembly, and small-to-medium automation systems.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Omron |
| Category |
PLCs/Machine Control |
| Part Number |
NX1P2-1040DT1 |
| Subcategory |
Brick PLC |
| Controller Series |
NX1P2 |
| Primary Task Cycle Time |
2 ms |
| Program Memory |
1.5 MB |
| Variables Memory |
2 MB |
| Synchronous Axes |
Up to 2 |
| PTP Axes |
Up to 4 |
| Digital Inputs |
24 (PNP/NPN) |
| Digital Outputs |
16 (PNP) |
| Ethernet Ports |
2 ports |
| Communication Ports |
EtherCAT Master, EtherNet/IP, Ethernet TCP/IP |
| Communication Options |
RS-232C, RS-422, RS-485 |
| Max. Expansion Units |
8 |
| Max. Remote I/O Nodes |
16 |
| Supply Voltage |
20.4–28.8 VDC |
| Dimensions (H×W×D) |
100 × 148 × 71 mm |
| Weight |
1.46 lbs |
Information About
NX1P2-1040DT1
The NX1P2-1040DT1 is part of Omron’s NX1P2 series, developed to deliver high-performance machine control in a compact footprint. It integrates logic, motion, and network control using EtherCAT and EtherNet/IP technologies for real-time automation. The controller supports multiple expansion units and remote I/O nodes, enabling scalable system architectures. Its design targets applications requiring fast cycle times, synchronized motion, and seamless connectivity within modern industrial networks.
Key Features:
- Integrated Machine Automation Controller: Combines PLC logic, motion control, and networking in one device.
- High-Speed Processing: Executes control tasks with a primary cycle time of 2 ms.
- Advanced Motion Control: Supports synchronous and point-to-point motion axes.
- EtherCAT Master Capability: Enables real-time control of drives and distributed I/O.
- Built-In Digital I/O: Provides onboard digital inputs and outputs for direct device connection.
- Expandable Architecture: Supports expansion units and remote I/O nodes for scalable systems.
- Industrial Ethernet Support: Includes EtherNet/IP and TCP/IP communication.
The NX1P2-1040DT1 delivers the reliability and precision required for integrated machine control and synchronized motion in industrial automation systems.
