Description

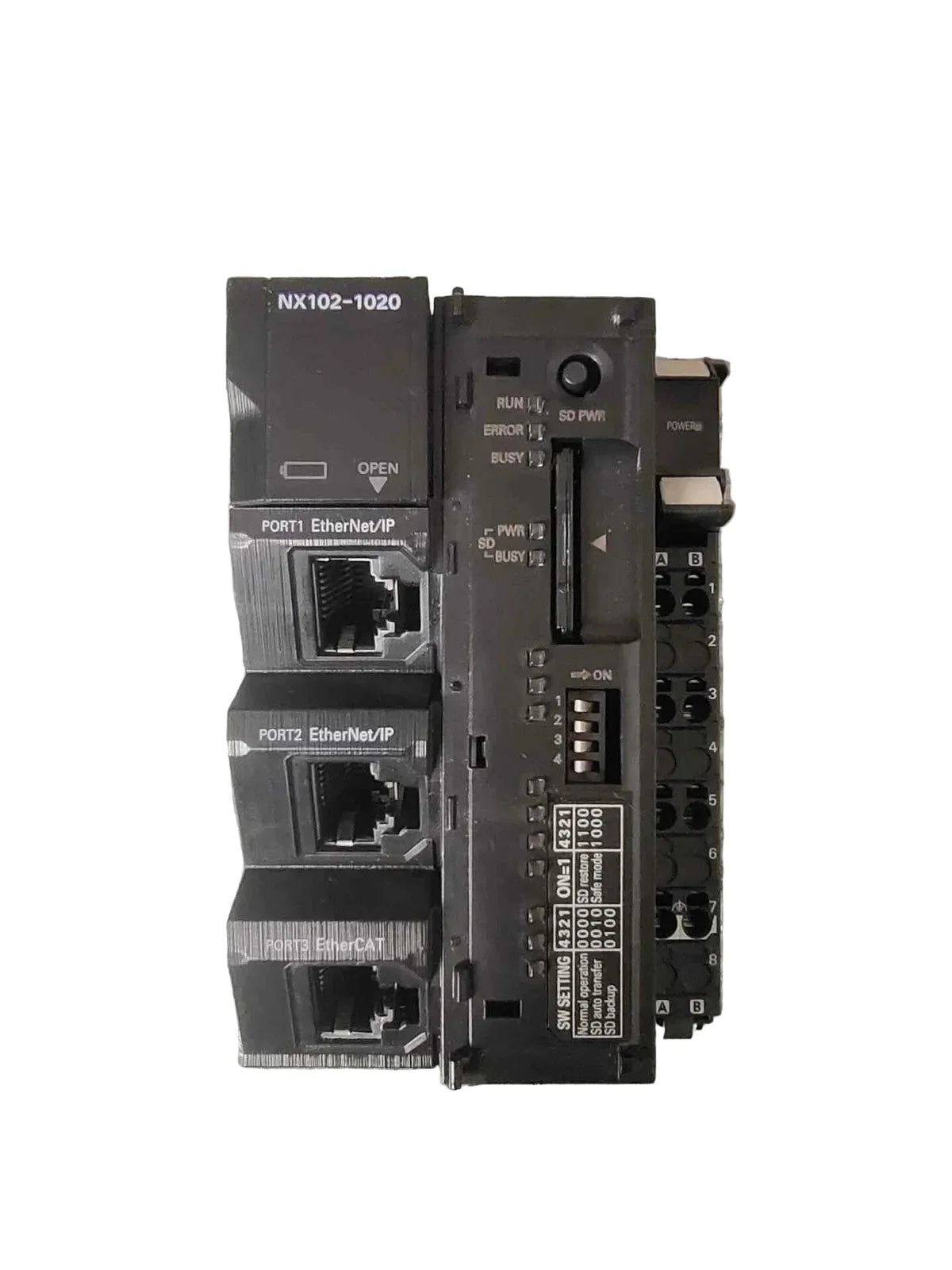

The Omron NX102-1020 is a Sysmac NX1 modular CPU designed to deliver integrated control, motion, and database connectivity within a compact automation platform. It supports high-speed control with a 1 ms task cycle time while enabling direct data exchange with IT systems. This controller is suited for advanced machine automation requiring coordinated motion, communication, and data handling.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Omron |
| Category |
Programmable Automation Controllers |
| Part Number |
NX102-1020 |
| Subcategory |
Modular CPUs |
| Controller Family |
Sysmac NX1 |
| Primary Task Cycle Time |
1 ms |
| Program Memory |
5 MB |
| Variables Memory |
33.5 MB |
| Max. Synchronous Axes |
2 |
| Max. PTP Axes |
4 |
| Max. Axes (Including Virtual) |
15 |
| I/O System |
NX I/O Bus |
| Max. Remote I/O Nodes |
64 |
| Max. Expansion Units |
32 |
| Communication Ports |
EtherCAT Master, EtherNet/IP, Ethernet TCP/IP |
| Communication Options |
RS-232C, RS-422, RS-485 |
| Dimensions (H × W × D) |
100 × 66 × 100 mm |
| Weight |
0.47 kg |
Information About NX102-1020
The NX102-1020 is part of Omron’s Sysmac NX1 controller family, engineered to unify logic control, motion control, and information connectivity in a single CPU. It supports database connections, OPC UA communication, and multiple industrial Ethernet protocols for seamless integration across factory and enterprise networks. The controller manages both synchronous and point-to-point motion axes while maintaining fast and deterministic control performance. Designed for use with the NX I/O Bus, it allows scalable system expansion for complex automation architectures.
Key Features:
- Omron Sysmac NX1 Controller: Integrated platform for control, motion, and information processing
- Database Connectivity: Enables direct connection to databases for production data handling
- High-Speed Control Performance: 1 ms primary task cycle time for responsive machine control
- Integrated Motion Control: Supports synchronous, PTP, and virtual axes within one CPU
- Advanced Ethernet Communications: Includes EtherCAT, EtherNet/IP, OPC UA, and TCP/IP support
- Scalable NX I/O System: Supports up to 64 remote I/O nodes and 32 expansion units
- Compact Modular Design: Allows space-efficient installation in control panels
The NX102-1020 delivers the reliability and precision required for advanced industrial automation and connected manufacturing systems.
