Description

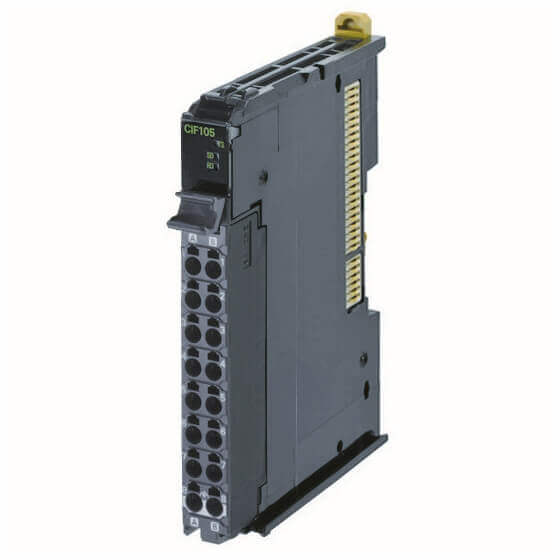

The Omron NX-CIF105 is a slim serial communication interface unit designed to add RS-422 and RS-485 connectivity to Sysmac NX-based automation systems. It enables reliable serial data exchange between controllers and external devices over the NX I/O Bus. This module is intended for compact control panels requiring flexible serial communication integration.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Omron |
| Category |
I/O Modules |
| Part Number |
NX-CIF105 |
| Subcategory |
Communication Interface Modules |
| Series |
NX Series |
| Product Type |
Serial Communication Interface Unit |
| I/O System |
NX I/O Bus |
| Communication Ports |
RS-422, RS-485 |
| Number of Communication Ports |
1 |
| Signal Processing |
Free Running |
| IO-Link Master |
No |
| Safety Rating |
Not SIL Rated |
| Degree of Protection |
IP20 |
| Product Height |
100 mm |
| Product Width |
12 mm |
| Product Depth |
80 mm |
| Weight |
69 g |
Information About NX-CIF105
The NX-CIF105 is part of Omron’s NX Series modular I/O platform and functions as a dedicated communication module on the NX I/O Bus. It is designed for free-running signal processing and supports serial RS-422 and RS-485 communication protocols. The unit features a narrow housing to conserve panel space while maintaining robust industrial connectivity. With IP20 protection, it is suitable for enclosed control cabinet installations within industrial automation environments.
Key Features:
- Serial Communication Interface Module: Adds RS-422 and RS-485 connectivity to NX systems.
- NX I/O Bus Integration: Designed for seamless operation within Sysmac NX architectures.
- Single Communication Port: Provides dedicated serial communication channel.
- Slim Module Design: 12 mm width optimizes space usage in control panels.
- Free-Running Signal Processing: Supports continuous serial data exchange.
- Industrial Communication Support: Suitable for connecting controllers to serial field devices.
- DIN Rail Compatible NX Form Factor: Enables modular and scalable system expansion.
The NX-CIF105 delivers the reliability and precision required for serial communication expansion in modular industrial automation systems.
