Overview

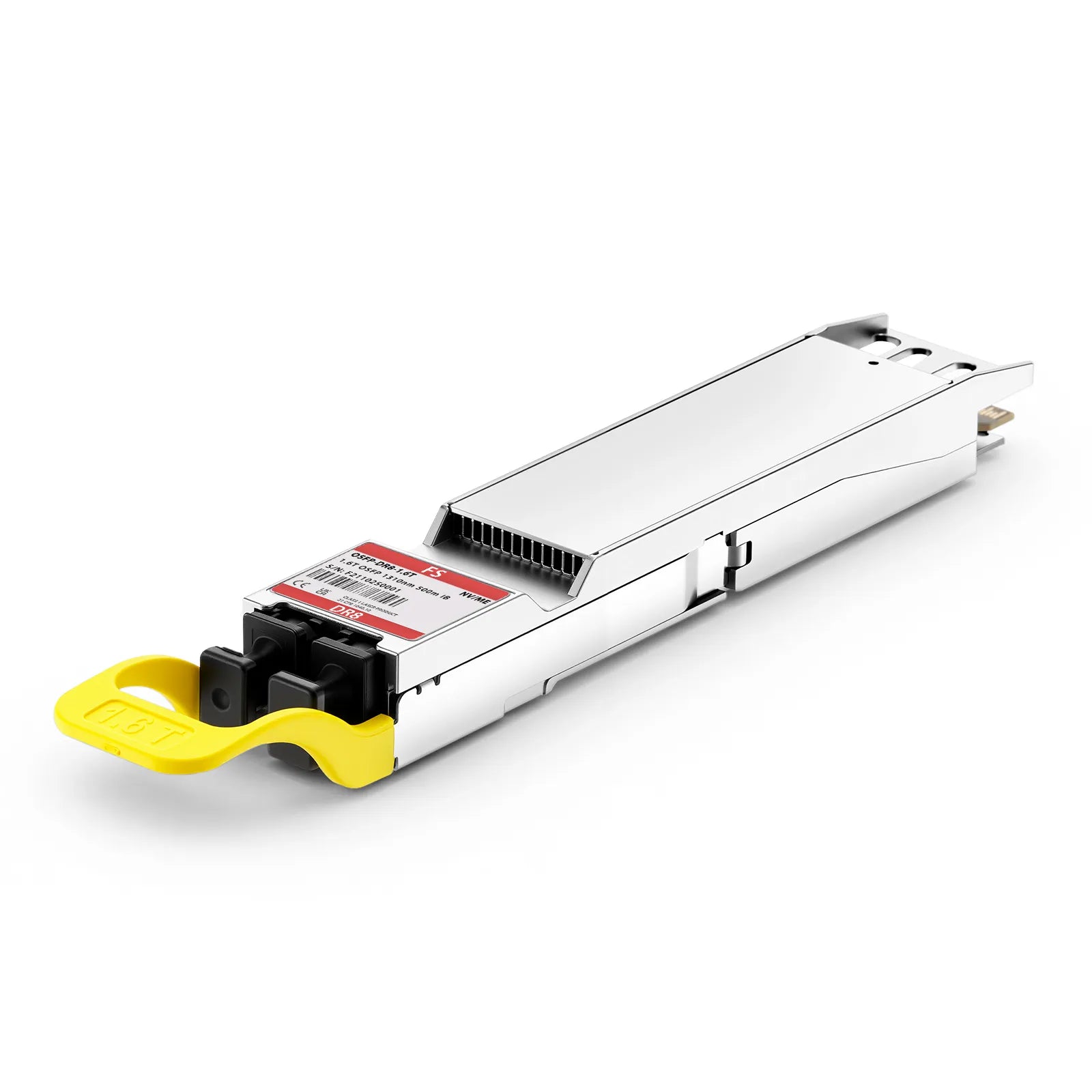

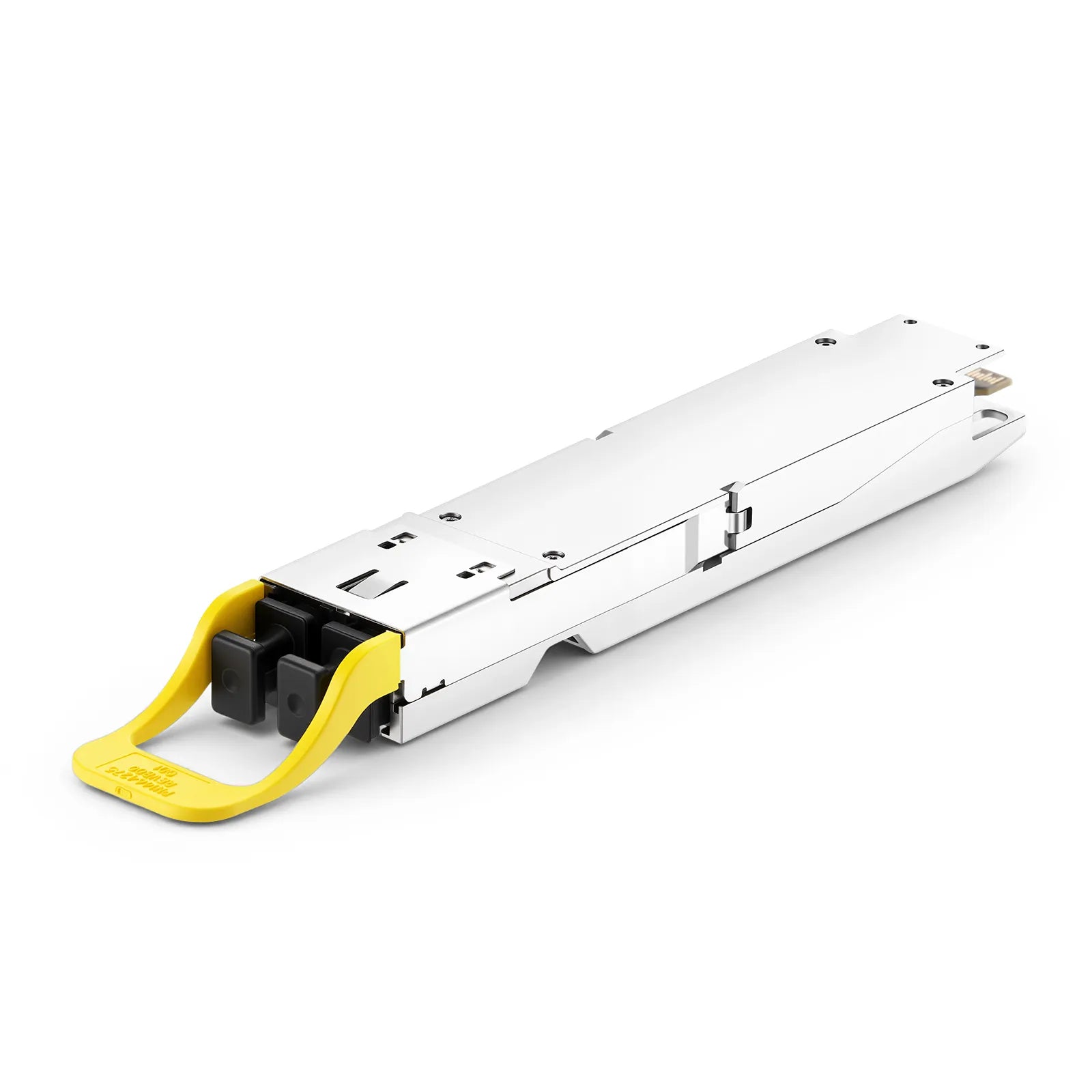

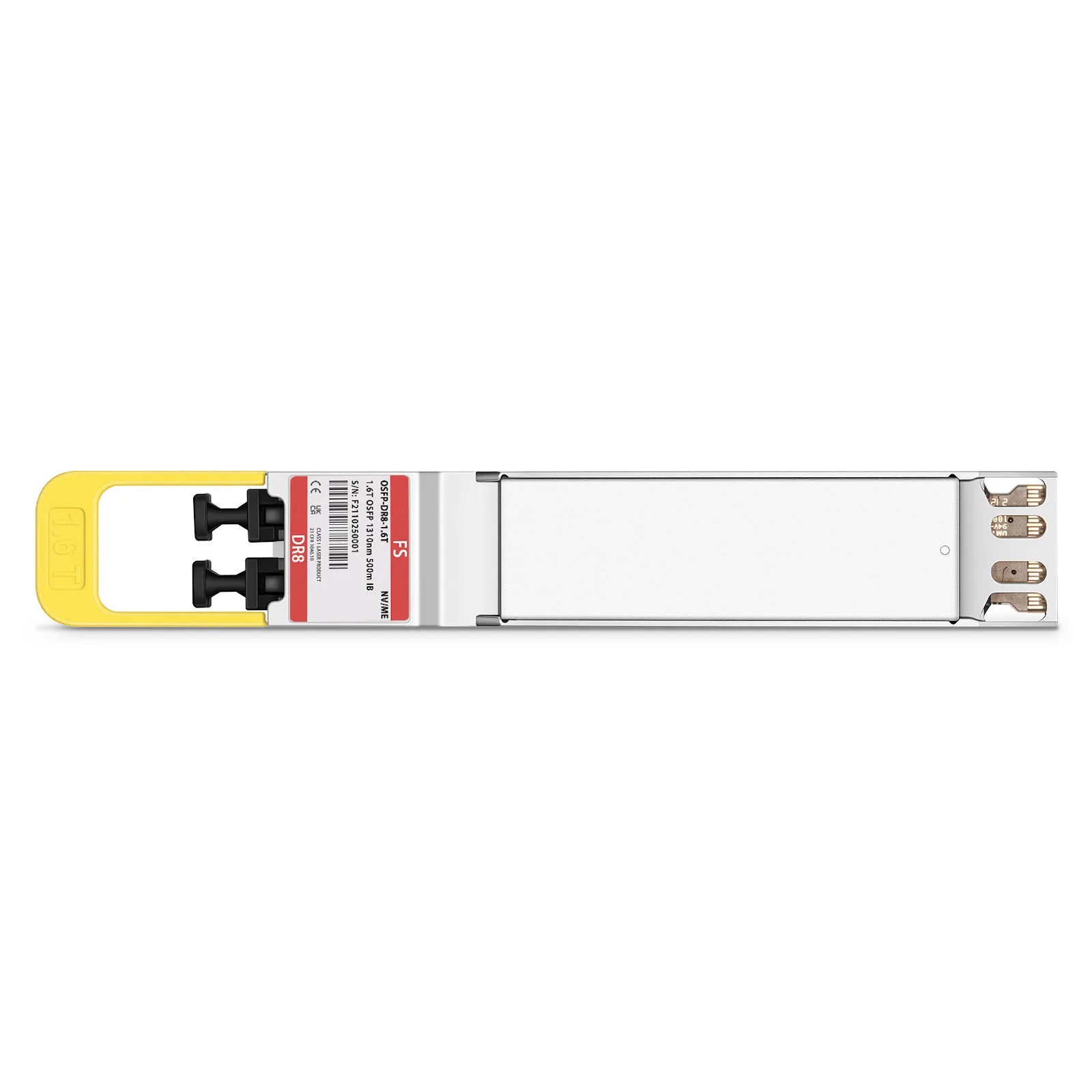

The NVIDIA/Mellanox MMS4A00 compatible OSFP224 optical transceiver is a twin-port module designed for InfiniBand XDR network architectures. It delivers 1.6Tb/s aggregate bandwidth by providing 2 x 800Gb/s connections. Utilizing silicon photonics-based architecture and a 3nm Broadcom DSP, the module supports 8-channel parallel transmission over single-mode fiber with 200G-PAM4 electrical modulation.
Key Features
-

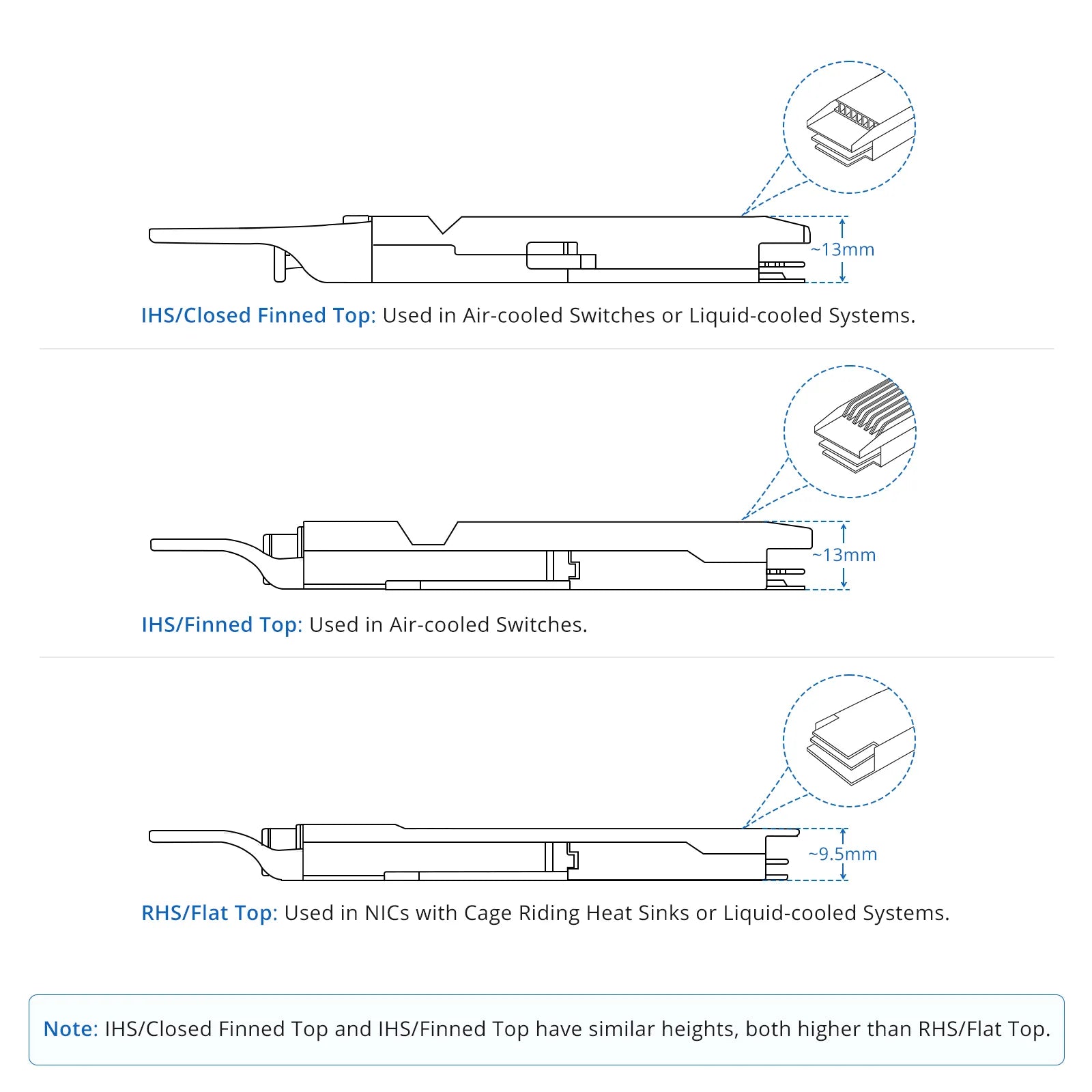

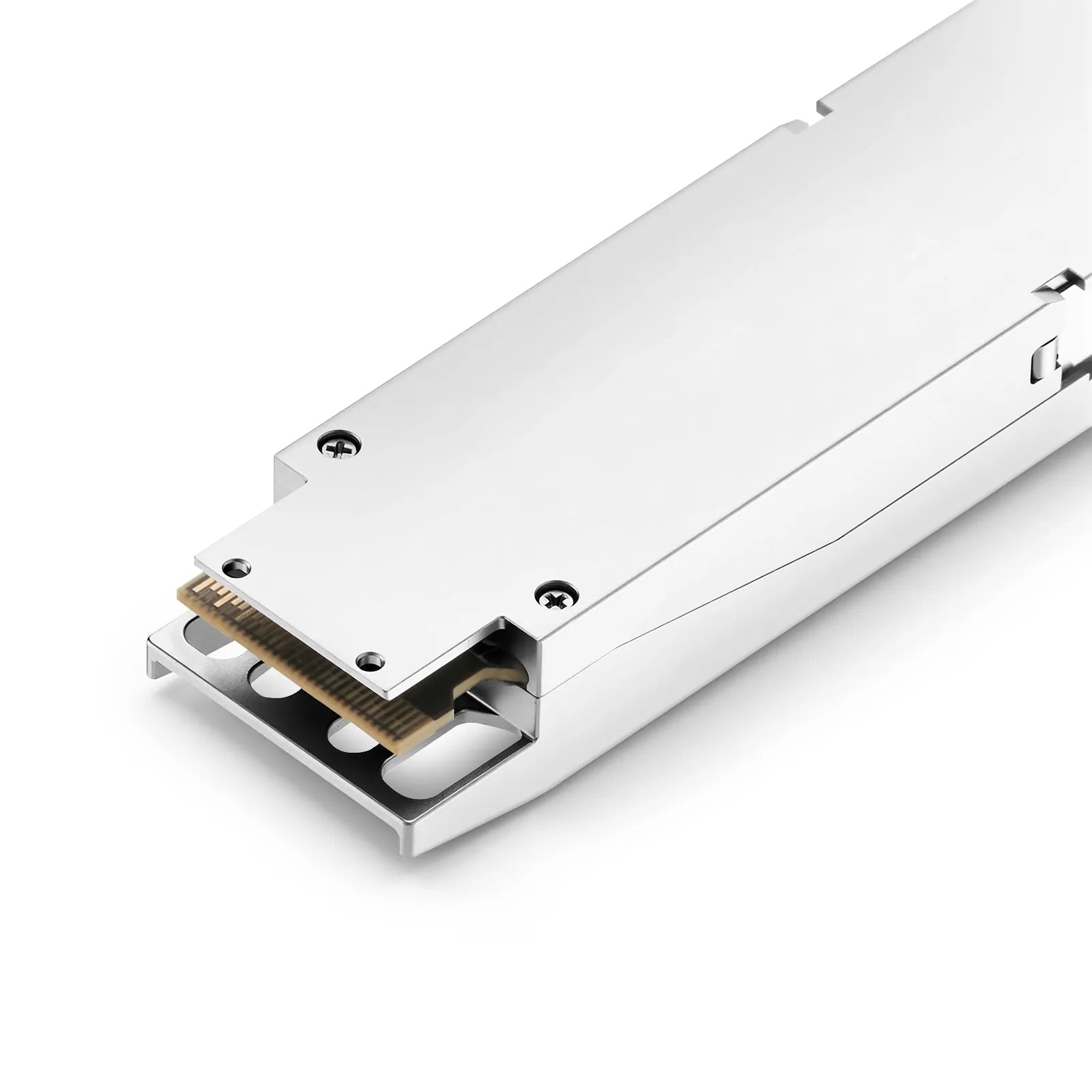

Integrated Heat Sink (IHS) Design: Features an integrated closed finned top for thermal management, compatible with standard air-cooled switch environments.
-

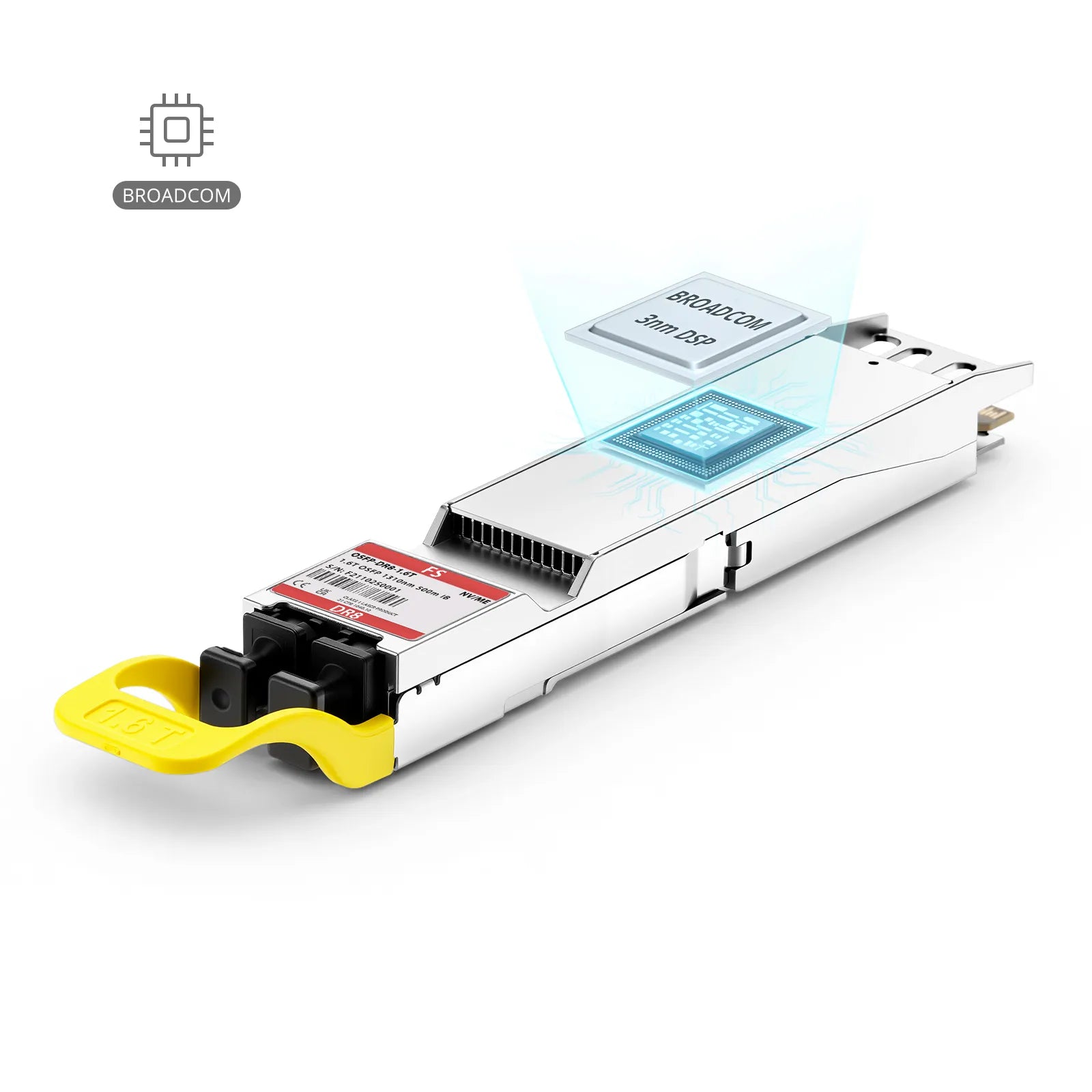

Broadcom 3nm DSP Integration: Utilizes advanced 3nm digital signal processing to facilitate 8x 200G-PAM4 modulation for high-speed data delivery.
-

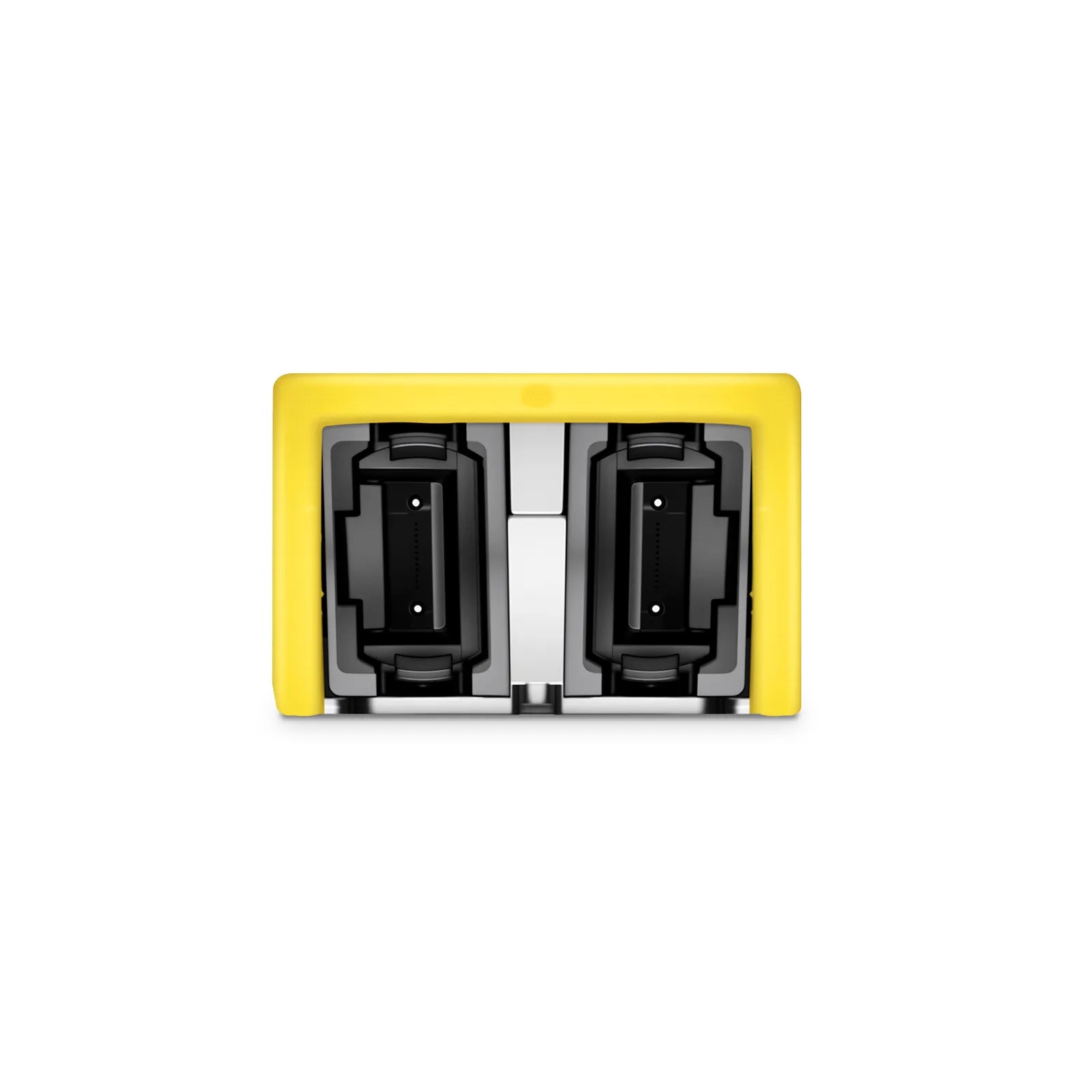

Dual MPO-12/APC Connectivity: Each of the two 800G ports utilizes a dedicated MPO-12/APC interface for connection to single-mode fiber infrastructure.
-
Silicon Photonics Technology: Implements a SiPh-based optical design to maintain high port density and efficient signal transmission at 1310nm.
-
InfiniBand XDR Compatibility: Engineered specifically for compatibility with NVIDIA Quantum-X800 switches and DGX GB300/B300 systems.
Technical Specifications
| Form Factor |
OSFP224 |
| Data Rate |
1.6T (2 x 800Gb/s) |
| Wavelength |
1310nm |
| Media |
Single-Mode Fiber (SMF) |
| Reach |
Up to 500 meters |
| Interface |
Dual MPO-12/APC |
| Modulation |
200G-PAM4 |
| Chipset |
Broadcom 3nm DSP |
| Max Power Consumption |
25W |
| Thermal Management |
IHS/Closed Finned Top |
