Overview

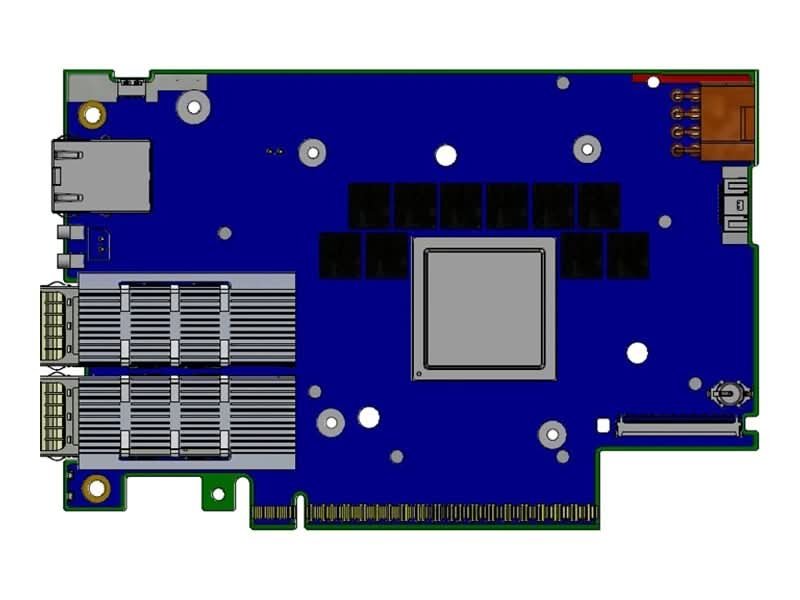

NVIDIA 900-9D3B6-00CC-EA0 BlueField-3 B3210E E FHHL DPU 100GBE Network Adapter
Specifications
Model Number:900-9D3B6-00CC-EA0
Brand: NVIDIA
Alt Part Number(s):900-9D3B6-00CC-EA0
Product Type: Network Adapter
Technical Description
Brand: NVIDIA
Model:900-9D3B6-00CC-EA0
Form Factor: Plug-in card
Interface (Bus) Type: PCI Express 5.0 x16
PCI Specification Revision: PCIe 5.0, PCIe 4.0, PCIe 3.0, PCIe 2.0, PCIe 1.1
Ports: 100 Gigabit QSFP112 x 2
Connectivity Technology: Wired
Cabling Type: Ethernet 100GBase-CR4, Ethernet 100GBase-CR2, Ethernet 100GBase-CR1, Ethernet 50GBase-CR, Ethernet 50GBase-R2, Ethernet 40GBase-CR4, Ethernet 40GBase-R2, Ethernet 25GBase-R, Ethernet 10GBase-R, Ethernet 10GBase-CX4, Ethernet 1000Base-CX
Data Link Protocol: InfiniBand, 100 Gigabit Ethernet, 50 Gigabit Ethernet, 40 Gigabit Ethernet, 25 Gigabit Ethernet, 10 Gigabit Ethernet, Gigabit Ethernet
Features: Crypto enabled, integrated BMC, 16-core CPU, FHHL, 40GB pSLC eMMC memory, built-in 128GB SSD, InfiniBand HDR100 Link support, InfiniBand EDR Link support, InfiniBand FDR Link support, InfiniBand SDR Link support, XLPPI electrical interface, PCIe x16 extension option
RAM: 32 GB
Interfaces: 2 x 100Gb Ethernet / 100Gb InfiniBand - QSFP112
Included Accessories: Tall bracket
Compliant Standards: IBTA 1.5, CB, cTUVus, FCC, VCCI, ICES, RCM, RoHS
Power: DC 12 V
Voltage Required: DC 12 V
Dimensions (WxDxH): 6.6 in x 4.4 in
Min Operating Temperature: 32 °F
Max Operating Temperature: 131 °F
Humidity Range Operating: 10 – 85% RH
*
