Description

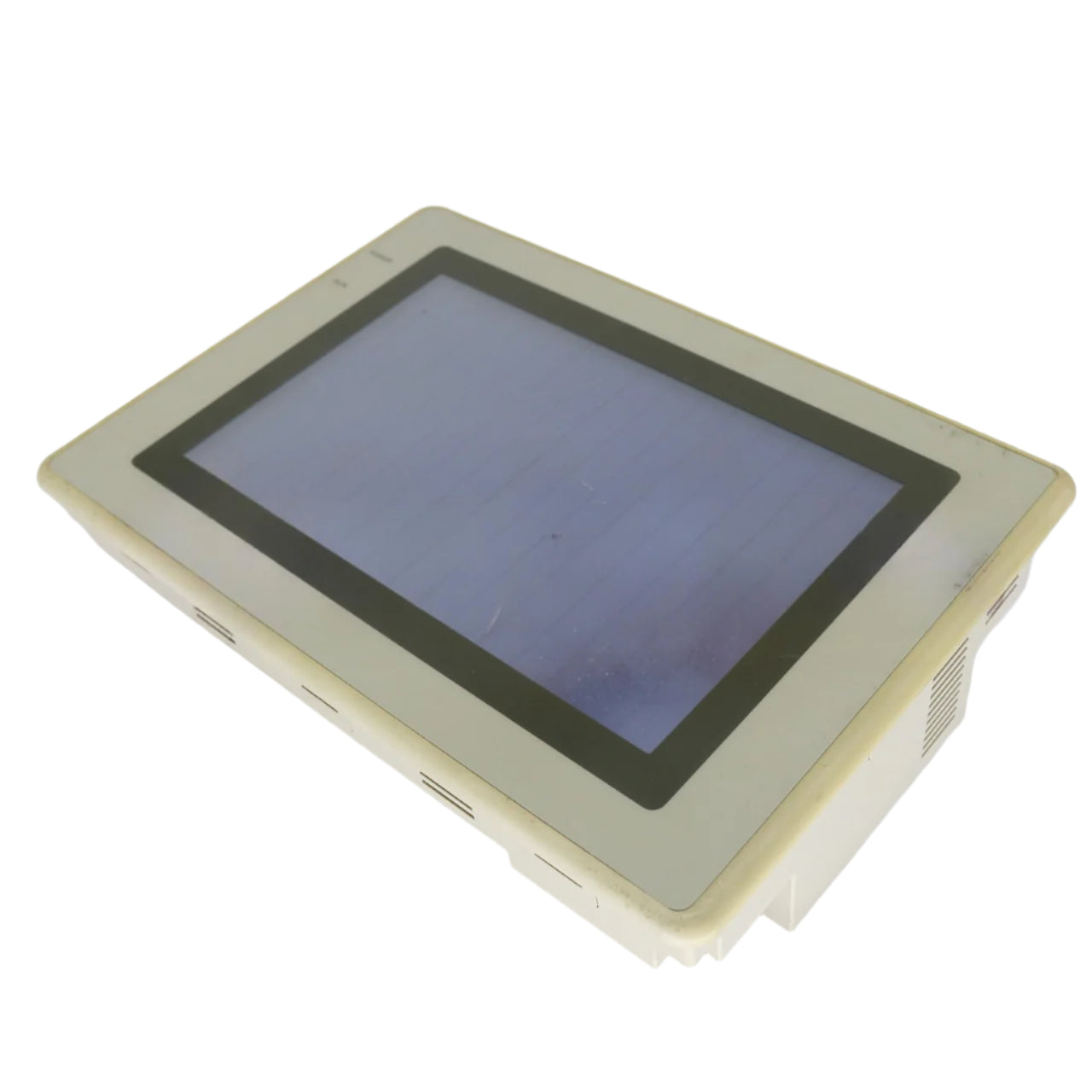

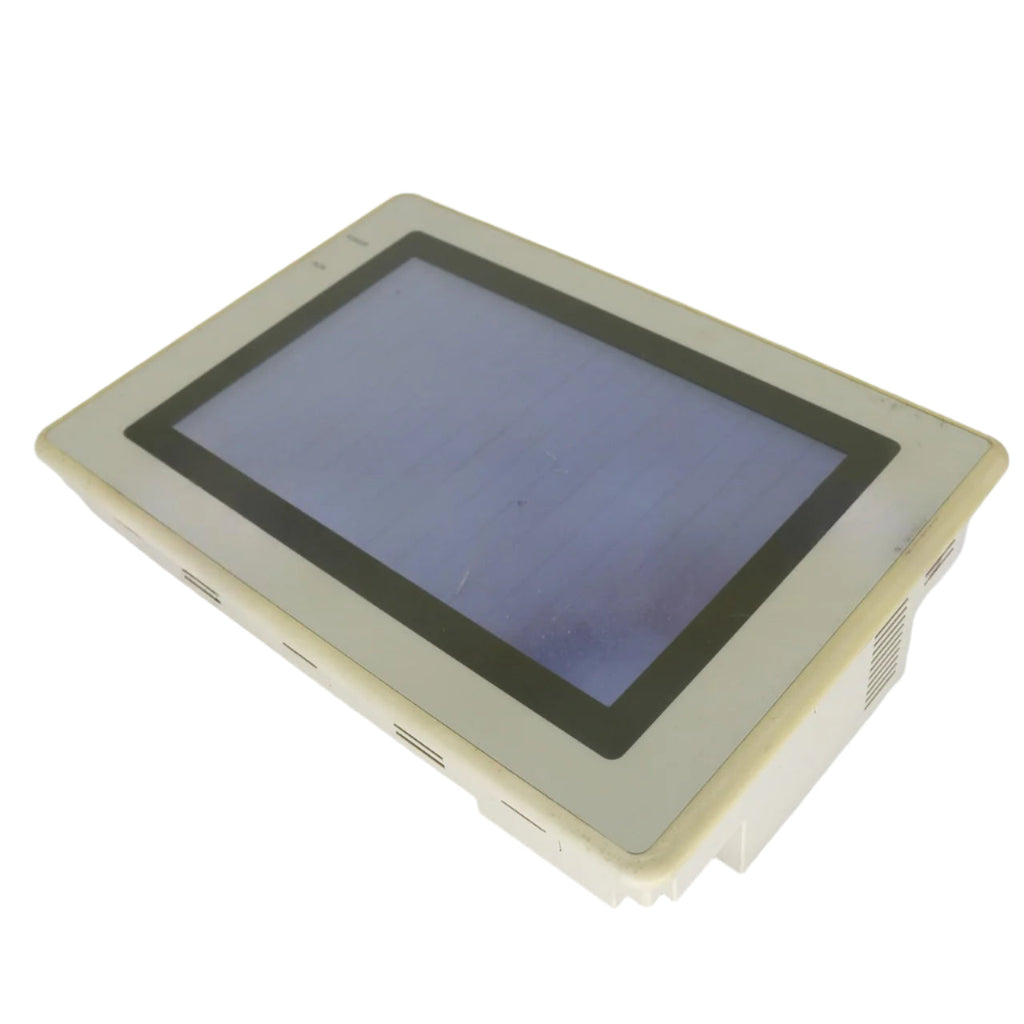

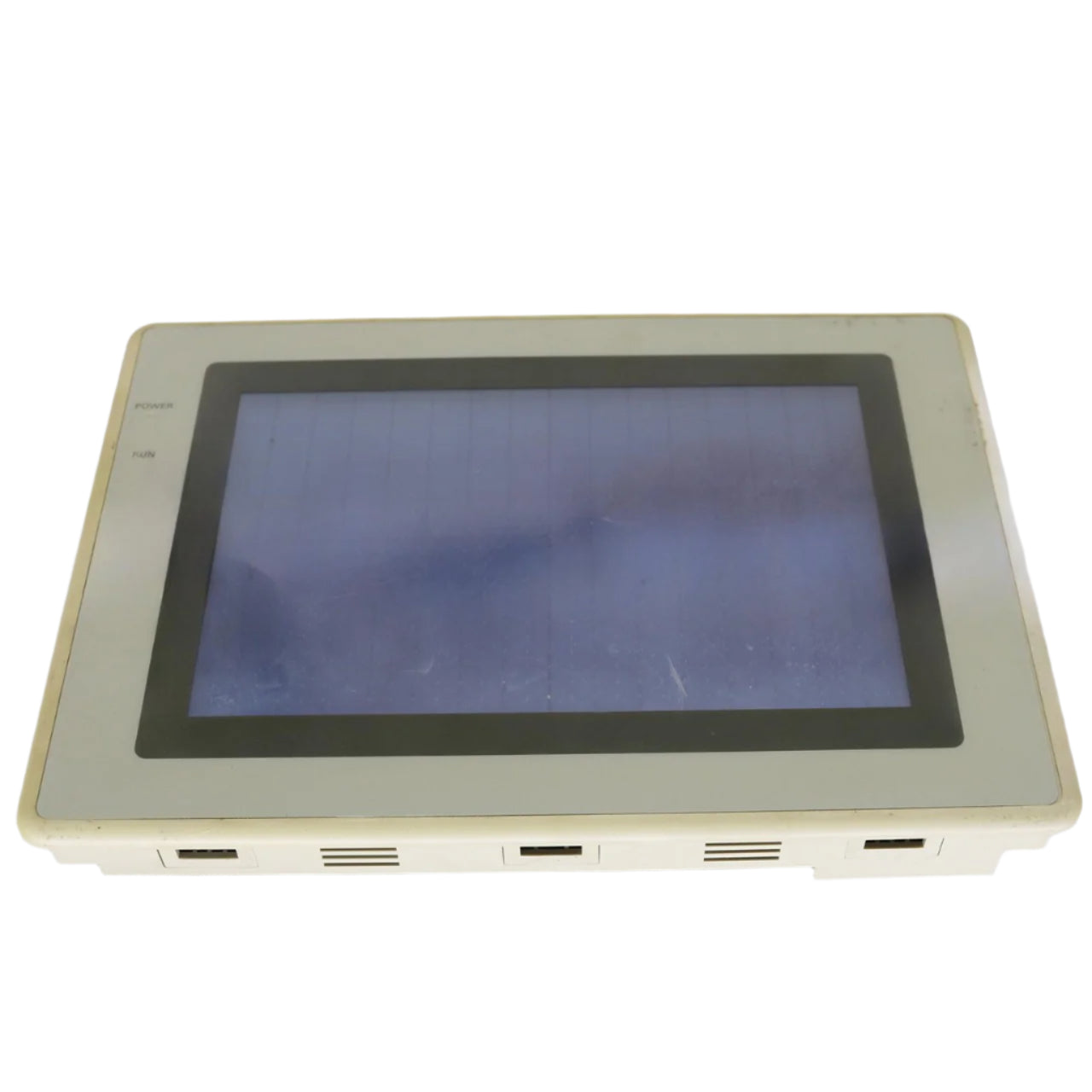

The Omron NT600S-ST121-V3 is a durable HMI touchscreen panel designed for precise control and data visualization in industrial environments. Its pressure-sensitive LCD and broad voltage range provide adaptability and usability in demanding settings.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Omron |
| Category |
|
| Part Number |
NT600S-ST121-V3 |
| Subcategory |
Operator Interface |
| Series |
NT |
| Power Supply Voltage Range |
20.4 to 26.4 VDC (24 VDC Typical) |
| Power Consumption |
15W max. at 24 VDC |
| Ambient Operating Temperature |
0 to 50 °C |
| Ambient Operating Humidity |
35 to 85 % RH (without condensation) |
| Ambient Storage Temperature |
-20 to 70 °C |
| Dimensions |
275 x 192 x 71 mm |
| Weight |
1.8 kg max. |
| Degree of Protection |
IP65 |
| Resolution |
640 x 400 dots (0.3mm dots) |
| Display Type |
LCD Touchscreen, Pressure-sensitive type input |
| Number of Touch Switches |
8 x 16 (max. 128 registrable per screen) |
| Memory Capacity |
128 KB |
| Connector |
9-pin DSUB Female |
| Communications Protocol |
C-Series SYSWAY |
Information About NT600S-ST121-V3
The NT600S-ST121-V3 is a member of Omron’s NT series, built to offer reliable interface capabilities in environments requiring high protection and flexibility. Operating between 20.4 to 26.4 VDC (with a nominal 24 VDC), this panel consumes a maximum of 15 watts, making it efficient for continuous use in control systems.
Its robust enclosure measures 275 x 192 x 71 mm and weighs up to 1.8 kg, providing IP65-rated protection against dust and water ingress. With a 640 x 400 dot resolution on a pressure-sensitive LCD touchscreen, users benefit from a responsive interface with up to 128 registrable touch switches per screen. Communication is established via the C-Series SYSWAY protocol using a 9-pin DSUB female connector.
Key Features:
- Power Range and Efficiency: Supports a wide input range of 20.4–26.4 VDC with a typical 24 VDC operation and 15 W max power consumption.
- High Display Clarity: Offers 640 x 400 dot resolution with 0.3 mm dots on a pressure-sensitive LCD for detailed and clear interface visibility.
- Touch Interface Capacity: Supports up to 128 registrable touch switches per screen in an 8 x 16 matrix layout for flexible operations.
- Environmental Endurance: Operates in temperatures from 0 to 50 °C and withstands storage conditions between -20 and 70 °C with 35–85% RH humidity tolerance.
- Durability and Protection: Housed in an IP65-rated enclosure, providing strong protection against industrial contaminants.
- Communication Support: Utilizes C-Series SYSWAY protocol and features a 9-pin DSUB female connector for easy integration.
The NT600S-ST121-V3 delivers dependable interaction and clear data visualization with enhanced resistance and protocol compatibility for industrial control applications.
